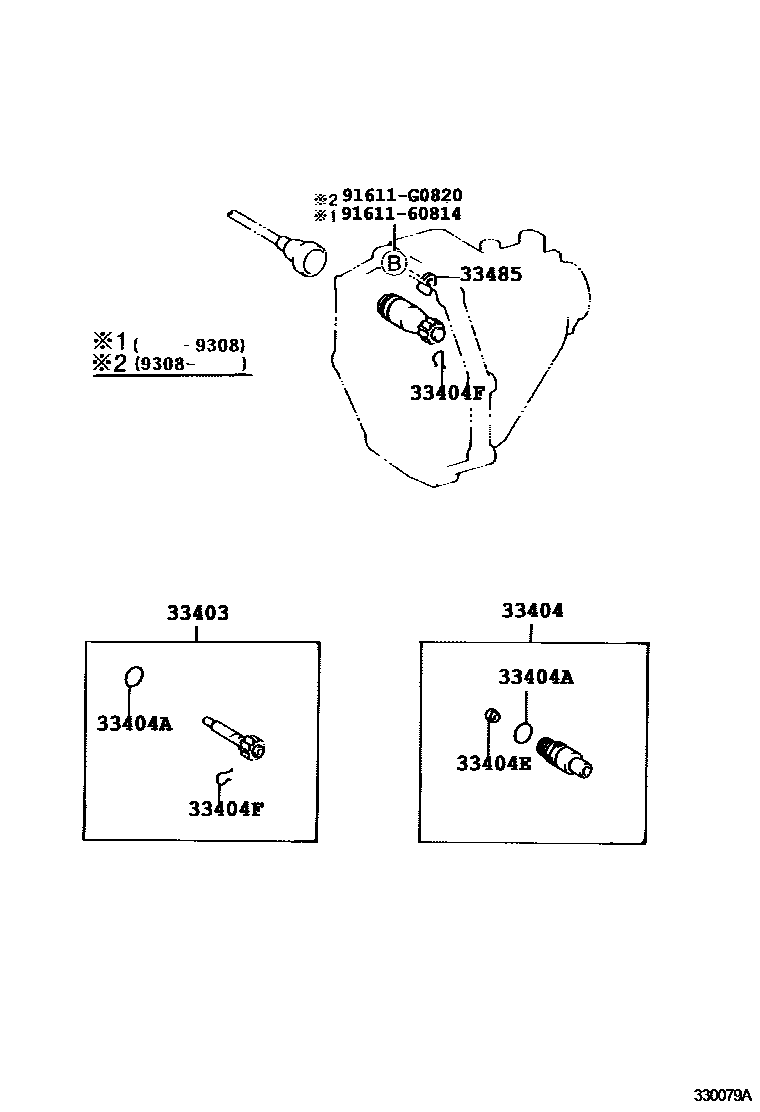

SPEEDOMETER DRIVEN GEAR (MTM)
33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
N=22,MARK 22:6
N=18,MARK 18:5
N=18,MARK 18:6
main33403-39305iLH113..5F..STD;RZH103..RHD..GEN;RZH113..06S..GEN;RZH113..RHD..03S..EFI;LH115,RZH112..LHD..STD;LH103,125,RZH135,153..(03S,06S,12S,14S)..5F199308-200508
N=19,MARK 19:6
main33403-39315iRZH104,114..LHD;RZH103,113,115..5F;LH104,114,RZH105,125..ARL,CIS,GCC;LH102,103,112,113,115,125,RZH102,112..GEN199308-200501
N=20,MARK 20:6
main33403-39325iLH113,115..RHD..SG;LH102,103,104,112,114,RZH102,104,112,114..(GL,STD)..GEN199308-199608
N=21,MARK 21:6
main33403-39385iRZH112..SRF;RZH115..(CIS,GCC)..EFI;RZH105,113,155..CIS,GCC;RZH113,114..LHD..(03S,15S)..GEN;RZH102,104,115..LHD..(03S,06S,12S,15S)..CBR;LH102,103,105,112,113,115,154199608-200308
N=17,MARK 17:5
N=22,MARK 22:6
main33482-39025iRZH104,112..4F;LH103..5F..ARL;RZH102..LHD..4F;RZH102,113..RHD..(4F,5F)..GEN;LH113,125,RZH114..(03S,14S,15S)..(4F,5F)198908-199308
N=19,MARK 19:6
N=21,MARK 21:6
N=20,MARK 20:6
N=16,MARK 16:4
33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
main90468-12005iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908
33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
9161160814
main91611-60814
91611G0820
main91611-G0820
8 parts on this diagram · 2 diagrams in section
