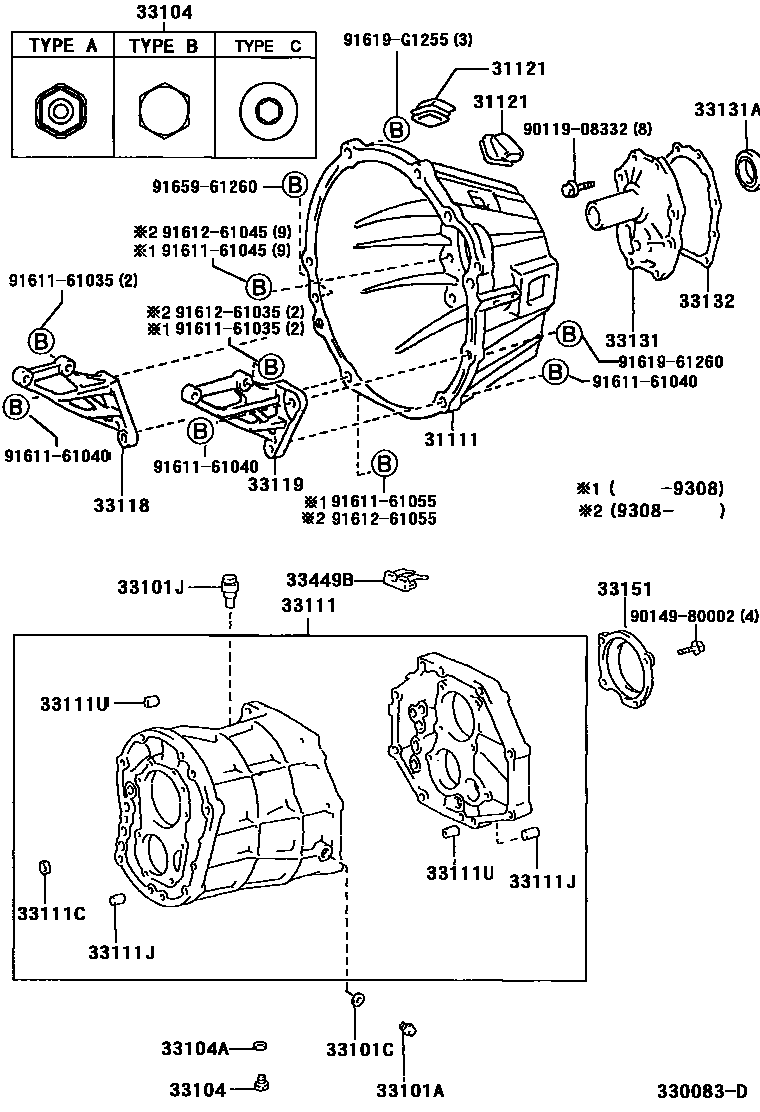

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31111HOUSING, CLUTCH
main31111-0W040iLH174..CIS;LH172..06S..GL..DSL;LH112,174..LHD..(06S,10S);LH10#,113,115,162,164..5F..(CIS,GEN);LH114,172..RHD..SRF..4D..(03S,15S)..STD..GEN199805-200412
TAP:REFER TO ILLUSTRATION
sub31111-26040
sub31111-26040
sub31111-26031
sub31111-26032
(J)
main31111-26032iRZH114,125..5F;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,135,153..SMRF,SRF;RZH113..4D..5F..STD..(ARL,GEN)..EFI199703-200511
main31111-26040iLH172..HRF;LH172..LHD..4D;LH172..03S..GL;LH172..5D..03S..GEN;LH172..5F..(ARL,GCC);LH172,174..06S,10S,15S;LH10#,11#,125,154,16#,176,184..5F198908-200501
TOYOTA:REFER TO ILLUSTRATION
31121COVER, CLUTCH HOUSING, NO.1
main31121-26020iRZH114,125..4F,5F;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,135,153..SMRF,SRF;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..E198908
LH
RH
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
main90341-18006iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
main90430-18008iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908
33101JPLUG, BREATHER
main90930-03085iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908
33104PLUG SUB-ASSY, DRAIN(MTM)
TYPE A:REFER TO ILLUSTRATION
TYPE C:REFER TO ILLUSTRATION
main90341-18057iRZH112..4D..06S;LH112,RZH105..LHD..SG..STD;LH174,RZH103,115..5F..(ARL,CIS);LH114,172,RZH114..RHD..SRF..4D..(03S,15S)..STD..GEN;LH172,174,RZH114,155..(06S,10S,11S,15198908-200412
TYPE B:REFER TO ILLUSTRATION
33104AGASKET, DRAIN PLUG(MTM)
33111CASE, MANUAL TRANSMISSION
main33101-0W010iRZH114..15S;RZH113..LHD..EFI;RZH115..STD..CBR;LH172,RZH125..RHD..5F;LH10#,11#,125,184,RZH102,104,112..CIS,GEN;RZH103,105,113,115..5F..STD..(ARL,CIS)..EFI;LH174,RZH1199805-200412
TAP:REFER TO ILLUSTRATION
33111CPLUG(FOR TRANSMISSION CASE)
OD=14
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=16,OD=12
33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)
main90253-11001iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908-200412
L=11,OD=11
main90253-15001iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908
L=14,OD=15
33119PLATE, STIFFENER, LH(MTM)
sub33119-25060
sub33119-26021
main33119-26021iRZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,114,125,135,153..5F;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI199505-200208
33131RETAINER, BEARING, FRONT(MTM)
TAP:REFER TO ILLUSTRATION
sub33131-26020
main33131-0W020iRZH114..15S;RZH113..LHD;RZH115..STD..CBR;RZH105,113,115..5F..STD..(ARL,CIS);LH174,RZH105,115..(10S,12S)..(CBR,DSL);LH172,RZH103,125..RHD..4D..5F..(GL,STD);LH10#,11#199809-200412
TAP:REFER TO ILLUSTRATION
main33131-26020iLH172..HRF;RZH112..LHD;LH172..03S..GL;LH172..LHD..4D;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172..5F..(ARL,GCC);LH172,174,RZH114..06S,10S,15S;LH10#,11#,125,154,16#,17198908-200501
TOYOTA:REFER TO ILLUSTRATION
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
sub90311-30014
main90311-30014iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D199007-200501
33132GASKET, FRONT BEARING RETAINER(MTM)
main33132-28010iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908-200501
33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
main33151-35030iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908
33449BMAGNET, TRANSMISSION
main33449-26010iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908
9011908332
main90119-08332
9014980002
main90149-80002
9161161035
main91611-61035
9161161040
main91611-61040
9161161045
main91611-61045
9161161055
main91611-61055
9161261035
main91612-61035
9161261045
main91612-61045
9161261055
main91612-61055
9161961260
main91619-61260
91619G1255
main91619-G1255
9165961260
main91659-61260
30 parts on this diagram · 4 diagrams in section
