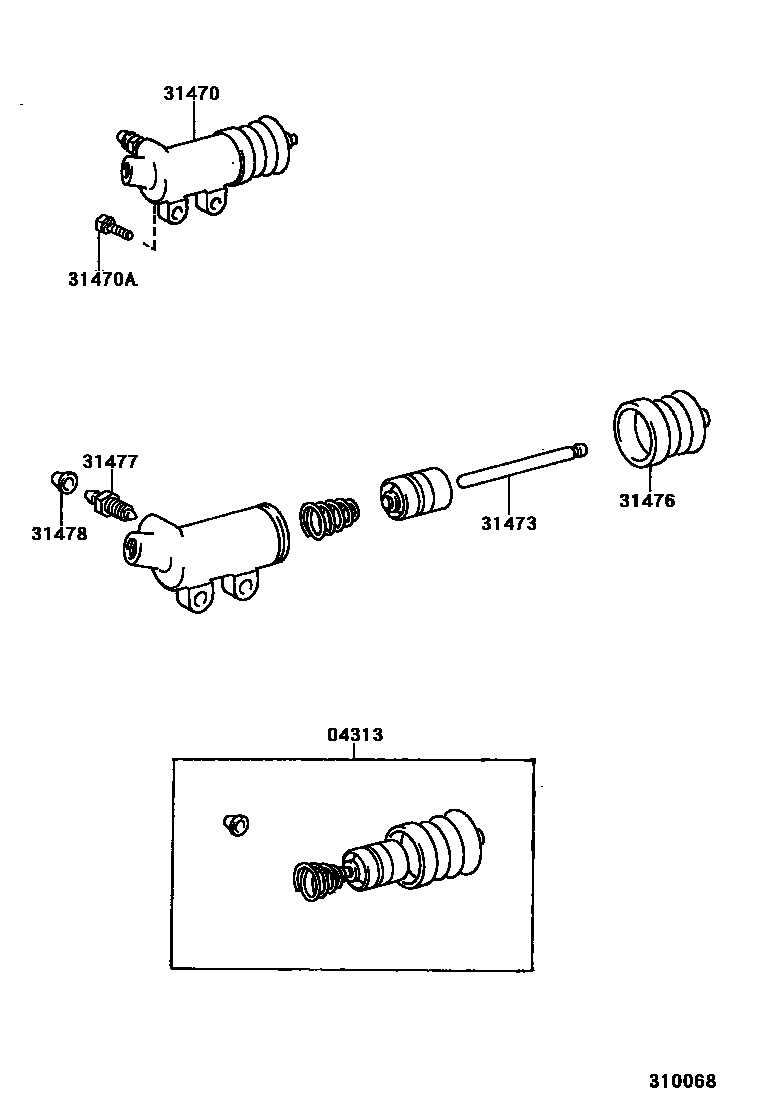

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iLH10#,11#,125,RZH10#,11#,125..4F,5F198908-199410

main04313-17010iLH10#,11#,125..5F199410-199504

main04313-22020iRZH10#,11#,125..4F,5F198908-199006

sub04313-12030

main04313-22030iLH174,RZH112..SG..(03S,12S);LH172..RHD..SRF..4D..03S..STD..GEN199410-200501

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-26060iLH10#,11#,125..5F198908-199504

sub31470-26061

main31470-26061iLH10#,11#,125,154,16#,17#,184..5F199504-200008

main31470-26090iRZH10#,11#,125..5F199410-199504

sub31470-26110

main31470-26110iRZH114..GL199504-200208

main31470-28040iRZH10#,11#,125..4F,5F198908-199410

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825iRZH114..GL198908-200408

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iLH174..GL;LH172..RHD;LH10#,11#,125,166,176,184..5F199504-200008

main31473-22010iLH10#,11#,125..5F198908-199504

main31473-32010iRZH112..5D;RZH112,114..03S,15S;RZH10#,113,115,125,135,15#..5F198908-200208

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iRZH112..4D..06S198908-200208

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iRZH102;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06198908-200208

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iRZH102;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06198908-200208

7 parts on this diagram · 1 diagram in section
