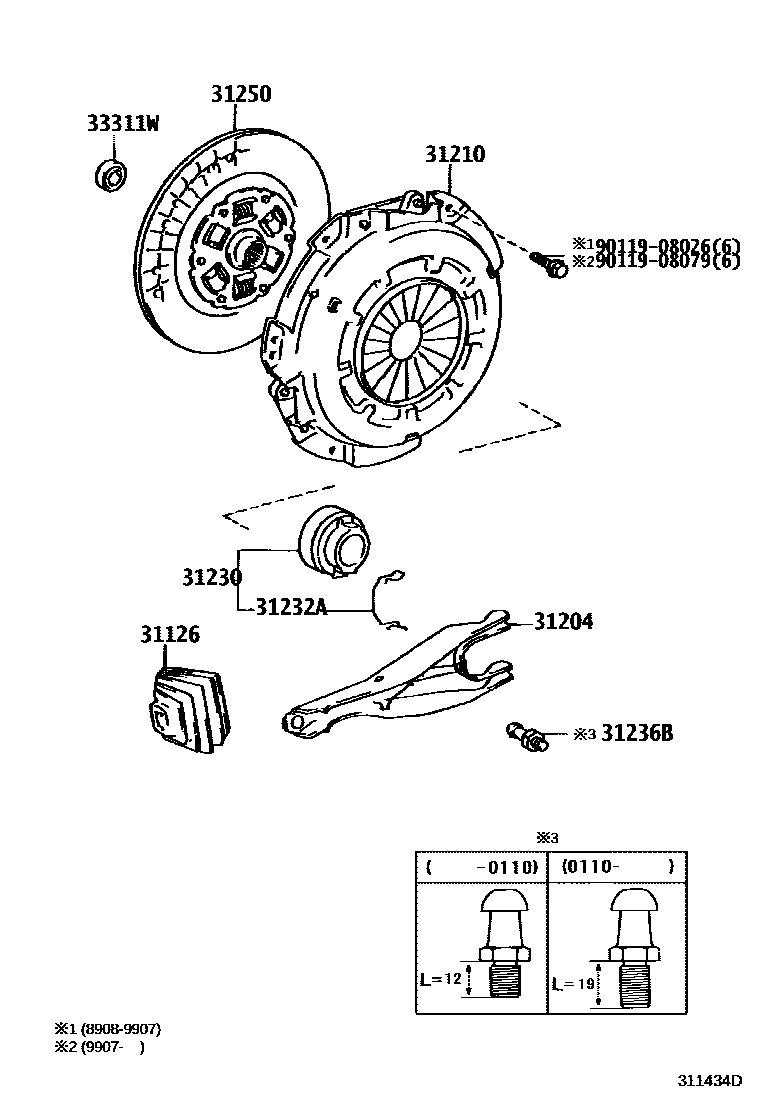

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iLH174..GL;LH172..RHD;LH10#,11#,125,166,176,184..5F198908-200008

main31126-26020iRZH114..15S;RZH10#,112,113,115,125,135,15#..5F198908

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F198908

31210COVER ASSY, CLUTCH

main31210-26110iRZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,114,125,135,153..5F;RZH113..4D..5F..STD..(ARL,GEN)..EFI198908-200308

sub31210-26120

main31210-26120iRZH103..03S..GEN200308-200602

sub31210-26121

main31210-26121iRZH11#200603

sub31210-26122

main31210-26150iRZH113..EFI199405-199508

sub31210-26110

main31210-26160iLH10#,11#,154,16#,17#,184..5F200407-200602

sub31210-26161

main31210-26161iLH114,17#200603

sub31210-26162

main31210-35090iLH102,104,112,114198908-199108

sub31210-22100

main31210-35100iLH10#,11#..GEN198908-199508

sub31210-35101

main31210-35121iLH174..GL;LH172..RHD;LH10#,11#,125,166,176,184..5F198908-200102

sub31210-35122

main31210-35122iLH10#,11#,154,16#,17#,184..5F200102-200407

sub31210-26160

31230BEARING ASSY, CLUTCH RELEASE

main31230-35060iLH103,105,113,115,125..5F198908-200302

sub31230-35061

main31230-35061iLH10#,11#,154,16#,17#,184..5F200302-200602

main31230-35070iLH104,112,114..CIS198908-199508

sub31230-35071

main31230-35090iRZH10#,11#,125,135,153..4F,5F198908-200602

sub31230-35091

31232ACLIP, RELEASE BEARING HUB

main31232-35020iRZH115..SGL;RZH114..15S..GL;RZH104,112..RHD..SG;LH172,RZH104..SG..GL..(CBR,DSL);LH103,113,115,RZH102,115..STD..(CIS,GEN)..(CBR,DSL);LH102,105,112,174,RZH105..LHD..(198908-200111

TYPE A:REFER TO ILLUSTRATION

main31232-35020iRZH115..SGL;RZH114..15S..GL;RZH104,112..RHD..SG;LH172,RZH104..SG..GL..(CBR,DSL);LH103,113,115,RZH102,115..STD..(CIS,GEN)..(CBR,DSL);LH102,105,112,174,RZH105..LHD..(199907-200602

TYPE A:REFER ILLUST.

main31232-35030iLH172..DEFI199907-200602

TYPE B:REFER ILLUST.

main31232-35030iLH174..GL;LH172..RHD;LH10#,11#,125,166,176,184..5F198908-200111

TYPE B:REFER TO ILLUSTRATION

main31232-35040iRZH115;RZH114,125..(14S,15S)..5F;RZH10#,112,113,135,15#..(SMRF,SRF)..5F199907-200602

TYPE C:REFER ILLUST.

main31232-35040iRZH114,125..4F,5F;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,135,153..SMRF,SRF;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..E198911-200602

TYPE C:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-26010iRZH112..4D..SG;RZH113..LHD..06S..GEN;LH112,174..RHD..(03S,06S,12S)200110-200602

main31236-30060iRZH102;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06198908-200110

31250DISC ASSY, CLUTCH

main31250-25130iLH10#,11#,125..5F..(ARL,GCC,GEN)198908-199508

sub31250-26180

main31250-25144iLH114,17#200501

sub31250-26182

main31250-26160iRZH103..5F..(GL,SGL,STD);RZH102,104,105,11#,125,135,153..4F,5F198908-199708

sub31250-35380

main31250-26180iLH10#,11#,125..5F199508-199612

sub31250-26181

main31250-26181iLH10#,11#,125,154,16#,17#,184..5F199612-200012

sub31250-26182

main31250-26182iLH10#,11#,154,16#,17#,184..5F200012-200412

main31250-26200iRZH103..03S..GEN200308

main31250-35220iLH10#,11#..GEN198908-199505

sub31250-35221

main31250-35221iLH104,112,114..CIS199505-199508

sub31250-35222

main31250-35380iRZH10#,11#,125,135,153..5F199703-199901

sub31250-35381

main31250-35381iRZH112..4D..06S199901-200308

sub31250-35382

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLH103..4D..GEN198908-200602

sub90363-12024

main90363-12020iRZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15#..5F200006-200602

main90363-12020iRZH102,103..03S..GEN200006-200208

NACHI

9011908026

main90119-08026

9011908079

main90119-08079

10 parts on this diagram · 2 diagrams in section
