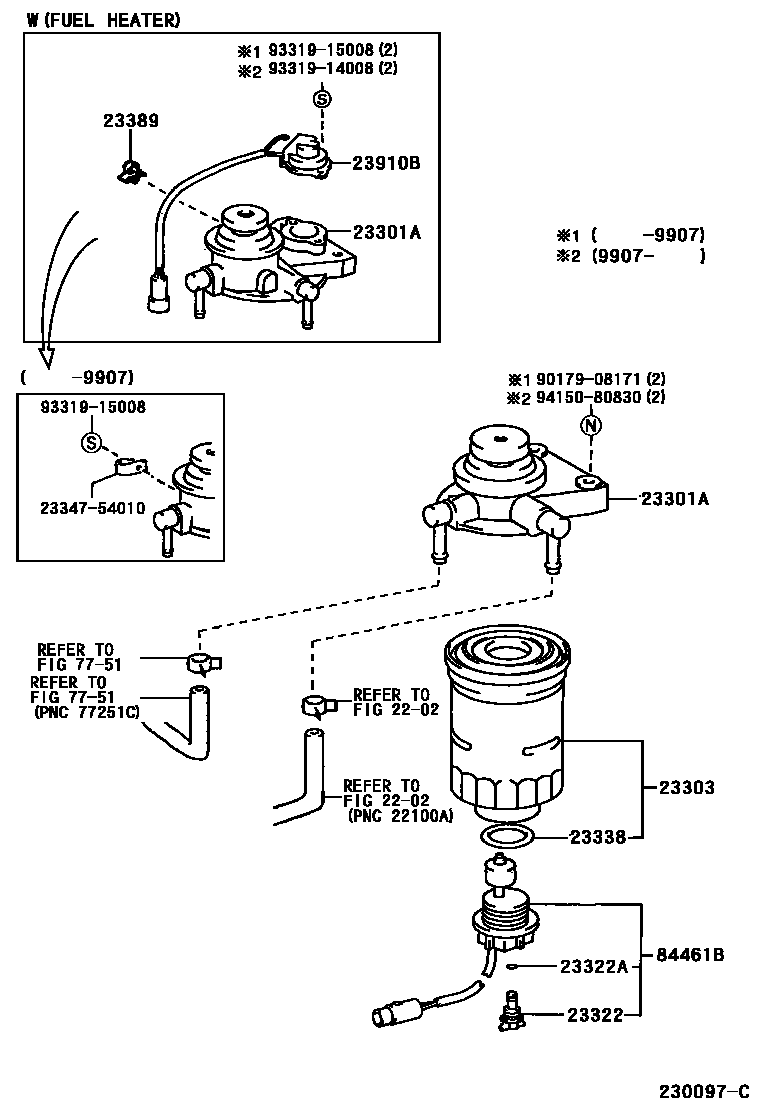

FUEL FILTER

0001 1 0002 1

2202

23301ACAP ASSY, FUEL FILTER

main23301-54530i2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN)198908-199907

W(FUEL HEATER)

main23301-56030i2L,3L..LH10#,11#,125198908-199308

main23301-67050i2L,3L,5L..LH10#,11#,125,172,174,184..ARL,GCC,GEN199308-199907

main23380-67330i5L..LH172..4FC199907-200501

sub23380-67331

main23380-67340i2L,5L..LH112,114,172,174..LHD..(03S,10S,15S)..STD..GEN199907-200501

W(FUEL HEATER)

sub23380-67341

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2L,3L,5L..LH10#,11#,125,166,17#,184198908-199907

main23390-64480i5L..LH174..12S;2L,5L..LH114,172..RHD..SRF..4D..(03S,15S)..STD..GEN199907-200501

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64020i2L,3L,5L..LH10#,11#,125,166,17#,184198908-199907

main23388-64470i5L..LH162..4FC;5L..LH172..06S..GL199907-200501

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i3L..LH103,113,115,125;2L,3L,5L..LH102,105,112,174..LHD..(06S,10S,12S)198908-200501

23338GASKET(FOR WARNING SWITCH)

main23344-64010i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200501

23389CLAMP, FUEL FILTER

main23389-64490i2L,5L..LH112,114,172,174..LHD..(03S,10S,15S)..STD..GEN199907-200501

23910BHEATER ASSY, FUEL

main23910-54040i2L..LH102,104,112,114..LHD198908-199308

main23910-54140i5L..LH174..CIS;2L,5L..LH102,104,164,166,176..03S,12S,15S199907-200501

main23910-67010i2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN)199308-199907

7751

84461BSWITCH, LEVEL WARNING

main84461-12050iLH10#,11#,125198908-199308

main84461-12060iLH10#,11#,125,166,17#,184199308-199907

main84461-26090iLH103..4D..GEN199907-200008

sub84461-26091

2334754010CLIP, CORD

main23347-54010

9017908171

main90179-08171

9331914008

main93319-14008

9331915008

main93319-15008

9415080830

main94150-80830

15 parts on this diagram · 2 diagrams in section
