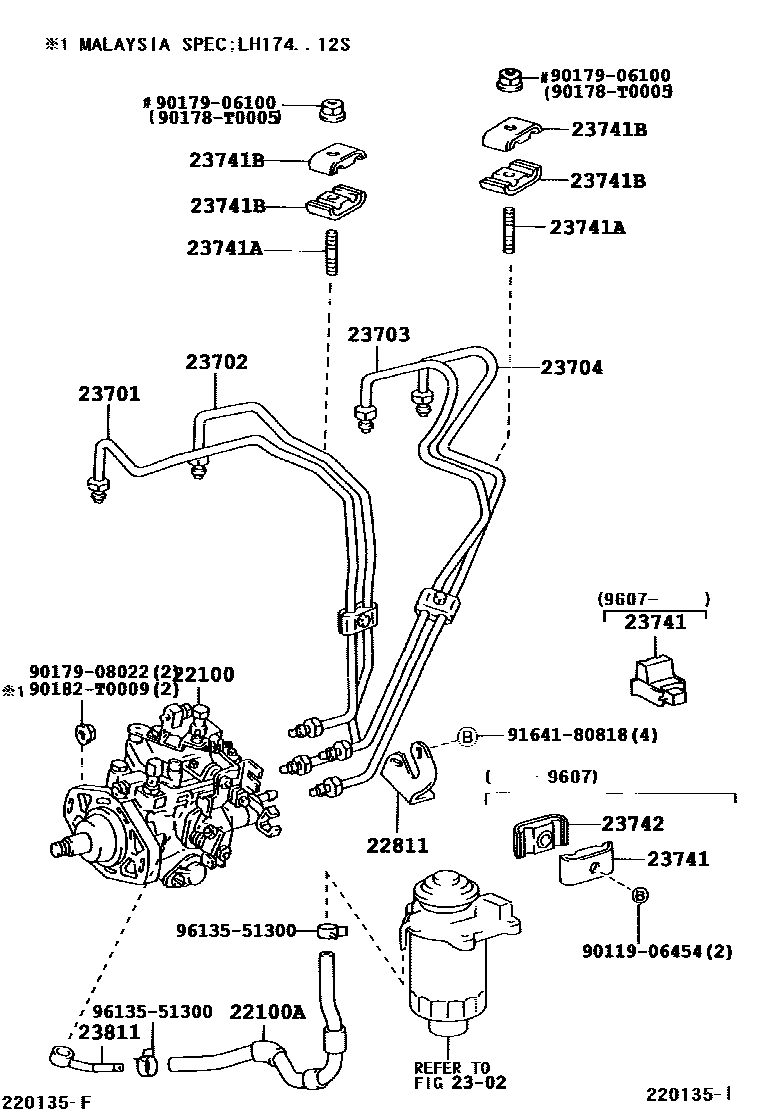

INJECTION PUMP ASSEMBLY

0001 1 0002 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54710i3L..LH125..GEN199610-199808

W(TACHO METER PICK UP SENSOR)

main22100-54710i3L..LH113..06S;3L..LH103..03S..GEN199608-199801

HONG KONG SPEC

main22100-54770i2L..LH112..STD;2L..LH102,104,114..GEN198908-200008

sub22100-54780

main22100-54780i2L..LH112..GL199508-199608

main22100-54800i2L..LH112..STD..GEN;2L..LH102,104,114..SRF..GEN198908-199708

W(HIGH ALTITUDE COMPENSATOR)

sub22100-54810

main22100-54850i3L..LH103,113,115..STD..(GCC,GEN)199508-199708

sub22100-54860

main22100-54860i3L..LH103,113..06S199308-199511

NEW ZEALAND SPEC

main22100-54860i3L..LH125;3L..LH103,105,113,115..5F..(ARL,GCC)198908-199511

main22100-54860i3L..LH103,113,115..STD..(GCC,GEN)199708-200008

W(TACHO METER PICK UP SENSOR)

main22100-54880i3L..LH103,113,125..5F..ARL199508-200008

W(HIGH ALTITUDE COMPENSATOR & TACHO METER PICK UP SENSOR)

main22100-54880i3L..LH103,113,125..5F..ARL199511-200008

NEW ZEALAND SPEC

main22100-5B030i3L..LH113..06S;3L..LH103,115..RHD..GEN199508-199608

HONG KONG OR SINGAPORE SPEC

main22100-5B030i3L..LH103,113,115..GEN198908-199508

main22100-5B060i2L..LH112..RHD199308-200210

MALAYSIA SPEC

main22100-5B120i3L..LH103,113..4FC198908-199511

main22100-5B121i3L..LH125..4FC199511-200008

W(HIGH ALTITUDE COMPENSATOR)

main22100-5B121i3L..LH125..4FC199808-199907

main22100-5B170i2L..LH112..5D199508-200208

TURKEY SPEC

main22100-5B170i2L..LH104,114..LHD199010-199308

*EX-USSR SPEC

main22100-5B170i2L..LH112..DX;2L..LH104,112,114..CIS199411-199808

W(AUTOMATIC COLD START DIVICE)

main22100-5B170i2L..LH112..DX199405-199411

main22100-5B320i2L..LH104,112,114..CIS199308-199411

sub22100-5B360

main22100-5B510i3L..LH113..GL199608-199808

W(TACHO METER PICK UP SENSOR & AUTOMATIC COLD START DIVICE)

main22100-5B510i3L..LH113..GL199608-199907

SINGAPORE OR THAILAND SPEC

main22100-5B740i3L..LH103,113,115..GEN199708-200008

W(HIGH ALTITUDE COMPENSATOR & TACHO METER PICK UP SENSOR)

main22100-5B780i2L..LH10#200008-200501

main22100-5B800i2L..LH102,104,112,114..GEN199708-200501

W(HIGH ALTITUDE COMPENSATOR)

main22100-5D050i3L..LH105,113,115..CIS199808-200008

main22100-5D060i5L..LH166,174,176199808-200501

W/O(HIGH ALTITUDE COMPENSATOR) & W(TACHO METER PICK UP SENSOR)

main22100-5D070i5L..LH162..03S..GEN199808-200501

W/O(HIGH ALTITUDE COMPENSATOR) & W(TACHO METER PICK UP SENSOR)

main22100-5D110i5L..LH172..LHD..4D200008-200501

W(HIGH ALTITUDE COMPENSATOR) & W/O(AUTOMATIC COLD START DIVICE)

main22100-5D120i5L..LH172,174..LHD..4D..STD199907-199909

sub22100-5D121

main22100-5D121i5L..LH172,174..LHD..4D..STD..GEN199909-200501

W(HIGH ALTITUDE COMPENSATOR & AUTOMATIC COLD START DIVICE)

main22100-5D140i3L..LH115..LHD..GEN199902-200008

EGYPT SPEC

main22100-5D180i5LE..LH172200108-200501

main22100-5D230i5L..LH174..15S..GEN;5L..LH172..RHD..STD..GEN200008-200501

main22100-5D240i5L..LH174..LHD..GEN200008-200501

EGYPT SPEC

main22100-5D250i5L..LH162..06S..5F200008-200501

W(HIGH ALTITUDE COMPENSATOR & TACHO METER PICK UP SENSOR)

main22100-5D260i5L..LH172..4FC200008-200501

main22100-5D310i5L..LH172..GCC;5L..LH174..LHD..(GCC,GEN)200108-200208

W(AUTOMATIC COLD START DIVICE)

main22100-5D310i5L..LH174..12S200210-200312

MALAYSIA SPEC

main22100-5D310i5L..LH174..12S200211-200312

main22100-5D340i5L..LH162..ARL200208-200501

main22100-5D340i5L..LH172,174..LHD..4D..GEN200406-200501

PERU SPEC

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-54040i5L..LH174..12S;2L,5L..LH114,172..RHD..SRF..4D..(03S,15S)..STD..GEN199101-200501

main90447-14072i2L,3L..LH10#,11#,125199001-199101

sub23271-54040

main95333-08040i2L,3L..LH10#,11#,125198908-199001

L=400(*H,L=320)

sub95337-08040

22811STAY, INJECTION PUMP, NO.1

main22811-05010i5L..LH172..RHD..SRF..4D..03S..STD..GEN200210-200312

MALAYSIA SPEC

main22811-05010i5L..LH174..12S200211-200312

main22811-05020i5LE..LH172200108-200501

sub22811-05021

main22811-54041i2L,3L..LH10#,11#,125198908-199804

sub22811-54042

main22811-54042i5L..LH174..CIS;5L..LH162..GEN;2L,5L..LH102,104,16#,176..4D..(03S,12S,15S)..5F199804-200501

2302

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54140i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200501

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54140i5L..LH174..12S198908-200501

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54100i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200501

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54100i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200501

23741CLAMP, INJECTION PIPE, NO.1

main23741-54010i2L,3L..LH10#,11#,125198908-199607

main23741-54030i3L..LH103,113,115,125;2L,3L,5L..LH102,105,112,174..LHD..(06S,10S,12S)199607-200501

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main90116-06095i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200501

23741BCLAMP, INJECTION PIPE

main23741-56010i3L..LH103,113,115,125;2L,3L,5L..LH102,105,112,174..LHD..(06S,10S,12S)198908-200501

23742CLAMP, INJECTION PIPE, NO.2

main23742-54010i2L,3L..LH10#,11#,125198908-199607

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-05030i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184199808-200312

(L)

main23811-54170i2L,3L..LH10#,11#,125198908-199002

sub23811-54171

main23811-54171i2L,3L..LH10#,11#,125199002-199108

sub23811-54172

main23811-54172i5L..LH162..GEN;5L..LH172..5F..STD;5L..LH172..03S..GL;2L,5L..LH112,162,174..4D..(03S,06S,15S)..5F;2L,5L..LH102,104,114,154,164,166,176,184..03S,10S,11S,12S,14S,15S199808-200312

(J)

main23811-54172i5L..LH174..CIS;2L,5L..LH10#,16#,176199108-200501

main23811-54210i5LE..LH172200108-200501

9011906454

main90119-06454

90178T0005

main90178-T0005

9017906100

main90179-06100

9017908022

main90179-08022

90182T0009

main90182-T0009

9164180818

main91641-80818

9613551300

main96135-51300

20 parts on this diagram · 2 diagrams in section
