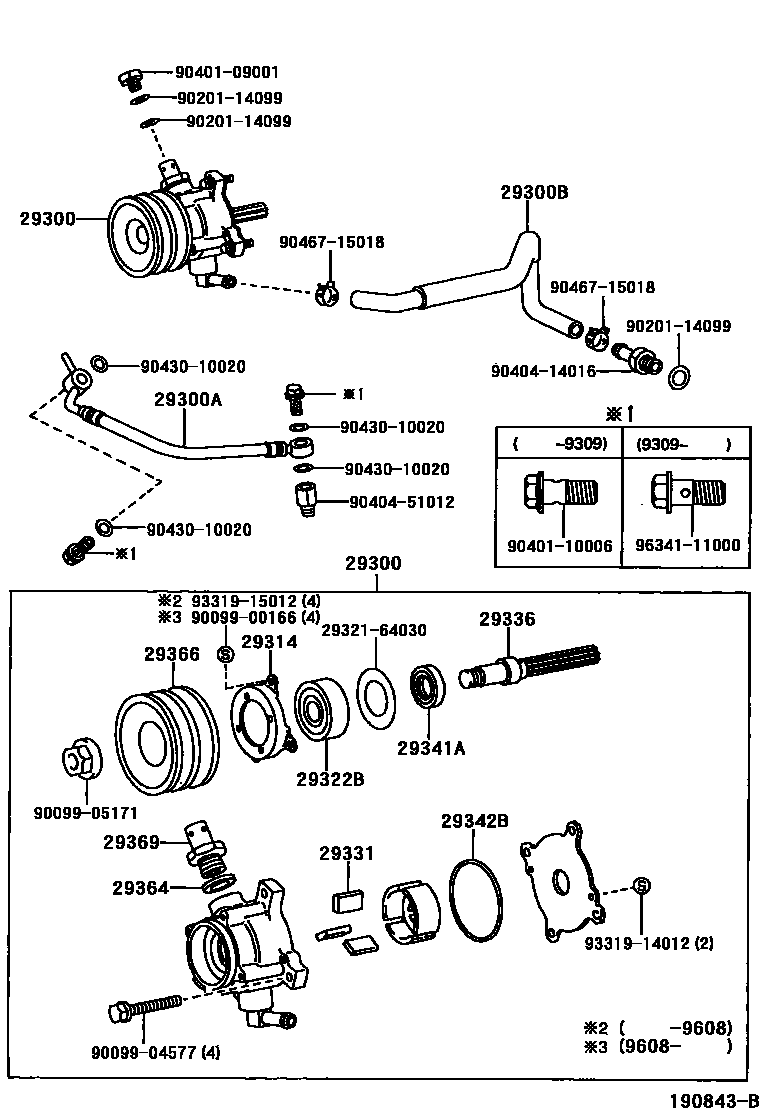

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-54100i2L,3L..LH102,103,112,113198908-199308

sub29300-54130

main29300-54110i2L..LH102,112..RHD..03S198908-199302

ALTERNATOR 12V 70A

main29300-54120i2L,3L..LH10#,11#,125199308-199608

main29300-54140i2L,3L..LH10#,11#,125199608-199805

main29300-54180i2L,3L..LH10#,11#,125199805-199808

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02110i2L,3L..LH10#,11#,125198908-199301

main90923-02118i5L..LH174..CIS;5L..LH162..GEN;2L,5L..LH102,104,16#,176..4D..(03S,12S,15S)..5F199907-200408

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54050i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200008

29314RING, STOP

main29314-64030i2L,3L..LH10#,11#,125198908-199808

29322BBEARING, VACUUM PUMP

main90099-10166i2L,3L..LH10#,11#,125198908-199612

main90099-10199i2L,3L..LH10#,11#,125199612-199808

29331BLADE, VACUUM PUMP, A

main29331-54130×5i5L..LH174..CIS;5L..LH162..GEN;2L,5L..LH102,104,16#,176..4D..(03S,12S,15S)..5F199907-200408

main29331-64030×5i2L,3L..LH10#,11#,125199601-199608

29336SHAFT, VACUUM PUMP

main29336-64030i2L,3L..LH10#,11#,125198908-199008

main29336-64031i3L..LH103..4D..GEN199907-200008

29341ASEAL, OIL

main29341-64030i3L..LH103..4D..GEN199907-200008

29342BRING, O

main29342-64030i3L..LH103..4D..GEN199907-200008

29364WASHER, VACUUM PUMP

main29364-66010i2L,3L..LH10#,11#,125198908-199808

29366PULLEY, VACUUM PUMP

main29366-54080i2L..LH104,114..LHD199010-199308

*EX-USSR SPEC

main29366-54110i3L..LH103,113,115,125;2L,3L,5L..LH102,105,112,174..LHD..(06S,10S,12S)199907-200008

29369VALVE SUB-ASSY, CHECK

main29369-64030i2L,3L..LH10#,11#,125198908-199808

2932164030RING, OIL SEAL STOP, VACUUM PUMP

main29321-64030

9009900166

main90099-00166

9009904577

main90099-04577

9009905171

main90099-05171

9020114099

main90201-14099

9040109001

main90401-09001

9040110006

main90401-10006

9040414016

main90404-14016

9040451012

main90404-51012

9043010020

main90430-10020

9046715018

main90467-15018

9331914012

main93319-14012

9331915012

main93319-15012

9634111000

main96341-11000

26 parts on this diagram · 1 diagram in section
