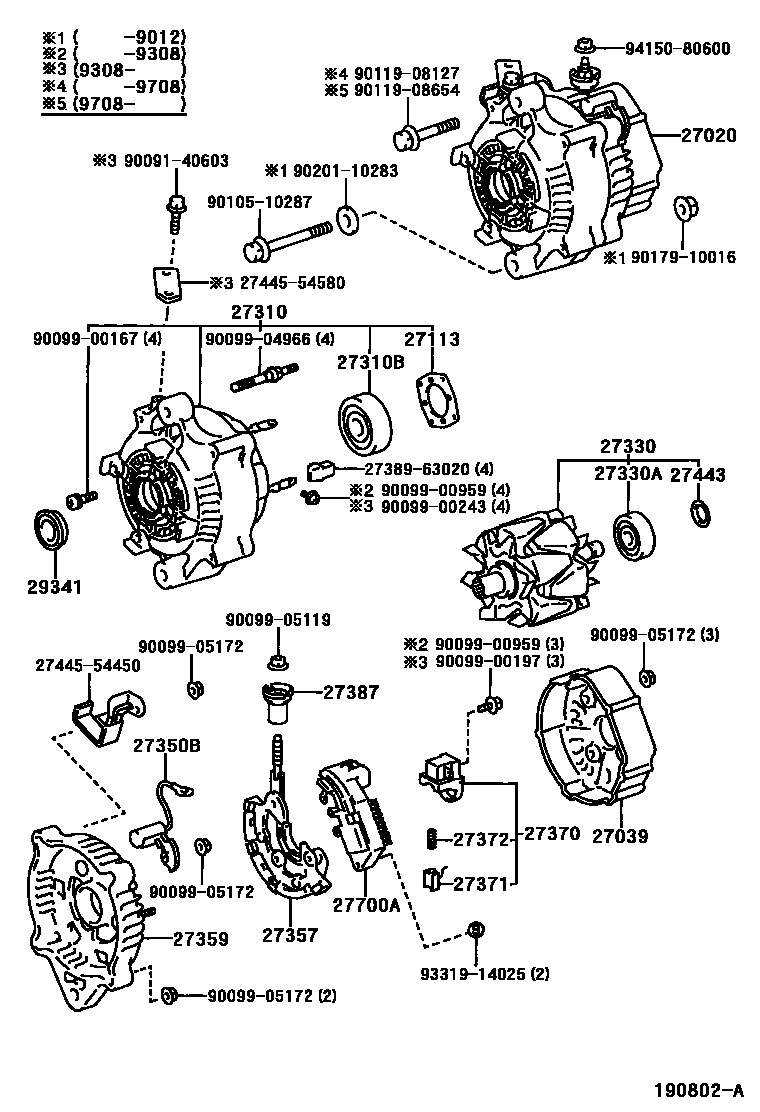

ALTERNATOR

0001 112V 55A,70A,80A 0002 112V 45A,50A 0003 112V 60A 0004 112V 60A 0005 112V 70A 0007 112V 70A,80A 0008 112V 80A 0011 112V 70A

27020ALTERNATOR ASSY

main27060-54030i2L,3L..LH102,103,112,113198908-199308

12V 55A

main27060-54080i2L..LH102,112..RHD..03S;2L,3L..LH104,105,114,115,125198908-199308

12V 70A

sub27060-54110

main27060-54210i2L,3L..LH102,103,104,11#,125..5F..(ARL,GCC,GEN)199308-200107

12V 70A

sub27060-54150

main27060-54220i3L..LH103,113,115,125..RHD..GEN199608-199808

12V 80A

main27060-54300i2L..LH114..LHD199808-200208

12V 80A

main27060-54360i2L..LH10#,11#200108

12V 70A

main27060-72111i1RZ..RZH102,112198908-199205

12V 45A

main27060-72140i2RZ..RZH103..5F..GL;2RZ..RZH103,113..STD198908-199205

12V 50A

main27060-75040i1RZ,2RZ..RZH10#,11#,125199308-199808

12V 60A

main27060-75080i1RZ..RZH102,112199205-199308

12V 55A

main27060-75090i1RZ..RZH104,114;1RZ,2RZ..RZH102,103,112,113,125..RHD198908-199308

12V 60A

main27060-75100i2RZE..RZH113199405-199703

12V 70A

main27060-75110i2RZE..RZH113199508-199604

12V 70A

sub27060-75160

main27060-75150i1RZ..RZH102..GL;1RZ..RZH112..4D..06S199808-200108

12V 70A

main27060-75160i2RZE..RZH105,115..STD..CIS;2RZE..RZH113..4D..STD..GEN;2RZE..RZH103,135,153..RHD..GEN199604-200508

12V 80A

sub27060-75210

main27060-75250i1RZ..RZH112..LHD;1RZ..RZH102,104,114..LHD..SRF..(03S,12S,15S)..STD199907-200208

12V 70A,MALAYSIA SPEC

main27060-75250i1RZ..RZH112..LHD;1RZ..RZH102,104,114..LHD..SRF..(03S,12S,15S)..STD199907-200208

12V 70A,VIETNAM SPEC

main27060-75250i1RZ..RZH102..GL199907-200408

12V 70A,PHILIPPINES SPEC

main27060-75250i1RZ..RZH112,114..SG..(03S,12S)199907

12V 70A

main27060-75250i1RZ..RZH104..GL;1RZ..RZH114..15S..GL199907-200108

12V 70A,CHINA SPEC

27039COVER, ALTERNATOR REAR END

main27039-15170i2L..LH102,112..RHD..03S;2L,3L..LH104,114,115,125199108-199308

12V 70A

sub27039-15171

main27039-16380i2L,3L..LH102,103,104,11#,125..5F..(ARL,GCC,GEN)199701-200108

12V 70A

main27039-55080i2RZE..RZH103,135..RHD..SG;2RZE..RZH105,115..STD..CIS;2RZE..RZH113,153..4D..(GL,STD)..GEN199907-200104

12V 70A

sub27039-70470

main27039-55080i2RZE..RZH113..LHD;3L..LH103,113,115,125..RHD..(SMRF,SRF)..GEN199608-200106

12V 80A

sub27039-70470

main27039-55080i3L..LH125..HRF..GEN;2RZE..RZH103,113,135,153..RHD199508-199808

sub27039-70470

main27039-67100i1RZ..RZH112..4D..06S199808-200501

12V 70A

main27039-67100i1RZ..RZH104..GL;1RZ..RZH114..HRF;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,105,113,115..STD;1RZ..RZH104,112,114..RHD..(03S,12S,15S)199907

main27039-70470i2RZE..RZH103..03S..GEN200104-200108

main27039-72010i2L..LH104,114..LHD;1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH114,125199108-199308

12V 55A

sub27039-15170

main27039-72010i1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D198908-199108

12V 60A

sub27039-15170

main27039-72150i2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD198908-199108

12V 50A

main27039-72150i2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S199108-199205

12V 45A

main27039-73020i2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125199508-199701

12V 55A

sub27039-16380

main27039-73020i2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125199308-199508

sub27039-16380

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-42010i2RZE..RZH105,115..STD..CIS;2RZE..RZH113..4D..STD..GEN;2RZE..RZH103,135,153..RHD..GEN199508-200508

main27312-64130i2L,3L,5L#..LH10#,11#,125,154,16#,17#,184198908-200008

main27312-70200i1RZ,2RZ#..RZH10#,11#,125199205-199808

main27312-70200i1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D198908-199205

12V 60A

main27312-72120i2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S199108-199205

12V 45A

main27312-72120i2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD198908-199108

12V 50A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-43052i2RZE..RZH113199405-199411

sub27310-75100

main27310-43060i1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125199205-199411

sub27310-75040

main27310-43060i1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D198908-199205

12V 60A

sub27310-75040

main27310-54450i2L,3L..LH102,103,112,113198908-199308

12V 55A

main27310-54470i3L..LH103,113,115,125..RHD..(SMRF,SRF)..GEN199608-199808

12V 80A

main27310-54470i2L..LH10#,11#199707-199808

main27310-54500i2L,3L..LH102,103,104,11#,125..5F..(ARL,GCC,GEN)198908-200108

12V 70A

main27310-54710i2L..LH114..LHD199808-200208

12V 80A

sub27310-54650

main27310-54710i5L..LH174..12S200108-200501

sub27310-54650

main27310-72150i1RZ..RZH102,112198908-198910

12V 45A

sub27310-72151

main27310-72151i1RZ..RZH102,112198910-199205

12V 45A

main27310-72170i2RZ..RZH103..5F..GL;2RZ..RZH103,113..STD198908-198910

sub27310-72171

main27310-72171i2RZ..RZH103..5F..GL;2RZ..RZH103,113..STD198910-199205

main27310-75040i1RZ,2RZ..RZH10#,11#,125199411-199808

main27310-75100i2RZE..RZH113199411-199703

main27310-75110i2RZE..RZH113..5D..06S;2RZE..RZH113,115..(03S,15S)..GCC200108-200508

main27310-75110i2RZE..RZH105,115..STD..CIS;2RZE..RZH113..4D..STD..GEN;2RZE..RZH103,135,153..RHD..GEN199508-200508

12V 70A

main27310-75160i1RZ..RZH114..GL199808-200501

12V 70A

main27310-75160i1RZ..RZH104..GL;1RZ..RZH114..HRF;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,105,113,115..STD;1RZ..RZH104,112,114..RHD..(03S,12S,15S)199907

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10159i1RZ..RZH114..15S;1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,104,105,113,115..03S,06S,12S,15S199907-200108

sub90099-10199

main90099-10165i3L..LH103..4D..GEN198908-200008

main90099-10170i2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD198908-198910

12V 50A

sub90099-10198

main90099-10178i1RZ#,2RZ..RZH10#,11#,125199205-199808

main90099-10178i1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D198908-199205

12V 60A

main90099-10192i2RZE..RZH105,115..STD..CIS;2RZE..RZH113..4D..STD..GEN;2RZE..RZH103,135,153..RHD..GEN199508-200508

main90099-10198i2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S199108-199205

12V 45A

sub90099-10229

main90099-10198i2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD198910-199108

12V 50A

sub90099-10229

main90099-10199i1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL199808-200008

27330ROTOR ASSY, ALTERNATOR

main27330-16390i2RZE..RZH103..03S..GEN200007

12V 70A

main27330-16390i2RZE..RZH103,105,113,115,135,15#..CIS,GCC,GEN200007-200508

main27330-64130i2L,3L..LH102,103,104,11#,125..5F..(ARL,GCC,GEN)198908-200108

12V 70A

main27330-64190i2L..LH10#,11#199707-199808

main27330-64190i3L..LH103,113,115,125..RHD..(SMRF,SRF)..GEN199608-199808

12V 80A

main27330-64300i3L..LH103..5D..03S;3L..LH113,115..CIS;3L..LH103,113,125..4FC;3L,5L..LH115,172,184..RHD;2L,3L,5L..LH105,112,114,166,174,176..LHD199808-200208

12V 80A

main27330-64300i5LE..LH172;5L..LH162..4FC;5L..LH174..12S;5L..LH172..5D..06S200108

main27330-64570i1RZ#,2RZ..RZH10#,11#,125199701-199808

main27330-67100i1RZ..RZH112,114..SG..(03S,12S)200108

main27330-67100i1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL199808-200208

12V 70A

main27330-72101i2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH104,114,125;1RZ..RZH102,112..RHD..4F198908-199205

12V 60A

main27330-72101i1RZ,2RZ#..RZH10#,11#,125199205-199701

main27330-72150i2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD198908-199108

12V 50A

main27330-72150i2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S199108-199205

12V 45A

main27330-76030i2RZE..RZH105,115..STD..CIS;2RZE..RZH103,113,135,153..(03S,06S,12S)..GEN199508-200007

12V 70A

sub27330-16390

main27330-76030i2RZE..RZH103,105,113,115,135,153..CIS,GEN199907-200007

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i3L..LH103..4D..GEN;2RZE..RZH103..03S..GEN199205-200108

main90099-10140i1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,114,125..4D198908-199205

12V 60A

main90099-10154i2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S199108-199205

12V 45A

main90099-10154i2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD198908-199108

12V 50A

main90099-10216i1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL199808-200208

27350BCONDENSER, ALTERNATOR

main90099-52106i1RZ..RZH114;1RZ,2RZ..RZH102,104,112,125..RHD198908-199308

main90099-52115i2L,3L..LH10#,11#,125198908-199109

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-11130i1RZ..RZH102,112,114..SG..(03S,10S,12S)200108

main27357-11130i1RZ..RZH102..03S199907-200208

VIETNAM SPEC

main27357-16310i3L..LH103,113,115,125..RHD..(SMRF,SRF)..GEN199608-199808

12V 80A

main27357-16310i3L..LH125..HRF..GEN199707-199808

main27357-16380i2L,3L..LH102,103,104,11#,125..5F..(ARL,GCC,GEN)199701-200108

12V 70A

main27357-55080i2RZE..RZH103..03S..GEN199808-200011

12V 80A

main27357-55080i2RZE..RZH103..03S..GEN199907-200508

12V 70A

main27357-55080i2RZE..RZH103,113,135,153199508-199808

main27357-63020i2L..LH102,112..RHD..03S;1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH104,114,115,125,RZH114,125198908-199205

12V 60A

main27357-63020i1RZ..RZH104,112..RHD;2L..LH102,112..RHD..03S;2L,3L,1RZ,2RZ..LH104,114,115,125,RZH102,114,125..4D199108-199111

12V 60A,70A

main27357-63020i2L..LH102,112..RHD..03S;1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH104,114,115,125,RZH103,113,114,125199205-199701

12V 70A

main27357-63020i2L,3L,1RZ,2RZ#..LH10#,11#,125,RZH10#,11#,125199308-199508

main27357-63060i2L..LH104,114..LHD;2L,3L..LH102,103,112,113198908-199308

12V 55A

main27357-67100i1RZ..RZH102..GL;1RZ..RZH112..4D..06S199808-200108

main27357-72150i2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S199108-199205

12V 45A

main27357-72150i2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD198908-199108

12V 50A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16180i2L,3L,1RZ#,2RZ..LH10#,11#,125,RZH10#,11#,125199205-199601

sub27359-16181

sub27384-16380

main27359-16180i1RZ..RZH102,104,112..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH114,125198908-199205

12V 60A

sub27359-16181

sub27384-16380

main27359-16181i1RZ..RZH104..GL199611-199701

main27359-16181i3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH10#,112,114,115,125,RZH102,103,105,11#,125..HRF,SRF199601-199701

12V 70A

main27359-16182i2L,3L..LH102,103,104,11#,125..5F..(ARL,GCC,GEN)199701-200108

12V 70A

main27359-54420i3L..LH103,113,115,125..RHD..GEN199608-200011

12V 80A

main27359-72150i2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S199108-199205

12V 45A

main27359-72150i2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD198908-199108

12V 50A

main27359-72280i2RZE..RZH113..4D..GEN;2RZE..RZH113..5D..03S..GEN;2RZE..RZH103,105,115,135,15#..CIS,GEN199508-200508

12V 70A

main27359-72280i2RZE..RZH113..5D..06S;2RZE..RZH113,115..(03S,15S)..GCC200108-200508

main27359-75160i1RZ..RZH104..GL;1RZ..RZH114..HRF;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,105,113,115..STD;1RZ..RZH104,112,114..RHD..(03S,12S,15S)199907

main27359-75160i1RZ,2RZ..RZH10#,11#;2RZE..RZH103,113,125..ARL199808-200501

12V 70A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-16011i2L,3L..LH102,103,112,113198908-199308

12V 55A

sub27370-54450

main27370-35060i1RZ..RZH112..4D..06S199508-200208

12V 70A

main27370-35060i1RZ,2RZ#..RZH10#,11#,125199308-199508

main27370-54450i2L..LH102,112..RHD..03S;2L,3L..LH104,105,114,115,125198908-199308

12V 70A

sub27370-58320

main27370-54450i2L,3L..LH10#,11#,125199308-199601

sub27370-58320

main27370-58320i2L,3L..LH102,103,104,11#,125..5F..(ARL,GCC,GEN)199601-200108

12V 70A

main27370-63021i1RZ..RZH104..RHD;1RZ,2RZ..RZH102,103,11#,125198908-199308

sub27370-70300

main27370-75060i3L..LH115..RHD;2RZE..RZH113..LHD;3L..LH103..5D..03S199808-200011

12V 80A

main27370-75060i3L..LH115..RHD;2RZE..RZH113..LHD;3L..LH103..5D..03S199608-200501

12V 55A

main27370-75060i2RZE..RZH113199508-199808

main27370-75060i2RZE..RZH103..03S..GEN199907-200508

12V 70A

27371BRUSH, ALTERNATOR

main27371-63020i1RZ,2RZ..RZH10#,11#,125198908-199108

sub27371-70300

main27371-63020i2L,3L..LH102,103,112,113198908-199308

12V 55A

sub27371-70300

main27371-63020i1RZ..RZH112..4D;1RZ..RZH104..RHD;1RZ..RZH102..03S;2L..LH104,114..LHD;1RZ..RZH112..5D..03S;2L,3L,1RZ,2RZ..LH102,103,112,113,RZH103,113,114,125199108-199205

12V 45A

sub27371-70300

main27371-70300i1RZ..RZH112..4D..06S199308-200208

main27371-70300i2L..LH102,112..RHD..03S;2L,3L..LH104,105,114,115,125198908-199308

12V 70A

27372SPRING, ALTERNATOR BRUSH

main27372-63020i2L,3L,1RZ,2RZ..LH10#,11#,125,RZH10#,11#,125198908-200008

sub27372-87501

main27372-87501i2L..LH112..4D;2L..LH102,104,114..03S,12S,15S199907-200108

main27372-87501i1RZ..RZH112..4D..06S199907-200208

ALTERNATOR 12V 70A

27387INSULATOR, TERMINAL

main27387-10080i2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD198908-199108

12V 50A

main27387-10080i2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S199108-199205

12V 45A

main27387-42020i2RZE..RZH113..LHD199608-199708

12V 55A

main27387-42020i2RZE..RZH113199508-199708

main27387-42021i2L..LH114..LHD..15S199708-200011

12V 80A

main27387-42021i3L..LH115..RHD;3L..LH103..5D..03S199705-199907

12V 55A

main27387-42021i3L..LH125..HRF..GEN199707-199708

main27387-42021i2RZE..RZH115..GL,SGL;2RZE..RZH115..STD..GEN;2RZE..RZH113..5D..03S..GEN;2RZE..RZH113,155..4D..(CIS,GEN);2RZE..RZH103,105,135,153..(03S,09S,12S)..GEN199708-200508

12V 70A

main27387-70170i3L..LH103..5D;3L..LH103..ARL;1RZ..RZH114..LHD..GEN;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH102,104,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF198908-199705

12V 60A

main27387-70170i1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125199205-199709

main27387-70170i3L..LH103..5D;3L..LH103..ARL;1RZ..RZH114..LHD..GEN;3L,1RZ..LH113,RZH104..STD;2L,3L,1RZ#,2RZ..LH102,104,112,114,115,125,RZH102,103,105,112,113,115,125..HRF,SRF199608-199709

12V 70A

main27387-70171i1RZ..RZH104..GL;1RZ..RZH114..HRF;2RZE..RZH103,113,125..ARL;1RZ,2RZ..RZH102,105,113,115..STD;1RZ..RZH104,112,114..RHD..(03S,12S,15S)199907

main27387-70171i2L..LH112..4D;2L..LH102,104,114..03S,12S,15S199705-200501

12V 70A

27443COVER, ALTERNATOR BEARING

main27443-63020i1RZ..RZH104..RHD;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,103,11#,125198908-200208

27700AREGULATOR ASSY, GENERATOR

main27700-10061i2L,3L..LH10#,11#,125198908-199201

sub27700-54050

main27700-10080i2RZ..RZH103..5F..GL;1RZ,2RZ..RZH102,103,112,113..STD198908-199108

12V 50A

sub27700-66010

main27700-10080i2RZ..RZH103,113;1RZ..RZH112..4D;1RZ..RZH102..03S;1RZ..RZH112..5D..03S199108-199205

12V 45A

sub27700-66010

main27700-35040i3L..LH103..4D..GEN199508-200008

main27700-50030i2RZE..RZH105,115..STD..CIS;2RZE..RZH113..4D..STD..GEN;2RZE..RZH103,135,153..RHD..GEN199604-200508

main27700-54050i2L,3L..LH10#,11#,125199201-199308

sub27700-76020

main27700-65010i2L,3L..LH10#,11#,125199308-199608

sub27700-35040

main27700-66020i1RZ..RZH112..RHD;1RZ,2RZ..RZH102,104,114,125..4D199109-199308

12V 60A

main27700-66040i1RZ#,2RZ..RZH10#,11#,125199308-199808

sub27700-75020

main27700-70030i1RZ..RZH112..RHD;2RZ..RZH103..4FC..GL;1RZ,2RZ..RZH102,104,114,125..4D198908-199109

12V 60A

main27700-75020i1RZ..RZH112..4D..06S199808-200208

29341SEAL, ALTERNATOR OIL

main29341-64130i2L,3L..LH10#,11#,125198908-200501

2738963020INSULATOR, TERMINAL

main27389-63020

2744554450

main27445-54450

2744554580

main27445-54580

9009140603

main90091-40603

9009900167

main90099-00167

9009900197

main90099-00197

9009900243

main90099-00243

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905172

main90099-05172

9010510287

main90105-10287

9011908127

main90119-08127

9011908654

main90119-08654

9017910016

main90179-10016

9020110283

main90201-10283

9331914025

main93319-14025

9415080600

main94150-80600

35 parts on this diagram · 8 diagrams in section
