WATER PUMP

0001 1 0002 1

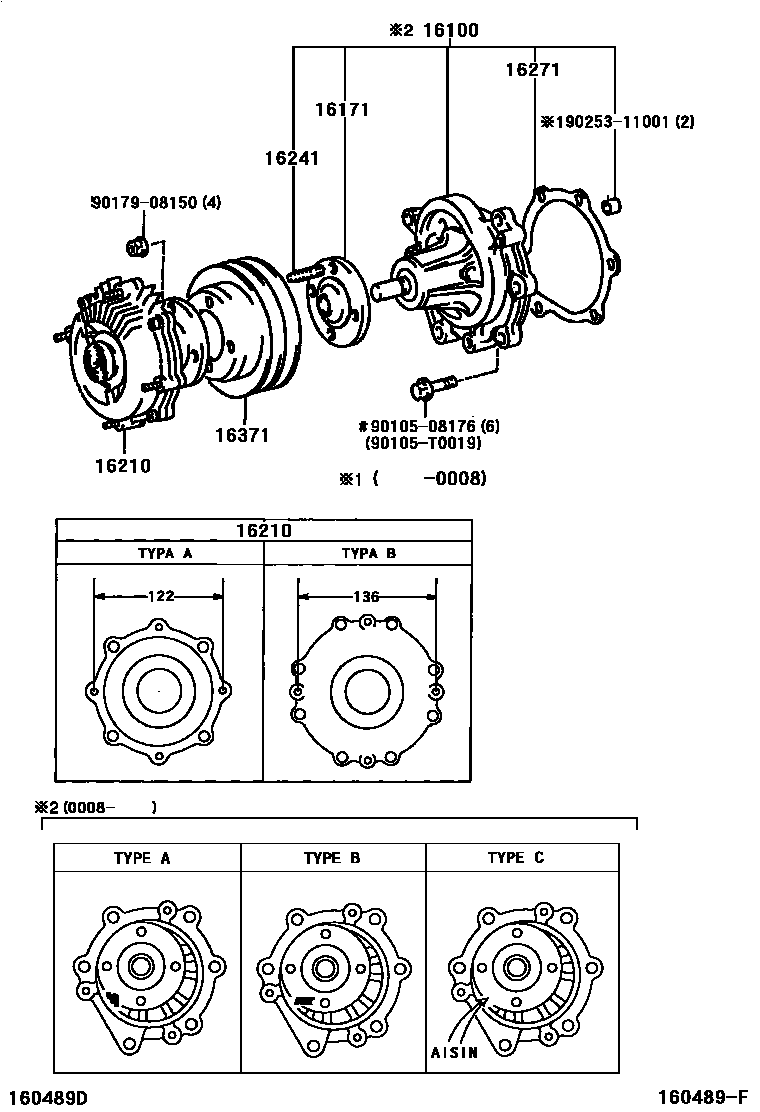

16100PUMP ASSY, ENGINE WATER

main16100-09092i5L..LH174..12S;2L,5LE..LH112,172..RHD200009-200401

TYPE A:REFER ILLUST.

sub16100-59257

main16100-09102i2L,5L..LH10#,112,154,164..LHD;2L,5L..LH114,162,172,174,184..03S,06S,10S,14S,15S200009-200401

TYPE B:REFER ILLUST.

sub16100-59257

main16100-59155i2L,3L..LH10#,11#,125198908-199701

sub16100-59255

main16100-59255i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184199701-200008

sub16100-59256

main16100-59257i2L,5L..LH10#,11#,154,16#,17#,184200008

TYPE C:REFER ILLUST.

main16100-79155i1RZ,2RZ#..RZH10#,11#,125198908-199508

sub16100-79455

main16100-79265i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15S199508-200308

sub16100-79455

main16100-79455i1RZ,2RZ#..RZH10#,11#,125,135,15#200308

16171SEAT, WATER PUMP PULLEY

main16171-41170i1RZ,2RZ#..RZH10#,11#,125198908-199701

main16171-75020i5LE..LH172199701-200501

16210COUPLING ASSY, FLUID

main16210-05010i5LE..LH172200108-200312

TYPE B:REFER TO ILLUSTRATION,(L)

main16210-54180i3L..LH125..4FC;3L..LH105,113,115..CIS198908-200501

TYPE A:REFER ILLUST.

main16210-54200i3L..LH113,115..GCC;2L,3L..LH105,112..09S,12S199308-200008

TYPE B:REFER ILLUST.

main16210-54220i5L..LH174..12S199808-200501

TYPE B:REFER TO ILLUSTRATION

main16210-54220i5LE..LH172200108-200312

TYPE B:REFER TO ILLUSTRATION,(J)

main16210-54240i5L..LH174..LHD..GEN200008-200501

MIDDLE EAST SPEC OR EGYPT SPEC

main16210-54240i5L..LH174..LHD..GEN200008-200501

TYPE B:REFER TO ILLUSTRATION

main16210-75010i1RZ,2RZ..RZH103,104,113,125..4FC,5F198908-200208

main16210-75020i1RZ,2RZE..RZH102,113..4D;1RZ..RZH104,112,114..CIS;1RZ..RZH104,112,114..RHD;1RZ..RZH102..RHD..5D..03S198908-199508

main16210-75050i2RZ..RZH115;2RZ#..RZH105,113,115..GCC199912-200501

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main92122-40816i2L,3L..LH10#,11#,125198908-199605

main92122-60818i5L..LH174..15S;2L,5L..LH10#,11#,154,16#,172,176,184199605-200502

main92122-80818i2L,5L..LH114,17#200503

16271GASKET, WATER PUMP

main16271-54020i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200008

sub16271-54030

main16271-54030i5LE..LH172200008-200501

16371PULLEY, FAN

main16371-05010i5LE..LH172200304-200501

(L)

main16371-54030i5L..LH162..4FC;5L..LH172..06S..GL198908-200501

main16371-54030i5L..LH172..RHD..SRF..4D..03S..STD..GEN200304-200501

(J)

main16371-75010i1RZ#,2RZ..RZH10#,11#,125;2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN)198908-200202

sub16371-75020

main16371-75020i1RZ..RZH112..4D..06S199907-200208

9010508176

main90105-08176

90105T0019

main90105-T0019

9017908150

main90179-08150

9025311001

main90253-11001

10 parts on this diagram · 2 diagrams in section
