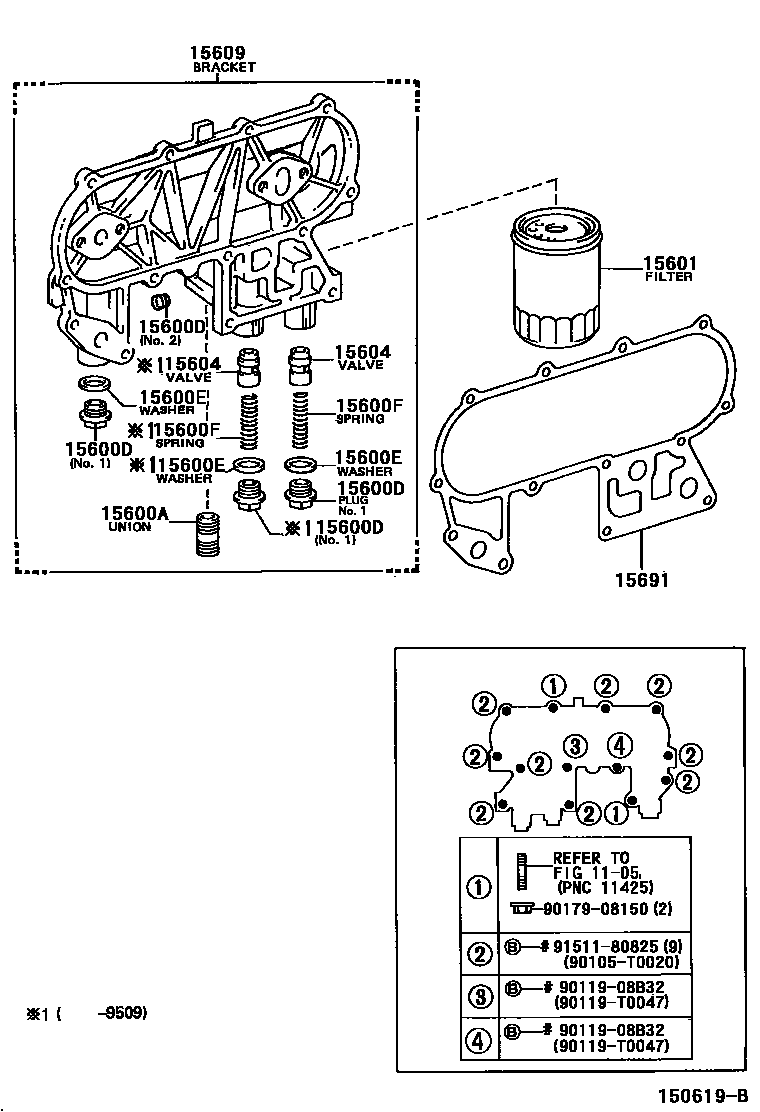

OIL FILTER

0001 1 0002 1

1105

15600AUNION(FOR OIL FILTER)

main15116-54010i2L,3L..LH10#,11#,125198908-198910

main15116-54020i2L..LH104,114..LHD199008-199106

*EX-USSR SPEC

sub15116-54021

main15116-54021i2L..LH112,114..LHD199608-200208

TURKEY SPEC

main15116-54021i2L..LH104,114..LHD199106-199308

*EX-USSR SPEC

main15116-54021i2L..LH112..DX;5L..LH172,174,184;2L,3L,5L..LH104,105,11#,166,176..CIS199308-200501

main90404-19011i5L..LH174..12S198910-200501

main90404-19011i5L..LH172..RHD..SRF..4D..03S..STD..GEN200210-200501

MALAYSIA SPEC

main90404-19015i1RZ,2RZ#..RZH10#,11#,125,135,15#200311

TYPE B:REFER ILLUST.

15600DPLUG(FOR OIL FILTER)

main90072-34402i2L..LH104,114..LHD199008-199206

NO.2

sub90344-51005

main90341-18015i5L..LH162..4FC;5L..LH172..06S..GL198908-200501

NO.1

main90341-18015i2L..LH112..5D199608-200208

TURKEY SPEC,NO.1

main90341-18015i2L,3L..LH102,103,104,11#,125..ARL,GCC,GEN199509-200008

main90344-51005i5L..LH162..4FC;5L..LH172..06S..GL199206-200501

NO.2

main90344-51005i5L..LH172..4FC199608-200208

TURKEY SPEC,NO.2

15600EWASHER(FOR OIL FILTER)

main90430-18001i2L,3L..LH10#,11#,125198908-199112

main90430-18021i2L,3L..LH10#,11#,125199112-199310

main90430-18029i5L..LH162..GEN;5L..LH16#,174,176..5F..(ARL,CIS)199310-200501

15600FSPRING, COMPRESSION(FOR OIL FILTER)

main90501-16026i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200501

15601FILTER SUB-ASSY, OIL

main15600-25010i1RZ,2RZ#..RZH10#,11#,125198908-199408

sub90915-20003

main15600-41010i5L..LH172198908-200501

sub90915-40002

main15600-41010i5L..LH172..RHD..SRF..4D..03S..STD..GEN200210-200501

MALAYSIA SPEC

sub90915-40002

main90915-03006i2L..LH104,114..LHD199008-199106

*EX-USSR SPEC

sub90915-30002

main90915-20001i1RZ,2RZ#..RZH10#,11#,125,135,153199408-199908

sub90915-20003

main90915-20003i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#199908-200208

sub90915-20005

main90915-30002i5L..LH172..4FC199608-200208

TURKEY SPEC

main90915-30002i2L..LH104,114..LHD199106-199308

*EX-USSR SPEC

main90915-30002i2L..LH112..DX;5L..LH172,174,184;2L,3L,5L..LH104,105,11#,166,176..CIS199308-200501

15604VALVE SUB-ASSY, OIL SAFETY

main15131-54010i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200501

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54013i2L,3L..LH10#,11#,125..(GL,STD)..(ARL,GCC,GEN)198908-199509

main15609-54014i5L..LH174..12S200210-200602

MALAYSIA SPEC

main15609-54014i2L,3L..LH102,103,104,11#,125..ARL,GCC,GEN199509-200602

main15609-54071i2L..LH112..DX;2L..LH104,112,114..CIS199308-199509

main15609-54072i5L..LH172,174,184;2L,3L,5L..LH104,105,113,114,115,166,176..CIS199509-200501

main15609-54072i2L..LH114..LHD199608-200208

TURKEY SPEC

main15609-75010i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200311

sub15609-75050

sub90404-19015

main15609-75010i1RZ,2RZ#..RZH10#,11#,125,135,15#200311-200504

TYPE A:REFER ILLUST.

sub15609-75050

sub90404-19015

main15609-75050i1RZ,2RZ#..RZH10#,11#,125,135,15#200311

TYPE B:REFER ILLUST.

main15670-54020i5LE..LH172200312-200501

15691GASKET, OIL FILTER

main15692-54030i2L,3L..LH10#,11#,125198908-199705

sub15692-54050

main15692-54050i5LE..LH172;5L..LH172..HRF;5L..LH172..5D..GEN;5L..LH172..03S..GL;5L..LH172..5F..(ARL,GCC);2L,5L..LH112,154,184..4D;2L,5L..LH114,172..LHD..4D;5L..LH172,174..4D..(06S,199705-200501

90105T0020

main90105-T0020

9011908B32

main90119-08B32

90119T0047

main90119-T0047

9017908150

main90179-08150

9151180825

main91511-80825

14 parts on this diagram · 2 diagrams in section
