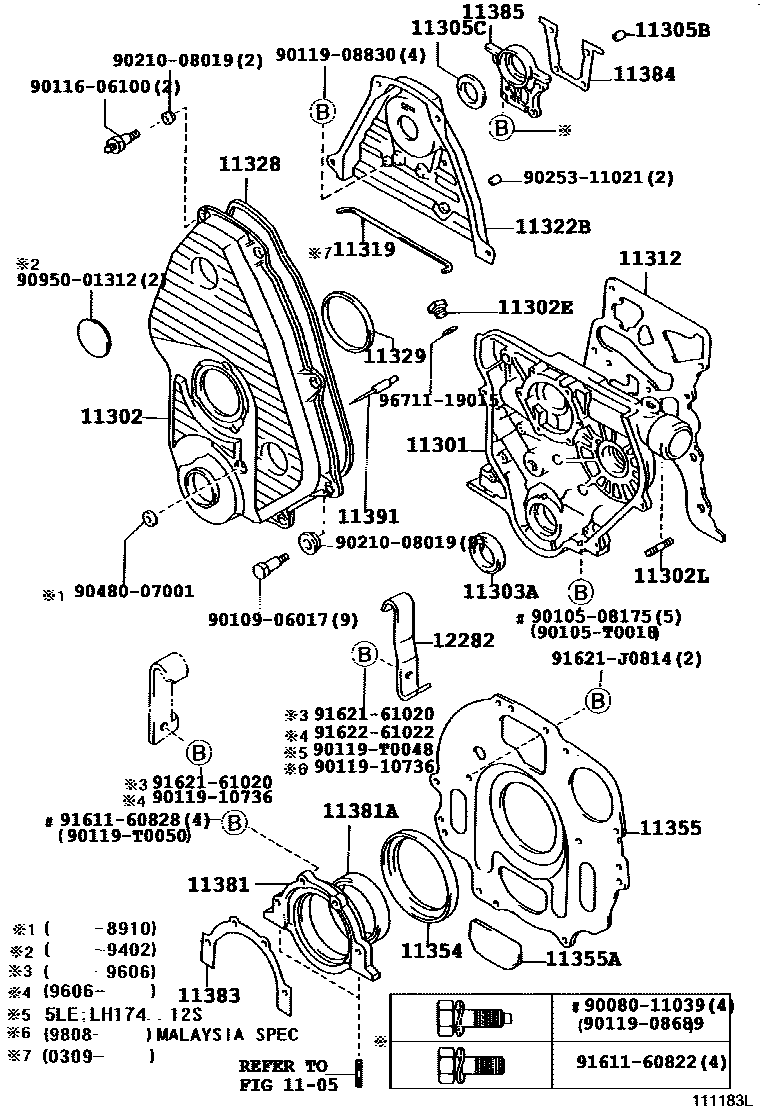

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1MALAYSIA SPEC 0003 1 0004 1

1105

11301CASE SUB-ASSY, TIMING GEAR

main11301-75010i1RZ,2RZ..RZH10#,11#,125198908-199401

sub11301-75011

main11301-75011i1RZ,2RZ#..RZH10#,11#,125199401-199508

main11301-75050i1RZ..RZH112..4D..06S199508-200208

main11311-05012i5L..LH162..GEN;5L..LH172..5F..STD;5L..LH172..03S..GL;2L,5L..LH112,162,174..4D..(03S,06S,15S)..5F;2L,5L..LH102,104,114,154,164,166,176,184..03S,10S,11S,12S,14S,15S199907-200312

(L)

main11311-54050i2L,3L..LH10#,11#,125198908-199108

sub11311-54051

main11311-54051i2L,3L..LH10#,11#,125199108-199505

sub11311-54052

sub15115-54022

main11311-54052i5L..LH174..12S199907-200501

(J)

main11311-54052i2L,3L,5L..LH10#,11#,125,166,17#,184199505-200312

main11311-54052i2L..LH112..RHD199907-200210

MALAYSIA SPEC

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-54020i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200501

sub11321-54021

11302EPLUG, STRAIGHT(FOR TIMING GEAR COVER)

main90341-18004i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200501

11302LBOLT, STUD(FOR INJECTION PUMP)

main92132-60828i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200501

11303ASEAL, OIL(FOR CRANKSHAFT FRONT)

main90311-42012i2L,3L..LH10#,11#,125198908-199102

main90311-42026i2L,3L..LH10#,11#,125199102-199401

main90311-42030i2L,3L..LH10#,11#,125199401-199605

sub90311-42031

main90311-42031i5L..LH172..HRF;5L..LH172..5D..GEN;5L..LH172..03S..GL;5L..LH172..5F..(ARL,GCC);2L,5L..LH112,154,184..4D;2L,5L..LH114,172..LHD..4D;5L..LH172,174..4D..(06S,15S)..STD..199605-200501

main90311-48014i1RZ#,2RZ..RZH10#,11#,125;2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S)198908-200009

main90311-48020i1RZ..RZH112..4D..06S200009-200602

NOK

11305BPIN, RING(FOR OIL SEAL RETAINER, NO.2)

main90253-11021i5L..LH172..4FC198908-200501

11305CSEAL, OIL(FOR CAMSHAFT)

main90311-32001i2L,3L..LH10#,11#,125198908-199102

sub90311-32018

main90311-32017i2L,3L..LH10#,11#,125199102-199703

sub90311-32020

main90311-32019i5LE..LH172;5L..LH174..12S199703-200501

11312GASKET, FRONT END PLATE

main11312-54021i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200008

main11312-54040i5L..LH162..4FC;5L..LH172..06S..GL200008-200501

11319GASKET, TIMING BELT COVER, NO.3

main11319-54010i5L..LH174..12S200309-200501

11322BCOVER, TIMING BELT, NO.2

main11322-54020i2L,3L..LH10#,11#,125198908-199708

sub11322-54021

main11322-54021i3L..LH103,113,115,125;2L,3L,5L..LH102,105,112,174..LHD..(06S,10S,12S)199708-200312

sub11322-54022

main11322-54022i5L..LH174..12S200308-200501

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-54021i5L..LH172..4FC198908-200501

main11328-75010i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200208

11329GASKET, TIMING GEAR REAR COVER

main11329-54021i3L..LH103,113,115,125;2L,3L,5L..LH102,105,112,174..LHD..(06S,10S,12S)198908-200501

main11329-75010i1RZ..RZH112..4D..06S198908-200208

11354SEAL, FLYWHEEL HOUSING DUST

main11354-54010i2L,3L,5L..LH10#,11#,125,166,17#,184198908-200501

main11354-75010i1RZ..RZH112..4D..06S198908-200208

11355PLATE, REAR END

main11355-54030i2L,5L..LH114,172..RHD..SRF..4D..(03S,15S)..STD..GEN198908-200501

main11355-54040i5L..LH184..4FC198908-200501

main11355-54080i5L..LH166,176199808-200408

main11355-75010i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200208

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01263i3L..LH103,113,125..4FC198908-200501

11381RETAINER, ENGINE REAR OIL SEAL

main11381-05010i5L..LH172..RHD..SRF..4D..03S..STD..GEN200108-200312

(L)

main11381-05010i2L..LH112..RHD199907-200210

MALAYSIA SPEC,(L)

main11381-54020i3L..LH103..4D..GEN199907-199909

MALAYSIA SPEC,(J)

sub11381-54030

sub90116-08404

main11381-54020i2L,3L,5L..LH10#,11#,125,166,17#,184198908-199907

sub11381-54030

sub90116-08404

main11381-54030i3L..LH103..4D..GEN199909-200501

(J)

main11381-75010i1RZ..RZH112..4D..06S198908-200208

sub11381-75011

11381ASEAL, ENGINE REAR OIL

main90311-85004i2L,3L..LH10#,11#,125198908-199102

sub90311-85006

main90311-85006i2L,3L..LH10#,11#,125199102-199209

sub90311-85009

main90311-85007i2L,3L..LH10#,11#,125199209-199703

main90311-85008i5L..LH172..4FC199703-200501

main90311-88001i1RZ,2RZ..RZH10#,11#,125198908-199308

sub90311-88003

main90311-88003i1RZ#,2RZ..RZH10#,11#,125;2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S)199308-200009

main90311-88005i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#200009-200208

NOK

sub90311-88006

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-54020i2L,3L..LH10#,11#,125198908-199107

sub11383-54030

main11383-54030i5L..LH172..4FC199107-200501

11384GASKET, OIL SEAL RETAINER, NO.2

main11384-05010i5L..LH172..RHD..SRF..4D..03S..STD..GEN199907-200312

MALAYSIA SPEC,(L)

sub11384-54030

main11384-05010i5LE..LH172;5L..LH174..12S200108-200312

(L)

sub11384-54030

main11384-54020i2L,3L..LH10#,11#,125198908-199107

sub11384-54030

main11384-54030i5L..LH174..12S199107-200501

main11384-54030i2L..LH112..RHD199907-200312

MALAYSIA SPEC,(J)

main11384-54030i5LE..LH172;5L..LH174..12S200108-200312

(J)

11385RETAINER, CAMSHAFT OIL SEAL

main11382-05010i5LE..LH172;5L..LH174..12S200108-200312

(L)

main11382-05010i2L..LH112..RHD199907-200312

MALAYSIA SPEC,(L)

main11382-54020i3L..LH103..4D..GEN198908-200501

main11382-54020i2L..LH112..RHD199907-200312

MALAYSIA SPEC,(J)

main11382-54020i5LE..LH172;5L..LH174..12S200108-200312

(J)

11391POINTER, TIMING

main11391-54020i2L,5L..LH114,172..RHD..SRF..4D..(03S,15S)..STD..GEN198908-200501

12282HANGER, ENGINE, NO.2

main12282-54060i2L..LH114..RHD199606-200501

9008011039

main90080-11039

9010508175

main90105-08175

90105T0018

main90105-T0018

9010906017

main90109-06017

9011606100

main90116-06100

9011908689

main90119-08689

9011908830

main90119-08830

9011910736

main90119-10736

90119T0048

main90119-T0048

90119T0050

main90119-T0050

9021008019

main90210-08019

9025311021

main90253-11021

9048007001

main90480-07001

9095001312

main90950-01312

9161160822

main91611-60822

9161160828

main91611-60828

9162161020

main91621-61020

91621J0814

main91621-J0814

9162261022

main91622-61022

9671119015

main96711-19015

43 parts on this diagram · 4 diagrams in section
