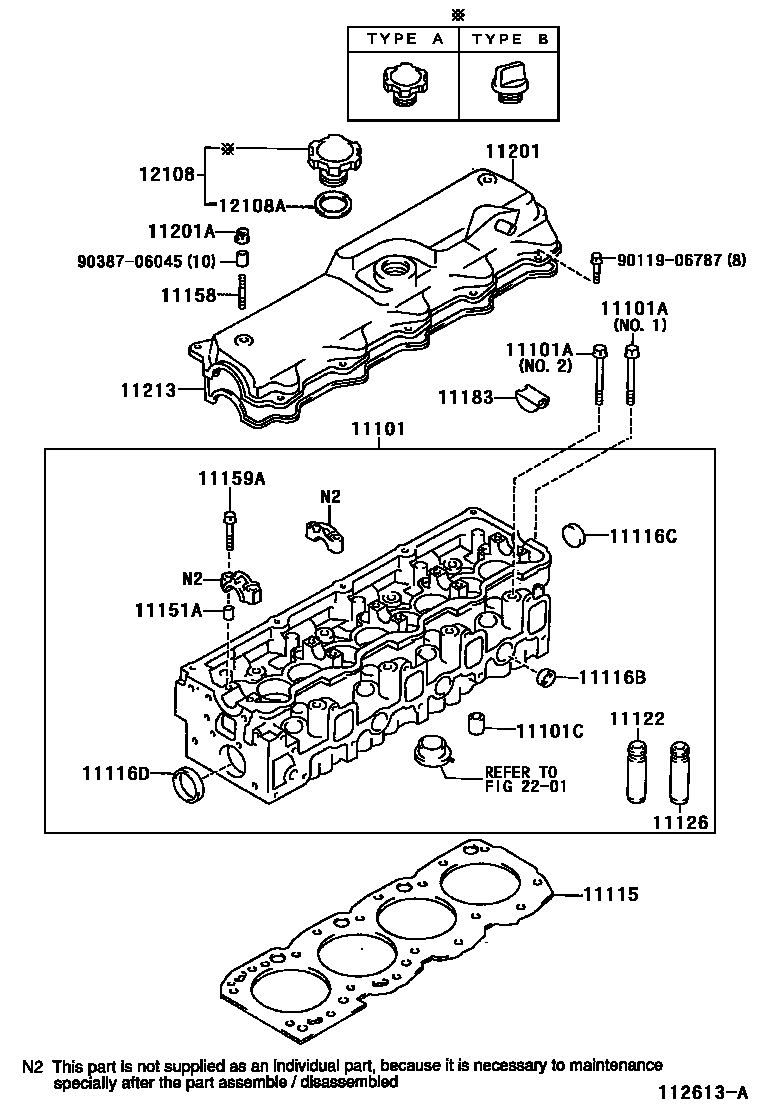

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-05020i5LE..LH172;5L..LH174..12S200108-200312

(L)

sub11101-54150

main11101-05030i2L..LH102,112..LHD..06S199907-200402

(L)

main11101-54110i2L..LH102,104,112,114198908-199206

sub11101-54111

main11101-54111i2L..LH102,104..03S,12S199907-200501

(J)

main11101-54111i2L..LH102,104,112,114199206-199907

main11101-54130i3L..LH103,105,113,115,125198908-199206

sub11101-54131

main11101-54131i3L..LH103,105,113,115,125199206-200008

main11101-54150i5L..LH162..4FC;5L..LH172..06S..GL199808-200501

main11101-54150i5LE..LH172;5L..LH174..12S200108-200312

(J)

main11101-75010i1RZ..RZH102,104,112,114198908-199506

sub11101-75011

main11101-75011i1RZ..RZH102,104,112,114199506-200007

sub11101-75012

main11101-75012i1RZ..RZH102..03S200007-200208

main11101-75020i2RZ#..RZH103,105,113,115,125198908-199506

sub11101-75021

main11101-75021i2RZ#..RZH103,105,113,115,125,135,153199506-199907

sub11101-75022

main11101-75022i2RZ#..RZH103,105,113,115,125,135,15#199907-200508

main11101-75120i2RZE..RZH103,113,125..ARL200201-200501

W(LPG)

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02080i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200312

NO.1

main90910-02081i5L..LH174..10S,15S;2L,3L,5L#..LH10#,11#,125,154,16#,172,176,184198908-200312

NO.2

main90910-02091i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15198908-200208

sub90910-02187

11101CTUBE(FOR CYLINDER HEAD)

main90440-15003i2L..LH102,112..LHD..06S198908-200501

main90440-15003i2L..LH112..RHD199907-200210

MALAYSIA SPEC

11115GASKET, CYLINDER HEAD

main11115-05021-B0i5LE..LH172200108-200112

MARK B,(L)

main11115-05021-D0i5LE..LH172200108-200112

MARK D,(L)

main11115-05021-F0i5LE..LH172200108-200112

MARK F,(L)

main11115-54070-B0i3L..LH103,105,113,115,125198908-199111

MARK B,MARK B

sub11115-54070

sub11115-54071

main11115-54070-D0i3L..LH103,105,113,115,125198908-199111

MARK D,MARK D

sub11115-54070

sub11115-54071

main11115-54070-F0i3L..LH103,105,113,115,125198908-199111

MARK F,MARK F

sub11115-54070

sub11115-54071

main11115-54071-B0i3L..LH103,113,115,125199111-199207

MARK B,MARK B

sub11115-54072

main11115-54071-D0i3L..LH103,113,115,125199111-199207

MARK D,MARK D

sub11115-54072

main11115-54071-F0i3L..LH103,113,115,125199111-199207

MARK F,MARK F

sub11115-54072

main11115-54072-B0i3L..LH103,105,113,115,125199207-199603

MARK B,MARK B

sub11115-54073

main11115-54072-D0i3L..LH103,105,113,115,125199207-199603

MARK D,MARK D

sub11115-54073

main11115-54072-F0i3L..LH103,105,113,115,125199207-199603

MARK F,MARK F

sub11115-54073

main11115-54073-B0i3L..LH103,105,113,115,125199603-200008

MARK B,MARK B

main11115-54073-B0i3L..LH103,105,113,115,125199907-200008

MARK B

main11115-54073-D0i3L..LH103,105,113,115,125199907-200008

MARK D

main11115-54073-D0i3L..LH103,105,113,115,125199603-200008

MARK D,MARK D

main11115-54073-F0i3L..LH103,105,113,115,125199603-200008

MARK F,MARK F

main11115-54073-F0i3L..LH103,105,113,115,125199907-200008

MARK F

main11115-54081-B0i2L..LH102,104,112,114198908-199111

MARK B,MARK B

sub11115-54082

main11115-54081-D0i2L..LH102,104,112,114198908-199111

MARK D,MARK D

sub11115-54082

main11115-54081-F0i2L..LH102,104,112,114198908-199111

MARK F,MARK F

sub11115-54082

main11115-54082-B0i2L..LH102,104,112,114199111-199204

MARK B,MARK B

sub11115-54083

main11115-54082-D0i2L..LH102,104,112,114199111-199204

MARK D,MARK D

sub11115-54083

main11115-54082-F0i2L..LH102,104,112,114199111-199204

MARK F,MARK F

sub11115-54083

main11115-54083-B0i2L..LH102,104,112,114199204-199508

MARK B,MARK B

sub11115-54084

main11115-54083-D0i2L..LH102,104,112,114199204-199508

MARK D,MARK D

sub11115-54084

main11115-54083-F0i2L..LH102,104,112,114199204-199508

MARK F,MARK F

sub11115-54084

main11115-54084-B0i2L..LH102,104,112,114199907

MARK B

main11115-54084-B0i2L..LH102,104,112,114199508-199907

MARK B,MARK B

main11115-54084-D0i2L..LH102,104,112,114199508-199907

MARK D,MARK D

main11115-54084-D0i2L..LH102,104,112,114199907

MARK D

main11115-54084-F0i2L..LH102,104,112,114199907

MARK F

main11115-54084-F0i2L..LH102,104,112,114199508-199907

MARK F,MARK F

main11115-54120-B0i5L..LH16#,17#,184199907-200001

MARK B

sub11115-54121

main11115-54120-B0i5L..LH166,17#,184199808-199907

MARK B,MARK B

sub11115-54121

main11115-54120-D0i5L..LH166,17#,184199808-199907

MARK D,MARK D

sub11115-54121

main11115-54120-D0i5L..LH16#,17#,184199907-200001

MARK D

sub11115-54121

main11115-54120-F0i5L..LH16#,17#,184199907-200001

MARK F

sub11115-54121

main11115-54120-F0i5L..LH166,17#,184199808-199907

MARK F,MARK F

sub11115-54121

main11115-54121-B0i5L..LH154,16#,17#,184200001-200112

MARK B

sub11115-54130

main11115-54121-B0i5LE..LH172200001-200112

MARK B,(J)

sub11115-54130

main11115-54121-D0i5L..LH154,16#,17#,184200001-200112

MARK D,(J)

sub11115-54130

main11115-54121-D0i5LE..LH172200001-200112

MARK D

sub11115-54130

main11115-54121-F0i5LE..LH172200001-200112

MARK F,(J)

sub11115-54130

main11115-54121-F0i5LE..LH172200001-200112

MARK F

sub11115-54130

main11115-54130-B0i5LE..LH172200112-200501

MARK B

sub11115-54130

main11115-54130-B0i5L..LH172..RHD..SRF..4D..03S..STD..GEN200210-200312

MALAYSIA SPEC,MARK B

sub11115-54130

main11115-54130-D0i5L..LH174..12S200112-200501

MARK D

sub11115-54130

main11115-54130-D0i5L..LH172..RHD..SRF..4D..03S..STD..GEN200210-200312

MALAYSIA SPEC,MARK D

sub11115-54130

main11115-54130-F0i5L..LH172..RHD..SRF..4D..03S..STD..GEN200210-200312

MALAYSIA SPEC,MARK F

sub11115-54130

main11115-54130-F0i5L..LH174..15S;5L..LH154,16#,172,176,184200112-200501

MARK F

sub11115-54130

main11115-75010i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ..RZH102,104,114198908-200208

T=1.25

main11115-75020i2RZ#..RZH103,105,113,115,125,135,15#198908-200508

T=1.25

11116BPLUG, TIGHT, NO.2

main96411-42500i2L..LH102,104,112,114198908-199907

main96411-62500i3L,5L..LH103,105,113,115,125,166,17#,184199808-199907

MALAYSIA SPEC

main96411-62500i2L,3L..LH10#,11#,125199305-200312

11116CPLUG, TIGHT, NO.3

main96411-42800i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ..RZH102,104,114198908-200508

main96411-43000i2L,3L..LH10#,11#,125198908-199907

main96411-63000i3L,5L..LH103,105,113,115,125,166,17#,184199808-199907

MALAYSIA SPEC

main96411-63000i3L..LH103..4D..GEN199305-200312

11116DPLUG, TIGHT, NO.4

main96411-44500i2L,3L..LH10#,11#,125198908-199907

main96411-64500i2L,3L..LH10#,11#,125199305-200312

main96411-64500i3L,5L..LH103,105,113,115,125,166,17#,184199808-199907

MALAYSIA SPEC

11122BUSH, INTAKE VALVE GUIDE

main11122-54020i2L..LH112..LHD..03S;2L..LH102,104,114..03S,12S,15S198908-200008

STD

sub11122-17020

main11122-75010i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200208

STD

main11123-54020i2L..LH112..5D;2L..LH112..RHD;3L,5L..LH103,113,115,162,17#,184;2L,3L,5L#..LH102,105,114,125,154,164,166,172..06S,10S,11S,12S,14S198908-200008

O/S 0.05

sub11123-17020

main11123-75010i1RZ#,2RZ#..RZH10#,11#,125,135,153198908-200208

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-54020i2L..LH114..15S;2L..LH10#,112..LHD198908-200008

STD

sub11122-17020

main11122-75010i1RZ..RZH112..4D..06S198908-200208

STD

main11123-54020i2L..LH112..LHD..03S;2L..LH102,104,114..03S,12S,15S198908-200008

O/S 0.05

sub11123-17020

main11123-75010i1RZ..RZH112..4D..06S198908-200208

O/S 0.05

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90253-11021i5L..LH172..4FC198908-200508

L=8,OD=11

main90253-11021i2L..LH112..RHD199907-200210

L=8,OD=11,MALAYSIA SPEC

11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)

main90116-06089i2L,3L..LH10#,11#,125198908-199505

S=9 & 9,L=26

main92122-80616i2L,5L..LH114,172..RHD..SRF..4D..(03S,15S)..STD..GEN199505-200501

S=9 & 9,L=25

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90105-08166i2L..LH112..RHD199907-200210

MALAYSIA SPEC

main90105-08166i5LE..LH172;5L..LH174..12S198908-200501

main90105-08166i5LE..LH172;5L..LH174..12S;5L..LH172..RHD..SRF..4D..03S..STD..GEN200301-200312

(J)

main90105-T0093i5LE..LH172;5L..LH174..12S;5L..LH172..RHD..SRF..4D..03S..STD..GEN200304-200312

(L)

sub90105-08166

main90119-08772i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ..RZH102,104,114198908-200508

11183PLUG, SEMICIRCULAR

main11183-54020i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200501

main11183-62010i1RZ..RZH112..4D..06S198908-200208

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-75010i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15198908-200208

main11210-54040i2L,3L..LH10#,11#,125198908-199203

sub11210-54041

main11210-54041i2L,3L..LH10#,11#,125199203-199704

sub11210-54042

main11210-54042i3L..LH103,113,115,125;2L,3L,5L..LH102,105,112,174..LHD..(06S,10S,12S)199704-200501

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90179-06171i2L,3L..LH10#,11#,125198908-199505

main90179-06319i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184199505-200501

11213GASKET, CYLINDER HEAD COVER

main11213-05010i5LE..LH172;5L..LH174..12S200108-200312

(L)

main11213-05010i2L..LH112..RHD199907-200210

MALAYSIA SPEC,(L)

main11213-54050i2L,5L..LH114,172..RHD..SRF..4D..(03S,15S)..STD..GEN198908-200501

main11213-54050i2L..LH112..RHD199907-200210

MALAYSIA SPEC,(J)

main11213-54050i5LE..LH172;5L..LH174..12S200108-200312

(J)

main11213-75020i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15198908-200208

12108CAP SUB-ASSY, OIL FILLER

main12180-05020i5L..LH174..12S200108-200501

TYPE B:REFER TO ILLUSTRATION

main12180-05020i2L..LH112..RHD200008-200210

MALAYSIA SPEC

main12180-70020i5L..LH162..4FC;5L..LH172..06S..GL198908-200312

TYPE A:REFER TO ILLUSTRATION

main12180-73011i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#199103-200208

main12180-73011i5L..LH174..CIS;2L,5L..LH10#,16#,176200312-200501

TYPE A:REFER TO ILLUSTRATION

main12180-75010i1RZ,2RZ..RZH10#,11#,125198908-199103

sub12180-73011

12108AGASKET(FOR OIL FILLER CAP)

main12195-05020i5LE..LH172200010-200501

main12195-05020i5L..LH172..RHD..SRF..4D..03S..STD..GEN200210-200312

MALAYSIA SPEC

main12195-05020i2L..LH112..RHD200010-200210

MALAYSIA SPEC,(L)

main12195-70010i1RZ,2RZ..RZH10#,11#,125198908-200010

main12195-70010i5LE..LH172200108-200408

(J)

main12195-70010i2L,5L..LH10#,112,154,164,166,176..LHD;2L,5L..LH114,162,172,174,184..03S,06S,10S,14S,15S200010-200309

MALAYSIA SPEC,(J)

main12195-73010i2L,5L..LH114,172..RHD..SRF..4D..(03S,15S)..STD..GEN199103-200501

2201

9011906787

main90119-06787

9038706045

main90387-06045
