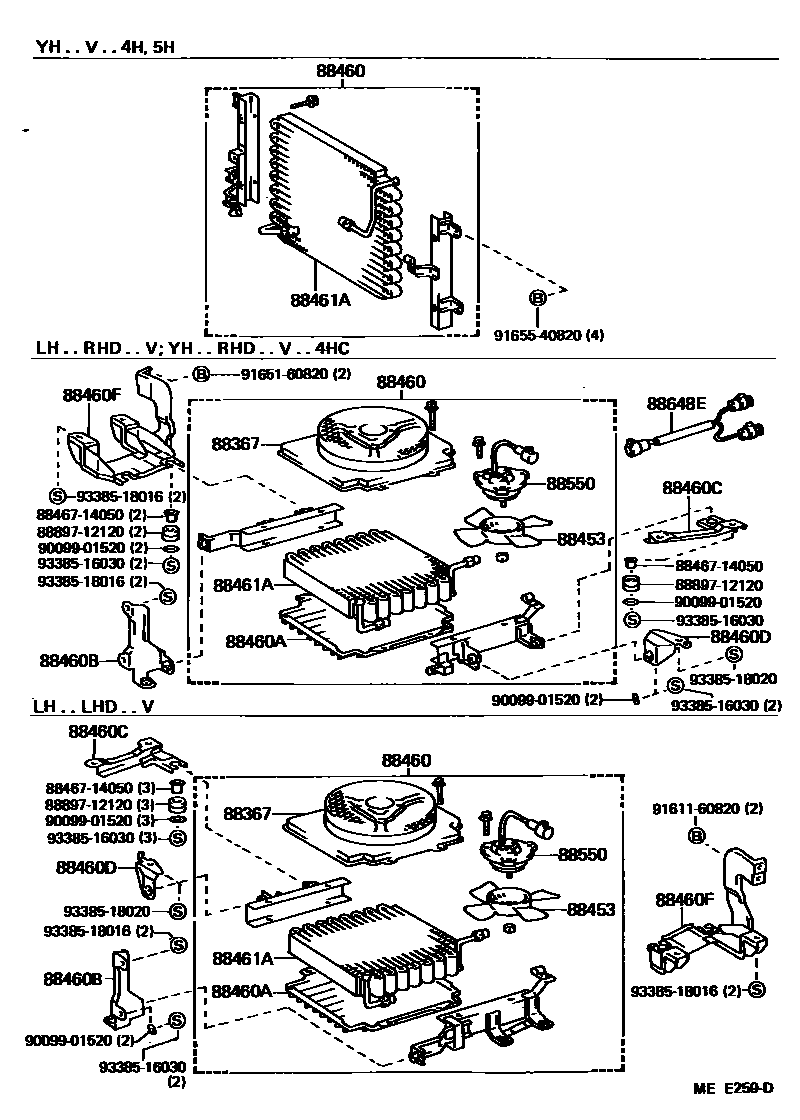

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1 0011 1 0012 1 0013 1 0014 1

88367SHROUD, COOLER BLOWER FAN

main88454-95J00iLH50,51,60,61,YH50,51,60,61..COM..GEN198212-198807

main88454-95J01iLH50,51,60,61..V..(ARL,GEN)198212-198609

main88454-95J03iLH51,61,YH51,61..COM..GEN198606-198708

88453FAN, COOLING (FOR CONDENSER)

main11690-17702iLH71,YH7#198212-198708

FR CROSS MEMBER

main88453-10010iLH51,61,YH51,60..COM..GEN198606-198708

FR CROSS MEMBER

main88453-28010iLH51,61..V198609-198708

FR UNDER FLOOR

main88453-87001iLH50,51,60,61..COM..GEN198212-198609

FR UNDER FLOOR

88460CONDENSER ASSY, COOLER

main88460-95J00iYH51,53..05S198212-198708

RADIATOR

main88460-95J00iYH63..4HC..GEN198608-198708

main88460-95J03iLH50,51,60,61,YH50,51,60,61..RHD..COM..GEN198212-198708

FR CROSS MEMBER

main88460-95J06iLH50,51,60,61..RHD..COM..GEN198212-198708

FR UNDER FLOOR

main88460-95J07iLH50,51,60,61..RHD..V..(ARL,GEN)198212-198708

main88460-95J08iLH50,51,60,61..LHD..V..GEN198212-198708

main88460-95J10iLH50,51,60,61,YH50,51,60,61..LHD..COM..GEN198212-198708

FR CROSS MEMBER

main88460-95J11iLH50,51,60,61..LHD..COM198212-198708

FR UNDER FLOOR

88460ACOVER, COOLER CONDENSER

main88890-95J00iLH71198212-198708

FR UNDER FLOOR

main88890-95J01iYH61..4HC..ARL198212-198708

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-95J01iYH53,61,63..4HC..ARL198212-198708

main88688-95J06iLH50,51,60,61,YH50,51,60,61..RHD..COM..GEN198212-198708

main88688-95J14iLH50,51,60,61..LHD..V..GEN198212-198708

main88688-95J18iLH50,51,60,61,YH50,51,60,61..LHD..COM..GEN198212-198708

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-95J03iYH53,61,63..4HC..ARL198212-198708

main88688-95J05iYH51,53..05S198212-198708

main88688-95J16iLH50,51,60,61..LHD..V..GEN198212-198708

main88688-95J17iLH50,51,60,61,YH50,51,60,61..LHD..COM..GEN198212-198708

88460DBRACKET, COOLER CONDENSER, NO.3

main88688-95J15iYH50,60..LHD..COM..GEN198212-198608

sub88688-95J60

main88688-95J56iLH50,51,60,61..RHD..(ARL,GEN)198212-198708

main88688-95J60iYH51,61..LHD..COM..GEN198608-198708

88460FBRACKET, COOLER CONDENSER, NO.4

main88688-95J00iLH71198212-198708

main88688-95J13iLH5#,6#..LHD..GEN198212-198511

sub88688-95J54

main88688-95J54iLH51,61..LHD..GEN198511-198708

88461ACORE, COOLER CONDENSER

main88461-95J00iYH51,53..4FC198212-198708

RADIATOR

main88461-95J01iLH71,YH7#198212-198708

FR CROSS MEMBER

main88461-95J02iLH71198212-198708

FR UNDER FLOOR

sub88461-95J08

main88461-95J03iLH50,51,60,61..V..(ARL,GEN)198212-198708

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-10040iLH51,61,YH51,61..COM..GEN198606-198708

FR CROSS MEMBER

main88550-87002iLH51,61..V..(ARL,GEN)198609-198708

main88550-95J01iLH5#,6#,YH50,60..COM..GEN198212-198708

FR CROSS MEMBER

main88550-95J02iLH50,51,60,61..COM..GEN198212-198609

FR UNDER FLOOR

main88550-95J03iLH51,61..COM198609-198708

FR UNDER FLOOR

88648EWIRING, COOLER

main88648-95J01iLH50,51,60,61..RHD..V..(ARL,GEN)198212-198708

8846714050CUSHION, COOLER CONDENSER, NO.1

main88467-14050

8889712120VALVE, COOLER MAGNET

main88897-12120

9009901520

main90099-01520

9161160820

main91611-60820

9165160820

main91651-60820

9165540820

main91655-40820

9338516030

main93385-16030

9338518016

main93385-18016

9338518020

main93385-18020

20 parts on this diagram · 12 diagrams in section
