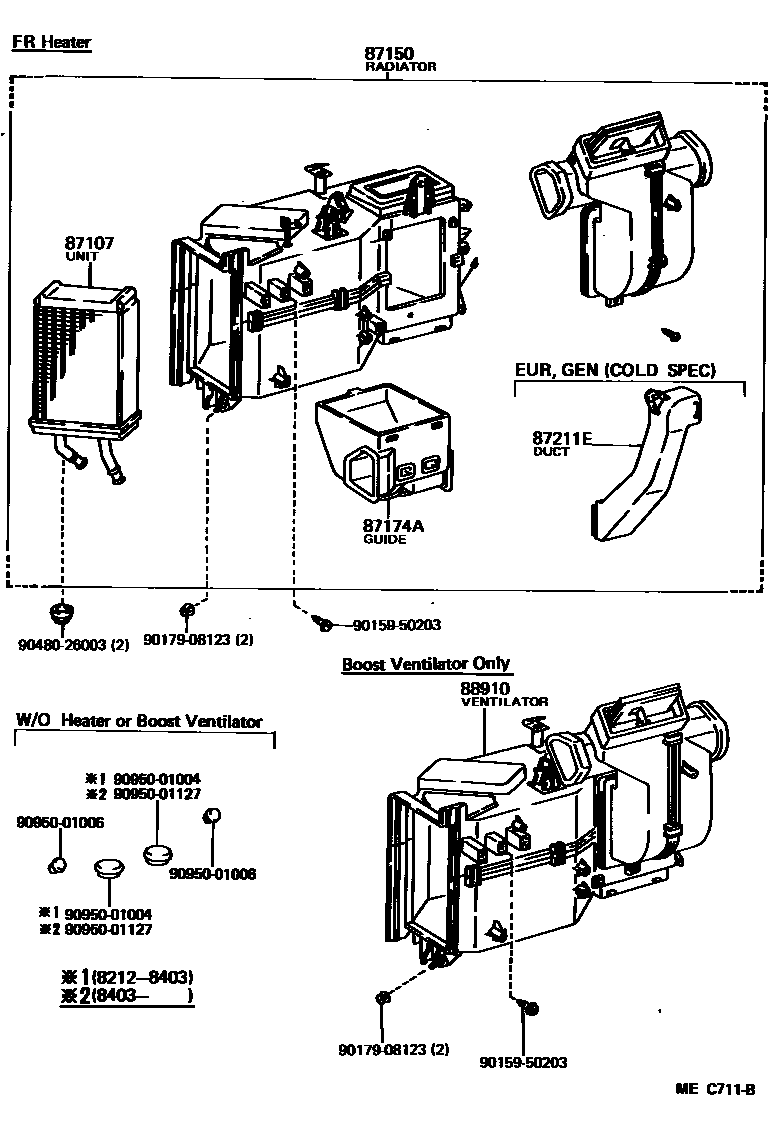

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1 0003 1 0004 1

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-95J00iYH51..4HC..SA;YH51..RHD..(4FC,4H,5F,5H)..(ARL,GEN,SA);LH50,51,60,61,7#,YH50,53,60,61,63,7#..RHD..(ARL,GEN,SA)198212-198807

main87107-95J01iLH50,60,YH50,60..RHD..EUR198212-198309

main87107-95J02iLH50,51,60,61,YH50,51,60,61..LHD..GEN198212-198708

main87107-95J03iYH51..VSG..5H..EUR;YH51..LHD..(03S,06S,09S,12S)..EUR;LH5#,6#,YH50,56,60,61,66..LHD..EUR198212-198708

main87107-95J06iLH50,51,60,61,YH50,51,60,61..RHD..EUR198309-198708

87150RADIATOR ASSY, HEATER

main87150-95J00iYH61..V4D..VSG..03S..N1198405-198410

*SA

main87150-95J01iLH5#,6#,YH50,6#..RHD..EUR198212-198402

main87150-95J02iLH50,51,60,61,YH50,51,60,61..LHD..GEN198212-198708

main87150-95J03iYH51..VSG..5H..EUR;YH51..LHD..(03S,06S,09S,12S)..EUR;LH5#,6#,YH50,56,60,61,66..LHD..EUR198212-198708

main87150-95J04iLH51,61,YH50,51,61..RHD..EUR198402-198708

87174AGUIDE, AIR HEATER

main87174-95J00iYH61..V4D..VSG..03S..N1198405-198410

*SA

main87174-95J01iLH50,51,60,61,YH50,51,60,61..RHD..EUR198212-198708

main87174-95J02iLH50,51,60,61,YH50,51,60,61..LHD..GEN198212-198708

main87174-95J03iYH51..VSG..5H..EUR;YH51..LHD..(03S,06S,09S,12S)..EUR;LH5#,6#,YH50,56,60,61,66..LHD..EUR198212-198708

87211EDUCT, AIR

main87211-95J02iLH50,51,60,61,YH50,51,60,61..RHD..EUR198212-198707

main87211-95J03iLH5#,6#,YH50,51,56,60,61,66..LHD..EUR198212-198708

main87211-95J10iLH51,61,YH51,61..RHD..N1198707-198708

88910VENTILATOR ASSY, BOOST

main88910-95J00iLH50,51,60,61,YH50,51,60,61..RHD..GEN198212-198708

main88910-95J01iLH50,51,60,61,YH50,51,60,61..LHD..GEN198212-198708

9015950203

main90159-50203

9017908123

main90179-08123

9048026003

main90480-26003

9095001004

main90950-01004

9095001006

main90950-01006

9095001127

main90950-01127

11 parts on this diagram · 4 diagrams in section
