ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86307-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

86309POLE SUB-ASSY, PILLAR ANTENNA

main86309-95J00iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD198212-198807

main86309-95J01iLH5#,6#,YH50,51,56,60,61,66..LHD198212-198708

86312CAP, ANTENNA POLE

main86312-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

86391HOLDER, ANTENNA

main86391-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

8271190B02WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-90B02

8281995J03GROMMET, WIRING HARNESS

main82819-95J03

8637895J00SPACER, ANTENNA

main86378-95J00

9014950028

main90149-50028

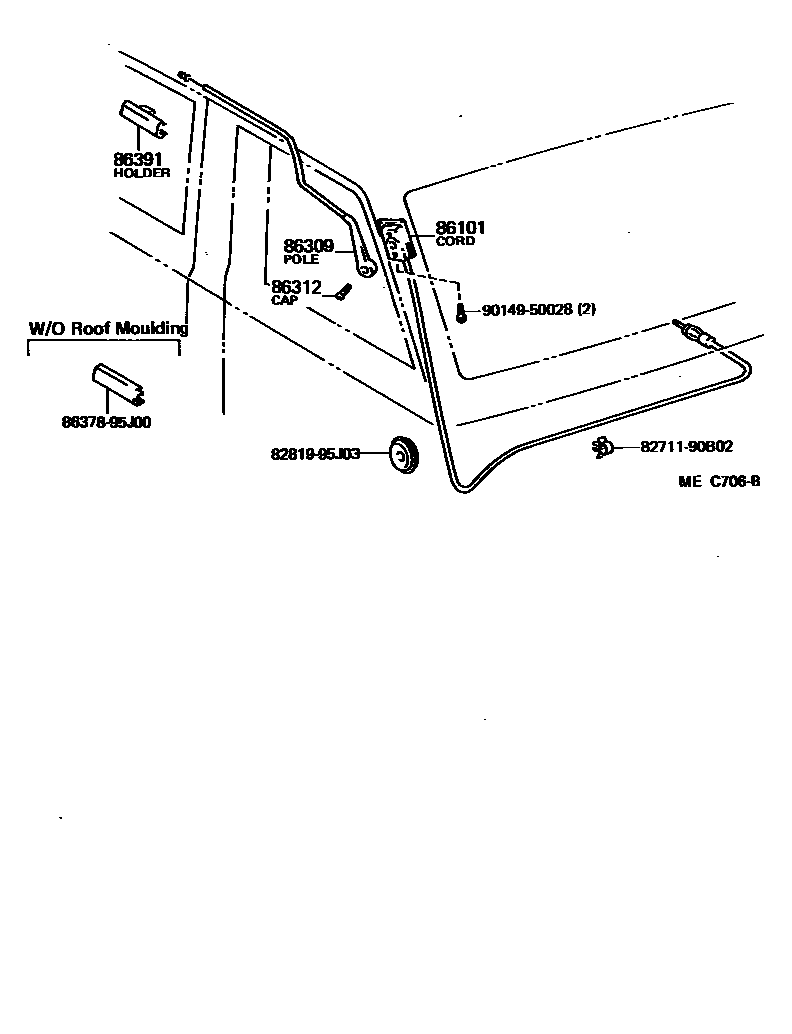

8 parts on this diagram · 1 diagram in section
