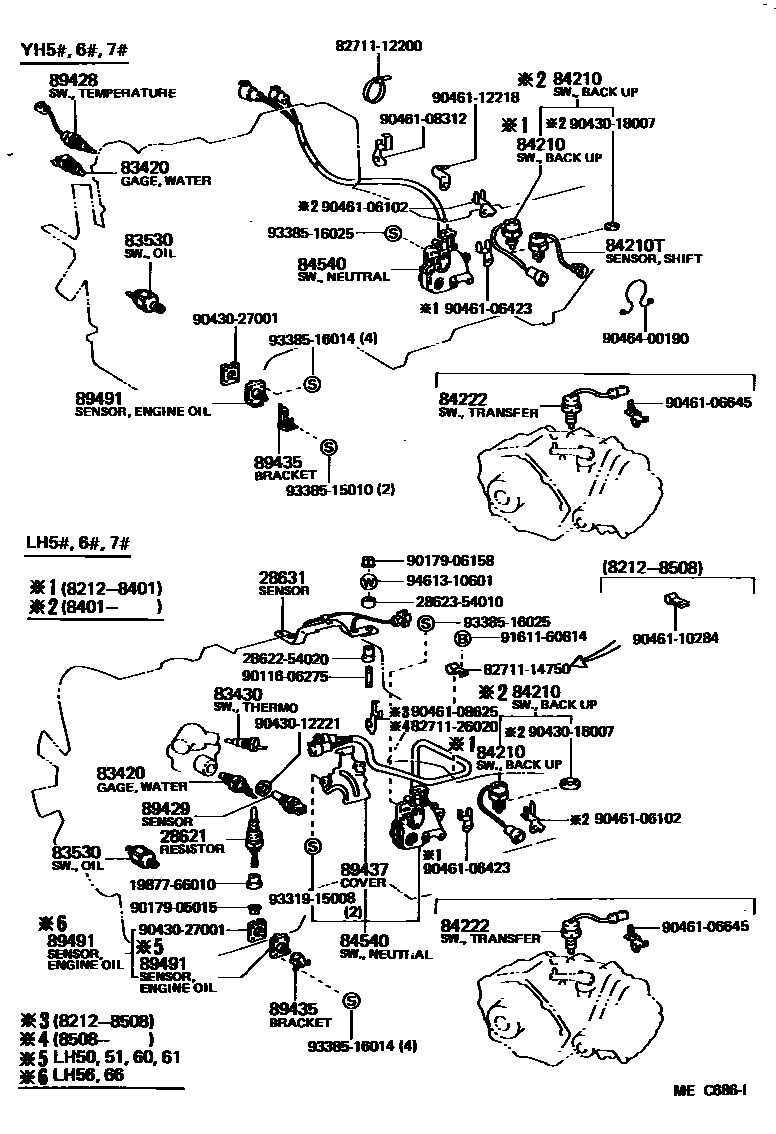

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1

28621RESISTOR, GLOW PLUG

main28621-54031iL,2L..LH5#,6#..EUR198212-198508

sub28621-64011

28631SENSOR, GLOW PLUG CURRENT

main28631-54040i2L..LH5#,6#,71..ARL,EUR198508-198708

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iLH5#,6#,7#,YH5#,6#,7#198212-198807

83430SWITCH ASSY, WATER LEVEL SENDER

main83430-96440iLH71198401-198708

W/COOLER

sub89428-60040

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iYH5#,6#,71198212-198502

main83530-14030iYH5#,6#,7#198502-198807

sub83530-28030

main83530-30060iLH5#,6#,71198502-198708

sub83530-60030

main83530-36011iLH5#,6#,7#198212-198502

84210SWITCH ASSY, BACK-UP LAMP

main84210-35020iLH50,60,70,YH5#,6#,71..MTM198212-198401

sub84210-16021

main84210-60021iLH51,61,71,YH50,51,60,61,71..MTM198401-198807

84210TSENSOR ASSY, SHIFT POINT

main84220-26010iYH50,60..4H..(ARL,EUR)198212-198401

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-28010iLH56,66,YH56,66198608-198708

84540SWITCH ASSY, NEUTRAL START

main84540-14100iYH50,51,53,61,63..ATM198212-198807

main84540-26010iLH50,51,61..4HC198212-198708

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-14040iYH50,60..EUR;YH50..4H..ARL198212-198401

89429SENSOR, OIL TEMPERATURE

main89422-30020iLH5#,6#,7#198212-198708

sub89422-12010

89435BRACKET, CONNECTOR COVER

main89435-26070iYH50,56,61,66..EUR;YH51..VSG..5H..EUR;YH51..(03S,12S)..EUR198508-198708

main89435-26080iLH56,66198608-198708

89437COVER, SENSOR

main89437-26010iLH50,51,61..4HC198212-198708

89491SENSOR, ENGINE OIL LEVEL

main89491-26010iLH51,61..EUR198508-198708

main89491-26020iYH50,56,61,66..EUR;YH51..VSG..5H..EUR;YH51..(03S,12S)..EUR198508-198708

sub89491-36060

main89491-26030iLH56,66198608-198708

1987766010

main19877-66010

2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-54020

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271114750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14750

8271126020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-26020

9011606275

main90116-06275

9017905015

main90179-05015

9017906158

main90179-06158

9043012221

main90430-12221

9043018007

main90430-18007

9043027001

main90430-27001

9046106102

main90461-06102

9046106423

main90461-06423

9046106645

main90461-06645

9046108312

main90461-08312

9046108625

main90461-08625

9046110284

main90461-10284

9046112218

main90461-12218

9046400190

main90464-00190

9161160814

main91611-60814

9331915008

main93319-15008

9338515010

main93385-15010

9338516014

main93385-16014

9338516025

main93385-16025

9461310601

main94613-10601

40 parts on this diagram · 5 diagrams in section
