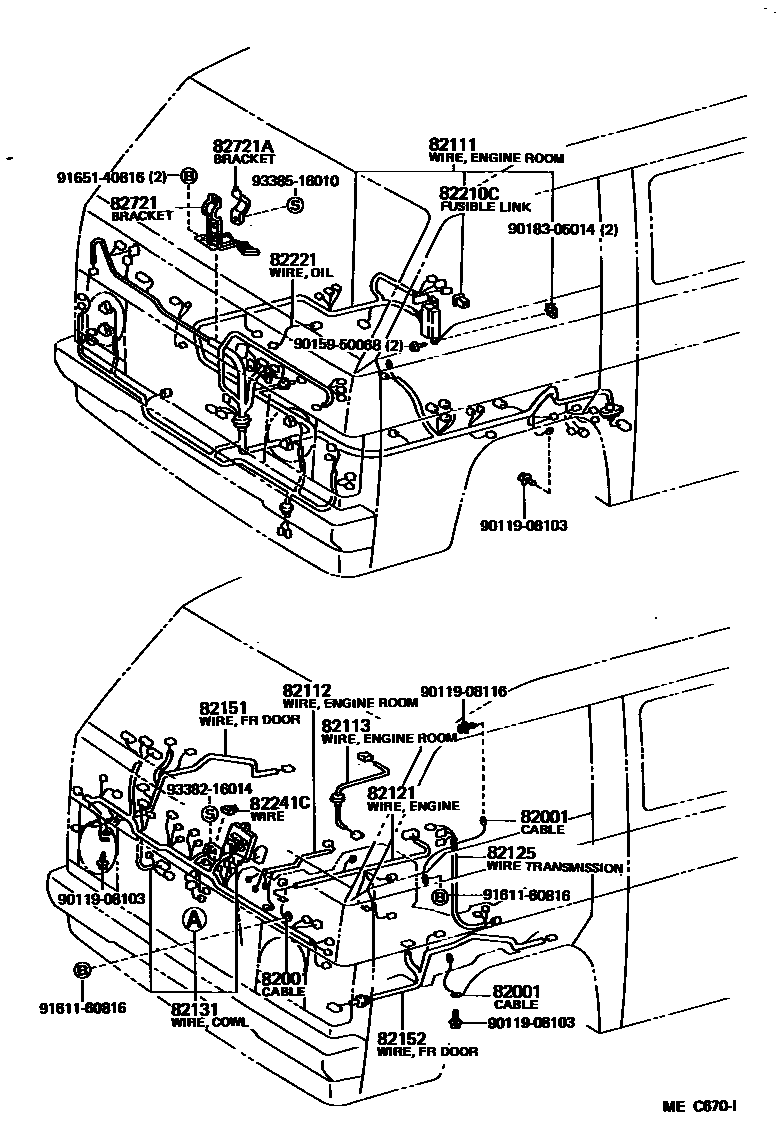

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

82001CABLE, BOND, NO.1

main82046-95J00iLH5#,6#,7#¥1,160198212-198708

main82046-95J01iYH5#,6#,7#¥2,320198412-198807

L=300

main90980-07021iYH5#,6#,71¥1,730198212-198512

L=280

main90980-07051iYH5#,6#,71¥850198212-198412

L=300

main90980-07164iYH56,66¥640198612-198708

L=360

main90980-07215iYH50,51,53,60,61,63,7#¥360198212-198807

L=230

main90980-07274iYH50,51,53,60,61,63,7#¥520198512-198807

L=290

main90980-07281iYH56,66¥530198612-198708

L=300

82111WIRE, ENGINE ROOM MAIN

main82111-90C01iYH71198212-198401

main82111-90C02iLH70198212-198401

main82111-95J01iYH50,60..LHD..EUR198212-198401

*FRG

main82111-95J06iYH50,60..RHD..EUR198212-198401

main82111-95J07iYH51198306-198401

main82111-95J08iYH50..ARL198212-198401

main82111-95J09iYH50,60..LHD..MTM..(03S,06S)..EUR198212-198401

W/CLOCK,*RWD,*RW OR *HC

main82111-95J10iYH50..4HC..EUR198212-198401

main82111-95J14iYH61..ARL198212-198401

main82111-95J15iLH50,60..RHD..EUR198212-198401

main82111-95J19iYH50,60..LHD..GEN¥70,700198212-198305

sub82111-95J88¥70,500

main82111-95J20iLH50,60..LHD..5H..EUR198212-198401

main82111-95J21iLH50..4HC..N1198212-198401

main82111-95J22iLH50,60..ARL198212-198401

main82111-95J24iLH50,60..RHD..GEN198212-198401

main82111-95J36iLH50,60..LHD..EUR198212-198401

*FRG

main82111-95J38iYH60..V5D..4H..N1198212-198401

SWEDEN SPEC

main82111-95J39iLH60..V5D..N1198212-198401

SWEDEN SPEC

main82111-95J40iYH61..SA198212-198401

main82111-95J41iYH50..RHD..06S198212-198401

NEW ZEALAND SPEC

main82111-95J42iLH50..V4D..VSG..03S..GEN198212-198401

NEW ZEALAND SPEC

main82111-95J43iYH50,60..RHD..(GEN,SA)198212-198401

main82111-95J46iYH50,60..LHD..MTM..(03S,06S)..EUR¥70,800198212-198401

sub82111-95J09

main82111-95J63iYH50,61..RHD..EUR198401-198408

main82111-95J64iLH51,61..RHD..EUR198401-198408

main82111-95J65iYH50,61..LHD..MTM..(03S,06S)..EUR¥70,500198401-198508

main82111-95J66iYH50,61..G198401-198508

W/*RWD,*RHW OR *RW

main82111-95J66iYH50,61..5H..J;YH50..12S..EUR198401-198508

FINLAND SPEC

main82111-95J66iYH50,61..5H..J;YH50..12S..EUR198401-198508

W/*RWD,*RHW,*REH OR *RW

main82111-95J67iYH51,61..4HC..N1198401-198508

main82111-95J68iLH61..LHD..5H..EUR;LH51..LHD..5H..(03S,06S)..N1198401-198508

main82111-95J69iLH51,61..4HC..N1198401-198407

main82111-95J70iYH61..V5D..VSP..4H;YH61..V5D..VSG..(4H,4HC)198401-198508

SWEDEN SPEC

main82111-95J71iLH61..V5D..R198401-198708

SWEDEN SPEC

main82111-95J72iYH50..4H..J198407-198508

main82111-95J72iYH50..J..M1;YH50..LHD..V4D..4H..03S..N1198401-198508

*FRG

main82111-95J73iLH61..M1;LH61..V5D..VSP..5H;LH51..LHD..V4D..5H..03S..N1198401-198508

*FRG

main82111-95J73iLH51..J198407-198508

main82111-95J74iYH61,71..ARL;YH51..4H..ARL198401-198508

main82111-95J75iLH51,61,71..ARL198401-198508

main82111-95J76iYH50,60..RHD..GEN198401-198508

main82111-95J77iLH51,61..RHD..GEN198401-198508

main82111-95J78iYH50,60..LHD..GEN¥70,500198401-198508

main82111-95J80iLH51,61..LHD..GEN198401-198508

main82111-95J81iYH51..5H198401-198403

main82111-95J82iYH51..4HC..SA198401-198403

main82111-95J83iYH51,61..STD..SA198401-198403

main82111-95J84iYH61..GEN198401-198508

main82111-95J85iLH61..V4D..06S198401-198508

NEW ZEALAND SPEC

main82111-95J88iYH50,60..LHD..GEN¥70,500198305-198401

main82111-95N03iYH50..SA198403-198508

main82111-95N04iYH51..5H198403-198508

main82111-95N05iYH51..4HC..SA198403-198508

main82111-95N06iYH51,61..STD..SA198403-198508

main82111-95N08iLH51,61..4HC..N1198407-198508

main82111-95N12iYH50,61..RHD..EUR198408-198508

main82111-95N13iLH51,61..RHD..EUR198408-198508

main82111-95N16iYH50,61..V5D..VSP..N1198410-198508

NORWAY SPEC

main82111-95N17iLH51,61..V5D..VSP..N1198410-198508

NORWAY SPEC

main82111-95N33iYH5#,61..RHD..EUR198508-198601

main82111-95N34iYH50,61..LHD..MTM..N1198508-198601

main82111-95N35iYH51..03S..N1;YH61..4HC..N1198508-198601

W/*RWD,*REH OR *RW

main82111-95N36iYH50,61..V5D..03S..N1198508-198601

NORWAY SPEC

main82111-95N37iYH51..5H..U;YH50,61..LHD..VSP..MTM..N1198508-198601

*FRG

main82111-95N38iYH61..U;YH61..V5D..(4HC,5H)..N1198508-198601

SWEDEN SPEC

main82111-95N40iLH51,61..RHD..EUR198508-198601

main82111-95N41iLH51,61..LHD..5H..EUR¥70,800198508-198601

main82111-95N42iLH51,61..4HC..N1198508-198601

main82111-95N43iLH51,61..V5D..03S..N1¥70,800198508-198601

NORWAY SPEC

main82111-95N44iLH51..M1;LH51,61..LHD..VSP..5H198508-198601

*FRG

main82111-95N45iLH61..R198508-198601

SWEDEN SPEC

main82111-95N47iYH61,71..ARL;YH51..4H..ARL198508-198601

main82111-95N48iYH51..05S198508-198601

main82111-95N49iLH51,61,71..ARL198508-198601

main82111-95N50iYH50,60..RHD..GEN198508-198608

main82111-95N51iYH50,60..LHD..GEN198508-198608

main82111-95N52iLH51,61..RHD..GEN198508-198608

main82111-95N53iLH51,61..LHD..GEN¥70,800198508-198608

main82111-95N54iYH51,61..STD..SA198508-198608

main82111-95N55iYH51..5H..SA198508-198608

main82111-95N56iYH51..4HC..SA198508-198608

main82111-95N73iYH5#,61..RHD..EUR198601-198608

main82111-95N74iYH50,61..LHD..MTM..N1198601-198608

main82111-95N75iYH51,61..5H..M1¥70,800198601-198608

W/*RWD,*REH OR *RW

main82111-95N75iYH51..LHD..12S¥70,800198508-198608

main82111-95N76iYH50,61..V5D..03S..N1198601-198608

NORWAY SPEC

main82111-95N77iYH51..5H..U;YH50,61..LHD..VSP..MTM..N1198601-198608

*FRG

main82111-95N78iYH61..U;YH61..V5D..(4HC,5H)..N1198601-198608

SWEDEN SPEC

main82111-95N79iLH51,61..RHD..EUR198601-198608

main82111-95N80iLH51,61..LHD..5H..EUR198601-198608

main82111-95N81iLH51,61..4HC..N1198601-198608

main82111-95N82iLH51,61..V5D..03S..N1198601-198608

NORWAY SPEC

main82111-95N83iLH51..M1;LH51,61..LHD..VSP..5H198601-198608

*FRG

main82111-95N84iLH61..R198601-198608

SWEDEN SPEC

main82111-95N85iYH61,71..ARL;YH51..4H..ARL198601-198608

main82111-95N86iYH51..05S198601-198608

main82111-95N87iLH51,61,71..ARL198601-198608

main82115-95J20iYH66;YH56..N1¥79,100198612-198708

main82115-95J21iYH66..R¥79,100198612-198708

SWEDEN SPEC

main82115-95J22iYH66..02S¥79,100198612-198708

NORWAY SPEC

main82115-95J23iYH56..M1¥79,100198612-198708

*FRG

main82115-95J25iLH56,66..02S,08S¥79,100198608-198708

main82115-95J26iLH66..N1¥79,100198608-198708

NORWAY SPEC

main82115-95J27iLH56..M1¥90,700198608-198708

*FRG

main82115-95J28iYH53,63,73..STD..ARL¥79,100198608-198708

main82115-95J29iYH53..05S¥90,700198608-198708

main82115-95J30iYH53,60,63..STD..SA¥70,600198608-198807

main82115-95J31iYH53..5H..GL¥79,100198608-198807

main82115-95J32iYH53..4HC..SA¥90,400198608-198807

main82115-95J36iYH51,61..RHD..GEN¥79,100198608-198612

sub82115-95J76¥79,100

main82115-95J37iYH51,61..LHD..GEN¥79,100198608-198708

main82115-95J40iYH61..RHD..N1¥79,100198608-198708

ENGLAND SPEC

main82115-95J41iYH61..RHD..N1¥97,500198608-198708

ENGLAND SPEC

main82115-95J48iLH51,61..RHD..N1¥97,500198608-198708

main82115-95J49iLH51,61..LHD..5H..EUR¥90,700198608-198708

main82115-95J50iLH51,61..4HC..N1¥79,100198608-198708

main82115-95J51iLH51,61..V5D..03S¥79,100198608-198708

NORWAY SPEC

main82115-95J52iLH61..LHD..5H..03S¥90,700198608-198708

*FRG

main82115-95J54iLH51,61,71..ARL¥112,000198608-198708

main82115-95J55iLH51,61..RHD..GEN¥126,000198608-198612

sub82115-95J77¥126,000

main82115-95J56iLH51,61..LHD..GEN¥79,100198608-198708

main82115-95J57iYH51,61..LHD..MTM..N1¥79,100198608-198708

main82115-95J58iYH51,61..LHD..MTM..N1¥79,100198608-198708

main82115-95J59iYH51,61..LHD..MTM..N1¥79,100198608-198708

FINLAND SPEC

main82115-95J59iYH61..15S..EUR¥79,100198608-198708

W/*RWD,*REH OR *RW

main82115-95J60iYH51..V5D..N1;YH61..V5D..(4HC,5H)..03S¥79,100198608-198708

NORWAY SPEC

main82115-95J61iYH51..U;YH51..LHD..V4D..MTM..03S¥79,100198608-198708

*FRG

main82115-95J62iYH61..U;YH61..V5D..(4HC,5H);YH51..LHD..V4D..4H..N1¥79,100198608-198708

SWEDEN SPEC

main82115-95J65iYH51,61..RHD..(03S,12S,15S)..GEN¥70,600198608-198708

SINGAPORE SPEC

main82115-95J76iLH51,61..RHD..GEN¥79,100198612-198708

main82115-95J77iLH51,61..RHD..GEN¥126,000198612-198708

82112WIRE, ENGINE ROOM, NO.2

main82112-95J00iYH5#,6#,7#¥2,020198212-198807

82113WIRE, ENGINE ROOM, NO.3

main82113-95J00iYH50,60..LHD..GEN198401-198508

*SAA OR ORMAN SPEC

main82113-95J02iYH50,60..LHD..GEN198308-198401

*SAA OR ORMAN SPEC

main82113-95J06iYH50,61..V5D..03S..N1;LH51,61,YH5#..LHD..VSP..(4HC,5H)..N1¥4,700198508-198708

W/SEAT HEATER

main82113-95J08iYH50,51,60,61..LHD..4H..GEN¥4,090198508-198708

*SAA,*47

82121WIRE, ENGINE

main82121-95J01iYH50,61..EUR;YH51..VSG..5H..EUR;YH51..(03S,12S)..EUR¥2,870198508-198708

main82121-95J02iLH5#,6#,7#..ARL,GEN198212-198607

main82121-95J04iYH5#,6#,71¥2,270198212-198807

main82121-95J05iLH51,61..ARL,EUR198212-198607

main82121-95J06iYH56,66¥4,700198612-198708

main82121-95J07iLH56,66¥6,200198608-198708

main82121-95J08iLH51,61..ARL,EUR¥5,300198607-198708

main82121-95J09iLH51,61..GEN¥2,900198607-198708

82125WIRE, TRANSMISSION

main82125-95J00iYH50,51,60,61..MTM..(GEN,SA)¥2,650198212-198807

main82125-95J00iYH50,51,61..MTM..N1¥2,650198508-198708

*FRG

main82125-95J01iYH50,60..4H..EUR198212-198401

main82125-95J02iYH50,60..5H198212-198401

main82125-95J03iYH50..4H..ARL198212-198401

main82125-95J04iYH51,61..5H..M1¥4,410198401-198708

SWEDEN SPEC

main82125-95J04iLH51,61,YH61..V5D..5H..03S¥4,410198410-198708

NORWAY SPEC

main82125-95J04iLH51,61,YH61..V5D..5H..03S¥4,410198508-198708

FINLAND OR DENMARK SPEC

main82125-95J04iLH51,61,YH61..V5D..5H..03S¥4,410198608-198708

W/*RWD

main82125-95J04iLH51,61,YH61..V5D..5H..03S¥4,410198608-198708

W/*REH

main82125-95J04iYH50,61..LHD..VSP..MTM..N1¥4,410198508-198608

W/*RWD OR *REH

main82125-95J04iLH50,51,60,61..5H..ARL¥4,410198212-198708

82131WIRE, COWL

main82131-90C01iYH71198212-198401

main82131-90C02iLH70198212-198401

main82131-95J02iYH50,61..ARL198212-198401

main82131-95J03iYH50,60..5H..J..M1198212-198401

*FRG,W/ECONOMY METER

main82131-95J05iLH50,60,YH50..LHD..EUR198212-198401

*FRG

main82131-95J06iYH50,60..LHD..MTM..(03S,06S)..EUR¥51,700198212-198401

*RWD,*RW OR *RHW

main82131-95J09iLH50,60,YH50,60..RHD..EUR198212-198401

main82131-95J10iYH50,6#..RHD..(GEN,SA)198212-198401

main82131-95J11iYH50,60..LHD..GEN¥33,300198212-198305

sub82131-95J68¥33,300

main82131-95J12iLH50,60..LHD..EUR198212-198401

main82131-95J13iLH50,60..ARL198212-198401

main82131-95J19iLH60..V5D..N1198212-198401

SWEDEN SPEC

main82131-95J20iYH51198306-198401

main82131-95J21iLH50,60..RHD..GEN198212-198401

main82131-95J22iLH50,60..LHD..GEN198212-198401

main82131-95J30iYH50..RHD..06S198212-198401

NEW ZEALAND SPEC

main82131-95J31iLH50..V4D..06S..GEN198212-198401

NEW ZEALAND SPEC

main82131-95J32iYH50,60..LHD..MTM..(03S,06S)..EUR¥51,700198212-198401

sub82131-95J06¥51,700

main82131-95J49iLH51,61,YH50,61..RHD..EUR198401-198408

main82131-95J50iYH50,61..G198401-198508

main82131-95J51iYH50,61..G¥43,200198401-198508

*RWD,*RHW,*REH OR *RW

main82131-95J51iYH50..5H..12S;YH50,61..5H..J;YH51,61..4HC..N1¥43,200198401-198508

*RWD,*RHW OR *RW

main82131-95J52iLH51,61..LHD..EUR198401-198407

main82131-95J53iYH50..J..M1198401-198508

*FRG,W/ECONOMY METER

main82131-95J54iLH51..J;YH50..4H..J198407-198508

main82131-95J54iYH50..LHD..4H..03S..N1;LH51..LHD..(03S,06S)..N1;LH61,YH50..LHD..(4HC,5H)..EUR198401-198508

*FRG

main82131-95J55iLH61..V5D..5H..N1198401-198508

SWEDEN SPEC

main82131-95J56iYH61,71..ARL;YH51..4H..ARL198401-198508

main82131-95J57iLH51,61,71..ARL198401-198508

main82131-95J58iYH50,60..RHD..GEN¥33,300198401-198508

main82131-95J58iYH61..V4D..VSG..03S..N1¥33,300198405-198410

*SA

main82131-95J59iLH51,61..RHD..GEN198401-198508

main82131-95J60iYH50,60..LHD..GEN¥33,300198401-198508

main82131-95J61iLH51,61..LHD..GEN198401-198508

main82131-95J63iYH51..5H198401-198508

main82131-95J64iYH51..4HC..SA198401-198508

main82131-95J65iYH61..GEN198401-198508

main82131-95J66iLH61..V4D..06S198401-198508

NEW ZEALAND SPEC

main82131-95J68iYH50,60..LHD..GEN¥33,300198305-198401

main82131-95J75iLH61..LHD..EUR;LH51..LHD..(03S,06S)..N1¥43,200198407-198508

main82131-95J78iLH51,61,YH50,61..RHD..EUR198408-198508

main82131-95J82iLH51,61,YH50,61..V5D..VSP..N1198410-198508

NORWAY SPEC

main82131-95N05iLH51,61,YH5#,61..RHD..EUR198508-198601

main82131-95N06iYH5#,61..LHD..V..MTM..EUR198508-198601

main82131-95N07iYH5#,61..LHD..V..MTM..EUR198508-198601

*RWD OR *REH

main82131-95N08iLH51,61..LHD..EUR198508-198601

main82131-95N09iYH51..5H..U198508-198601

*FRG

main82131-95N10iLH51..M1;LH51,61,YH50,61..LHD..VSP..MTM..N1198508-198601

*FRG

main82131-95N11iLH61..R198508-198601

SWEDEN SPEC

main82131-95N12iLH51,61,YH50,61..V5D..03S..N1¥43,200198508-198601

NORWAY SPEC

main82131-95N13iYH61,71..ARL;YH51..4H..ARL198508-198601

main82131-95N14iYH51..05S198508-198601

main82131-95N15iLH51,61,71..ARL198508-198601

main82131-95N16iYH60,63..SA¥33,500198508-198807

sub82131-95N80¥33,500

main82131-95N17iYH50,60..LHD..GEN¥43,200198508-198608

main82131-95N18iLH51,61..RHD..GEN¥43,500198508-198612

sub82131-95N81¥43,500

main82131-95N19iLH51,61..LHD..GEN¥43,500198508-198708

main82131-95N20iYH53..5H..GL¥43,500198508-198807

main82131-95N21iYH51..4HC..SA198508-198608

main82131-95N28iLH51..12S..EUR198508-198601

*RWD

main82131-95N29iLH51,61..M1198508-198601

*RWD

main82131-95N30iYH50,60..LHD..GEN198504-198508

W/TAPE PLAYER

main82131-95N31iLH51..M1198508-198601

*RWD & *FRG

main82131-95N36iLH51,61,YH50,61..RHD..EUR¥43,200198601-198608

sub82131-95N72¥43,500

main82131-95N37iYH5#,61..LHD..V..MTM..EUR¥43,200198601-198608

sub82131-95N73¥43,500

main82131-95N38iYH5#,61..LHD..V..MTM..EUR198601-198608

*RWD OR *REH

main82131-95N39iLH51,61..LHD..EUR198601-198608

main82131-95N40iYH51..5H..U198601-198608

*FRG

main82131-95N41iLH51..M1;LH51,61,YH50,61..LHD..VSP..MTM..N1198601-198608

*FRG

main82131-95N42iYH61..U;YH61..V5D..(4HC,5H)..N1198601-198608

SWEDEN SPEC

main82131-95N43iLH51,61,YH50,61..V5D..03S..N1198601-198608

NORWAY SPEC

main82131-95N44iYH51..4H..ARL;YH53,61,63,7#..STD..ARL¥43,500198601-198708

main82131-95N45iYH51,53..05S¥43,500198601-198708

main82131-95N46iLH51,61,71..ARL¥43,500198601-198708

main82131-95N47iLH51..12S..EUR198601-198608

*RWD

main82131-95N48iLH51,61..M1198601-198608

*RWD

main82131-95N49iLH51..M1198601-198608

*RWD & *FRG

main82131-95N61iYH51,61..4HC;YH61..15S..EUR¥43,500198608-198708

*REH

main82131-95N61iYH51,61..LHD..V..MTM..EUR¥43,500198608-198708

*RWD

main82131-95N61iYH66;YH56..N1¥43,500198612-198708

main82131-95N62iLH56..N1;LH51,6#..LHD..EUR¥43,500198608-198708

main82131-95N63iLH51,61..M1¥43,500198608-198708

*RWD

main82131-95N63iLH51,61..M1¥43,500198611-198708

COLD SPEC,W/RR HEATER

main82131-95N64iYH51..U¥43,500198608-198708

*FRG

main82131-95N64iYH56..M1¥43,500198612-198708

main82131-95N65iLH51..M1;LH51,YH51..LHD..V4D..VSP..MTM..N1¥43,500198608-198708

*FRG

main82131-95N66iLH56..M1¥43,500198608-198708

*RWD & *FRG

main82131-95N66iLH56..M1¥43,500198608-198708

*RWD

main82131-95N67iYH61..U;YH61..V5D..(4HC,5H)¥43,500198608-198708

SWEDEN SPEC

main82131-95N68iYH61..V5D..(4HC,5H)..03S;LH51,6#,YH51..V5D..VSP..N1¥43,500198608-198611

NORWAY SPEC

main82131-95N70iLH61,YH61..RHD..N1¥43,500198608-198708

ENGLAND SPEC

main82131-95N72iLH51,61,YH51,61..RHD..N1¥43,500198608-198708

main82131-95N73iYH51,61..LHD..V..MTM..EUR¥43,500198608-198708

main82131-95N74iYH53..STD..SA¥43,500198608-198807

main82131-95N75iYH53..4HC..SA¥43,500198608-198708

main82131-95N78iYH51,61..LHD..GEN¥43,500198608-198708

main82131-95N79iYH61..V5D..4HC..03S¥43,500198611-198708

main82131-95N80iYH51,61..RHD..GEN¥33,500198612-198708

main82131-95N81iLH51,61..RHD..GEN¥43,500198612-198708

82151WIRE, FRONT DOOR, RH

main82151-95J12iYH51,53..05S¥3,210198508-198708

82152WIRE, FRONT DOOR, LH

main82152-95J02iYH51,53..05S¥3,210198508-198708

main82152-95J05iLH5#,66..LHD..VSP..N1;LH61..LHD..5H..03S..N1¥2,770198508-198708

W/SEAT HEATER

82210CFUSIBLE LINK

main90982-08189iLH5#,61,66,7#,YH5#,6#,7#¥440198212-198807

40A,TERM.:FEMALE,GRN,40A

main90982-08202iLH5#,6#,7#,YH5#,6#,7#¥700198212-198807

60A,TERM.:MALE,YEL,60A

main90982-08203iLH5#,6#,7#¥460198212-198708

80A,TERM.:MALE,BLK,80A

82221WIRE, OIL PRESSURE SWITCH

main82221-95J00iLH51,61..EUR¥320198608-198708

main82221-95J02iLH56,66¥9,400198608-198708

82241CWIRE, RELAY

main82241-95701iLH66,YH66..M1¥300198508-198708

main82241-95702iYH51,61..LHD..COM..EUR¥300198508-198708

main82241-95702iLH61..LHD..5H..N1;YH61..LHD..(4HC,5H)..N1¥300198608-198708

FRANCE SPEC

main82241-95702iYH61..U;LH61,YH61..LHD..N1¥300198508-198708

*SWZ OR FRANCE SPEC

main82241-95702iLH56,YH56,66..N1¥300198608-198708

*SWZ

82721BRACKET, WIRING HARNESS, NO.1

main82701-95J00iLH5#,6#,7#,YH5#,6#,7#¥880198212-198807

82721ABRACKET, WIRING HARNESS, NO.2

main82723-95J00iLH5#,6#,7#,YH5#,6#,7#¥320198212-198807

9011908103

main90119-08103¥90

9011908116

main90119-08116¥200

9015950068

main90159-50068¥70

9018305014

main90183-05014¥390

9161160816

main91611-60816¥230

9165140816

main91651-40816¥80

9338216014

main93382-16014¥120

9338516010

main93385-16010¥110

22 parts on this diagram · 6 diagrams in section
