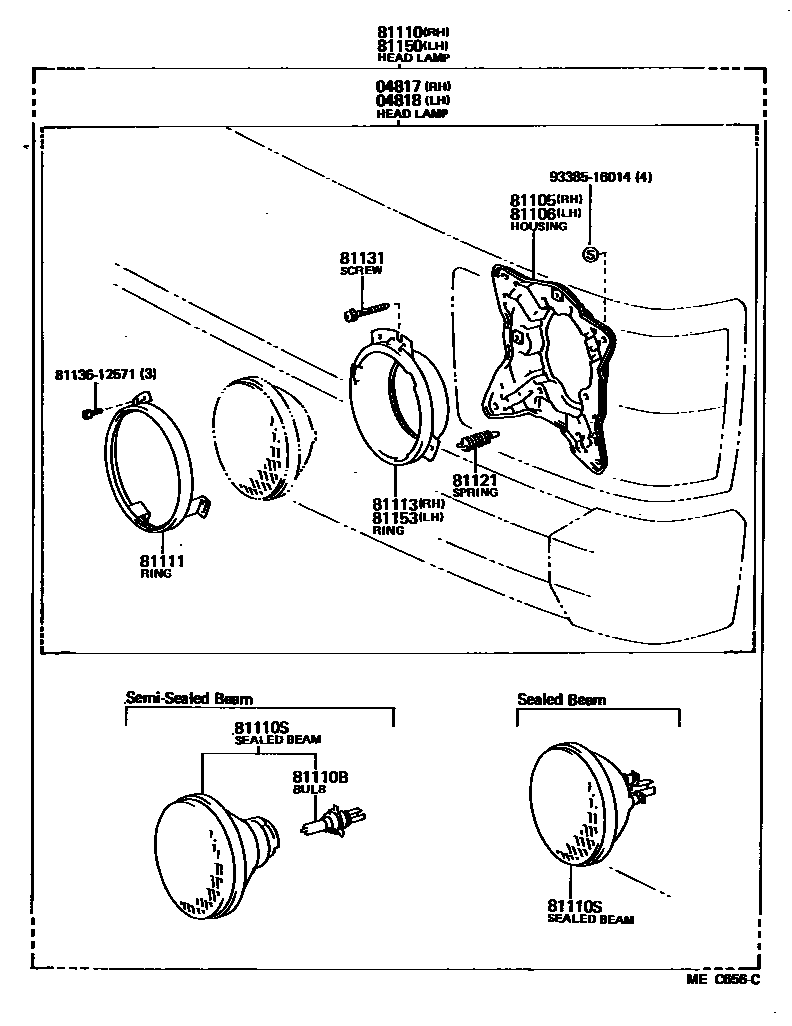

HEADLAMP

0001 1 0003 1 0004 1

04817HEADLAMP KIT, W/O SEALED BEAM, RH

main04817-26020iYH51;LH50,60,70,YH50,6#,71..ARL,EUR,GEN198212-198401

*SSB HALOGEN,WHITE

main04817-26030iYH60..LHD..EUR;LH5#..LHD..(03S,06S)..N1;YH50..LHD..4H..(03S,06S)..N1;LH6#,YH50..LHD..(4HC,5H)..EUR198212-198508

*SSB HALOGEN,WHITE,*FRG

main04817-26040iYH51..GL198401-198508

HALOGEN

04818HEADLAMP KIT, W/O SEALED BEAM, LH

main04818-26020iYH51;LH50,60,70,YH50,6#,71..ARL,EUR,GEN198212-198401

*SSB HALOGEN,WHITE

main04818-26030iYH60..LHD..EUR;LH5#..LHD..(03S,06S)..N1;YH50..LHD..4H..(03S,06S)..N1;LH6#,YH50..LHD..(4HC,5H)..EUR198212-198508

*SSB HALOGEN,WHITE,*FRG

main04818-26040iYH51..GL198401-198508

HALOGEN

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-95J00iLH50,60,70,YH5#,6#,71198212-198401

main81105-95J08iYH51..GL198401-198508

main81105-95J14iLH51,61,71,YH5#,6#,7#..STD198508-198807

main81105-95J25iYH51,53..GL198508-198807

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-95J00iLH50,60,70,YH5#,6#,71198212-198401

main81106-95J08iYH51..GL198401-198508

main81106-95J14iLH5#,6#,71,YH5#,6#,7#..STD198508-198807

main81106-95J25iYH51,53..GL198508-198807

81110HEADLAMP ASSY, RH

main81110-80285iYH61..V4D..VSG..03S..N1198405-198410

SEALED BEAM,*SA

main81110-80286iLH5#,6#,YH50,6#..RHD..(EUR,GEN)198212-198508

*SSB,WHITE

main81110-80288iYH50..(4HC,5H)..EUR;LH50,6#,YH51,6#..LHD;LH51..LHD..(03S,06S,12S);YH50..LHD..4H..(03S,06S,12S)198212-198508

*SSB,WHITE

main81110-80289iYH50..(4HC,5H)..EUR;LH50,6#,YH51,6#..LHD;LH51..LHD..(03S,06S,12S);YH50..LHD..4H..(03S,06S,12S)198212-198508

*SSB HALOGEN,WHITE

main81110-80290iYH50..(4HC,5H)..EUR;LH50,6#,YH51,6#..LHD;LH51..LHD..(03S,06S,12S);YH50..LHD..4H..(03S,06S,12S)198212-198508

*SSB HALOGEN,YELLOW

main81110-80291iLH5#,6#,YH50,6#..LHD..EUR198212-198508

*SSB,WHITE,W/*HC OR SWEDEN

main81110-80292iLH5#,6#,YH50,60..LHD..GEN198212-198508

SEALED BEAM

main81110-80295iYH60..LHD..EUR;LH5#..LHD..(03S,06S)..N1;YH50..LHD..4H..(03S,06S)..N1;LH6#,YH50..LHD..(4HC,5H)..EUR198212-198508

*SSB WHITE,*FRG

main81110-80296iLH50,60,70,YH51,60,71..RHD;YH50,61..RHD..(ARL,EUR,GEN)198212-198401

*SSB HALOGEN,WHITE

main81110-80297iLH51..J;YH50..4H..J198407-198508

*SSB HALOGEN,WHITE

main81110-80384iYH51..GL198401-198508

HALOGEN

main81110-95J14iLH51,61,YH51,61,63..RHD..GEN198608-198708

SEALED BEAM

main81110-95J16iLH51,61,YH50,51,60,61..LHD..GEN198508-198708

SEALED BEAM

main81110-95J17iYH51..VSG..5H..EUR;LH51,61,YH50,60,61..LHD;YH51..LHD..(03S,06S,12S)198508-198708

*SSB,WHITE

sub81110-95J56

main81110-95J18iLH51,61,YH50,51,60,61,63..RHD..(EUR,GEN)198508-198708

*SSB,WHITE

sub81110-95J57

main81110-95J19iYH56..N1;YH51..VSG..5H..EUR;LH51,6#,YH50,60,61,66..LHD;LH56,YH51..LHD..(02S,03S,06S,12S)198508-198708

*SSB HALOGEN,WHITE

sub81110-95J52

main81110-95J20iLH51,61,YH50,51,60,61,63..RHD..(EUR,GEN)198508-198708

*SSB HALOGEN,WHITE

sub81110-95J53

main81110-95J21iYH56..N1;YH51..VSG..5H..EUR;LH51,6#,YH50,60,61,66..LHD;LH56,YH51..LHD..(02S,03S,06S,12S)198508-198708

*SSB HALOGEN,YELLOW

sub81110-95J54

main81110-95J22iLH51,YH51..5H..U198508-198708

*SSB WHITE,*FRG

sub81110-95J58

main81110-95J23iLH51,YH51..5H..U198508-198708

*SSB HALOGEN,WHITE,*FRG

sub81110-95J55

main81110-95J26iYH53..05S198608-198708

HALOGEN

main81110-95J27iYH51..4H..ARL;LH51,61,71,YH53,61,63,7#..STD..ARL198508-198708

HALOGEN

main81110-95J33iYH53..GL..SA198608-198807

HALOGEN

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13013×2iYH51..VSG..5H..EUR;LH5#,6#,YH50,56,6#..EUR,GEN;YH51..(03S,06S,09S,12S)..(EUR,GEN)198212-198708

12V 45/40W,WHITE,12V 45/40W,*SSB WHITE

main90981-13015×2iYH51;LH50,60,70,YH50,6#,71..ARL,EUR,GEN198212-198401

12V 60/55W,*HAL *WH,12V 60/55W,*SSB HALOGEN,WHITE

sub90981-13058

main90981-13016×2iYH56..N1;YH51..VSG..5H..EUR;LH51,6#,YH50,60,61,66..LHD;LH56,YH51..LHD..(02S,03S,06S,12S)198508-198708

12V 60/55W,*HAL *YE,12V 60/55W,*SSB HALOGEN,YELLOW

sub90981-13H01

main90981-13017×2iYH53..GL..SA198608-198807

12V 55W,*HAL *WH,12V 55W,HALOGEN

81110SSEALED BEAM UNIT, NO.1

main90981-01017×2iLH5#,6#,YH5#,6#..LHD198212-198508

12V 45/40W,*WSB,12V 45/40W,*SSB,WHITE

main90981-01022×2iLH50,60,70,YH50,6#,71..RHD..(ARL,GEN,SA)198212-198401

12V 60/50W,*WB,12V 60/55W,SEALED BEAM

sub90981-01048

main90981-01028×2iLH5#,6#,YH50,6#..RHD..(EUR,GEN)198212-198508

12V 45/40W,*WSB,12V 45/40W,*SSB,WHITE

main90981-01029×2iLH5#,6#,YH50,6#..LHD..EUR198212-198508

12V 45/40W,*WSB,12V 45/40W,*SSB WHITE,W/*HC

main90981-01035×2iLH5#,6#,YH5#,6#..LHD198212-198508

12V 60/55W,*HWS,12V 60/55W,*SSB HALOGEN,WHITE

main90981-01036×2iYH50..(4HC,5H)..EUR;LH50,6#,YH51,6#..LHD;LH51..LHD..(03S,06S,12S);YH50..LHD..4H..(03S,06S,12S)198212-198508

12V 60/55W,*HYS,12V 60/55W,*SSB HALOGEN,YELLOW

main90981-01037×2iLH50,60,70,YH51,60,71..RHD;YH50,61..RHD..(ARL,EUR,GEN)198212-198401

12V 60/55W,*HWS,12V 60/55W,*SSB HALOGEN,WHITE

main90981-01046×2iLH5#,6#,YH50,60..LHD..GEN198212-198508

12V 60/50W,*WB,12V 60/55W,SEALED BEAM

sub81110-60P70

main90981-04004×2iLH51,61,YH50,51,60,61..LHD..GEN198508-198708

12V 65/55W,*WB,12V 65/55W,SEALED BEAM

main90981-04005×2iYH53,60,63..STD..SA198608-198807

12V 45/40W,*WSB,12V 45/40W,*SSB,WHITE

main90981-04006×2iYH51..VSG..5H..EUR;YH51..LHD..(03S,06S,12S);LH5#,6#,YH50,56,60,61,66..LHD198508-198708

12V 45/40W,*WSB,12V 45/40W,*SSB,WHITE

main90981-04008×2iYH51..VSG..5H..EUR;YH51..LHD..(03S,06S,12S);LH5#,6#,YH50,56,60,61,66..LHD198508-198708

12V 60/55W,*HWS,12V 60/55W,*SSB HALOGEN,WHITE

main90981-04009×2iYH56..N1;YH51..VSG..5H..EUR;LH51,6#,YH50,60,61,66..LHD;LH56,YH51..LHD..(02S,03S,06S,12S)198508-198708

12V 60/55W,*HYS,12V 60/55W,*SSB HALOGEN,YELLOW

main90981-04011×2iLH51,61,YH50,51,60,61,63..RHD..(EUR,GEN)198508-198708

12V 60/55W,*HWS,12V 60/55W,*SSB HALOGEN,WHITE

main90981-04015×2iYH51..4H..ARL;LH51,61,71,YH53,61,63,7#..STD..ARL198508-198708

12V 65/55W,*WB,12V 65/55W,HALOGEN

sub90981-04H21

sub90981-04H22

main90981-04029×2iLH51,61,YH5#,6#..RHD..STD..(GEN,SA)198508-198608

12V 65/55W,*WB,12V 65/55W,SEALED BEAM

sub90981-04H21

sub90981-04H22

main90981-05028×2iYH51..4H..ARL;LH51,61,71,YH61,71..ARL198401-198508

12V 50W,*HAL,*WB,12V 50W,HALOGEN

main90981-05047×2iYH53..GL..SA198608-198807

12V 55W,*HWS,12V 55W,HALOGEN

81111RING, SEALED BEAM RETAINING

main81111-16020×2iLH66,YH66;LH56,YH56..N1198608-198708

main81111-20360×4iYH51..4H..ARL;LH51,61,71,YH61,71..ARL198401-198508

main81111-22150×2iYH50..5H;YH50..4H..(03S,06S,12S);LH51..(03S,06S,12S)..(EUR,GEN);LH61,YH51,6#..STD..(EUR,GEN,SA)198401-198508

main81111-95A28×2iLH51,YH51..5H..U198508-198708

*FRG

main81111-95J10×2iLH51..J;YH50..4H..J198407-198508

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-22391iYH51,53..GL198401-198807

main81113-95J00iLH50,60,70,YH5#,6#,71198212-198401

main81113-95J10iYH60..LHD..EUR;LH5#..LHD..(03S,06S)..N1;YH50..LHD..4H..(03S,06S)..N1;LH6#,YH50..LHD..(4HC,5H)..EUR198212-198508

*FRG

main81153-16220iLH66,YH66;LH56,YH56..N1198608-198708

main81153-95A28iLH51,YH51..5H..U198508-198708

*FRG

81121SPRING, HEADLAMP TENSION

main81121-14320×4iYH51..4H..ARL;LH51,61,71,YH61,71..ARL198401-198508

main81121-16020×2iLH5#,6#,71,YH5#,6#,7#..STD198508-198807

main81121-62010×2iLH51,61,YH5#,6#..STD..(EUR,GEN,SA)198401-198508

81131SCREW, HEADLAMP ADJUSTING

main81131-10031×4iLH50,60,70,YH5#,6#,71198212-198401

main81131-20360×8iYH51..4H..ARL;LH51,61,71,YH61,71..ARL198401-198508

sub81131-28050

81150HEADLAMP ASSY, LH

main81150-80282iLH50,60,70,YH50,6#,71..RHD..(ARL,GEN,SA)198212-198401

SEALED BEAM

main81150-80283iLH5#,6#,YH50,6#..RHD..(EUR,GEN)198212-198508

*SSB,WHITE

main81150-80285iYH50..(4HC,5H)..EUR;LH50,6#,YH51,6#..LHD;LH51..LHD..(03S,06S,12S);YH50..LHD..4H..(03S,06S,12S)198212-198508

*SSB,WHITE

main81150-80286iYH50..(4HC,5H)..EUR;LH50,6#,YH51,6#..LHD;LH51..LHD..(03S,06S,12S);YH50..LHD..4H..(03S,06S,12S)198212-198508

*SSB HALOGEN,WHITE

main81150-80287iYH50..(4HC,5H)..EUR;LH50,6#,YH51,6#..LHD;LH51..LHD..(03S,06S,12S);YH50..LHD..4H..(03S,06S,12S)198212-198508

*SSB HALOGEN,YELLOW

main81150-80288iLH5#,6#,YH50,6#..LHD..EUR198212-198508

*SSB,WHITE,W/*HC OR SWEDEN

main81150-80289iLH5#,6#,YH50,60..LHD..GEN198212-198508

SEALED BEAM

main81150-80292iYH60..LHD..EUR;LH5#..LHD..(03S,06S)..N1;YH50..LHD..4H..(03S,06S)..N1;LH6#,YH50..LHD..(4HC,5H)..EUR198212-198508

*SSB WHITE,*FRG

main81150-80293iLH50,60,70,YH51,60,71..RHD;YH50,61..RHD..(ARL,EUR,GEN)198212-198401

*SSB HALOGEN,WHITE

main81150-80294iLH51..J;YH50..4H..J198407-198508

*SSB HALOGEN,WHITE

main81150-80378iYH51..GL198401-198508

HALOGEN

main81150-95J14iLH51,61,YH51,61,63..RHD..GEN198608-198708

SEALED BEAM

main81150-95J16iLH51,61,YH50,51,60,61..LHD..GEN198508-198708

SEALED BEAM

main81150-95J17iLH66,YH66;LH56,YH56..N1198608-198708

*SSB,WHITE

sub81150-95J56

main81150-95J18iYH53,60,63..STD..SA198601-198807

*SSB,WHITE

sub81150-95J57

main81150-95J19iYH56..N1;YH51..VSG..5H..EUR;LH51,6#,YH50,60,61,66..LHD;LH56,YH51..LHD..(02S,03S,06S,12S)198508-198708

*SSB HALOGEN,WHITE

sub81150-95J52

main81150-95J20iLH51,61,YH50,51,60,61..RHD..(EUR,GEN)198508-198708

*SSB HALOGEN,WHITE

sub81150-95J53

main81150-95J21iYH56..N1;YH51..VSG..5H..EUR;LH51,6#,YH50,60,61,66..LHD;LH56,YH51..LHD..(02S,03S,06S,12S)198508-198708

*SSB HALOGEN,YELLOW

sub81150-95J54

main81150-95J22iLH51,YH51..5H..U198508-198708

*SSB WHITE,*FRG

sub81150-95J58

main81150-95J23iLH51,61,YH50,51,56,61..LHD..VSP..MTM..N1198508-198708

*SSB HALOGEN,WHITE,*FRG

sub81150-95J55

main81150-95J26iYH53..05S198608-198708

HALOGEN

main81150-95J27iYH51..4H..ARL;LH51,61,71,YH53,61,63,7#..STD..ARL198508-198708

HALOGEN

main81150-95J33iYH53..GL..SA198608-198807

HALOGEN

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81113-16220iLH51,61,71,YH50,51,53,60,61,63,7#..STD198508-198807

main81113-95A28iLH51,YH51..5H..U198508-198708

*FRG

main81153-22391iYH51..4H..ARL;LH51,61,71,YH61,71..ARL198401-198508

main81153-95J00iYH50..5H;YH50..4H..(03S,06S,12S);LH51..(03S,06S,12S)..(EUR,GEN);LH61,YH51,6#..STD..(EUR,GEN,SA)198401-198508

main81153-95J10iLH51..J;YH50..4H..J198407-198508

8113612571PROTECTOR, HEADLAMP, NO.1 RH

main81136-12571

9338516014

main93385-16014

15 parts on this diagram · 3 diagrams in section
