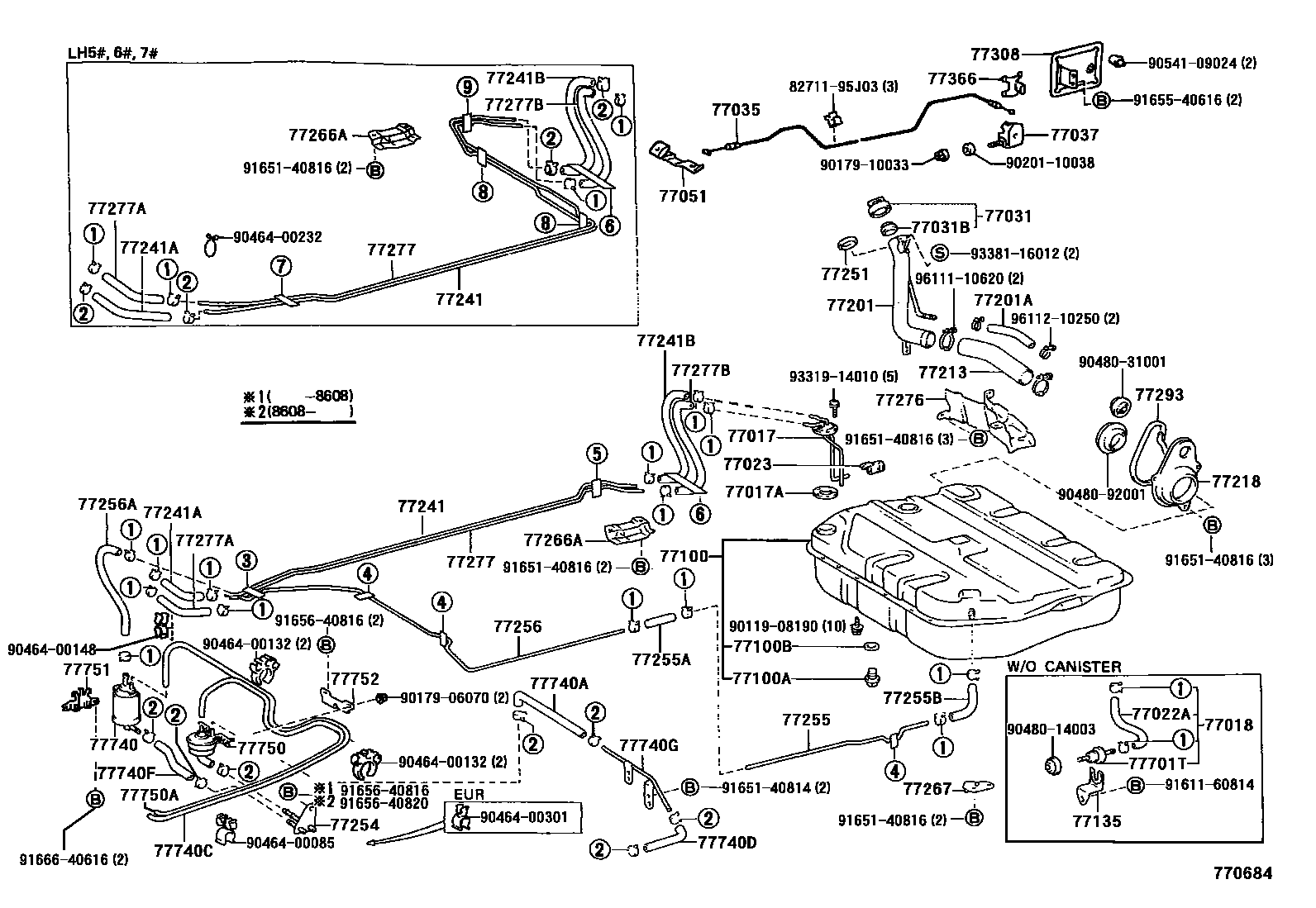

FUEL TANK & TUBE

0001 1 0002 1

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-26010iYH60,61,63..SA¥2,860198212-198802

main77017-26020iLH5#,6#,7#¥3,920198212-198708

main77017-26070iYH50,51,53..SA¥2,840198306-198807

77017AGASKET, FUEL TANK VENT

main77169-14020iLH5#,6#,7#,YH5#,6#,7#¥330198212-198807

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-26080iYH5#,61..EUR,GEN,SA¥2,340198212-198807

main77018-26150iLH51,61,YH51,61..EUR¥2,360198608-198708

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main90923-01274iLH50,51,60,61,7#,YH60¥610198212-198807

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iYH5#,6#,71¥920198212-198508

main77023-14030iYH5#,6#,7#¥1,020198508-198807

main77023-22040iLH5#,6#,7#¥1,050198212-198508

main77023-32010iLH5#,6#,71¥900198508-198708

77031CAP ASSY, FUEL TANK

main77310-12100iYH50,60;LH50,60,70,YH51,61,71..ARL,SA¥2,320198212-198807

main77310-35061iLH5#,6#,71¥2,320198212-198708

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iLH5#,6#,7#,YH5#,6#,7#¥310198212-198807

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-95J01iYH51,53..05S¥2,350198508-198708

main77035-95J01iLH51..06S;YH51..RHD..V4D..GEN¥2,350198612-198708

HONG KONG SPEC

main77035-95J02iLH61,YH61..RHD..06S¥2,680198612-198708

HONG KONG,SPEC

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-14010iYH51,53..05S¥1,350198508-198708

sub77037-90K00¥1,610

main77037-14010iYH51..RHD..V4D..GEN;LH51,61,YH61..RHD..06S¥1,350198612-198708

HONG KONG SPEC

sub77037-90K00¥1,610

77051LEVER SUB-ASSY, FUEL LID OPEN

main77050-95J00-14iYH51,53..05S198508-198708

BLUE,BLUE

sub77050-95J00¥2,690

main77050-95J00-16iYH51..RHD..V4D..GEN;LH51,61,YH61..RHD..06S198612-198708

HONG KONG SPEC,BROWN,BROWN

sub77050-95J00¥2,690

77100TANK ASSY, FUEL

main77100-26110iYH61..SA198212-198508

sub77100-26902¥41,200

sub83320-80024¥3,950

main77100-26120iLH5#,6#,7#¥40,900198212-198508

sub77100-26903¥41,200

sub83320-80024¥3,950

main77100-26902iYH60,61,63..SA¥41,200198508-198802

main77100-26903iLH5#,6#,71¥41,200198508-198708

77100APLUG(FOR FUEL TANK)

main90105-12018iLH5#,6#,7#,YH5#,6#,71..ARL,EUR,GEN¥380198212-198508

main90105-12116iYH51..4HC..03S..N1;YH51..(4FC,4H,5F,5H)..(ARL,EUR,GEN);LH5#,6#,71,YH50,53,56,6#,7#..ARL,EUR,GEN¥110198508-198802

77100BGASKET(FOR FUEL TANK)

main90430-12245iLH5#,6#,7#,YH5#,6#,71..ARL,EUR,GEN¥160198212-198802

77135BRACKET, CHECK VALVE

main77135-26010iYH51..VSG..5H..EUR;LH5#,6#,7#,YH56,60,66;YH50,53,61,63..EUR,GEN,SA;YH51..(03S,06S,09S,12S)..(EUR,GEN,SA)¥310198212-198807

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-26040iYH51..VSG..5H..EUR;YH53,61,63..EUR,GEN,SA;LH51,61,71,YH50,56,60,66;YH51..(03S,06S,09S,12S)..(EUR,GEN,SA)¥6,100198212-198807

main77201-26080iYH53,61,63,7#..ARL;YH51..(4FC,4H,5F)..ARL¥6,600198508-198708

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-24012iLH5#,6#,7#,YH5#,6#,7#¥1,190198212-198807

L=340

77213HOSE, FUEL TANK SUB INLET

main77213-26040iLH5#,6#,71¥2,900198212-198807

main77213-26070iYH53,63,73..ARL¥5,800198608-198708

77218PLATE, FUEL INLET PIPE SET

main77218-95J00iLH5#,6#,7#,YH5#,6#,7#¥1,530198212-198807

77241TUBE, FUEL MAIN, NO.1

main77251-26150iYH5#¥1,740198212-198501

sub77251-26420¥1,390

main77251-26160iYH6#¥1,830198212-198501

sub77251-26440¥1,470

main77251-26170iYH71¥1,970198212-198501

sub77251-26460¥1,600

main77251-26180iLH51..ARL,GEN¥2,700198212-198601

main77251-26181iLH51..ARL,GEN¥2,860198601-198708

main77251-26190iLH61..ARL,GEN¥2,820198212-198601

main77251-26191iLH61..ARL,GEN¥3,050198601-198708

main77251-26200iLH7#¥3,050198212-198601

main77251-26201iLH71¥3,280198601-198708

main77251-26300iYH51..4HC..SA;YH5#..(4FC,4H,5F,5H)..(ARL,GEN,SA)¥1,960198407-198608

sub77251-26430¥1,970

main77251-26310iYH6#..ARL,GEN,SA¥2,140198407-198608

sub77251-26450¥2,160

main77251-26320iLH51..EUR198407-198601

main77251-26321iLH5#..EUR¥3,280198601-198708

main77251-26330iLH61..EUR198407-198601

main77251-26331iLH6#..EUR¥3,610198601-198708

main77251-26340iYH71¥2,370198501-198608

sub77251-26470¥1,900

main77251-26430iYH5#¥1,970198608-198807

main77251-26450iYH6#¥2,160198608-198807

main77251-26470iYH73¥1,900198608-198708

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95332-06040iYH5#,6#,7#¥760198212-198702

L=400(*H,L=380)

sub95333-06040¥730

main95332-08030iLH5#,6#,7#¥480198212-198708

L=300(*H,L=220)

sub95333-08030¥660

main95333-06040iYH5#,6#,73¥730198702-198807

L=400,*H,L=380

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main95332-06030iYH5#,6#,7#¥590198212-198702

L=300

sub95333-06030¥580

main95332-08030iLH5#,6#,7#¥480198212-198708

L=300

sub95333-08030¥660

main95333-06030iYH5#,6#,73¥580198702-198807

L=300

sub95338-06030¥580

77251SHIELD, FUEL TANK, INLET, NO.1

main77251-10010iLH5#,6#,7#,YH5#,6#,7#¥1,010198212-198807

77254TUBE, FUEL EMISSION, NO.1

main77263-26060iYH50,51,60,61¥1,650198306-198807

*SAA

main77263-26060iYH50,53,61,63,7#..ARL;YH51..(4FC,4H,5F)..ARL¥1,650198212-198708

main77263-26070iYH51..VSG..5H..EUR;YH50,56,60,61,66..EUR,GEN,SA;YH51..(03S,06S,09S,12S)..(EUR,GEN,SA)¥930198212-198807

77255TUBE, FUEL EMISSION, NO.2

main77262-26140iYH50,53..ARL;YH51..(4FC,4H,5F)..ARL¥1,120198212-198708

main77262-26140iYH50,51..GEN¥1,120198401-198708

*SAA

main77262-26150iYH61,63..ARL¥1,180198212-198708

main77262-26150iYH60,61..GEN¥1,180198401-198708

*SAA

main77262-26160iYH71¥1,360198212-198608

77255AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)

main95332-06020iYH50,53,61,63,7#..ARL;YH51..(4FC,4H,5F)..ARL¥350198212-198708

L=200(*H,L=180)

sub95333-06020¥480

main95332-06020iYH50,51,60,61..GEN¥350198401-198708

L=200(*H,L=180),*SAA

sub95333-06020¥480

77255BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2)

main90923-01274iYH50,53,61,63,7#..ARL;YH51..(4FC,4H,5F)..ARL¥610198212-198708

main90923-01274iYH50,51,60,61..GEN¥610198401-198708

*SAA

77256TUBE, FUEL EMISSION, NO.3

main77263-26030iYH50,53,61,63,7#..ARL;YH51..(4FC,4H,5F)..ARL¥1,650198212-198708

main77263-26030iYH50,51,60,61..GEN¥1,650198401-198708

*SAA

77256AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3)

main95332-06060iYH50,51,60,61..GEN¥1,020198401-198708

L=600(*H,L=500),*SAA

sub95333-06060¥1,020

main95332-06060iYH50,53,61,63,7#..ARL;YH51..(4FC,4H,5F)..ARL¥1,020198212-198708

L=600(*H,L=500)

sub95333-06060¥1,020

77266APROTECTOR, FUEL TUBE, NO.1

main77266-26010iLH5#,6#,7#,YH5#,6#,7#¥540198212-198807

77267COVER, FUEL EVAPORATIVE TUBE

main77267-26020iLH5#,6#,7#,YH5#,6#,7#¥940198212-198807

77276PROTECTOR, FUEL HOSE

main77276-26050iLH5#,6#,7#,YH5#,6#,7#¥2,790198212-198807

77277TUBE, FUEL RETURN, NO.1

main77255-26040iLH51..ARL,GEN¥2,360198212-198601

main77255-26041iLH51..ARL,GEN¥2,500198601-198708

main77255-26050iLH6#¥2,250198212-198601

main77255-26051iLH61..ARL,GEN¥2,620198601-198708

main77255-26060iLH7#¥3,020198212-198601

main77255-26061iLH71¥2,860198601-198708

main77255-26070iYH51..4HC..SA;YH5#..MTM..(ARL,GEN,SA)¥1,740198212-198501

main77255-26080iYH6#..ARL,GEN,SA¥1,830198212-198501

main77255-26090iYH71¥1,980198212-198501

main77255-26150iYH50..EUR;YH51..VSG..5H..EUR;YH51..(03S,06S,09S,12S)..EUR¥1,980198407-198807

main77255-26160iYH61..EUR¥2,110198407-198807

main77255-26170iLH51..EUR198407-198601

main77255-26171iLH5#..EUR¥2,860198601-198708

main77255-26180iLH61..EUR198407-198601

main77255-26181iLH6#..EUR¥2,940198601-198708

main77255-26190iYH7#¥2,370198501-198708

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main90447-12071iLH5#,6#,71¥2,000198601-198708

*H,L=520

main90447-13001iLH5#,6#,7#¥7,100198212-198601

L=460

sub90447-12071¥2,000

main95332-06040iYH5#,6#,7#¥760198212-198701

L=400(*H,L=380)

sub95333-06040¥730

main95333-06038iYH51,53,60,61,63,73¥760198701-198807

L=400(*H,L=380)

sub95333-06040¥730

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main95332-06030iLH5#,6#,7#,YH5#,6#,7#¥590198212-198708

L=300

sub95333-06030¥580

main95333-06030iYH5#,6#,73¥580198702-198807

L=300

sub95338-06030¥580

77293PACKING, FUEL TANK, LOWER

main77293-95J00iLH5#,6#,7#,YH5#,6#,7#¥360198212-198807

77308COVER SUB-ASSY, FUEL INLET BOX

main77340-95J00iLH5#,6#,7#,YH5#,6#,71¥1,950198212-198807

main77340-95J01iYH51,53..05S¥1,950198508-198708

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-95J00iYH51,53..05S¥300198508-198708

main77366-95J00iYH51..RHD..V4D..GEN;LH51,61,YH61..RHD..06S¥300198612-198708

HONG KONG SPEC

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10020iLH51,61,71,YH60..ARL,GEN,SA¥1,580198212-198807

main90917-10067iLH51,61,YH51,61..EUR¥900198608-198708

77740CANISTER ASSY, CHARCOAL

main77704-60050iYH50,53,61,63,7#..ARL;YH51..(4FC,4H,5F)..ARL¥7,900198212-198708

main77704-60050iYH50,51,60,61..LHD..GEN¥7,900198401-198708

*SAA

main77740-26050iYH50,60..RHD..GEN¥10,100198408-198608

SINGAPORE SPEC

main77740-26050iYH51..VSG..5H..EUR;YH50,56,60,61,66..EUR;YH51..(03S,06S,09S,12S)..EUR¥10,100198212-198708

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main23829-72010iYH50,51,53,60,61,63..GEN,SA¥2,110198212-198807

main90445-14096iYH50,51,60,61..LHD..GEN¥860198401-198708

L=490,*SAA

main90445-14096iYH50,53,60,61,63,7#..ARL,EUR;YH51..4HC..(03S,06S,09S)..N1;YH51..(4FC,4H,5F,5H)..(ARL,EUR)¥860198212-198708

L=490

main90445-14096iYH50,51,60,61..RHD..GEN¥860198408-198708

L=490,SINGAPORE SPEC

main90445-14158iYH56,66¥1,680198608-198708

L=640

77740CHOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)

main90445-08224iYH53,61,63,7#..ARL;YH51..(4FC,4H,5F)..ARL¥1,620198212-198708

L=1300

sub90999-92006¥2,010

main90445-08224iYH50,51,60,61..RHD..GEN¥1,620198408-198708

L=1300,SINGAPORE SPEC

sub90999-92006¥2,010

main90445-08228iYH50..ARL¥2,090198212-198401

sub90999-92007¥2,470

main90445-08228iYH50,51,60,61..LHD..GEN¥2,090198401-198708

*SAA

sub90999-92007¥2,470

main95411-10295iYH56,66¥1,530198612-198708

sub90999-92004¥890

77740DHOSE, FUEL, NO.4(FOR CHARCOAL CANISTER)

main90445-14095iYH50,51,53,60,61,63..GEN,SA¥610198212-198807

L=350

main90445-14102iYH50,51,60,61..LHD..GEN¥300198401-198708

L=60,*SAA

main90445-14102iYH50,53,56,6#,7#..ARL,EUR;YH51..4HC..(03S,06S,09S)..N1;YH51..(4FC,4H,5F,5H)..(ARL,EUR)¥300198212-198708

L=60

main90445-14102iYH50,51,60,61..RHD..GEN¥300198408-198708

L=60,SINGAPORE SPEC

77740FTUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main95332-08060iYH50,53,61,63,7#..ARL;YH51..(4FC,4H,5F)..ARL¥1,090198212-198708

*H,L=440

sub95333-08060¥1,080

main95332-08060iYH50,51,60,61..LHD..GEN¥1,090198401-198708

*SAA,*H,L=440

sub95333-08060¥1,080

77740GTUBE, FUEL, NO.2(FOR CHARCOAL CANISTER)

main23818-72010iYH50,51,53,60,61,63,7#¥2,080198212-198807

main23818-73010iYH56,66¥1,760198608-198708

77750CANISTER ASSY, CHARCOAL

main77740-26050iYH50,53,61,63,7#..ARL;YH51..(4FC,4H,5F)..ARL¥10,100198212-198708

main77740-26050iYH50,51,60,61..LHD..GEN¥10,100198401-198708

*SAA

77750AHOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)

main90445-08205iYH61,71..ARL¥2,190198212-198304

L=1150

sub90445-08207¥2,220

main90445-08213iYH61,71..ARL;YH51..4H..ARL¥1,980198304-198404

L=1150

sub90999-92006¥2,010

main90445-08213iYH50,60¥1,980198401-198404

*SAA,L=1150

sub90999-92006¥2,010

main90445-08215iYH50..ARL¥2,190198212-198305

sub90445-08207¥2,220

main90445-08242iYH53,61,63,7#..ARL;YH51..(4FC,4H,5F)..ARL¥880198404-198708

L=1300(*H,L=1240)

sub90999-92006¥2,010

main90445-08242iYH53,61,63,7#..ARL;YH51..(4FC,4H,5F)..ARL¥880198404-198708

L=1300(*H,L=1240),*SAA

sub90999-92006¥2,010

main95411-19995iYH50..ARL¥1,540198305-198401

*H,L=950,MARK=#*

sub90999-92004¥890

77751BRACKET, CHARCOAL CANISTER BASE

main77751-32010iYH50,51,60,61..LHD..GEN¥1,960198401-198708

*SAA

main77751-32010iYH50,53,61,63,7#..ARL;YH51..(4FC,4H,5F)..ARL¥1,960198212-198708

77752BRACKET, CHARCOAL CANISTER SUPPORT

main77752-26010iYH5#,6#,7#¥670198212-198807

8271195J03WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95J03¥520

9011908190

main90119-08190¥100

9017906070

main90179-06070¥180

9017910033

main90179-10033¥130

9020110038

main90201-10038¥170

9046400085

main90464-00085¥230

9046400132

main90464-00132¥240

9046400148

main90464-00148¥390

9046400232

main90464-00232¥70

9046400301

main90464-00301¥90

9048014003

main90480-14003¥190

9048031001

main90480-31001¥350

9048092001

main90480-92001¥450

9054109024

main90541-09024¥140

9161160814

main91611-60814¥100

9165140814

main91651-40814¥180

9165140816

main91651-40816¥80

9165540616

main91655-40616¥120

9165640816

main91656-40816¥140

9165640820

main91656-40820¥140

9166640616

main91666-40616¥180

9331914010

main93319-14010¥70

9338116012

main93381-16012¥140

9611110620

main96111-10620¥220

9611210250

main96112-10250¥240

73 parts on this diagram · 2 diagrams in section
