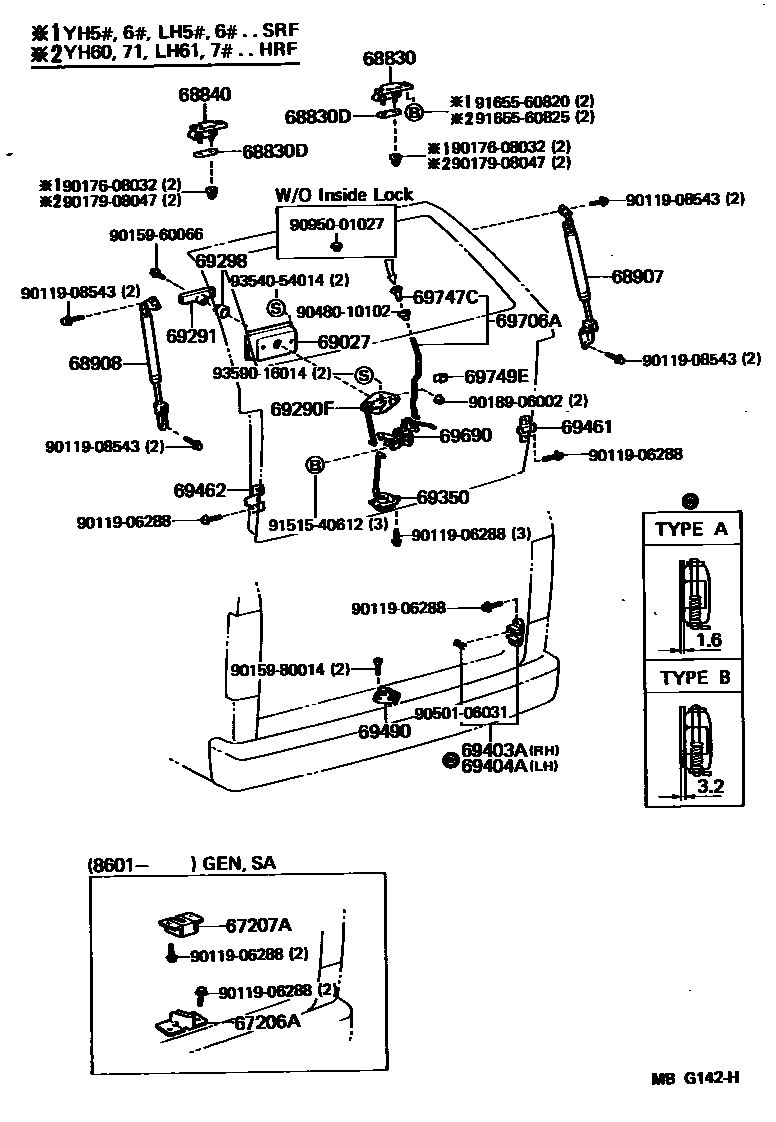

BACK DOOR LOCK & HINGE

67206ABRACKET SUB-ASSY, BACK DOOR STOPPER

main67206-95J00iLH51,61,YH50,51,53,60,61,63..GEN,SA198601-198807

67207ASTOPPER SUB-ASSY, BACK DOOR, RH

main67207-95J01iLH51,61,YH50,51,53,60,61,63..GEN,SA198601-198807

68830HINGE ASSY, BACK DOOR, RH

main68810-90C00iLH7#,YH7#198212-198708

main68810-95J00iLH51..R,U;LH51..03S,06S,12S;LH50,56,6#,YH5#,6#..SRF198212-198807

sub68810-95J01

68830DPLATE, BACK DOOR HINGE

main68825-95700iLH51..R,U;LH51..03S,06S,12S;LH50,56,6#,YH5#,6#..SRF198212-198807

T=2.8

main68868-90C01iLH7#,YH7#198212-198708

T=1.0

sub68868-95J00

68840HINGE ASSY, BACK DOOR, LH

main68820-90C00iLH7#,YH7#198212-198708

main68820-95J00iLH51..R,U;LH51..03S,06S,12S;LH50,56,6#,YH5#,6#..SRF198212-198807

sub68820-95J01

68907STAY SUB-ASSY, BACK DOOR DAMPER, RH

main68907-95J03iLH51..R,U;YH61..SRF..4H;YH61..5H..15S..GEN;LH51,YH53..03S,06S,12S;YH61..(4HC,5H)..(ARL,EUR);LH50,56,6#,YH50,51,56,60,63,66..SRF..STD198212-198708

main68907-95J04iYH51,53..RHD..VSG..(4FC,4HC,5F,5H)198212-198807

W/RR WIPER

main68907-95J04iLH50,YH50..RHD..GEN198212-198508

NEW ZEALAND SPEC

main68907-95J04iYH61..GEN198403-198608

main68907-95J05iYH51..VSG..5H..EUR;YH51..(03S,06S,09S,12S)..EUR;LH5#,6#,YH50,56,60,61,66..EUR198212-198708

W/RR WIPER,COLD SPEC

main68950-90C00iLH70,YH71198212-198311

sub68950-90C01

main68950-90C01iLH70,YH71198212-198311

COLD SPEC

main68950-90C07iLH7#,YH71198311-198508

sub68950-90C08

main68950-90C08iLH61,YH60..HRF198508-198708

main68950-90C08iLH7#,YH71198311-198508

COLD SPEC

68908STAY SUB-ASSY, BACK DOOR DAMPER, LH

main68908-95J03iLH51..R,U;YH61..5H..15S..GEN;YH61..5H..(ARL,EUR);YH61..SRF..(4H,4HC);LH51,YH53..03S,06S,12S;LH50,56,6#,YH50,51,56,60,63,66..SRF..STD198212-198708

main68908-95J04iLH51..R,U;YH51..4HC..03S..N1;YH51..LHD..VSG..(4H,4HC);YH51..LHD..(03S,12S)..GEN;YH51..MTM..STD..(ARL,EUR);LH51..(03S,06S,12S)..(ARL,EUR);LH50,51,60,61,YH50,60,61..L198212-198807

W/RR WIPER

main68908-95J04iLH50,YH50..RHD..GEN198212-198508

NEW ZEALAND SPEC

main68908-95J04iYH61..GEN198403-198608

main68908-95J05iYH51..VSG..5H..EUR;YH51..(03S,06S,09S,12S)..EUR;LH5#,6#,YH50,56,60,61,66..EUR198212-198708

W/RR WIPER,COLD SPEC

main68960-90C00iLH7#,YH71198212-198508

sub68960-90C01

main68960-90C01iLH61,YH60..HRF198508-198708

main68960-90C01iLH7#,YH71198212-198508

COLD SPEC

69027BEZEL SUB-ASSY, BACK DOOR INSIDE HANDLE

main69027-95J00-05iLH50,60,YH50,60..EUR,GEN198212-198401

BEIGE,BEIGE

sub69783-95J00

main69027-95J00-06iYH53..SA198508-198807

BROWN,BROWN

sub69783-95J00

main69027-95J00-15iYH51..GL198401-198508

BEIGE,BEIGE

sub69783-95J00

69290FHANDLE ASSY, BACK DOOR INSIDE

main69290-95J00iLH7#,YH7#198212-198807

69291HANDLE ASSY, BACK DOOR INSIDE

main69291-95J00-05iLH50,60,YH50,60..EUR,GEN,SA198212-198401

BEIGE,BEIGE

sub69291-95J00

main69291-95J00-15iLH71,YH71198401-198508

BEIGE,BEIGE

sub69291-95J00

main69291-95J00-26iLH71,YH7#198508-198807

BROWN,BROWN

sub69291-95J00

69298COVER, BACK DOOR INSIDE HANDLE

main69298-95J00iLH71,YH7#198401-198807

69350LOCK ASSY, BACK DOOR

main69350-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main69403-95J00iLH5#,6#,7#,YH5#,6#,71198212-198508

main69403-95J01iLH51,61,71,YH5#,6#,71198508-198601

main69403-95J02iLH5#,6#,71,YH5#,6#,7#198601-198807

TYPE A

main69403-95J04iLH5#,6#,71,YH5#,6#198608-198807

TYPE B

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main69404-95J00iLH5#,6#,7#,YH5#,6#,71198212-198508

main69404-95J01iLH51,61,71,YH5#,6#,71198508-198601

main69404-95J02iLH5#,6#,71,YH5#,6#,7#198601-198807

TYPE A

main69404-95J04iLH5#,6#,71,YH5#,6#198608-198807

TYPE B

69461STOPPER, BACK DOOR SIDE MALE, RH

main69461-95J00iLH5#,6#,7#,YH5#,6#,71198212-198508

main69461-95J01iLH51,61,71,YH5#,6#,71198508-198601

main69461-95J02iLH5#,6#,71,YH5#,6#,7#198601-198807

69462STOPPER, BACK DOOR SIDE MALE, LH

main69462-95J00iLH5#,6#,7#,YH5#,6#,71198212-198508

main69462-95J01iLH51,61,71,YH5#,6#,71198508-198601

main69462-95J02iLH5#,6#,71,YH5#,6#,7#198601-198807

69490STRIKER ASSY, BACK DOOR LOCK

main69450-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

69690CONTROL ASSY, BACK DOOR REMOTE

main69690-95J00iLH70,YH71198212-198708

sub69690-95J01

main69690-95J01iLH7#,YH7#198212-198807

W/INSIDE HANDLE

69706AROD SUB-ASSY, BACK DOOR LOCK REMOTE CONTROL

main69706-95J00iLH7#,YH7#198212-198807

69747CBUTTON, DOOR LOCKING(FOR BACK DOOR)

main69747-20020-01iLH7#,YH7#198212-198807

BLACK,BLACK

sub69747-20020

69749ECLAMP, BACK DOOR LOCK LINK

main69749-30020iLH7#,YH7#198212-198807

9011906288

main90119-06288

9011908543

main90119-08543

9015960066

main90159-60066

9015980014

main90159-80014

9017608032

main90176-08032

9017908047

main90179-08047

9018906002

main90189-06002

9048010102

main90480-10102

9050106031

main90501-06031

9095001027

main90950-01027

9151540612

main91515-40612

9165560820

main91655-60820

9165560825

main91655-60825

9354054014

main93540-54014

9359016014

main93590-16014

36 parts on this diagram · 1 diagram in section
