FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-22020iLH5#,6#,7#,YH5#,6#,7#198212-198807

sub69971-22010

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-95701iLH5#,6#,7#,YH5#,6#,71198212-198508

sub68710-95J00

main68710-95J00iLH5#,6#,71,YH5#,6#,7#198508-198807

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-95700iLH5#,6#,7#,YH5#,6#,71198212-198508

sub68720-95J00

main68720-95J00iLH5#,6#,71,YH5#,6#,7#198508-198807

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-95700iLH5#,6#,7#,YH5#,6#,71198212-198508

sub68720-95J00

main68720-95J00iLH5#,6#,71,YH5#,6#,7#198508-198807

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-95701iLH5#,6#,7#,YH5#,6#,71198212-198508

sub68710-95J00

main68710-95J00iLH5#,6#,71,YH5#,6#,7#198508-198807

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-14020-06iYH51..4HC..SA;YH51..(4H,5H)..(ARL,GEN,SA);LH51,61,71,YH50,53,60,61,63,7#..(4H,4HC,5H)..(ARL,GEN,SA)198508-198807

BROWN,BROWN

sub69260-14020

sub69260-22030

main69260-14020-15iLH50,60,70,YH5#,6#,71..ARL,GEN,SA198212-198401

BEIGE,BEIGE

sub69260-14020

sub69260-22030

main69260-14020-44iYH51,53..05S198508-198708

BLUE,BLUE

sub69260-14020

sub69260-22030

main69260-14020-45iYH51..MTM;YH51..4HC..SA;LH51,61,71,YH50,6#,71..ARL,GEN,SA198401-198508

BEIGE,BEIGE

sub69260-14020

sub69260-22030

main69260-95J00-05iLH50,60,YH50,60..EUR198212-198401

BEIGE,BEIGE

sub69260-95J00

sub69260-14030

main69260-95J00-06iYH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH5#,6#,YH50,56,61,66..EUR198508-198708

BROWN,BROWN

sub69260-95J00

sub69260-14030

main69260-95J00-15iLH51,61,YH5#,61..EUR198401-198508

BEIGE,BEIGE

sub69260-95J00

sub69260-14030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iLH5#,6#,7#,YH5#,6#,7#198212-198807

sub90520-01274

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69285-22010-08iLH5#,6#,7#,YH5#,6#,7#198212-198807

NATURAL WHITE

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-12080iLH50,60,70,YH5#,6#,71198212-198311

main69901-87002iLH5#,6#,7#,YH5#,6#,7#198311-198807

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-12080iLH50,60,70,YH5#,6#,71198212-198311

main69901-87002iLH5#,6#,7#,YH5#,6#,7#198311-198807

69935SUPPORT, DOOR GLASS CHANNEL

main69935-95J00iLH5#,6#,7#,YH5#,6#,71198212-198509

9011908218

main90119-08218

9165140612

main91651-40612

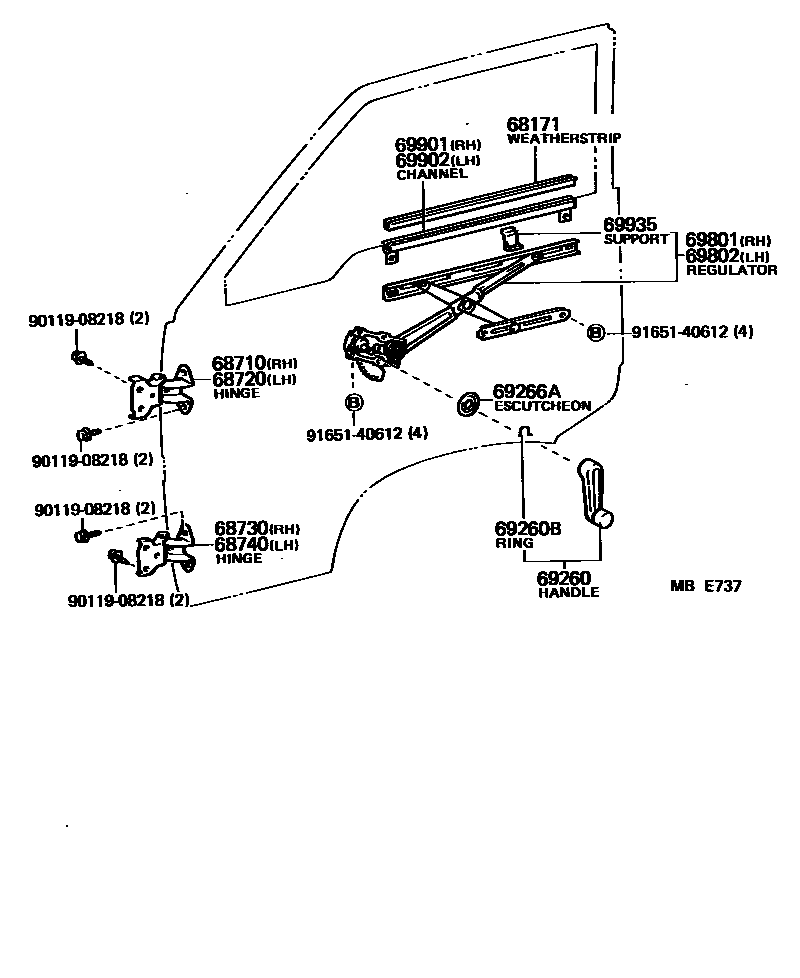

15 parts on this diagram · 1 diagram in section
