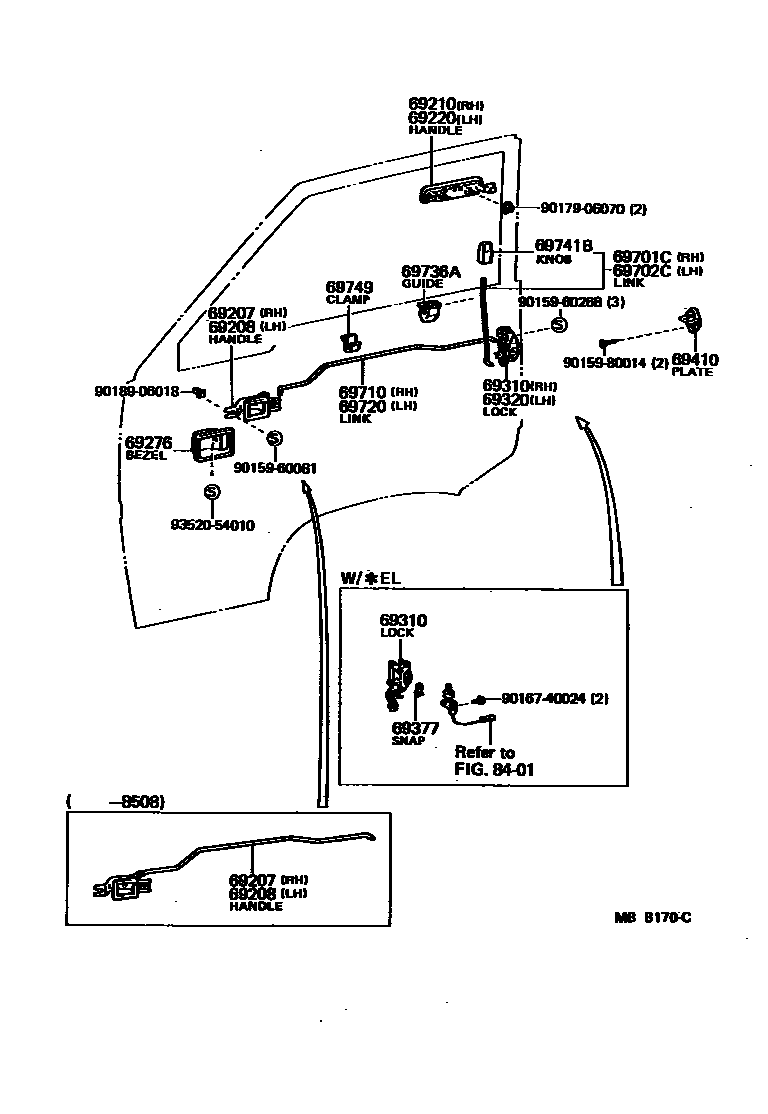

FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-32010-14iYH51,53..05S198508-198708

BLUE,BLUE

sub69205-32010

main69205-32010-16iYH51,53..4H,4HC,5H;LH5#,6#,71,YH50,56,6#,7#198508-198807

BROWN,BROWN

sub69205-32010

main69205-32010-25iLH51,61,71,YH5#,6#,71198505-198508

BEIGE,BEIGE

sub69205-32010

main69270-95J00-05iLH50,60,70,YH5#,6#,71198212-198401

BEIGE,BEIGE

main69270-95J00-15iLH51,61,71,YH5#,6#,71198401-198505

BEIGE,BEIGE

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-32010-14iYH51,53..05S198508-198708

BLUE,BLUE

sub69206-32010

main69206-32010-16iYH51,53..4H,4HC,5H;LH5#,6#,71,YH50,56,6#,7#198508-198807

BROWN,BROWN

sub69206-32010

main69206-32010-25iLH51,61,71,YH5#,6#,71198505-198508

BEIGE,BEIGE

sub69206-32010

main69280-95J00-05iLH50,60,70,YH5#,6#,71198212-198401

BEIGE,BEIGE

main69280-95J00-15iLH51,61,71,YH5#,6#,71198401-198505

BEIGE,BEIGE

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-95J00iLH50,60,70,YH50,6#,71198212-198304

sub69210-95J01

main69210-95J01iLH51,61,71,YH51,53,60,61,63,73..ARL,GEN,SA198304-198807

main69210-95J02iLH5#,6#,YH51,56,61,66..EUR198608-198708

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-95J00iLH50,60,70,YH50,6#,71198212-198304

sub69220-95J01

main69220-95J01iLH5#,6#,7#,YH5#,6#,71198304-198807

main69220-95J02iLH5#,6#,YH51,56,61,66..EUR198608-198708

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-32020-05iLH50,60,70,YH5#,6#,71198212-198401

BEIGE,BEIGE

sub69277-32020

sub69277-89104

main69277-32020-34iYH51,53..05S198508-198708

BLUE,BLUE

sub69277-32020

sub69277-89104

main69277-32020-36iYH51,53..4H,4HC,5H;LH5#,6#,71,YH50,56,6#,7#198508-198807

BROWN,BROWN

sub69277-32020

sub69277-89104

main69277-32020-45iLH51,61,71,YH5#,6#,71198401-198508

BEIGE,BEIGE

sub69277-32020

sub69277-89104

69310LOCK ASSY, FRONT DOOR, RH

main69030-95J00iYH51,53..05S198508-198708

main69310-95J00iLH5#,6#,7#,YH5#,6#,71198212-198508

sub69310-95J03

main69310-95J03iLH51,61,71,YH5#,6#,71..4H,4HC,5H198508-198807

main69310-95J04iLH5#,6#,YH51,56,61,66..EUR198608-198708

69320LOCK ASSY, FRONT DOOR, LH

main69320-95J00iLH5#,6#,7#,YH5#,6#,71198212-198508

sub69320-95J02

main69320-95J01iYH51,53..05S198508-198708

main69320-95J02iLH51,61,71,YH51,53,60,61,63,73..(4H,4HC,5H)..(ARL,GEN,SA)198508-198807

main69320-95J03iLH5#,6#,YH51,56,61,66..EUR198608-198708

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-24060iYH51,53..05S198508-198708

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-14050iLH5#,6#,7#,YH5#,6#,7#198212-198807

sub69410-20070

69701CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH

main69701-95J00-01iLH5#,6#,71,YH5#,6#,7#..STD198508-198807

BLACK,BLACK

sub69701-95J00

main69701-95J00-05iLH50,60,70,YH5#,6#,71198212-198401

BEIGE,BEIGE

sub69701-95J00

main69701-95J00-14iYH51,53..05S198508-198708

BLUE,BLUE

sub69701-95J00

main69701-95J00-15iLH51,61,71,YH5#,6#,71198401-198508

BEIGE,BEIGE

sub69701-95J00

main69701-95J00-16iYH51,53..GL..SA198508-198807

BROWN,BROWN

sub69701-95J00

69702CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH

main69702-95J00-01iLH5#,6#,71,YH5#,6#,7#..STD198508-198807

BLACK,BLACK

sub69702-95J00

main69702-95J00-05iLH50,60,70,YH5#,6#,71198212-198401

BEIGE,BEIGE

sub69702-95J00

main69702-95J00-14iYH51,53..05S198508-198708

BLUE,BLUE

sub69702-95J00

main69702-95J00-15iLH51,61,71,YH5#,6#,71198401-198508

BEIGE,BEIGE

sub69702-95J00

main69702-95J00-16iYH51,53..GL..SA198508-198807

BROWN,BROWN

sub69702-95J00

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-95J00iLH5#,6#,71,YH5#,6#,7#198508-198807

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-95J00iLH5#,6#,71,YH5#,6#,7#198508-198807

69736AGUIDE, FRONT DOOR LOCK LINK

main69736-22021iYH51,53..GL198306-198807

main69736-22021iYH60..LHD..15S198307-198608

PHILIPPINE SPEC

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-20020-01iLH5#,6#,71,YH5#,6#,7#198508-198807

BLACK,BLACK

sub69741-20020

sub69741-32010

main69741-20020-15iLH50,60,70,YH5#,6#,71198212-198401

BEIGE,BEIGE

sub69741-20020

sub69741-32010

main69741-20020-25iLH51,61,71,YH5#,6#,71198401-198508

BEIGE,BEIGE

sub69741-20020

sub69741-32010

main69741-20020-44iLH51,61,71,YH51,53,60,61,63,73198706-198807

SEMI TRIM,BLUE,BLUE

sub69741-20020

sub69741-32010

69749CLAMP, FRONT DOOR LOCK LINK

main69749-30020iLH5#,6#,7#,YH5#,6#,7#198212-198807

8401

9015960081

main90159-60081

9015960268

main90159-60268

9015980014

main90159-80014

9016740024

main90167-40024

9017906070

main90179-06070

9018906018

main90189-06018

9352054010

main93520-54010

24 parts on this diagram · 1 diagram in section
