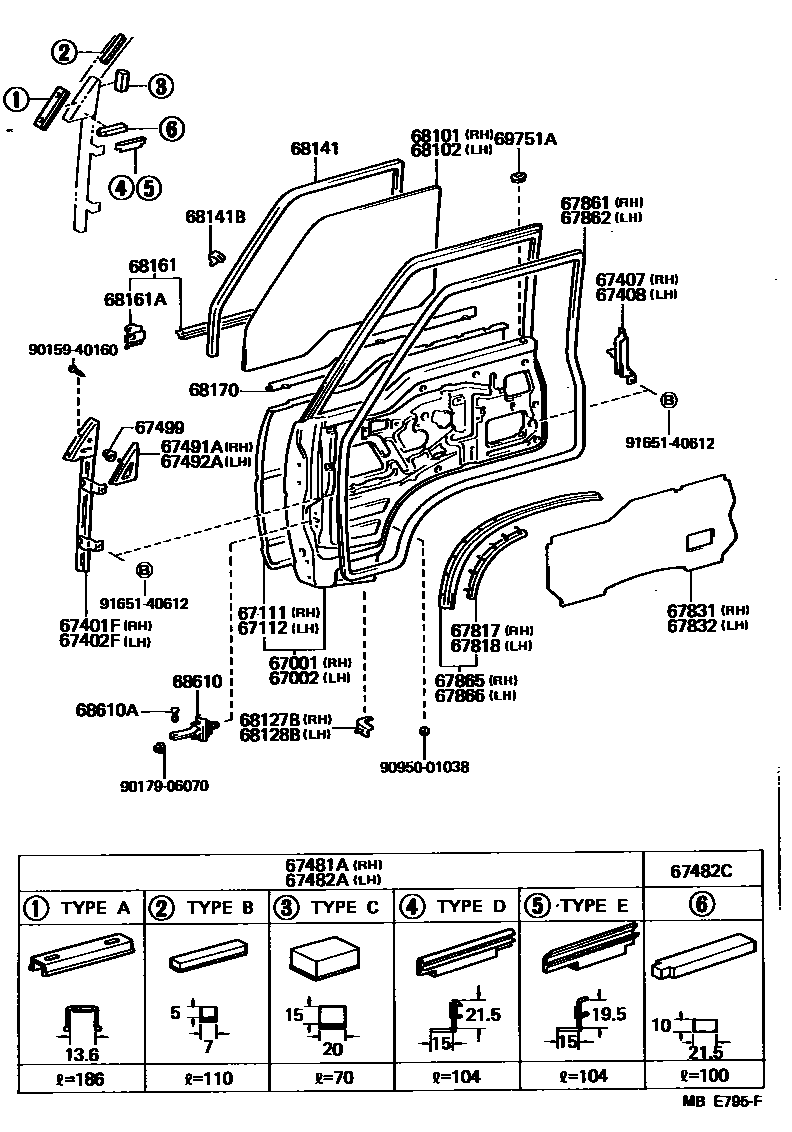

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-95J00iLH50,51,60,61,YH50,51,60,61..GEN198212-198701

sub67001-95J19

main67001-95J01iYH51,53..05S198508-198701

sub67001-95J20

main67001-95J10iYH51..VSG..5H..EUR;YH51..(03S,06S,09S,12S)..EUR;LH5#,6#,YH50,56,60,61,66..EUR198212-198701

sub67001-95J22

main67001-95J11iYH51..MTM..STD..(ARL,GEN,SA);LH50,51,60,61,7#,YH50,53,60,61,63,7#..STD..(ARL,GEN,SA)198212-198701

W/VENTILATOR WINDOW

sub67001-95J23

main67001-95J11iYH61..V4D..VSG..03S..N1198405-198410

*SA,W/VENTILATOR WINDOW

sub67001-95J23

main67001-95J12iYH51..GL198306-198701

sub67001-95J24

main67001-95J19iLH51,61,YH51,61..GEN198701-198708

sub67001-95J22

main67001-95J20iYH53..05S198701-198708

sub67001-95J28

main67001-95J22iLH5#,6#,YH51,56,61,66..EUR198701-198708

main67001-95J23iLH51,61,71,YH51,53,61,63,73..STD..(ARL,GEN,SA)198701-198807

W/VENTILATOR WINDOW

main67001-95J24iYH53..GL..SA198701-198807

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-95J00iLH50,51,60,61,YH50,51,60,61,63..GEN198212-198701

sub67002-95J15

main67002-95J02iYH51,53..05S198508-198701

sub67002-95J22

main67002-95J06iYH51..4H..ARL;LH50,51,60,61,7#,YH50,53,61,63,7#..STD..ARL198212-198701

sub67002-95J21

main67002-95J06iLH50,51,60,61,YH50,51,60,61,63..RHD..GEN198309-198701

W/VENTILATOR WINDOW

sub67002-95J21

main67002-95J08iYH51..VSG..5H..EUR;YH51..(03S,06S,09S,12S)..EUR;LH5#,6#,YH50,56,60,61,66..EUR198212-198701

sub67002-95J18

main67002-95J09iYH50,51,53,60,61,63..STD..SA198212-198701

W/VENTILATOR WINDOW

sub67002-95J19

main67002-95J09iYH61..V4D..VSG..03S..N1198405-198410

*SA,W/VENTILATOR WINDOW

sub67002-95J19

main67002-95J15iLH51,61,YH51,61,63..GEN198701-198708

sub67002-95J18

main67002-95J18iLH5#,6#,YH51,56,61,66..EUR198701-198708

main67002-95J19iLH51,61,YH51,61..LHD..GEN198701-198708

W/VENTILATOR WINDOW

main67002-95J19iYH53,63..STD..SA198701-198807

main67002-95J21iLH51,61,71,YH53,63,73..STD..ARL198701-198708

W/VENTILATOR WINDOW

main67002-95J22iYH53..05S198701-198708

sub67002-95J27

67111PANEL, FRONT DOOR, OUTER RH

main67111-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

67112PANEL, FRONT DOOR, OUTER LH

main67112-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-95J00iYH51..VSG..5H..EUR;YH51..(03S,06S,09S,12S)..EUR;LH5#,6#,YH50,56,60,61,66..EUR198212-198708

main67401-95J01iLH50,51,60,61,YH50,51,60,61,63..GEN198212-198708

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-95J01iYH51,53..05S198212-198708

main67402-95J02iLH50,51,60,61,YH50,51,60,61,63..GEN198212-198708

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-95J00iYH51..VSG..5H..EUR;LH5#,6#,YH50,56,6#..EUR,GEN;YH51..(03S,06S,09S,12S)..(EUR,GEN)198412-198708

TYPE E

main67485-95J00iYH51,53..05S198212-198708

TYPE A

main67485-95J01iYH51..VSG..5H..EUR;LH5#,6#,YH50,56,6#..EUR,GEN;YH51..(03S,06S,09S,12S)..(EUR,GEN)198212-198708

TYPE B

main67485-95J02iYH51,53..05S198405-198708

TYPE C

main67485-95J03iLH51,61,YH5#,6#..EUR,GEN198411-198412

TYPE D

sub67481-95J00

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67482-95J01iYH51..VSG..5H..EUR;LH5#,6#,YH50,56,6#..EUR,GEN;YH51..(03S,06S,09S,12S)..(EUR,GEN)198412-198708

TYPE E

main67485-95J00iYH51..VSG..5H..EUR;LH5#,6#,YH50,56,6#..EUR,GEN;YH51..(03S,06S,09S,12S)..(EUR,GEN)198212-198708

TYPE A

main67485-95J01iYH51,53..05S198212-198708

TYPE B

main67485-95J02iYH51..VSG..5H..EUR;LH5#,6#,YH50,56,6#..EUR,GEN;YH51..(03S,06S,09S,12S)..(EUR,GEN)198405-198708

TYPE C

main67485-95J03iLH51,61,YH5#,6#..EUR,GEN198411-198412

TYPE D

sub67481-95J00

67482CPACKING, FRONT DOOR FRONT LOWER FRAME

main67482-95J00iYH51..VSG..5H..EUR;LH5#,6#,YH50,56,6#..EUR,GEN;YH51..(03S,06S,09S,12S)..(EUR,GEN)198411-198708

main67482-95J01iYH51,53..05S198508-198708

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67465-95J00iYH51..VSG..5H..EUR;YH51..(03S,06S,09S,12S)..EUR;LH5#,6#,YH50,56,60,61,66..EUR198212-198708

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67466-95J00iYH51..VSG..5H..EUR;YH51..(03S,06S,09S,12S)..EUR;LH5#,6#,YH50,56,60,61,66..EUR198212-198708

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010iLH5#,6#,YH51,56,61,66..EUR198212-198708

67817PACKING, FRONT DOOR PROTECTOR, RH

main67817-95J00iLH50,60,70,YH5#,6#,71198307-198309

67818PACKING, FRONT DOOR PROTECTOR, LH

main67818-95J00iLH50,60,70,YH5#,6#,71198307-198309

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

67865WEATHERSTRIP, FRONT DOOR, LOWER RH

main68125-95J00iLH50,60,70,YH5#,6#,71198212-198807

main68125-95J00iYH61..V4D..VSG..03S..N1198405-198410

*SA

main68125-95J04iYH51..VSG..5H..EUR;YH51..(03S,06S,09S,12S)..EUR;LH5#,6#,YH50,56,60,61,66..EUR198309-198708

67866WEATHERSTRIP, FRONT DOOR LOWER, LH

main68126-95J00iYH51..4HC..SA;YH51..(4FC,4H,5F,5H)..(ARL,GEN,SA);LH50,51,60,61,7#,YH50,53,60,61,63,7#..ARL,GEN,SA198212-198807

main68126-95J00iYH61..V4D..VSG..03S..N1198405-198410

*SA

main68126-95J04iYH51..VSG..5H..EUR;YH51..(03S,06S,09S,12S)..EUR;LH5#,6#,YH50,56,60,61,66..EUR198309-198708

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-95J00iYH51,53..05S198212-198708

*TEM,T=4.0,*TEM,T=4.0

sub68111-95J01

main68111-95J01iYH51,53..05S198212-198708

*TT,T=4.0,*TT,T=4.0

main68111-95J03iYH51..4H..ARL;LH51,61,71,YH53,61,63,7#..STD..ARL198212-198807

*TEM,T=4.0,*TEM,T=4.0,W/*VW

sub68111-95J04

main68111-95J03iYH61..V4D..VSG..03S..N1198405-198410

*TEM,T=4.0,*SA,*TEM,T=4.0,W/*VW

sub68111-95J04

main68111-95J04iYH51..4H..ARL;LH51,61,71,YH61,71..ARL198212-198807

*TT,T=4.0,*TT,T=4.0,W/*VW

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-95J00iYH51..VSG..5H..EUR;LH5#,6#,YH50,56,60,61,66..EUR,GEN;YH51..(03S,06S,09S,12S)..(EUR,GEN)198212-198708

*TEM,T=4.0,*TEM,T=4.0

sub68112-95J01

main68112-95J01iLH5#,6#,YH50,6#..GEN198212-198708

*TT,T=4.0,*TT,T=4.0

main68112-95J03iYH51..4H..ARL;LH51,61,71,YH53,61,63,7#..STD..ARL198212-198807

*TEM,T=4.0,*TEM,T=4.0,W/*VW

sub68112-95J04

main68112-95J03iYH61..V4D..VSG..03S..N1198405-198410

*TEM,T=4.0,*SA,*TEM,T=4.0,W/*VW

sub68112-95J04

main68112-95J04iLH71,YH73198212-198807

*TT,T=4.0,*TT,T=4.0,W/*VW

main68112-95J04iLH71,YH73198608-198708

*TT,T=4.0,*TT,T4.0,W/*VW

68127BSHUTTER, FRONT DOOR, LOWER RH

main68127-95J01iYH61..V4D..VSG..03S..N1198405-198410

*SA

main68127-95J01iLH50,60,70,YH5#,6#,71198212-198807

main68127-95J02iYH51..VSG..5H..EUR;YH51..(03S,06S,09S,12S)..EUR;LH5#,6#,YH50,56,60,61,66..EUR198308-198708

68128BSHUTTER, FRONT DOOR, LOWER LH

main68128-95J01iYH61..V4D..VSG..03S..N1198405-198410

*SA

main68128-95J01iLH50,60,70,YH5#,6#,71198212-198807

main68128-95J02iYH51..VSG..5H..EUR;YH51..(03S,06S,09S,12S)..EUR;LH5#,6#,YH50,56,60,61,66..EUR198308-198708

68141RUN, FRONT DOOR GLASS

main68141-95J02iYH51,53..05S198212-198708

main68141-95J03iYH61..V4D..VSG..03S..N1198405-198410

*SA

sub68141-26010

main68141-95J03iYH51..MTM;YH51..4HC..SA;LH5#,6#,7#,YH50,6#,71..ARL,GEN,SA198212-198807

VENTILATOR WINDOW

sub68141-26010

68141BCLIP, DOOR GLASS RUN

main62367-10010iYH51..VSG..5H..EUR;LH50,51,6#,YH50,56,6#..EUR,GEN;YH51..(03S,06S,09S,12S)..(EUR,GEN)198212-198708

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-95J00iLH5#,6#,YH5#,6#..EUR,GEN198212-198411

RH

sub68160-95J02

main68160-95J01iYH61..V4D..VSG..03S..N1198405-198410

*SA,RH,W/VENTILATOR WINDOW

sub68160-95J03

main68160-95J01iYH51..MTM;YH51..4HC..SA;LH5#,6#,7#,YH50,6#,71..ARL,GEN,SA198212-198411

RH,W/VENTILATOR WINDOW

sub68160-95J03

main68160-95J02iYH51,53..05S198411-198708

RH

sub68160-95J04

main68160-95J03iYH51..4H..ARL;LH51,61,71,YH53,61,63,7#..STD..ARL198411-198807

RH,W/VENTILATOR WINDOW

sub68160-95J05

main68210-95J00iLH5#,6#,YH5#,6#..EUR,GEN198212-198411

LH

sub68210-95J02

main68210-95J01iYH51..MTM;YH51..4HC..SA;LH5#,6#,7#,YH50,6#,71..ARL,GEN,SA198212-198411

LH,W/VENTILATOR WINDOW

sub68210-95J03

main68210-95J01iYH61..V4D..VSG..03S..N1198405-198410

*SA,LH,W/VENTILATOR WINDOW

sub68210-95J03

main68210-95J02iYH51..VSG..5H..EUR;LH5#,6#,YH50,56,6#..EUR,GEN;YH51..(03S,06S,09S,12S)..(EUR,GEN)198411-198708

LH

sub68210-95J04

main68210-95J03iYH51..MTM;YH51..4HC..SA;LH51,61,71,YH50,6#,71..ARL,GEN,SA198411-198807

LH,W/VENTILATOR WINDOW

sub68210-95J05

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68212-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-95J00iLH5#,6#,YH51,56,61,63,66..EUR,GEN198608-198708

RH

main68171-95J01iLH51,61,YH51,61,63..GEN,SA198608-198807

RH,W/VENTILATOR WINDOW

main68172-95J00iYH53..05S198608-198708

LH

main68172-95J01iLH51,61,71,YH53,63,73..STD..ARL198608-198807

LH,W/VENTILATOR WINDOW

main68177-95J00iYH51..05S198212-198608

RH

sub68171-95J00

main68177-95J01iYH51..4H..ARL;LH51,61,71,YH61,71..ARL198212-198608

RH,W/VENTILATOR WINDOW

sub68171-95J01

main68177-95J01iYH61..V4D..VSG..03S..N1198405-198410

*SA,RH,W/VENTILATOR WINDOW

sub68171-95J01

main68178-95J00iYH51..05S198212-198608

LH

sub68172-95J00

main68178-95J01iYH51..4H..ARL;LH51,61,71,YH61,71..ARL198212-198608

LH,W/VENTILATOR WINDOW

sub68172-95J01

main68178-95J01iYH61..V4D..VSG..03S..N1198405-198410

*SA,LH,W/VENTILATOR WINDOW

sub68172-95J01

68610CHECK ASSY, FRONT DOOR

main68610-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

68610APIN(FOR FRONT DOOR CHECK)

main68617-12010iLH51,61,71,YH5#,6#,71198410-198507

sub68617-90A00

main68617-22010iLH5#,6#,7#,YH5#,6#,71198212-198410

sub68617-12010

main68617-90A00iLH5#,6#,71,YH5#,6#,7#198507-198807

sub68617-90A01

69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)

main69751-20031iLH5#,6#,7#,YH5#,6#,7#..STD198212-198807

main69751-20040iYH60..LHD..15S198307-198508

PHILIPPINE SPEC

main69751-20040iYH51,53..GL198306-198807

9015940160

main90159-40160

9017906070

main90179-06070

9095001038

main90950-01038

9165140612

main91651-40612

38 parts on this diagram · 2 diagrams in section
