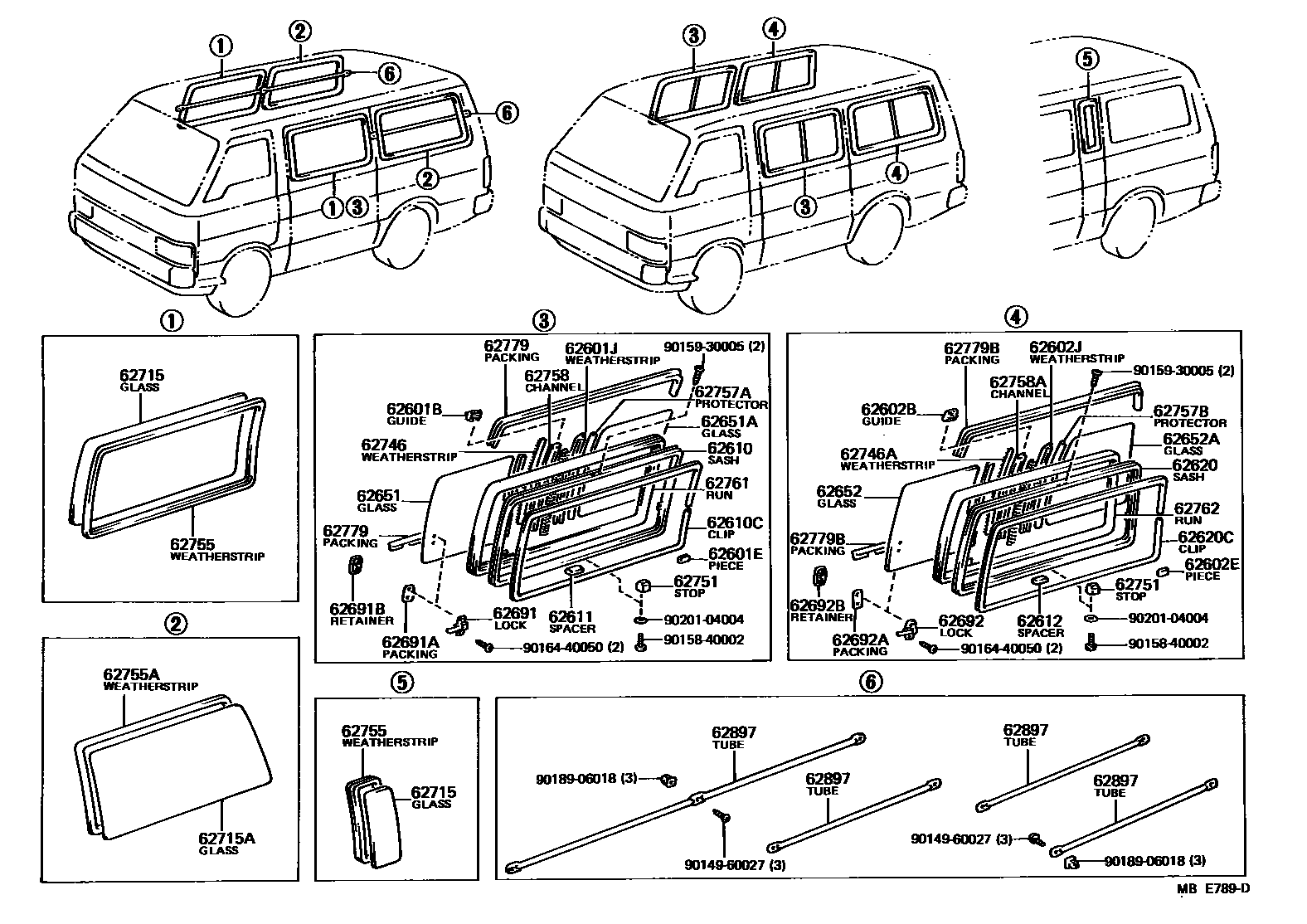

SIDE WINDOW
62601BGUIDE, SIDE WINDOW INNER SASH, NO.1
62601EPIECE, SIDE WINDSHIELD, NO.1
62601JWEATHERSTRIP, SIDE WINDOW CENTER, NO.1
SLIDE DOOR SIDE
62602BGUIDE, SIDE WINDOW INNER SASH, NO.2
W/08S,09S
62602EPIECE, SIDE WINDSHIELD, NO.2
W/08S,09S
62602JWEATHERSTRIP, SIDE WINDOW CENTER, NO.2
W/08S,09S
62610SASH ASSY, SIDE WINDOW OUTER, NO.1 (FOR SLIDE TYPE)
RH
RH
RH
LH,SLIDE DOOR SIDE
LH,SLIDE DOOR SIDE
main62705-95J00iYH61..5H..R;YH50..V4D..R;LH61..VSG..N1;LH61..V5D..GEN;LH51,YH51,56,66..R;YH61..5H..06S..EUR;YH61..LHD..VSG..(4H,4HC);LH50,51,60,YH50,51,60..LHD..VSG..(03S,06S)198212-198708
RH,SLIDE DOOR SIDE
RH,W/O RR SEAT OR W/05S,06S
main62705-95J01iLH60,YH50,60..LHD..(09S,12S,15S);LH51,56,61,YH51,56,61..(G,J,U)..EUR;LH50,51,61,66,YH51,61,66..LHD..(08S,12S,15S)198212-198708
RH,SLIDE DOOR SIDE
RH,W/08S,09S
LH,W/O RR SEAT OR W/05S,06S
main62706-95J00iYH50,51,56,61,66..V4D..R;LH50,51,YH50,51,60,61..LHD..V4D..VSG..(03S,06S)198212-198708
LH
main62706-95J01iLH60,YH50,60..LHD..(09S,12S,15S);LH51,56,61,YH51,56,61..(G,J,U)..EUR;LH50,51,61,66,YH51,61,66..LHD..(08S,12S,15S)198212-198708
LH
62610CCLIP, SIDE WINDOW OUTER SASH, NO.1 (FOR SLIDE TYPE)
RH
main62375-95J00-01iYH63..VSG;YH63..15S;LH50,51,YH50,60,61..RHD..VSG..03S;LH50,51,60,61,YH50,51,53,60,61..RHD..(05S,06S,09S,12S,15S)198308-198807
RH,BLACK,BLACK
sub62375-95J00
main62378-95J00-01iYH60..LHD..VSG..03S;YH60..LHD..(06S,09S,15S);LH50,51,60,61,YH50,51,61..LHD..VSG;LH50,51,60,61,YH50,51,61..LHD..COM198308-198708
SLIDE DOOR,RH,BLACK,BLACK
sub62377-95J02
sub62375-95J00
sub62377-95J00
sub62378-95J00
62611SPACER, SIDE WINDOW SUPPORT, NO.1
main62279-95J00iYH50,51,63..COM;YH50,51,63,66..VSG;LH5#,61,YH56,61..R,U;LH51,61,YH60,61..VSG..03S;LH51,6#,71,YH53,60,61,7#..05S,06S,08S,09S,12S,15S198503-198807
UPR,SIDE
UPR
main62279-95J00iYH50,51,63..COM;YH50,51,63,66..VSG;LH5#,61,YH56,61..R,U;LH51,61,YH60,61..VSG..03S;LH51,6#,71,YH53,60,61,7#..05S,06S,08S,09S,12S,15S198503-198807
W/O SLIDE DOOR,LWR
LWR
main62279-95J02iYH50,51,63..COM;YH50,51,63,66..VSG;LH5#,61,YH56,61..R,U;LH51,61,YH60,61..VSG..03S;LH51,6#,71,YH53,60,61,7#..05S,06S,08S,09S,12S,15S198503-198708
W/SLIDE DOOR,LWR
62612SPACER, SIDE WINDOW SUPPORT, NO.2
UPR
W/08S,09S
62620SASH ASSY, SIDE WINDOW OUTER, NO.2 (FOR SLIDE TYPE)
main62703-95J00iYH50..LHD..(09S,12S);LH50,51,YH51..LHD..12S;LH51,56,YH51,56..(J,U)..EUR198212-198708
RH
RH,W/08S,09S
RH
main62703-95J02iLH61,YH61..G,J,U;LH61,YH61..LHD..15S;LH60,66,YH60,66..LHD..(08S,09S,15S)198212-198708
RH
RH,W/08S,09S
RH
LH
LH
LH,W/08S,09S
LH
main62704-95J03iLH61,YH61..G,J,U;LH61,YH61..LHD..15S;LH60,66,YH60,66..LHD..(08S,09S,15S)198212-198708
LH
LH,W/08S,09S
LH
62620CCLIP, SIDE WINDOW OUTER SASH, NO.2 (FOR SLIDE TYPE)
RH
W/08S,09S,RH
sub62377-95J00
sub62377-95J02
62651GLASS, SIDE WINDOW, NO.1, FRONT (FOR SLIDE TYPE)
*TT,T=4.0,RH,*TT,T=4.0
*TT,T=4.0,RH,*TT,T=4.0
main62712-95J01iYH51..5H..GL;YH51..RHD..VSG..(4FC,4H,4HC,5F);LH50,51,60,61,YH50,53,60,61,63..RHD..VSG198212-198807
*TEM,T=4.0,RH,*TEM,T=4.0
sub62712-95J00
*TT,T=4.0,LH,*TT,T=4.0,SLIDE DOOR SIDE
*TEM,T=4.0,LH,*TEM,T=4.0,SLIDE DOOR SIDE
sub62722-95J00
*TT,T=4.0,RH,*TT,T=4.0,SLIDE DOOR SIDE
*TEM,T=4.0,RH,*TEM,T=4.0,SLIDE DOOR SIDE
sub62752-95J00
*TT,T=4.0,LH,*TT,T=4.0
*TEM,T=4.0,LH,*TEM,T=4.0
sub62762-95J00
62651AGLASS, SIDE WINDOW, NO.1, REAR (FOR SLIDE TYPE)
*TEM,T=4.0,RH,*TEM,T=4.0
*TT,T=4.0,RH,*TT=4.0
*TT,T=4.0,RH,*TT,T=4.0
*TEM,T=4.0,RH,*TEM,T=4.0
sub62713-95J00
*TEM,T=4.0,RH,*TEM,T=4.0
sub62713-95J07
*TT,T=4.0,RH,*TT,T=4.0
*TT,T=4.0,LH,*TT,T=4.0,*SD SIDE
*TEM,T=4.0,LH,*TEM,T=4.0,*SD SIDE
sub62723-95J00
*TT,T=4.0,LH,*TT,T=4.0,*SD SIDE
*TEM,T=4.0,LH,*TEM,T=4.0*SD SIDE
sub62723-95J02
*TEM,T=4.0,*FRG,LH,*TEM,T=4.0,*SD SIDE
*TEM,T=4.0,*FRG,CANARY,LH,*TEM,*SD SIDE
*TEM,T=4.0,LH,*IPM,*TEM,T=4.0,*SD SIDE
*TT,T=4.0,RH *TT,T=4.0 *SD SIDE
*TT,T=4.0,RH,*TT,T=4.0,*SD SIDE
*TEM,T=4.0,RH,*TEM,T=4.0,*SD SIDE
sub62753-95J00
*TT,T=4.0,RH,*TT,T=4.0,*SD SIDE
*TEM,T=4.0,RH,*TEM,T=4.0,*SD W/08S,09S
sub62753-95J02
main62753-95J03iLH50,51,61,YH51,61..LHD..COM;LH51,61,YH51,61..(G,J,U)..EUR;LH60,YH50,60..LHD..(09S,12S,15S)198212-198708
*TEM,T=4.0,RH,*TEM,T=4.0,*SD SIDE
sub62753-95J02
*TEM,T=4.0,CANARY,RH,*TEM,T=4.0,*SD SIDE
*TEM,T=4.0,RH,*IPM,*TEM,T=4.0,*SD
*TEM,T=4.0,*FRG,CANARY,RH,*TEM,T=4.0,*SD
*TEM,T=4.0,CANARY SPEC,RH,*TEM,T=4.0,*SD
*TEM,T=4.0,*IPM,RH,*TEM,T=4.0,*SD SIDE
*TT,T=4.0,LH,*TT,T=4.0
*TEM,T=4.0,LH,*TEM,T=4.0,W/05S,06S;LH,*TEM,T=4.0,W/O RR SEAT
main62763-95J01iYH50,51,56,61,66..V4D..R;LH50,51,YH50,51,60,61..LHD..V4D..VSG..(03S,06S)198212-198708
*TEM,T=4.0,LH,*TEM,T=4.0
*TEM,T=4.0,*FRG,CANARY,LH,*TEM,T=4.0
*TEM,T=4.0,CANARY SPEC,LH,*TEM,T=4.0
*TEM,T=4.0,*IPM,LH,*TEM,T=4.0
*TT,T=4.0,LH,*TT,T=4.0
*TEM,T=4.0,LH,*TEM,T=4.0,W/08S,09S
sub62763-95J05
main62763-95J06iLH51,61,YH51,61..(G,J,U)..EUR;LH60,YH50,60..LHD..(09S,12S,15S);LH50,51,61,66,YH51,61,66..LHD..(08S,12S,15S)198212-198708
*TEM,T=4.0,LH,*TEM,T=4.0
sub62763-95J05
*TEM,T=4.0,CANARY SPEC,LH,*TEM,T=4.0
*TEM,T=4.0,*FRG,LH,*TEM,T=4.0,W/O RR SEAT;*FRG,LH,*TEM,T=4.0,W/05S,06S
*TEM,T=4.0,CANARY,LH,W/O RR SEAT;CANARY,LH,*TEM W/05S,06S
62652GLASS, SIDE WINDOW, NO.2, FRONT (FOR SLIDE TYPE)
main62712-95J00iLH50..V4D..VSG..GEN;LH50..RHD..12S..GEN;LH51,YH50..RHD..VSG..03S;LH51,YH50,51..RHD..(06S,12S)..GEN198212-198807
*TT,T=4.0,RH,*TT,T=4.0
*TT,T=4.0,RH,*TT,T=4.0
main62732-95J01iYH50..LHD..(09S,12S);LH50,51,YH51..LHD..12S;LH51,56,YH51,56..(J,U)..EUR198212-198708
*TEM,T=4.0,RH,*TEM,T=4.0
sub62732-95J00
*TT,T=4.0,RH,*TT,T=4.0
main62732-95J03iLH61,YH61..G,J,U;LH61,YH61..LHD..15S;LH60,66,YH60,66..LHD..(08S,09S,15S)198212-198708
*TEM,T=4.0,RH,*TEM,T=4.0
sub62732-95J02
*TT,T=4.0,RH,*TT,T=4.0
*TEM,T=4.0,RH,*TEM,T=4.0
sub62732-95J04
main62742-95J00iLH50..V4D..VSG..GEN;LH50..RHD..12S..GEN;LH51,YH50..RHD..VSG..03S;LH51,YH50,51..RHD..(06S,12S)..GEN198212-198807
*TT,T=4.0,LH,*TT,T=4.0
*TT,T=4.0,LH,*TT,T=4.0
*TEM,T=4.0,LH,*TEM,T=4.0
sub62742-95J03
*TT,T=4.0,LH,*TT,T=4.0
main62742-95J06iLH61,YH61..G,J,U;LH61,YH61..LHD..15S;LH60,66,YH60,66..LHD..(08S,09S,15S)198212-198708
*TEM,T=4.0,LH,*TEM,T=4.0
sub62742-95J05
*TT,T=4.0,LH,*TT,T=4.0
main62762-95J01iYH50..LHD..(09S,12S);LH50,51,YH51..LHD..12S;LH51,56,YH51,56..(J,U)..EUR198212-198708
*TEM,T=4.0,LH,*TEM,T=4.0
sub62762-95J00
62652AGLASS, SIDE WINDOW, NO.2, REAR (FOR SLIDE TYPE)
*TT,T=4.0,RH,*TT,T=4.0
*TT,T=4.0,RH,*TT,T=4.0
*TEM,T=4.0,*IPM,*FRG,CANARY,RH,*TEM,T=4.0
*TEM,T=4.0,*IPM,CANARY SPEC,RH,*TEM,T=4.0
*TT,T=4.0,LH,*TT,T=4.0
*TT,T=4.0,LH,*TT,T=4.0
*TEM,T=4.0,LH,*TEM,T=4.0
sub62743-95J03
*TEM,T=4.0,*IPM,*FRG,CANARY,LH,*TEM,T=4.0
*TEM,T=4.0,*IPM,CANARY SPEC,LH,*TEM,T=4.0
62691LOCK, SIDE WINDOW, NO.1 GLASS (FOR SLIDE TYPE)
62691APACKING, SIDE WINDOW LOCK, NO.1
62691BRETAINER, SIDE WINDOW LOCK, NO.1
62692LOCK, SIDE WINDOW, NO.2 GLASS (FOR SLIDE TYPE)
main62910-95702iYH51..J,U;YH51..12S;LH51,56,61,YH56,61..U;LH50,51,6#,7#,YH50,53,6#,7#..08S,09S,12S,15S198212-198807
W/08S,09S
62692APACKING, SIDE WINDOW LOCK, NO.2
W/08S,09S
62692BRETAINER, SIDE WINDOW LOCK, NO.2
W/08S,09S
62715GLASS, SIDE WINDOW, NO.1(FOR FIXED TYPE)
*TEM,T=3.5,LH,*TEM,T=3.5
*TT,T=3.5,LH,*TT,T=3.5
*TEM,T=3.5,RH,*TEM,T=3.5
*TEM,T=3.5,LH,*TEM,T=3.5
*TEM,T=3.5,LH,*TEM,T=3.5
*TEM,T=3.5,RH,*TEM,T=3.5,SLIDE DOOR SIDE
62715AGLASS, SIDE WINDOW, NO.2(FOR FIXED TYPE)
*TEM,T=3.5,RH,*TEM,T=3.5
sub62715-95J03
*TEM,T=3.5,RH,*TEM,T=3.5,W/05S,06S;RH,*TEM,T=3.5,W/O RR SEAT
sub62715-95J03
*TT,T=3.5,RH,*TT,T=3.5
main62725-95J03iYH61..VSG..(4H,4HC);LH61,YH61,66..MTM..R;YH61..VSG..5H..(03S,06S);LH60,61,YH60,63..VSG..(03S,06S)198212-198807
*TEM,T=3.5,RH,*TEM,T=3.5
sub62725-95J02
*TEM,T=3.5,LH,*TEM,T=3.5
*TEM,T=3.5,LH,*TEM,T=3.5,W/05S,06S;LH,*TEM,T=3.5,W/O RR SEAT
*TT,T=3.5,LH,*TT,T=3.5
main62726-95J02iYH61..VSG..(4H,4HC);LH61,YH61,66..MTM..R;YH61..VSG..5H..(03S,06S);LH60,61,YH60,63..VSG..(03S,06S)198212-198807
*TEM,T=3.5,LH,*TEM,T=3.5
62746WEATHERSTRIP, SIDE WINDOW GLASS CHANNEL, NO.1
RH,SLIDE DOOR SIDE
RH,LH,SLIDE DOOR SIDE
LH,SLIDE DOOR SIDE
LH,*IPM,*FRG,CANARY SPEC
RH,*IPM,*FRG,*SD SIDE
sub62781-95J00
62746AWEATHERSTRIP, SIDE WINDOW GLASS CHANNEL, NO.2
main62253-95J00iYH51..J,U;YH51..12S;LH51,56,61,YH61..U;LH50,51,6#,7#,YH50,53,6#,7#..08S,09S,12S,15S198212-198807
W/08S,09S
*IPM,*FRG,CANARY SPEC
62751STOP, SIDE WINDOW FIX GLASS
RR
RR,W/08S,09S
FR
62755AWEATHERSTRIP, SIDE WINDOW, NO.2(FOR FIXED TYPE)
W/O RR SEAT OR W/05S,06S
sub62751-95J02
sub62751-95J02
main62778-95J00iYH61..VSG..(4H,4HC);LH61,YH61,66..MTM..R;YH61..VSG..5H..(03S,06S);LH60,61,YH60,63..VSG..(03S,06S)198212-198807
sub62743-95J10
62757APROTECTOR, SIDE WINDOW GLASS, NO.1
RH,CANARY SPEC,SLIDE DOOR SIDE
RH,*FRG
RH,*IPM,*FRG,SLIDE DOOR SIDE
62757BPROTECTOR, SIDE WINDOW GLASS, NO.2
RH,*IPM,*FRG,CANARY SPEC
RH
62758CHANNEL, SIDE WINDOW GLASS, NO.1
SLIDE DOOR,SIDE
QUARTER TRIM,SIDE
62758ACHANNEL, SIDE WINDOW GLASS, NO.2
W/08S,09S
62761RUN, SIDE WINDOW, NO.1(FOR SLIDE TYPE)
RH
RH
RH
RH
LH,*SD SIDE
LH,*SD SIDE
RH,*SD SIDE
RH,*SD SIDE,W/05S,06S;RH,*SD SIDE,W/O RR SEAT
main62754-95J03iLH60,YH50,60..LHD..(09S,12S,15S);LH51,56,61,YH51,56,61..(G,J,U)..EUR;LH50,51,61,66,YH51,61,66..LHD..(08S,12S,15S)198212-198708
RH,*SD SIDE
RH,*SD SIDE,W/08S,09S
LH,W/O RR SEAT OR W/05S,06S
main62764-95J02iYH50,51,56,61,66..V4D..R;LH50,51,YH50,51,60,61..LHD..V4D..VSG..(03S,06S)198212-198708
LH
LH
main62764-95J04iLH60,YH50,60..LHD..(09S,12S,15S);LH51,56,61,YH51,56,61..(G,J,U)..EUR;LH50,51,61,66,YH51,61,66..LHD..(08S,12S,15S)198309-198708
LH
LH,W/08S,09S
62762RUN, SIDE WINDOW, NO.2(FOR SLIDE TYPE)
RH
RH
RH
RH
main62734-95J08iYH50..LHD..(09S,12S);LH50,51,YH51..LHD..12S;LH51,56,YH51,56..(J,U)..EUR198309-198708
RH
RH,W/08S,09S
main62734-95J09iLH61,YH61..G,J,U;LH61,YH61..LHD..15S;LH60,66,YH60,66..LHD..(08S,09S,15S)198309-198708
RH
RH,W/08S,09S
RH
LH
LH
LH
LH,W/08S,09S
LH
LH
LH
LH
LH,W/08S,09S
62779PACKING, SIDE WINDOW GLASS, NO.1
UPR
UPR
LWR,LH
LWR,RH
62897TUBE, SIDE WINDOW GUARD
L=1230
L=2480
main62897-95J02iYH61..VSG..(4H,4HC);LH61,YH61,66..MTM..R;YH61..VSG..5H..(03S,06S);LH60,61,YH60,63..VSG..(03S,06S)198212-198807
L=1530
L=2780
9014960027
main90149-60027
9015840002
main90158-40002
9015930005
main90159-30005
9016440050
main90164-40050
9018906018
main90189-06018
9020104004
main90201-04004
44 parts on this diagram · 1 diagram in section
