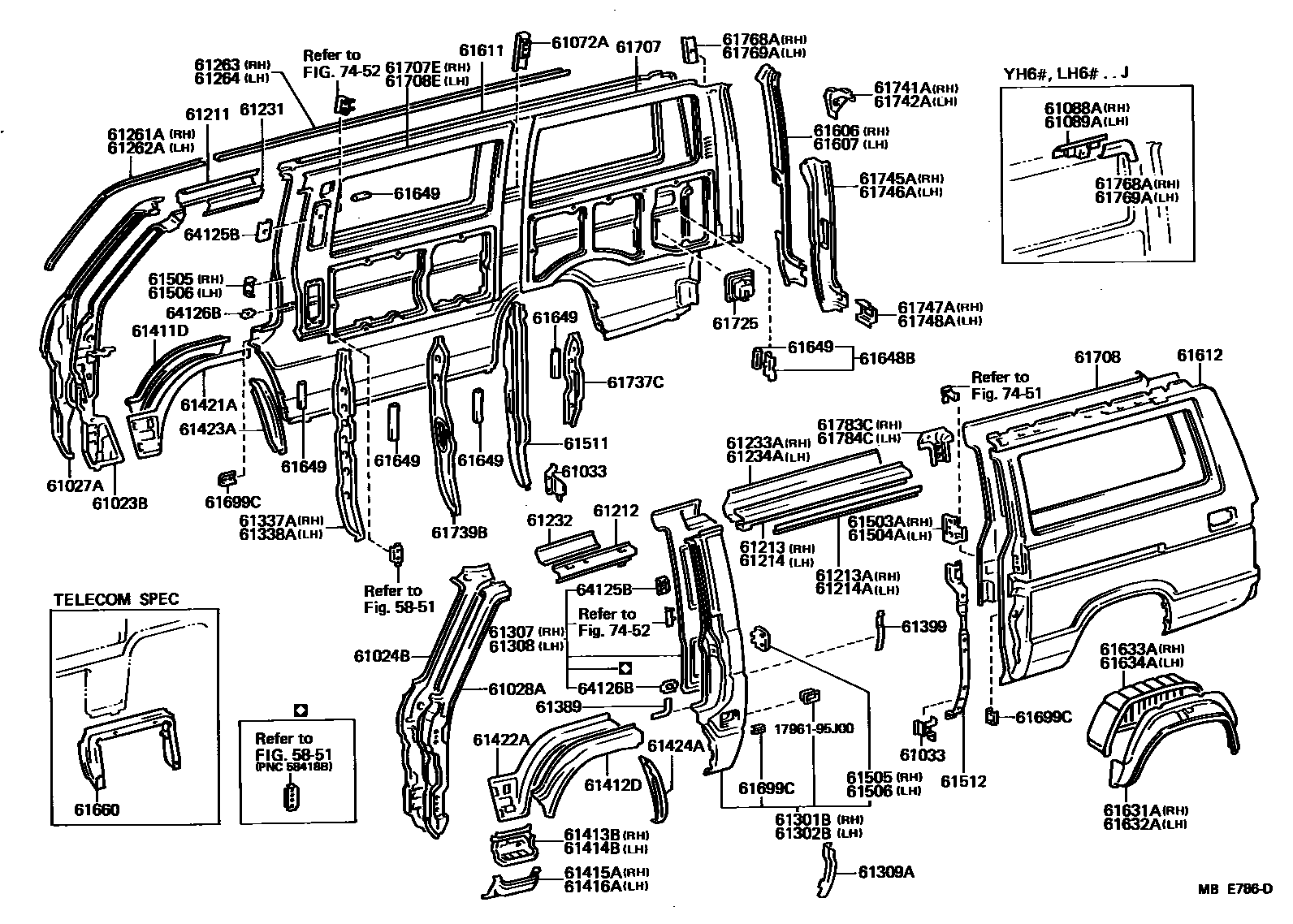

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

5851

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-95J00iLH5#,6#,7#,YH5#,6#,71..RHD198212-198508

main61023-95J01iLH5#,6#,YH5#,6#..LHD198212-198601

main61023-95J04iYH51..05S198508-198601

main61023-95J06iLH51,61,YH50,51,53,60,61,63..RHD..(GEN,SA)198601-198807

main61023-95J07iLH5#,6#,YH50,51,56,60,61,66..LHD198601-198708

main61023-95J08iYH51..05S198601-198608

main61023-95J10iYH51..RHD..(4FC,4H,5F,5H)..(ARL,EUR);LH51,61,71,YH50,53,61,63,7#..RHD..(ARL,EUR)198601-198708

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-95J00iLH5#,6#,7#,YH5#,6#,71..RHD198212-198601

main61024-95J01iLH5#,6#,YH5#,6#..LHD198212-198601

main61024-95J04iLH51,61,71,YH50,51,53,60,61,63,7#..RHD198601-198807

main61024-95J05iLH51,61,YH50,51,60,61..LHD..GEN198601-198708

main61024-95J07iYH51..VSG..5H..EUR;YH51..LHD..(03S,12S)..EUR;LH5#,6#,YH50,56,61,66..LHD..EUR198601-198708

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-95J00iLH51,61,YH50,51,53,60,61,63..RHD..(GEN,SA)198601-198807

W/ANTENA

main61027-95J01iLH51,61,71,YH5#,6#,71..4H,4HC,5H198508-198601

main61027-95J03iYH51..RHD..(4FC,4H,5F,5H)..(ARL,EUR);LH51,61,71,YH50,53,61,63,7#..RHD..(ARL,EUR)198601-198708

main61027-95J04iYH51..RHD..(4FC,4H,5F,5H)..(ARL,EUR);LH51,61,71,YH50,53,61,63,7#..RHD..(ARL,EUR)198601-198708

W/ANTENA

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-95J00iLH50,51,60,61,YH50,51,60,61..RHD..GEN198309-198708

W/VENTILATOR WINDOW

main61028-95J01iLH51,61,YH50,51,60,61..LHD..GEN198601-198708

main61028-95J02iLH51,61,YH50,51,60,61..LHD..GEN198601-198708

W/ANTENA

main61028-95J06iYH51..VSG..5H..EUR;YH51..LHD..(03S,12S)..EUR;LH5#,6#,YH50,56,61,66..LHD..EUR198601-198708

main61028-95J07iYH51..VSG..5H..EUR;YH51..LHD..(03S,12S)..EUR;LH5#,6#,YH50,56,61,66..LHD..EUR198601-198708

W/ANTENA

61033EXTENSION SUB-ASSY, QUARTER LOCK PILLAR

main61033-95J00×2iLH6#,7#,YH6#,7#198212-198807

main61575-95J01×2iLH5#,YH5#198212-198807

61072AREINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, NO.1 UPPER

main61071-95J00iYH61..06S..ARL198212-198508

LH

main61072-95J00iYH61..06S..ARL198212-198508

LH

61088AREINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR STAY, NO.2 RH

main61088-95J00iLH6#,YH60,61,66..J,U198212-198708

61089AREINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR STAY, NO.2 LH

main61089-95J00iLH6#,YH60,61,66..J,U198212-198708

61211RAIL, ROOF SIDE, OUTER RH

main61211-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

61212RAIL, ROOF SIDE, OUTER LH

main61212-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

61213RAIL, ROOF SIDE, OUTER REAR RH

main61203-95J00iYH51..V5D;YH51..LHD..V4D;YH51..LHD..12S;LH60,YH50,61,63..RHD..V5D;LH5#,6#,YH50,56,60,61,66..LHD198212-198708

main61215-90C00iLH7#,YH7#198212-198708

61213ARETAINER, SLIDE DOOR WEATHERSTRIP, RH

main67161-95J00iYH51..V5D;YH51..LHD..V4D;YH51..LHD..12S;LH60,YH50,61,63..RHD..V5D;LH5#,6#,YH50,56,60,61,66..LHD198212-198708

61214RAIL, ROOF SIDE, OUTER REAR LH

main61204-95J00iYH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH5#,6#,YH51,56,60,61,66..LHD..V5D;LH50,51,60,61,7#,YH51,53,60,61,63,7#..RHD198212-198807

61214ARETAINER, SLIDE DOOR WEATHERSTRIP, LH

main67161-95J00iYH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH5#,6#,YH51,56,60,61,66..LHD..V5D;LH50,51,60,61,7#,YH51,53,60,61,63,7#..RHD198212-198807

61231RAIL, ROOF SIDE, INNER RH

main61231-95J00iYH53..03S;LH5#,6#,YH50,51,56,6#..STD198212-198708

main61231-95J01iYH51198306-198401

61232RAIL, ROOF SIDE, INNER LH

main61232-95J00iYH53..03S;LH5#,6#,YH50,51,56,6#..STD198212-198708

main61232-95J01iLH7#,YH7#198212-198708

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61207-95J00iLH51,61..J,R,U;YH51..LHD..VSG;YH50..V5D..06S..N1;LH50,51,61..LHD..06S;YH50..V4D..VSG..(4HC,5H);YH61..LHD..VSG..(4HC,5H);LH60,YH60..LHD..(06S,09S);YH50,61..LHD..4H..198212-198708

main61233-95J00iYH61..HRF;YH50,61..RHD..V5D;LH60,YH51,63..V5D..03S;LH60,YH51..LHD..V4D..03S;YH50,51,61..LHD..COM..EUR;LH5#,61,66,YH50,56,60,61,66..LHD..(02S,03S)198212-198708

main61233-95J03iLH50,51,60,61,YH50,51,60,61..LHD..COM..GEN198212-198708

61234ARAIL, ROOF SIDE, INNER NO.2 LH

main61208-95J00iLH51,60,61..06S;LH50..V5D..06S..N1;YH50,60,61..RHD..06S;YH50,60,61..V5D..06S;LH50,YH53,63..STD..(06S,09S)..(ARL,GEN,SA)198212-198708

main61208-95J02iYH51,53..05S198508-198708

main61234-95J00iLH61,YH61..V5D..R198508-198708

W/O REAR SEAT

main61234-95J05iLH50,51,60,61,YH50,51,60,61..RHD..COM..GEN198212-198708

61261ACHANNEL, ROOF DRIP SIDE, FRONT RH

main61263-95J00iLH50,60,70,YH5#,6#,71198212-198401

main61263-95J01iLH5#,6#,YH5#,6#198608-198807

61262ACHANNEL, ROOF DRIP SIDE, FRONT LH

main61264-95J00iLH50,60,70,YH5#,6#,71198212-198401

main61264-95J01iYH51..5H..M1;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR198601-198608

61263CHANNEL, ROOF DRIP, REAR RH

main61267-95J00iLH50,YH5#198212-198401

main61267-95J01iLH60,YH6#198212-198401

main61267-95J02iLH61,YH6#..ARL,EUR,GEN198509-198601

main61267-95J05iLH5#,6#,YH5#,6#198608-198807

61264CHANNEL, ROOF DRIP, REAR LH

main61268-95J00iLH51,YH5#..ARL,EUR,GEN198401-198509

main61268-95J01iLH60,YH6#198212-198401

main61268-95J02iLH7#,YH71198212-198601

main61268-95J05iLH5#,6#,YH5#,6#198608-198807

61301BPILLAR, CENTER BODY, OUTER RH

main61301-90C00iLH7#,YH7#198212-198708

main61301-95J00iLH51,YH51..5H..U198508-198601

W/O RR SEAT

main61301-95J01iYH50..V5D..06S..N1;YH50,61..COM..5H..EUR;YH50..V4D..VSG..(4HC,5H);YH61..LHD..VSG..(4HC,5H);YH50,61..4H..(06S,09S)..N1;LH50,51,61,66..(06S,08S)..EUR;LH60,YH51,60..LH198212-198708

main61301-95J02iLH50,60,YH50,60..LHD..03S..N1198212-198401

W/*EL

sub61301-95J14

main61301-95J08iLH71,YH7#198401-198708

W/FORMED TYPE MUDGUARD

main61301-95J09iLH51,61,YH50,51,60,61..LHD..GEN198601-198708

W/O RR SEAT

61302BPILLAR, CENTER BODY, OUTER LH

main61302-95J00iLH5#,6#,YH5#,6#..RHD..(GEN,SA);LH5#,6#,YH50,60..LHD..V5D..GEN198212-198601

main61302-95J01iLH51,61,YH61..V5D..R;LH51,71,YH51,71..RHD..COM..(ARL,EUR)198508-198601

main61302-95J02iLH50,60,YH5#,6#..RHD..(GEN,SA);LH50,60,YH50,60..LHD..V5D..GEN198212-198401

W/*EL

sub61302-95J15

main61302-95J08iYH51,53..05S198508-198708

sub61302-95J17

main61302-95J09iLH61..4HC;YH51,61..V5D..03S..N1;LH61,YH51..RHD..MTM..03S..(ARL,EUR);LH5#,6#,YH50,56,66..V5D..VSP..MTM..N1;LH51,YH50,53,61,63..RHD..03S..(ARL,EUR)198601-198708

main61302-95J10iYH61,63..06S..ARL198601-198708

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61307-95J00iYH56..M1;YH61,63..V5D..ARL;YH51..VSG..5H..EUR;LH5#,6#,YH50,61..LHD..EUR;YH51,56,66..LHD..(02S,03S,08S,12S)..EUR198508-198708

main61307-95J05iLH5#,6#,YH5#,6#..LHD..V..EUR198212-198508

W/SEPARATOR BOARD

main61307-95J06iLH50,51,60,61,YH50,51,60,61..LHD..COM198212-198708

W/*ODAC

main61307-95J07iLH51,YH50..VSG..03S..N1198508-198603

W/COOLER

main61307-95J08iLH51,61,YH51,61..R;YH50..V4D..VSG..N1198603-198708

W/MOVE TYPE SEPARATOR BAR

main61307-95J11iYH50,51..V5D..GEN;YH50,51..LHD..V4D..GEN;LH51,61,YH60,61..LHD..V..GEN198508-198708

W/FIXED TYPE,SEPARATOR BAR

main61307-95J12iLH51,61,YH50,60..LHD..V..GEN198508-198603

W/MOVE TYPE SEPARATOR BAR

main61307-95J15iYH51..5H..M1;YH51..03S..N1;LH51,61,YH50,61..LHD..EUR198508-198603

W/SEPARATOR BOARD

main61307-95J20iLH71,YH7#198508-198708

main61307-95J22iYH56,66..R198608-198708

W/MOVE TYPE SEPARATOR BAR

main61307-95J23iLH51,61,YH50,51,61..LHD..03S..N1198603-198708

W/SEPARATOR BOARD

61308PILLAR SUB-ASSY, CENTER BODY, INNER LH

main61308-90C00iLH70,YH71198212-198401

main61308-95J00iYH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH50,60,YH51,6#..RHD;LH50,60,YH60..LHD..V5D198212-198401

main61308-95J03iYH51198306-198401

main61308-95J07iLH50,60,YH50,60..V5D..EUR198212-198401

W/SEPARATOR BOARD

main61308-95J08iLH50,60,YH50,60..RHD..COM198212-198401

W/*ODAC

main61308-95J12iLH61..4HC;YH61..V5D..N1;LH61..RHD..5H..(ARL,EUR);LH5#,6#,YH51,56,66..V5D..MTM..N1;LH51,71,YH51,53,61,63,73..RHD..STD..(ARL,EUR)198608-198708

main61308-95J13iYH51,53..GL198401-198807

main61308-95J14iLH51,61,YH5#,61..LHD..V5D198508-198603

W/SEPARATOR BOARD

main61308-95J17iLH51,61,YH5#,61..LHD..V5D198401-198508

W/SEPARATOR BOARD

main61308-95J18iLH51,61,YH50,51,60,61..RHD..COM..GEN198401-198708

W/*ODAC

main61308-95J23iLH51,61,YH61..V5D..R198508-198603

W/MOVE TYPE SEPARATOR BAR

main61308-95J24iYH56,66..02S198608-198708

W/FIXED TYPE SEPARATOR BAR

main61308-95J29iYH50,60..LHD..V5D..GEN198508-198603

*SAA,*47

main61308-95J30iYH50,60..LHD..V5D..GEN198508-198603

*SAA,*47,W/COOLER

main61308-95J35iYH60,63..03S..SA198608-198807

main61308-95J36iLH51,61,YH50,6#..RHD..V..GEN;LH51,61,YH50,60..LHD..V5D..GEN198508-198603

W/COOLER

main61308-95J37iLH5#,6#,YH50,51,56,61,66..V5D..N1198603-198708

W/SEPARATOR BOARD

61309ASEAL SUB-ASSY, CENTER BODY PILLAR

main61309-95J00iLH60..LHD..V4D..03S;LH60..LHD..(09S,15S);LH50,51,61,YH50,51,60,61..LHD..COM;LH5#,61,66,YH50,51,56,60,61,66..LHD..V4D198212-198708

61337AREINFORCEMENT, CENTER BODY PILLAR, INNER RH

main61337-95J00iYH51..GL..SA;YH61..V4D..ARL;YH50,63..RHD..V4D;LH60..RHD..V4D..03S;LH60..RHD..(06S,15S);YH50,51,63..RHD..COM;YH61..RHD..(EUR,GEN,SA);YH51..RHD..V4D..(4FC,4H,5F);LH50198212-198807

61338AREINFORCEMENT, CENTER BODY PILLAR, INNER LH

main61338-95J00iLH60..LHD..V4D..03S;LH60..LHD..(09S,15S);LH50,51,61,YH50,51,60,61..LHD..COM;LH5#,61,66,YH50,51,56,60,61,66..LHD..V4D198212-198708

61389PATCH, CENTER BODY PILLAR, OUTER

main61389-95J00×2iLH50,51,60,61,YH50,51,60,61,63..V4D..GEN198307-198702

61399PATCH, CENTER BODY PILLAR, OUTER NO.2

main61399-95J00×2iLH50,51,60,61,YH50,60,61,63..V4D..GEN198307-198702

61411DPANEL, FENDER, OUTER RH

main61411-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

61412DPANEL, FENDER, OUTER LH

main61412-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

61413BPANEL, FRONT STEP, RH

main61413-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

61414BPANEL, FRONT STEP, LH

main61414-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

61415APANEL, FRONT STEP, UNDER, RH

main61415-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

61416APANEL, FRONT STEP UNDER, LH

main61416-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

61421APANEL, FENDER, INNER RH

main61421-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

61422APANEL, FENDER, INNER LH

main61422-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

61423APANEL, FENDER, INNER LOWER RH

main61423-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

main61423-95J01iLH50,51,60,61,YH50,51,60,61..LHD..COM..GEN198212-198708

W/*ODAC

61424APANEL, FENDER, INNER LOWER LH

main61424-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

main61424-95J01iLH50,51,60,61,YH50,51,60,61..LHD..COM..GEN198212-198708

W/*ODAC

61503AREINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, RH

main61503-95J00iYH51..V5D;YH51..LHD..V4D;YH51..LHD..12S;LH60,YH50,61,63..RHD..V5D;LH5#,6#,YH50,56,60,61,66..LHD198212-198708

61504AREINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH

main61504-95J00iYH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH5#,6#,YH51,56,60,61,66..LHD..V5D;LH50,51,60,61,7#,YH51,53,60,61,63,7#..RHD198212-198807

61505REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH

main61505-95J00iYH51..V5D;YH51..LHD..V4D;YH51..LHD..12S;LH60,YH50,61,63..RHD..V5D;LH5#,6#,YH50,56,60,61,66..LHD198212-198708

CENTER PILLAR

61506REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH

main61506-95J00iLH60..LHD..V4D..03S;LH60..LHD..(09S,15S);LH50,51,61,YH50,51,60,61..LHD..COM;LH5#,61,66,YH50,51,56,60,61,66..LHD..V4D198212-198708

QUARTER PILLAR

61511PILLAR, QUARTER LOCK, RH

main61501-95J02iLH5#,YH50,51,56..LHD..VSG198212-198708

main61501-95J03iYH50..RHD..V5D;YH51..V5D..03S;YH51..LHD..V4D..03S;LH5#,YH50,56..LHD..VSP198212-198708

main61501-95J04iLH6#,YH60,61,66..LHD..VSG198212-198708

main61501-95J05iYH61..V5D..ARL;LH60..LHD..V4D..03S;LH61,YH60,61..LHD..VSP;LH60,66,YH63,66..V5D..VSP198212-198708

main61511-95J01iYH51..GL..SA;YH61..V4D..ARL;YH50,63..RHD..V4D;LH60..RHD..V4D..03S;LH60..RHD..(06S,15S);YH50,51,63..RHD..COM;YH61..RHD..(EUR,GEN,SA);LH50,51,61,YH53,60..RHD;YH51..RH198212-198807

61512PILLAR, QUARTER LOCK, LH

main61502-95J01iYH51..5H..GL;LH50,51,YH50,53..RHD..VSG;YH51..RHD..VSG..(4FC,4H,4HC,5F)198212-198807

main61502-95J02iYH51..RHD..03S;YH51..LHD..V5D..03S;LH5#,YH50,56..V5D..VSP;LH50,51,YH50,53..RHD..V4D..VSP198212-198708

main61502-95J03iLH60,61,YH60,61,63..RHD..VSG198212-198807

main61502-95J04iLH60,61,YH60,61,63..RHD..VSP;LH6#,YH60,61,66..LHD..V5D..VSP198212-198708

main61502-95J07iLH7#,YH7#198212-198708

main61511-95J01iLH60..LHD..V4D..03S;LH60..LHD..(09S,15S);LH50,51,61,YH50,51,60,61..LHD..COM;LH5#,61,66,YH50,51,56,60,61,66..LHD..V4D198212-198708

61606FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH

main61705-90C00iLH61,7#,YH60,71..HRF198212-198601

main61705-95J00iLH51,YH51..R;LH61,YH50,6#..SRF;LH51,YH51..03S,05S,06S,09S,12S198508-198601

main61705-95J01iLH51,YH51..5H..M1198508-198601

main61705-95J02iLH51..R;YH51..5H..(R,U);LH51..03S,06S,12S;YH51..4FC,4H,4HC,5F;YH51..5H..(03S,09S,12S);LH56,6#,YH50,53,56,6#..SRF198601-198807

main61705-95J03iLH5#,YH51,56..MTM..M1198601-198708

main61705-95J04iLH61,71,YH60,61,7#..HRF198601-198708

61607FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH

main61706-90C00iLH61,7#,YH60,71..HRF198212-198601

main61706-95J00iLH51,YH51..R;LH61,YH50,6#..SRF;LH51,YH51..03S,05S,06S,09S,12S198508-198601

main61706-95J01iLH51,YH51..5H..M1198508-198601

main61706-95J02iLH51,YH51..R;LH56,6#,YH50,53,56,6#..SRF;LH51,YH51..03S,05S,06S,09S,12S198601-198807

main61706-95J03iLH5#,YH51,56..MTM..M1198601-198708

main61706-95J04iLH61,71,YH60,61,7#..HRF198601-198708

61611PANEL, QUARTER, RH

main61611-90C00iLH7#,YH7#198212-198708

main61611-95J00iLH5#,YH50..RHD..VSG..03S;LH5#,YH5#..RHD..(05S,06S,09S,12S)198212-198601

main61611-95J01iLH5#,YH5#..LHD..VSG;LH5#,YH5#..LHD..12S198212-198601

main61611-95J02iYH51..RHD..V4D..4H..03S;LH50,51,YH50,53..RHD..V4D..VSP198212-198708

main61611-95J03iYH50..RHD..V5D;YH51..V5D..03S;YH51..LHD..V4D..03S;LH5#,YH50,56..LHD..VSP198212-198708

main61611-95J05iYH6#..RHD..VSG..03S;LH6#,YH6#..RHD..(06S,15S)198212-198601

main61611-95J06iLH6#..LHD..15S;LH6#,YH61..LHD..VSG;YH60..LHD..VSG..03S;YH60..LHD..SRF..(06S,09S,15S)198212-198601

main61611-95J07iYH61..V5D..ARL;LH60..LHD..V4D..03S;LH61,YH60,61..LHD..VSP;LH60,66,YH63,66..V5D..VSP198212-198708

main61611-95J08iLH60,61,YH60,61,63..RHD..SRF..V4D..VSP198212-198708

main61611-95J17iYH51..4H..ARL;LH51,YH53..03S..ARL198508-198708

TELECOM SPEC

main61611-95J18iLH6#,YH61..ARL198303-198508

TELECOM SPEC

main61611-95J27iYH60..HRF198508-198608

main61611-95J28iLH61..HRF198508-198708

main61611-95J31iYH53..05S198608-198708

main61611-95J32iLH51,YH50,51..LHD..12S;LH5#,YH50,51,56..LHD..VSG198601-198708

main61611-95J34iYH63..VSG;YH63..15S;YH60,61..RHD..VSG..03S;LH61,YH60,61..RHD..(06S,15S)198601-198807

main61611-95J35iYH60..VSG..03S..GEN;LH6#,YH61,66..LHD..VSG;LH61,YH61..LHD..SRF..15S;YH60..LHD..SRF..(06S,15S)198601-198708

61612PANEL, QUARTER, LH

main61612-90C00iLH7#,YH7#198212-198708

main61612-95J00iLH5#,YH5#..LHD..V4D..VSG198212-198601

main61612-95J01iYH50..RHD..VSG;YH50..V5D..VSG;LH5#..V5D..VSG..N1;LH5#,YH51..VSG..(ARL,GEN,SA)198212-198601

main61612-95J02iLH50,51,YH50,51..LHD..V4D..VSP198212-198708

main61612-95J03iYH51..RHD..03S;YH51..LHD..V5D..03S;LH5#,YH50,56..V5D..VSP;LH50,51,YH50,53..RHD..V4D..VSP198212-198708

main61612-95J05iLH6#,YH60..LHD..15S198212-198601

main61612-95J06iLH6#,YH6#..RHD..15S198212-198601

main61612-95J07iLH60,61,YH60,61,63..RHD..VSP;LH6#,YH60,61,66..LHD..V5D..VSP198212-198708

main61612-95J08iLH60,61,YH60,61..LHD..V4D..VSP198212-198708

main61612-95J21iYH61..HRF198608-198708

main61612-95J22iLH61..HRF198508-198708

main61612-95J25iLH51,YH50,51,56..LHD..V4D..VSG198508-198708

main61612-95J26iLH51..R;YH50,51..RHD..VSG;YH50,51..V5D..VSG;LH51..V5D..VSG..03S;LH51,YH53..05S,06S,09S198601-198807

main61612-95J28iLH6#,YH60,61,66..LHD..V4D..VSG198601-198708

main61612-95J29iLH61,YH60,61,63..RHD..15S198601-198708

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-95J00iYH51..4HC..EUR;LH5#,6#,YH50,6#..V;YH51..V4D..(4FC,4H,5F,5H)..(ARL,EUR)198212-198608

main61633-95J01iLH51,YH51..LHD..12S198608-198708

sub61633-95J03

main65605-90C00iLH7#,YH71198212-198608

main65605-95J00iYH63..15S198608-198807

main65605-95J01iLH5#,YH50..RHD..12S198212-198608

main65605-95J02iLH6#,YH60..LHD..SRF..15S198212-198608

main65605-95J04iLH61,YH61..RHD..15S198608-198708

sub65605-95J12

main65605-95J05iLH51,YH51..RHD..12S198608-198708

sub65605-95J13

main65605-95J06iLH61,YH61..LHD..15S198608-198708

sub65605-95J14

main65605-95J08iLH71,YH73198608-198708

sub65605-95J15

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61634-95J00iYH51..5H..STD..SA;LH5#,6#,YH50,6#..V;YH51..V..STD..(ARL,EUR)198212-198608

main61634-95J01iLH51,YH51..RHD..12S198608-198708

sub61634-95J04

main65606-95J00iLH6#,YH60..LHD..15S198212-198608

main65606-95J01iLH5#,YH50..LHD..12S198212-198608

main65606-95J02iLH6#,7#,YH6#,71..RHD..15S198212-198608

main65606-95J05iLH71,YH73198608-198708

sub65606-95J14

main65606-95J06iLH61,YH61..LHD..15S198608-198708

sub65606-95J15

main65606-95J07iLH51,YH51..LHD..12S198608-198708

sub65606-95J16

main65606-95J08iLH61,YH61..RHD..15S198608-198708

sub65606-95J17

61648REINFORCEMENT, SIDE WINDOW

main61645-95J00×6iLH5#,6#,YH5#,6#..VSP198212-198708

61648BBRACKET, QUARTER PANEL PAD

main61648-95J00iLH5#,YH50,51,56..LHD..V4D;LH50,51,YH50,51..LHD..12S198212-198708

61649PAD, QUARTER PANEL, OUTER

main61647-95J00iLH50,60,70,YH5#,6#,71198212-198307

L=120

main61647-95J01iLH50,60,70,YH5#,6#,71198212-198307

L=180

main61647-95J02iLH50,60,70,YH5#,6#,71198212-198307

L=80

main61667-95J03iLH5#,6#,7#,YH5#,6#,7#198307-198708

61660EXTENSION ASSY, QUARTER OUTER PANEL

main61660-95J00iYH51..4H..ARL;LH5#,6#,YH50,61..ARL198304-198508

TELECOM SPEC

61699CRETAINER, COURTESY SWITCH

main61699-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

61707PANEL SUB-ASSY, QUARTER, INNER RH

main61607-95J00iLH51,YH50,51..LHD..12S198508-198708

main61607-95J01iYH51..STD..SA198508-198608

main61607-95J02iYH51,53..05S198508-198708

sub61607-95J18

main61607-95J03iLH5#,YH51,56..M1198508-198708

main61607-95J06iLH61,YH60,61..LHD..SRF..15S198508-198708

main61607-95J07iLH6#,YH61,66..M1198508-198708

main61607-95J08iYH50..V4D..VSG..N1;LH51,YH51,56..MTM..R198508-198708

W/MOVE TYPE SEPARATOR

main61607-95J09iLH61,YH61,66..R198508-198708

W/MOVE TYPE SEPARATOR

main61607-95J19iYH60..HRF198508-198608

main61613-90C02iLH7#,YH7#198212-198708

main61613-95J00iYH51..5H..GL;LH50,51,YH50..RHD..VSG;YH51..RHD..VSG..(4FC,4H,4HC,5F)198212-198807

main61613-95J01iLH5#,YH5#..LHD..VSG..(03S,06S)198212-198508

main61613-95J02iYH51..RHD..V4D..4H..03S;LH50,51,YH50,53..RHD..V4D..VSP198212-198708

main61613-95J03iYH50..RHD..V5D;YH51..V5D..03S;YH51..LHD..V4D..03S;LH5#,YH50,56..LHD..VSP198212-198708

main61613-95J05iLH5#,YH50..LHD..12S198212-198508

main61613-95J06iYH51..STD..SA198401-198508

main61613-95J07iYH50..G198212-198508

main61613-95J09iLH51,YH5#..J..EUR198212-198508

main61613-95J10iYH51198306-198401

main61613-95J11iLH60,61,YH60,61..RHD..VSG198212-198807

main61613-95J12iLH6#,YH6#..LHD..VSG..(03S,06S)198212-198508

main61613-95J13iLH60,YH60..J198212-198401

main61613-95J14iLH60,61,YH60,61,63..RHD..V4D..VSP198212-198708

main61613-95J15iYH61..V5D..ARL;LH60..LHD..V4D..03S;LH61,YH60,61..LHD..VSP;LH60,66,YH63,66..V5D..VSP198212-198708

main61613-95J18iLH6#,YH60..LHD..15S198212-198508

main61613-95J19iLH61,YH61..J198401-198508

main61613-95J22iYH61..G198401-198508

main61613-95J45iLH61..HRF198508-198708

main61613-95J49iYH50..V5D..06S;LH51,YH51,56..R;YH50..LHD..V4D..VSG;LH51,YH51..LHD..VSG..(03S,06S)198508-198708

main61613-95J50iLH61,YH61,66..R;LH61,YH60,61..LHD..VSG..GEN198508-198708

61707EEXTENSION, QUARTER INNER PANEL, RH

main61031-95J02iYH50,61..RHD..VSG..4H..03S198508-198608

main61031-95J03iYH61..VSG..03S..N1198508-198608

main61031-95J05iLH51,61,YH50,51,60,61..RHD..V4D..VSP..GEN198508-198708

main61031-95J06iYH51..RHD..4H..(ARL,EUR);LH51,61,YH50,53,61,63..RHD..V4D..VSP..(ARL,EUR)198508-198708

main61031-95J07iYH51,53..05S198508-198708

sub61031-95J62

main61031-95J08iYH63..GEN198608-198708

main61031-95J09iYH61,63..06S..ARL198508-198708

main61031-95J11iLH51,61,YH50,60..RHD..V4D..VSP..GEN198508-198608

W/COOLER

main61031-95J16iYH50..RHD..VSG..03S198508-198608

W/COOLER

main61031-95J19iYH61..GEN198508-198608

W/COOLER

main61031-95J23iLH51,61,YH50,51,60,61..RHD..06S..GEN198508-198708

main61031-95J24iLH51,61,YH50,6#..RHD..06S..GEN198508-198608

W/COOLER

main61031-95J25iLH51,YH50,51..RHD..12S..GEN198508-198708

main61031-95J26iLH61,YH60,61..RHD..15S..GEN198508-198708

main61031-95J29iLH51,YH51..RHD..12S..EUR198508-198608

main61735-90C00iLH7#,YH7#198212-198708

main61735-95J00iLH5#,6#,YH50,60..RHD..06S198212-198508

main61735-95J01iLH5#,YH50,6#..RHD..VSG..03S198212-198508

main61735-95J02iLH60,YH60..J198212-198508

main61735-95J03iYH51..4H..ARL;LH5#,6#,YH50,6#..RHD..V4D..VSP198212-198508

main61735-95J04iLH5#,YH50..RHD..12S..GEN198212-198508

main61735-95J05iLH6#,YH60..RHD..15S198212-198508

main61735-95J06iLH61..V4D..06S198401-198508

NEW ZEALAND SPEC

main61735-95J08iYH51..GL198401-198508

main61735-95J09iYH51..STD..SA198401-198508

main61735-95J11iLH51,61,YH50,60..RHD..V4D..VSP..GEN198401-198508

W/COOLER

main61735-95J12iLH51,61,YH50,60..RHD..VSG198401-198508

W/COOLER

main61735-95J18iYH61..GEN198403-198508

W/COOLER

61708PANEL SUB-ASSY, QUARTER, INNER LH

main61608-95J00iLH51,YH50,51..RHD..12S198508-198708

main61608-95J01iYH51..STD..SA198508-198608

main61608-95J03iLH5#,YH51,56..M1198508-198708

main61608-95J04iYH53..SA198608-198807

main61608-95J06iLH61,YH60,61,63..RHD..15S198508-198807

main61608-95J08iLH6#,YH61,66..M1198508-198708

main61608-95J10iLH51..R198508-198708

W/MOVE TYPE SEPARATOR

main61608-95J11iLH61,YH61..V5D..R198508-198708

W/MOVE TYPE SEPARATOR

main61608-95J13iYH61,63..RHD..06S198508-198708

main61608-95J22iLH71,YH7#198508-198708

main61608-95J24iYH51,53..05S198508-198708

main61614-90C00iYH60,61..HRF198508-198708

main61614-90C02iLH7#,YH71198212-198508

main61614-95J00iLH5#..VSG..GEN;YH50..RHD..VSG;YH50..V5D..VSG;LH5#..V5D..06S..N1198212-198508

main61614-95J01iLH50,51,YH50,51..LHD..12S198212-198708

main61614-95J02iYH51..RHD..03S;YH51..LHD..V5D..03S;LH5#,YH50,56..V5D..VSP;LH50,51,YH50..RHD..V4D..VSP198212-198708

main61614-95J03iLH50,51,YH50,51..LHD..V4D..VSP198212-198708

main61614-95J04iLH5#,YH50..RHD..12S198212-198508

main61614-95J06iYH51..STD..SA198401-198508

main61614-95J07iLH50,YH50..RHD..V4D..GEN198212-198401

NEW ZEALAND SPEC

main61614-95J09iLH51,YH5#..J..EUR198212-198508

main61614-95J10iYH51..GL198401-198508

main61614-95J11iYH60..V5D..VSG;YH60..RHD..VSG;YH61..RHD..5H..06S;YH61..V5D..5H..EUR;YH61..VSG..(4H,4HC);LH6#..VSG..(03S,06S)198212-198508

main61614-95J12iLH61,YH61,66..V4D..(G,R);YH60,61..LHD..V4D..VSG..(03S,06S)198212-198708

main61614-95J15iLH6#,YH60,61,66..LHD..V5D..VSP;LH60,61,YH60,61,63..RHD..SRF..VSP198212-198708

main61614-95J16iLH60,61,YH60,61..LHD..V4D..VSP198212-198708

main61614-95J17iLH6#,YH6#..RHD..15S198212-198508

main61614-95J20iLH6#,YH6#..J198212-198508

main61614-95J22iYH61..06S..ARL198212-198508

main61614-95J46iLH61..HRF198508-198708

main61614-95J49iLH51..R;LH51..06S;YH50,51..RHD..VSG;YH50,51..V5D..VSG;LH51..V5D..VSG..03S198508-198807

main61614-95J50iLH61,YH61..V5D..VSG198508-198708

61708EEXTENSION, QUARTER INNER PANEL, LH

main61032-95J00iYH50,51,56,61,66..LHD..V4D..VSG..N1198508-198708

main61032-95J01iYH50,61..LHD..V4D..VSG..N1198508-198608

W/09S

main61032-95J02iLH51,YH50..VSG..03S..N1198508-198708

main61032-95J03iLH51,YH50,60,61..LHD..V4D..VSG..03S..GEN198508-198708

main61032-95J04iYH50,60..LHD..V4D..06S198508-198608

W/COOLER

main61032-95J05iYH50,60..LHD..VSG..03S..GEN198508-198608

W/COOLER

main61032-95J06iLH51,61,YH60..LHD..V4D..VSP..GEN198508-198608

W/COOLER

main61032-95J07iYH50,60..LHD..V4D..06S198508-198608

*SAA,*47

main61032-95J08iYH50,60..LHD..VSG..03S..GEN198508-198608

*SAA,*47

main61032-95J09iYH50,60..LHD..V4D..06S198508-198608

*SAA,*47,W/COOLER

main61032-95J10iYH50,60..LHD..VSG..03S..GEN198508-198608

*SAA,*47,W/COOLER

main61032-95J11iLH51,61,YH50,51,61..LHD..V4D..VSP..N1198508-198708

main61032-95J12iLH51,61,YH60,61..LHD..V4D..VSP..GEN198508-198708

main61032-95J13iYH5#,61..LHD..V4D..VSG..N1198508-198603

W/BOARD TYPE SEPARATER

main61032-95J14iLH51,YH50..VSG..03S..N1198508-198603

W/BOARD TYPE SEPARATER

main61032-95J15iLH51,61,YH50,51..LHD..V4D..VSP..N1198508-198704

W/BOARD TYPE SEPARATER

main61032-95J16iLH51,YH50,51..LHD..12S..GEN198508-198708

main61032-95J17iLH61,YH60,61..LHD..15S..GEN198508-198708

main61032-95J18iLH5#,6#,YH51,56,61,66..M1198508-198708

main61032-95J19iYH51..LHD..12S198508-198608

main61032-95J20iYH50..LHD..12S198508-198608

*SAA,*47

main61032-95J21iYH60..LHD..15S198508-198608

*SAA,*47

main61032-95J22iYH50,51,61..LHD..V4D..VSG..N1198508-198708

W/MOVE TYPE SEPARATOR

main61032-95J23iLH51,YH50..VSG..03S..N1198508-198608

W/FIXED TYPE SEPARATOR

main61032-95J27iYH61..15S..EUR198608-198708

main61032-95J29iYH51,61..V4D..R198608-198708

W/BOARD TYPE SEPARATER

main61032-95J30iLH51,YH50..VSG..03S..N1198603-198708

W/BOARD TYPE SEPARATER

main61032-95J31iLH51,61,YH51,61..LHD..V4D..VSP..N1198603-198708

W/BOARD TYPE SEPARATER

main61032-95J32iLH61,YH61..LHD..VSP198608-198708

W/FIXED TYPE SEPARATER

main61736-90C00iLH7#,YH7#198212-198708

main61736-95J00iLH60,YH60..J198212-198401

main61736-95J01iLH50,YH50,60..LHD..V4D..VSG..03S198212-198401

main61736-95J02iLH50,60,YH50,60..LHD..V4D..VSP198212-198401

main61736-95J03iLH50,YH50..LHD..12S..GEN198212-198401

main61736-95J04iLH60,YH60..LHD..15S198212-198401

main61736-95J05iYH50..J198212-198401

main61736-95J06iYH50..G;YH50..5H..12S198212-198401

main61736-95J07iYH5#,6#..LHD..V4D..06S198401-198508

main61736-95J08iLH51,YH50,60..LHD..V4D..VSG..03S198401-198508

main61736-95J09iLH51,61,YH5#,6#..LHD..V4D..VSP198401-198508

main61736-95J13iLH51,YH50..LHD..12S..GEN198401-198508

main61736-95J14iLH61,YH60..LHD..15S198401-198508

main61736-95J15iLH51,YH51..J..N1198401-198508

main61736-95J16iYH50..5H..12S198401-198508

main61736-95J17iYH50,60..LHD..V4D..06S198401-198508

W/COOLER

main61736-95J18iYH50,60..LHD..V4D..VSG..03S198401-198508

W/COOLER

main61736-95J19iLH51,61,YH50,60..LHD..V4D..VSP198401-198508

W/COOLER

61725BOX, FUEL INLET

main77304-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

main77304-95J01iYH51..RHD..V4D..GEN;LH51,61,YH61..RHD..06S198612-198708

HONG KONG SPEC

61737CREINFORCEMENT, QUARTER, INNER

main61737-95J00×2iLH5#,6#,7#,YH5#,6#,7#198212-198807

61739BREINFORCEMENT, EXTENSION QUARTER INNER PANEL

main61739-90C00iLH7#,YH7#198212-198708

main61739-95J00iYH50,60..V4D;YH51..5H..GL;YH61..V4D..ARL;YH50,60,63..COM;YH51..V4D..5H..EUR;LH50,51,61,YH53..RHD;YH51..V4D..(4FC,4H,5F);YH61..RHD..(EUR,GEN,SA);YH51..V4D..4HC..(EUR198212-198807

main61739-95J01iYH51..4H..ARL;LH5#,6#,YH50,61..ARL198303-198508

TELECOM SPEC

61741AREINFORCEMENT, BACK DOOR OPENING, UPPER RH

main61741-95J00iLH51..R,U;LH51..03S,06S,12S;LH50,56,6#,YH5#,6#..SRF198212-198807

61742AREINFORCEMENT, BACK DOOR OPENING, UPPER LH

main61742-95J00iLH51..R,U;LH51..03S,06S,12S;LH50,56,6#,YH5#,6#..SRF198212-198807

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61077-95J00iYH50,51,63..COM;YH50,51,63,66..VSG;LH50,51,66..06S,08S,12S;LH51,56,61,YH56,61..R,U;LH50,51,60,61,YH60,61..VSG..03S;LH60,61,YH53,60,61..SRF..(05S,06S,09S,15S)198212-198807

main61077-95J01iLH5#,6#,YH5#,6#..SRF..VSP198212-198708

main61745-95J00iYH60..HRF198508-198608

main61745-95J01iLH61..HRF198508-198708

61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH

main61078-95J00iYH60..HRF198508-198608

main61078-95J01iLH61..HRF198508-198708

main61746-95J00iLH70,YH61,71..HRF198212-198708

61747AEXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, RH

main61747-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

61748AEXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, LH

main61748-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

61768AREINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH

main61768-95J00iLH51,YH5#..J198212-198508

main61768-95J01iLH6#,YH60..J198212-198508

61769AREINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH

main61768-95J00iLH51,YH5#..J198212-198508

main61768-95J01iLH6#,YH6#..J198212-198508

RH

main61769-95J01iLH6#,YH6#..J198212-198508

LH

61783CBRACE, QUARTER PANEL, INNER RH

main61783-95J00iYH51..V5D;YH51..LHD..V4D;YH51..LHD..12S;LH60,YH50,61,63..RHD..V5D;LH5#,6#,YH50,56,60,61,66..LHD198212-198706

main61783-95J04iLH5#,6#,YH51,56,61,66..LHD198706-198708

61784CBRACE, QUARTER PANEL, INNER LH

main61784-95J00iYH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH5#,6#,YH51,56,60,61,66..LHD..V5D;LH50,51,60,61,7#,YH51,53,60,61,63,7#..RHD198212-198706

main61784-95J02iLH5#,6#,YH51,56,61,66..LHD..V5D;LH51,61,71,YH51,53,60,61,63,73..RHD198706-198807

64125BANCHOR, PILLAR SEAT BELT

main64125-95J00iYH61..V5D;YH61..LHD..V4D;LH60,YH50..RHD..V5D;LH5#,6#,YH5#,60..LHD198212-198508

QUARTER PANEL

64126BANCHOR, PILLAR SEAT BELT, LOWER

main64126-95J00iLH5#,6#,7#,YH5#,6#,71198212-198508

QUARTER PANEL

7451

7452

1796195J00INLET, COOL AIR

main17961-95J00

83 parts on this diagram · 7 diagrams in section
