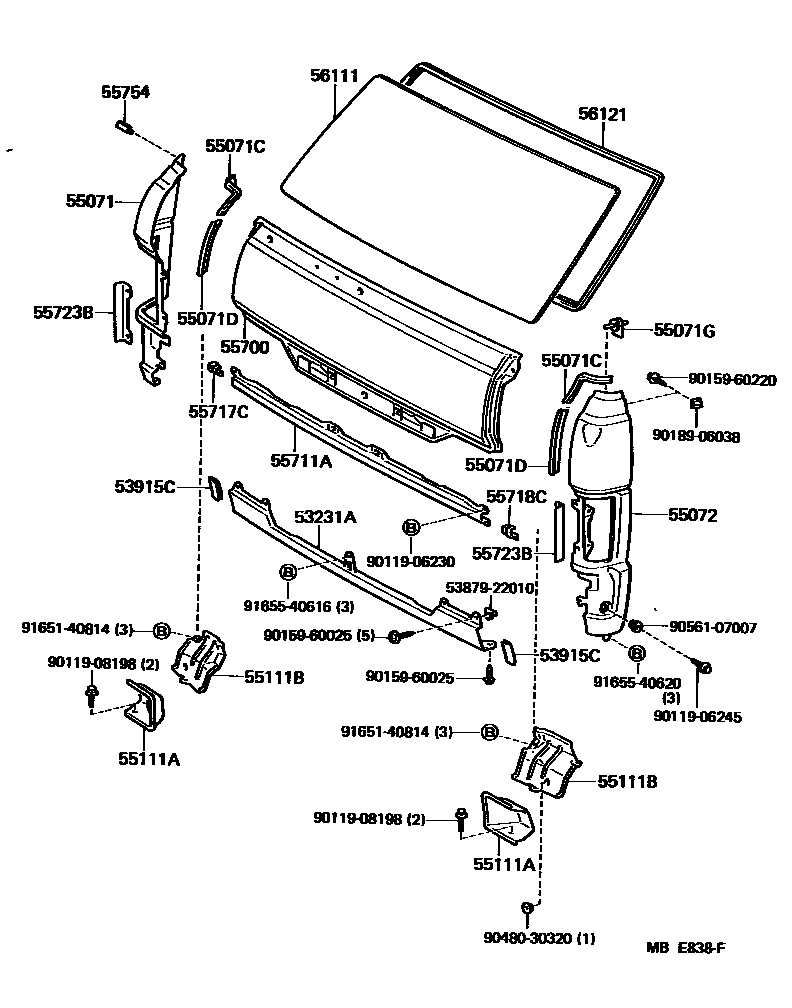

FRONT PANEL & WINDSHIELD GLASS

53231APANEL, LOWER SHROUD

main53231-95J00iLH5#,6#,7#,YH5#,6#,71198212-198807

53915CPROTECTOR, LOWER SHROUD

main53915-95J00iLH5#,6#,7#,YH5#,6#,71198212-198807

55071PANEL SUB-ASSY, FRONT SIDE, RH

main53801-95J00iYH53..05S198212-198807

sub53801-95J01

main53801-95J01iYH51..05S198212-198708

55071CPROTECTOR, FRONT SIDE PANEL, NO.1

main53821-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

RH

main53822-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

LH

55071DPROTECTOR, FRONT SIDE PANEL, NO.2

main53823-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

55071GRETAINER, FRONT SIDE PANEL SET

main53827-95700iLH5#,6#,7#,YH5#,6#,7#198212-198807

55072PANEL SUB-ASSY, FRONT SIDE, LH

main53802-95J00iYH51..(4FC,4H,5F)..ARL;LH50,51,60,61,7#,YH50,53,61,63,7#..ARL198212-198708

sub53802-95J06

main53802-95J00iLH50,51,60,61,YH50,60,61,63..RHD..GEN198309-198708

W/VENTILATOR WINDOW

sub53802-95J06

main53802-95J01iLH50,51,60,61,YH50,51,53,60,61,63..GEN,SA198212-198807

sub53802-95J02

main53802-95J02iLH5#,6#,YH50,51,60,61,66..EUR198212-198708

55111AGUIDE, AIR DUCT, NO.1

main17811-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

RH

main17812-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

LH

55111BGUIDE, AIR DUCT, NO.2

main17813-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

RH

main17814-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

LH

55700PANEL ASSY, FRONT

main55701-95J02iLH5#,6#,7#,YH5#,6#,71..RHD198212-198508

main55701-95J03iLH5#,6#,YH5#,6#..LHD198212-198508

main55701-95J06iLH51,61,71,YH50,51,53,60,61,63,7#..RHD198508-198807

sub55701-95J11

main55701-95J07iLH5#,6#,YH50,51,56,60,61,66..LHD198508-198708

sub55701-95J16

55711APANEL, FRONT, LOWER

main55712-95J00iLH5#,6#,7#,YH5#,6#,71198212-198807

55717CPROTECTOR, FRONT, LOWER RH

main55717-95J00iLH5#,6#,7#,YH5#,6#,71198212-198807

55718CPROTECTOR, FRONT, LOWER LH

main55718-95J00iLH5#,6#,7#,YH5#,6#,71198212-198807

55723BSHUTTER, FRONT AIR SIDE

main55723-95J01iLH5#,6#,7#,YH5#,6#,7#198212-198807

55754COVER WINDSHIELD

main55754-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

56111GLASS, WINDSHIELD

main56111-95J00iLH51,61,YH50,51,60..GEN198212-198708

*TT,T=5.0,*TT,T=5.0

sub56111-95J05

main56111-95J02iYH50,61..M1;YH50..4H..J;LH51,61..EUR;YH61..5H..03S..N1;YH61..(4H,4HC)..N1;YH5#..(03S,12S)..EUR198212-198708

*ZT,T=5.0,*ZT,T=5.0

sub56111-95J03

main56111-95J03iYH51..VSG..5H..EUR;LH5#,6#,YH50,53,56,6#..EUR,GEN,SA;YH51..(03S,06S,09S,12S)..(EUR,GEN,SA)198212-198807

*LAM,T=5.7,*LAM,T=5.7

sub56111-95J06

main56111-95J04iYH51..(4FC,4H,5F)..ARL;LH50,51,60,61,7#,YH50,53,61,63,7#..ARL198212-198708

*LAM,T=5.7,*LAM,T=5.7,W/SUN SHADE

sub56111-95J06

main56111-95J05iYH51198212-198708

*TL,T=5.7,*TL,T=5.7

sub56111-95J06

56121WEATHERSTRIP, WINDSHIELD

main56121-95J00iLH50,51,60,61,7#,YH50,51,60,61,7#198212-198807

W/O MOULDING

main56121-95J01iYH53..GL198212-198807

W/MOULDING

5387922010LINER, FRONT FENDER, LH

main53879-22010

9011906230

main90119-06230

9011906245

main90119-06245

9011908198

main90119-08198

9015960025

main90159-60025

9015960220

main90159-60220

9018906038

main90189-06038

9048030320

main90480-30320

9056107007

main90561-07007

9165140814

main91651-40814

9165540616

main91655-40616

9165540620

main91655-40620

29 parts on this diagram · 1 diagram in section
