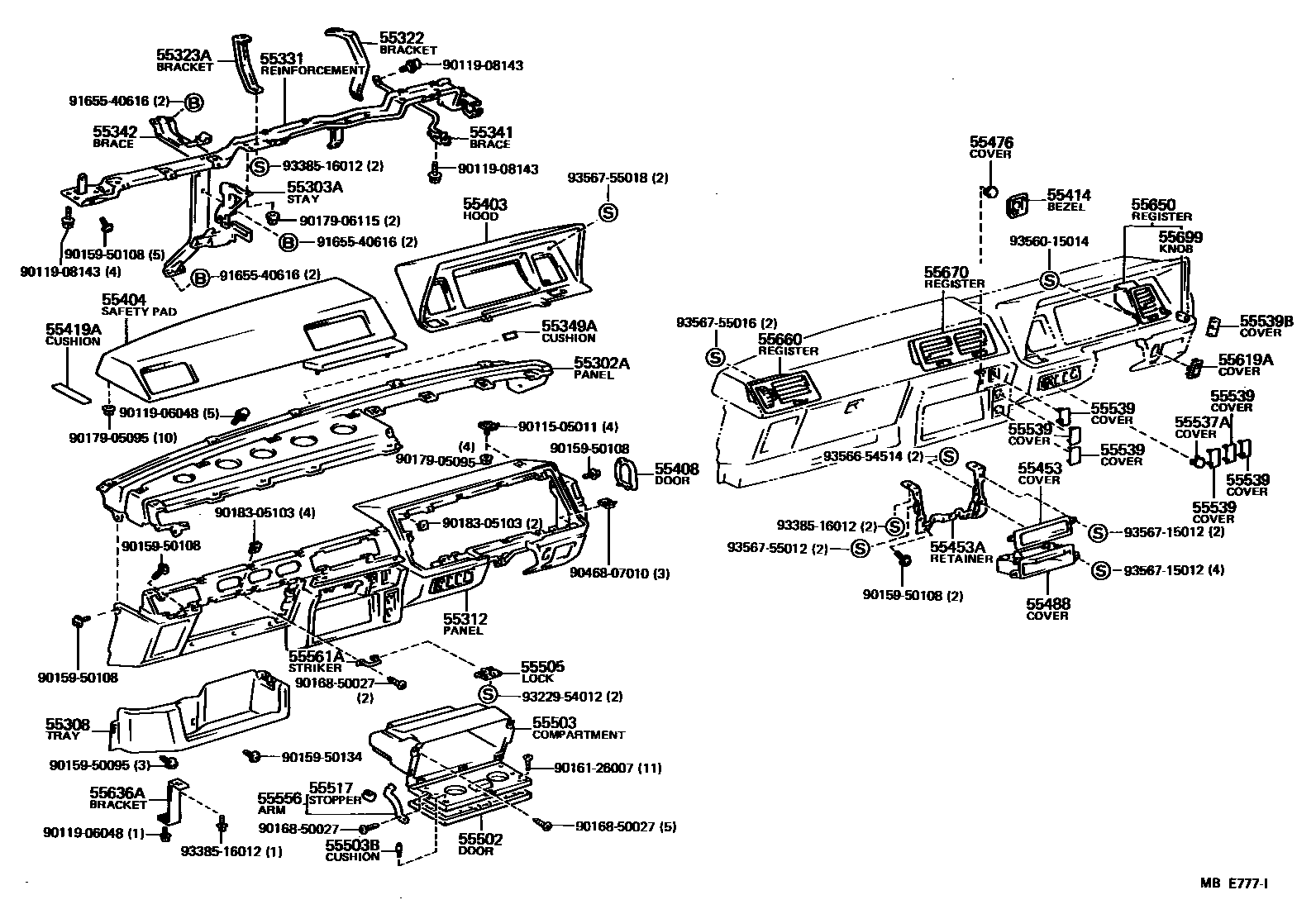

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-95J00-05iLH5#,6#,7#,YH5#,6#,71..RHD198212-198508

BEIGE,BEIGE

main55302-95J00-06iLH51,61,71,YH50,51,53,60,61,63,7#..RHD..(4H,4HC,5H)198508-198807

BROWN,BROWN

main55302-95J01-14iYH51,53..05S198508-198708

BLUE,BLUE

main55302-95J02-05iLH5#,6#,YH5#,6#..LHD198212-198508

BEIGE,BEIGE

sub55302-95J02

main55302-95J02-06iLH5#,6#,YH50,51,56,60,61,66..LHD198508-198708

BROWN,BROWN

sub55302-95J02

55303ASTAY SUB-ASSY, INSTRUMENT PANEL

main55303-95J00iLH5#,6#,7#,YH5#,6#,71..RHD198212-198807

main55303-95J01iLH51,61,YH50,51,60,61..LHD..GEN198212-198708

main55303-95J02iYH51..RHD..(4FC,4H,5F,5H)..(ARL,EUR);LH51,61,71,YH50,53,61,63,7#..RHD..(ARL,EUR)198601-198708

main55303-95J03iYH51..VSG..5H..EUR;YH51..LHD..(03S,12S)..EUR;LH5#,6#,YH50,56,61,66..LHD..EUR198601-198708

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55611-95J00iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD198212-198807

main55611-95J01iLH5#,6#,YH50,51,56,60,61,66..LHD198212-198708

55312PANEL, INSTRUMENT, LOWER

main55312-95J00-05iLH5#,6#,7#,YH5#,6#,71..RHD198212-198508

BEIGE,BEIGE

main55312-95J01iLH5#,6#,YH5#,6#..LHD198212-198508

main55312-95J03-04iYH51,53..05S198508-198708

BLUE,BLUE

main55312-95J03-06iLH51,61,71,YH50,51,53,60,61,63,7#..RHD..(4H,4HC,5H)198508-198807

BROWN,BROWN

main55312-95J04-06iLH5#,6#,YH50,51,56,60,61,66..LHD198508-198708

W/RADIO,BROWN,BROWN

main55312-95J05-06iLH5#,6#,YH50,51,56,60,61,66..LHD198508-198708

W/O RADIO,BROWN,BROWN

55322BRACKET, INSTRUMENT PANEL, NO.1

main55322-95J00iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD198212-198807

main55322-95J01iLH5#,6#,YH50,51,56,60,61,66..LHD198212-198708

55323ABRACKET, INSTRUMENT PANEL, NO.3

main55323-95J00iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD198212-198807

main55323-95J01iLH5#,6#,YH50,51,56,60,61,66..LHD198212-198708

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-95J00iYH51..RHD..(4FC,4H,5F,5H)..(ARL,EUR);LH51,61,71,YH50,53,61,63,7#..RHD..(ARL,EUR)198601-198708

main55305-95J01iYH51..VSG..5H..EUR;YH51..LHD..(03S,12S)..EUR;LH5#,6#,YH50,56,61,66..LHD..EUR198601-198708

main55307-95J00iLH5#,6#,7#,YH5#,6#,71..RHD198212-198508

sub55307-95J02

main55307-95J01iLH5#,6#,YH5#,6#..LHD198212-198508

sub55307-95J03

main55307-95J02iLH51,61,71,YH5#,6#,71..RHD198508-198807

main55307-95J03iLH51,61,YH5#,6#..LHD198508-198708

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-95J00iLH5#,6#,7#,YH5#,6#,71..RHD198212-198807

main55350-95J01iLH5#,6#,YH5#,6#..LHD198212-198508

sub55350-95J03

main55350-95J03iLH5#,6#,YH50,51,56,60,61,66..LHD198508-198708

55342BRACE, INSTRUMENT PANEL, NO.2

main55350-95J00iLH5#,6#,7#,YH5#,6#,71..RHD198212-198508

sub55350-95J02

main55350-95J02iLH51,61,71,YH50,51,53,60,61,63,7#..RHD198508-198807

55349ACUSHION, INSTRUMENT PANEL

main55349-95702iLH5#,6#,7#,YH5#,6#,7#198212-198807

55403HOOD SUB-ASSY, METER

main55403-95J00iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD198212-198807

W/FR HEATER

main55403-95J01iLH5#,6#,YH50,51,56,60,61,66..LHD198212-198708

W/FR HEATER

main55403-95J04iLH50,51,60,61,YH50,51,60,61..RHD..GEN198212-198708

main55403-95J05iLH50,51,60,61,YH50,51,60,61..LHD..GEN198212-198708

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-95J00-05iLH5#,6#,7#,YH5#,6#,71..RHD198212-198408

W/FR HEATER,BEIGE,BEIGE

sub55401-95J05

main55401-95J02iLH5#,6#,YH5#,6#..LHD198212-198408

W/FR HEATER

sub55401-95J07

main55401-95J03iLH5#,6#,YH50,60..LHD..GEN198212-198408

sub55401-95J08

main55401-95J04iLH5#,6#,YH50,60..RHD..GEN198212-198408

sub55401-95J09

main55401-95J05-05iLH51,61,71,YH5#,6#,71..RHD198408-198508

W/FR HEATER,BEIGE,BEIGE

main55401-95J05-06iLH51,61,71,YH50,51,53,60,61,63,7#..RHD..(4H,4HC,5H)198508-198807

W/FR HEATER,BROWN,BROWN

main55401-95J06-24iYH51,53..05S198508-198708

BLUE,BLUE

main55401-95J07-05iLH51,61,YH5#,6#..LHD198408-198508

W/FR HEATER,BEIGE,BEIGE

sub55401-95J07

main55401-95J07-06iLH5#,6#,YH50,51,56,60,61,66..LHD198508-198708

W/FR HEATER,BROWN,BROWN

sub55401-95J07

main55401-95J08-05iLH51,61,YH50,60..LHD..GEN198408-198508

BEIGE,BEIGE

sub55401-95J08

main55401-95J08-06iLH51,61,YH50,51,60,61..LHD..GEN198508-198708

BROWN,BROWN

sub55401-95J08

main55401-95J09-05iLH51,61,YH50,60..RHD..GEN198408-198508

BEIGE,BEIGE

sub55401-95J09

main55401-95J09-06iLH51,61,YH50,51,60,61..RHD..GEN198508-198708

BROWN,BROWN

sub55401-95J09

55408DOOR SUB-ASSY, RESERVOIR TANK SERVICE HOLE

main55432-95J00-05iLH5#,6#,7#,YH5#,6#,71198212-198508

BEIGE,BEIGE

sub55432-95J00

main55432-95J00-24iYH51,53..05S198508-198708

BLUE,BLUE

sub55432-95J00

main55432-95J00-26iYH51,53..4H,4HC,5H;LH5#,6#,71,YH50,56,6#,7#198508-198807

BROWN,BROWN

sub55432-95J00

55414BEZEL, CIGAR LIGHTER HOLE

main55414-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

55419ACUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55419-14020iLH5#,6#,7#,YH5#,6#,7#198212-198807

55453COVER, RADIO TUNER OPENING

main55522-20040iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

55453ARETAINER, RADIO TUNER OPENING, NO.1

main55509-95J00iLH5#,6#,7#,YH5#,6#,71198212-198807

sub55690-95J00

main55509-95J01iYH51..5H..M1;YH51..LHD..(03S,12S);LH51,61,YH50,61..LHD..EUR198508-198608

sub55690-95J01

main55690-95J01iLH51,61,YH51,61..LHD..EUR198608-198708

55476COVER, CIGARETTE LIGHTER HOLE

main55477-10010-01iYH51..5H..M1;YH61..EUR,GEN;LH5#,6#,YH50,60..EUR,GEN,SA;YH51..(03S,06S,09S,12S)..EUR198212-198602

BLACK,BLACK

sub55477-10010

55488COVER, STEREO OPENING

main55043-95J00iLH56,66,YH56,66198608-198708

RH

main55044-95J00iLH56,66,YH56,66198608-198708

LH

main55521-22020iYH51..4HC..SA;YH51..(4FC,4H,5F,5H)..(ARL,GEN,SA);LH50,51,60,61,7#,YH50,53,60,61,63,7#..ARL,GEN,SA198212-198807

main55521-95J00iYH51..VSG..5H..EUR;YH51..(03S,06S,09S,12S)..EUR;LH5#,6#,YH50,56,60,61,66..EUR198212-198708

55502DOOR SUB-ASSY, GLOVE COMPARTMENT, OUTER

main55551-95J00-05iYH51..N1;YH51..4H..ARL;LH5#,6#,7#,YH50,6#,71..ARL,EUR,GEN198212-198508

BEIGE,BEIGE

sub55551-95J00

main55551-95J00-16iYH51..4HC..03S..N1;YH51..(4FC,4H,5F,5H)..(ARL,EUR,GEN);LH5#,6#,71,YH50,53,56,6#,7#..ARL,EUR,GEN198508-198708

BROWN,BROWN

sub55551-95J00

main55551-95J01-05iYH61..V4D..VSG..03S..N1198405-198410

*SA,BEIGE,BEIGE

sub55551-95J01

sub55551-95J02

main55551-95J01-05iYH5#,61..SA198212-198508

BEIGE,BEIGE

sub55551-95J01

sub55551-95J02

main55551-95J02-06iYH51,53,61,63..SA198508-198807

BROWN,BROWN

55503COMPARTMENT SUB-ASSY, GLOVE

main55582-95J00iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD198212-198807

main55582-95J01iLH5#,6#,YH50,51,56,60,61,66..LHD198212-198708

55503BCUSHION(FOR GLOVE COMPARTMENT)

main90541-03015iLH5#,6#,7#,YH5#,6#,7#198212-198807

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55560-32010-05iYH51..N1;YH51..4H..ARL;LH5#,6#,7#,YH50,6#,71..ARL,EUR,GEN198212-198508

BEIGE,BEIGE

sub55560-32010

main55560-32010-24iYH51,53..05S198508-198708

BLUE,BLUE

sub55560-32010

main55560-32010-26iYH51..4HC..03S..N1;YH51..MTM..STD..(ARL,EUR,GEN);LH5#,6#,71,YH50,53,56,6#,7#..STD..(ARL,EUR,GEN)198508-198708

BROWN,BROWN

sub55560-32010

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iLH5#,6#,7#,YH5#,6#,7#198212-198807

55537ACOVER, THROTTLE KNOB HOLE

main55537-95010-01iYH5#,6#,7#198508-198807

BLACK,BLACK

sub55537-95010

main55537-95J00-01iYH5#,6#,71198212-198508

BLACK,BLACK

sub55537-95J00

55539COVER, SPARE SWITCH HOLE

main55539-95J00-01iLH5#,6#,7#,YH5#,6#,7#198212-198807

BLACK,BLACK

sub55539-95J00

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55536-95J00-04iYH51,53..05S198508-198708

BLUE,BLUE

sub55536-95J00

main55536-95J00-06iYH51..RHD..(4H,4HC,5H);LH50,51,60,61,7#,YH50,53,60,61,63,7#..RHD198212-198807

BROWN,BROWN

sub55536-95J00

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-14080iLH5#,6#,7#,YH5#,6#,7#198212-198807

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

55619ACOVER, SWITCH HOLE, NO.2

main55538-95J00-05iLH5#,6#,YH5#,6#..RHD..(EUR,GEN,SA)198212-198508

BEIGE,BEIGE

sub55538-95J00

main55538-95J00-06iLH51,61,YH50,51,53,60,61,63..RHD..(EUR,GEN,SA)198508-198807

BROWN,BROWN

sub55538-95J00

55636ABRACKET, INSTRUMENT PANEL UNDER COVER, NO.2

main55636-95J00iYH50..SA198212-198708

main55636-95J01iLH50,51,60,61,YH50,51,60,61..LHD..GEN198212-198708

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-95J00iLH50,60,70,YH5#,6#,71..RHD198212-198401

sub55650-95J02

main55650-95J01iLH50,60,YH50,60..LHD198212-198401

sub55650-95J03

main55650-95J02iLH51,61,71,YH5#,6#,71..RHD198401-198508

sub55650-95J04

main55650-95J03iLH51,61,YH5#,6#..LHD198401-198508

sub55650-95J05

main55650-95J04iLH51,61,71,YH50,51,53,60,61,63,7#..RHD198508-198807

main55650-95J05iLH5#,6#,YH50,51,56,60,61,66..LHD198508-198708

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-95J00-05iLH50,60,70,YH5#,6#,71..RHD..(ARL,GEN,SA)198212-198401

BEIGE,BEIGE

sub55660-95J04

main55660-95J01iLH50,60,YH50,60..LHD..GEN198212-198401

BEIGE

sub55660-95J06

main55660-95J02-05iLH50,60,YH50,60..RHD..EUR198212-198401

BEIGE,BEIGE

sub55660-95J05

main55660-95J03iLH50,60,YH50,60..LHD..EUR198212-198401

sub55660-95J07

main55660-95J04-05iYH51..MTM;YH51..4HC..SA;LH51,61,71,YH50,6#,71..RHD..(ARL,GEN,SA)198401-198508

BEIGE,BEIGE

sub55660-95J05

main55660-95J05-05iLH51,61,YH50,61..RHD..EUR198401-198508

BEIGE,BEIGE

main55660-95J06iLH51,61,YH50,60..LHD..GEN198401-198508

sub55660-95J07

main55660-95J07iLH51,61,YH5#,61..LHD..EUR198401-198508

main55660-95J08-04iYH51,53..05S198508-198708

BLUE,BLUE

sub55660-95J09

main55660-95J08-06iYH51..4HC..SA;YH51..RHD..(4H,5H)..(ARL,GEN,SA);LH51,61,71,YH50,53,60,61,63,7#..RHD..(4H,4HC,5H)..(ARL,GEN,SA)198508-198807

BROWN,BROWN

sub55660-95J09

main55660-95J09-06iLH51,61,YH50,51,61..RHD..EUR198508-198708

BROWN,BROWN

sub55660-95J09

main55660-95J10-06iLH51,61,YH50,51,60,61..LHD..GEN198508-198708

BROWN,BROWN

sub55660-95J11

main55660-95J11-06iYH51..VSG..5H..EUR;YH51..LHD..(03S,12S)..EUR;LH5#,6#,YH50,56,61,66..LHD..EUR198508-198708

BROWN,BROWN

sub55660-95J07

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-95J00-05iYH51..MTM;YH51..4HC..SA;LH5#,6#,7#,YH50,6#,71..ARL,GEN,SA198212-198508

BEIGE,BEIGE

sub55670-95J00

main55670-95J00-06iYH51..4HC..SA;YH51..(4H,5H)..(ARL,GEN,SA);LH51,61,71,YH50,53,60,61,63,7#..(4H,4HC,5H)..(ARL,GEN,SA)198508-198807

BROWN,BROWN

sub55670-95J00

main55670-95J00-14iYH51,53..05S198508-198708

BLUE,BLUE

sub55670-95J00

main55670-95J01-05iLH5#,6#,YH5#,6#..EUR198212-198508

BEIGE,BEIGE

sub55670-95J01

main55670-95J01-16iYH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH5#,6#,YH50,56,61,66..EUR198508-198708

BROWN,BROWN

sub55670-95J01

55699KNOB, INSTRUMENT PANEL REGISTER CONTROL

main55905-12050-01iLH5#,6#,7#,YH5#,6#,7#198212-198807

BLACK,BLACK

sub55905-12050

sub55905-20230

sub55905-35090

9011505011

main90115-05011

9011906048

main90119-06048

9011908143

main90119-08143

9015950095

main90159-50095

9015950108

main90159-50108

9015950134

main90159-50134

9016126007

main90161-26007

9016850027

main90168-50027

9017905095

main90179-05095

9017906115

main90179-06115

9018305103

main90183-05103

9046807010

main90468-07010

9165540616

main91655-40616

9322954012

main93229-54012

9338516012

main93385-16012

9356015014

main93560-15014

9356654514

main93566-54514

9356715012

main93567-15012

9356755012

main93567-55012

9356755016

main93567-55016

9356755018

main93567-55018

9816850027

main98168-50027
