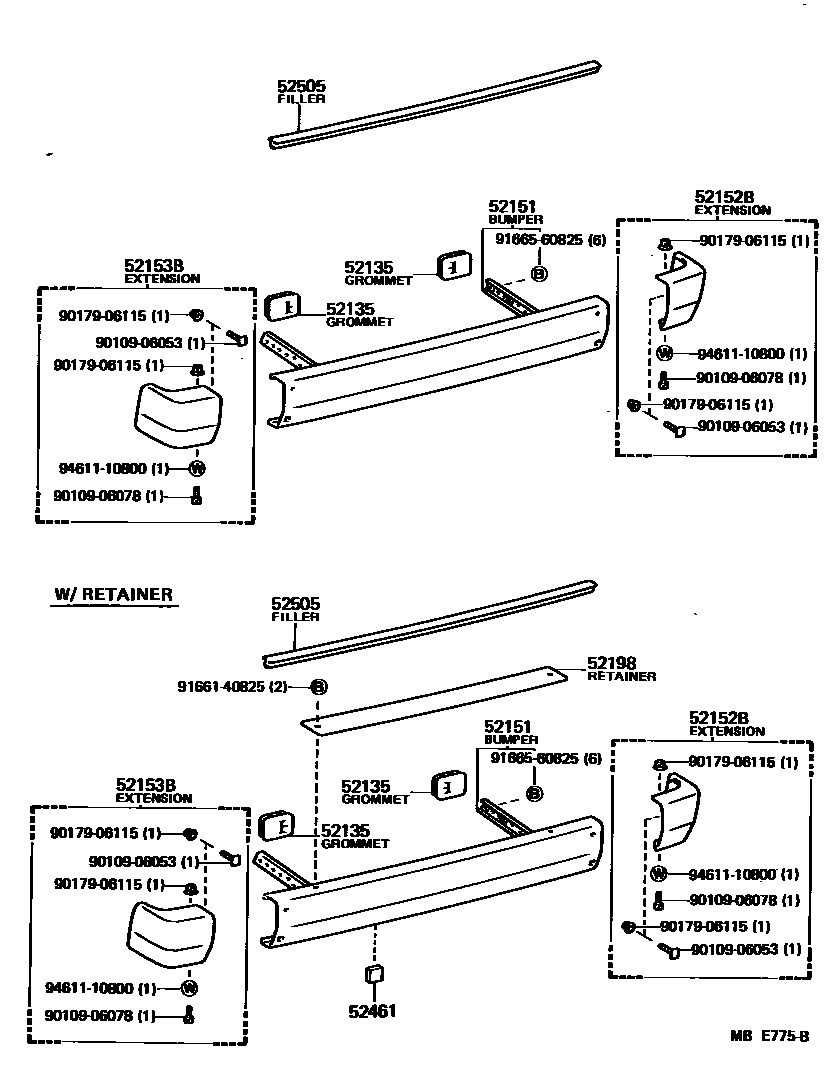

REAR BUMPER & BUMPER STAY

0001 1 0004 1

52135GROMMET, REAR BUMPER STAY

main52191-95A00iLH5#,6#,7#,YH5#,6#,7#¥440198212-198807

52151BUMPER ASSY, REAR

main52019-29035iYH60..N1;YH50..4HC;YH50..5H..J;YH60..J..M1;YH50..V5D..4H..N1;YH50..VSG..03S..N1;YH50,60..4H..(ARL,GEN);YH50..MTM..(06S,12S)..EUR;LH50,60,70,YH61,71..03S,06S,12S,15S¥30,500198212-198807

sub52019-95J00¥35,300

main52019-29075iLH61,YH66..J¥30,500198212-198708

W/RETAINER

sub52019-95J07¥38,600

main52019-29075iYH50..LHD..V5D..VSP..GEN¥30,500198401-198508

*SAA,W/RETAINER

sub52019-95J07¥38,600

main52019-29075iYH50..V4D..VSG..N1¥30,500198510-198608

AUSTRIA,BELGIUM SPEC

sub52019-95J07¥38,600

52152BEXTENSION, REAR BUMPER, RH

main52165-29015iLH5#,6#,7#,YH5#,6#,71¥9,100198212-198807

52153BEXTENSION, REAR BUMPER, LH

main52166-29015iLH5#,6#,7#,YH5#,6#,71¥9,100198212-198807

52198RETAINER, REAR BUMPER SEAL

main52199-95J00iYH50..G;YH60..M1;YH50..V4D..VSP..MTM..N1¥22,500198212-198401

sub52199-95J01¥22,600

main52199-95J01iYH50..G;LH61..M1;YH61..06S..M1;YH51..V4D..03S..N1;YH50..LHD..VSP..N1¥22,600198401-198708

main52199-95J01iYH50..LHD..V5D..VSP..GEN¥22,600198401-198508

*SAA

main52199-95J01iYH50..V4D..VSG..N1¥22,600198510-198608

AUSTRIA,BELGIUM SPEC

52461PAD, REAR BUMPER, CENTER

main52461-95J01iYH50..LHD..V5D..VSP..GEN¥510198401-198508

*SAA

main52461-95J01iYH50..G;LH61..M1;YH61..06S..M1;YH51..V4D..03S..N1¥510198401-198508

W/RETAINER

main52461-95J01iYH50..V4D..VSG..N1¥510198510-198608

AUSTRIA,BELGIUM SPEC

52505FILLER SUB-ASSY, REAR BUMPER

main52354-95J00iYH51,53..4H,4HC,5H;LH5#,6#,71,YH50,56,6#,7#¥4,600198212-198807

main52354-95J01iYH51..05S¥2,030198508-198807

9010906053

main90109-06053¥200

9010906078

main90109-06078¥160

9017906115

main90179-06115¥120

9166140825

main91661-40825¥120

9166560825

main91665-60825¥170

9461110800

main94611-10800¥80

13 parts on this diagram · 2 diagrams in section
