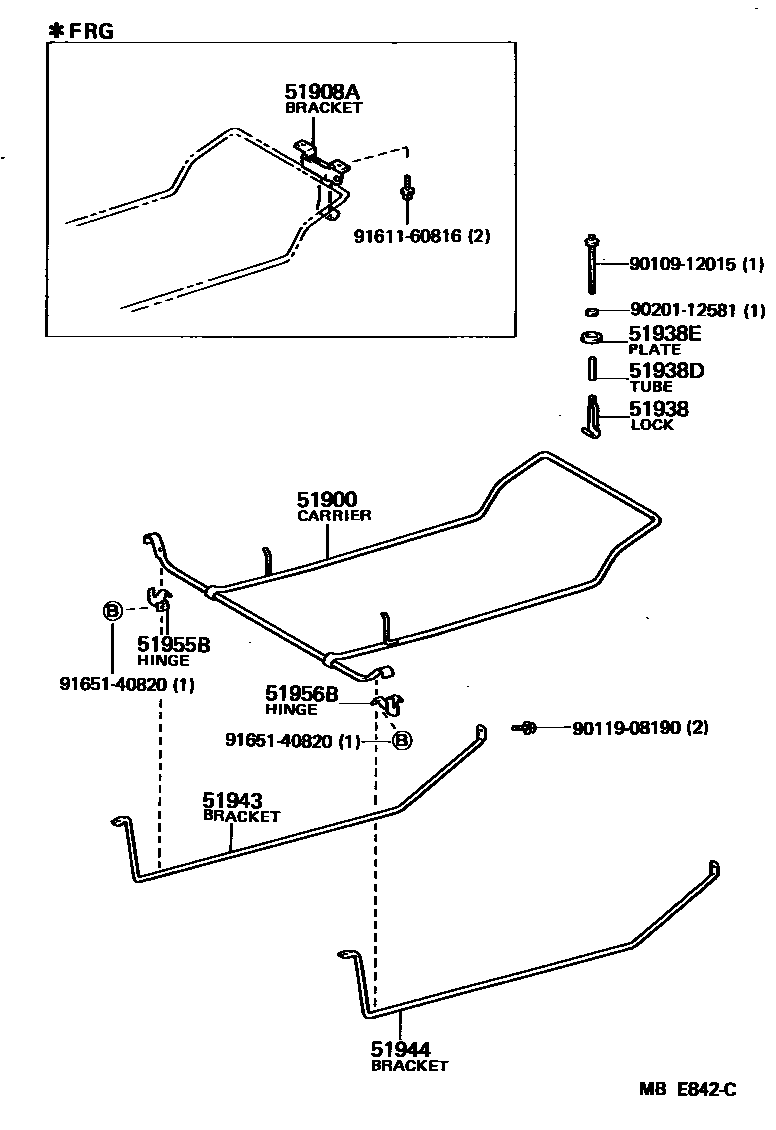

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51903-26090iLH5#,YH50..12S..GEN198212-198508

6.50-14

sub51903-26091

main51903-26091iLH51,YH50,51..12S..GEN198508-198708

6.50-14

main51903-26100iLH5#,YH5#198212-198708

185R14

main51903-26110iLH6#,YH6#..V..GEN198212-198508

6.00-14

main51903-26111iLH61,YH60,61,63..V..GEN198508-198708

6.00-14

main51903-26120iLH6#,YH60..15S198212-198508

6.50-14

main51903-26121iLH61,YH60,61..15S..GEN198508-198708

6.50-14

main51903-26130iLH6#,7#,YH6#,71198212-198708

185R-14

main51903-26210iLH5#,YH50..V..(GEN,SA)198212-198508

6.00-14

main51903-26211iLH51,YH50,51..V..GEN198508-198708

6.00-14

main51903-26220iYH60,63..SA198308-198807

6.00-14

main51903-26260iYH61..V4D..VSG..03S..N1198405-198410

*SA,185R-14

main51903-26270iLH56,YH56198608-198708

main51903-26280iLH66,YH66198608-198708

51908ABRACKET SUB-ASSY, SPARE WHEEL MOUNTING

main51908-26010iYH51..VSG..5H..EUR;YH51..LHD..(03S,06S,09S,12S)..EUR;LH5#,60,61,YH50,56,60,61..LHD..EUR198212-198708

*FRG

51938LOCK, SPARE WHEEL CARRIER

main51938-22020iLH51,61,71,YH5#,6#,71198508-198512

sub51938-28030

main51938-28020iLH5#,6#,7#,YH5#,6#,71198212-198508

sub51938-22020

main51938-28030iLH5#,6#,71,YH5#,6#,7#198512-198807

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90440-17005iLH5#,60,61,7#,YH5#,6#,7#198212-198807

51938EPLATE, SPARE WHEEL CARRIER LOCK

main51937-26010iLH5#,6#,7#,YH5#,6#,7#198212-198807

51943BRACKET, SPARE WHEEL CARRIER, NO.1

main51943-26050iLH5#,YH5#198212-198807

main51943-26070iLH6#,7#,YH6#,7#198212-198807

51944BRACKET, SPARE WHEEL CARRIER, NO.2

main51944-26040iLH5#,YH5#198212-198507

main51944-26050iLH6#,7#,YH6#,71198212-198507

main51944-26080iLH5#,YH5#198507-198807

main51944-26090iLH6#,71,YH6#,7#198507-198807

51955BHINGE, SPARE WHEEL CARRIER, NO.1

main51955-26010iLH5#,6#,7#,YH5#,6#,7#198212-198807

51956BHINGE, SPARE WHEEL CARRIER, NO.2

main51956-26020iLH5#,6#,7#,YH5#,6#,7#198212-198807

9010912015

main90109-12015

9011908190

main90119-08190

9020112581

main90201-12581

9161160816

main91611-60816

9165140820

main91651-40820

14 parts on this diagram · 1 diagram in section
