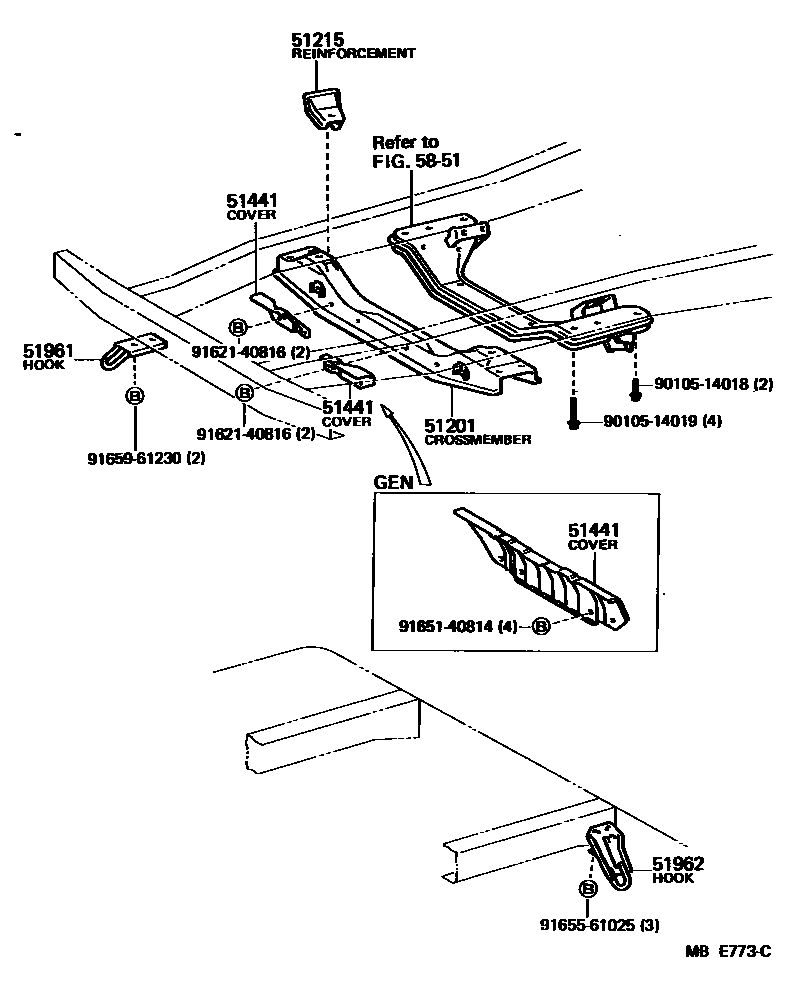

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51203-95J00iYH51..4HC..SA;YH51..(4FC,4H,5F,5H)..(ARL,GEN,SA);LH50,51,60,61,7#,YH50,53,60,61,63,7#..ARL,GEN,SA198212-198807

sub51203-95J01

main51203-95J01iYH51..VSG..5H..EUR;YH51..(03S,06S,09S,12S)..EUR;LH50,51,60,61,YH50,60,61..EUR198212-198708

main51203-95J03iLH56,66,YH56,66198608-198708

sub51203-95J05

51215REINFORCEMENT, FRONT SUSPENSION CROSSMEMBER

main51215-95J00iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

RH

main51216-95J00iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

LH

51441COVER, ENGINE UNDER, NO.1

main51409-95J00iLH51,61,71..ARL198406-198708

main51409-95J01iYH51..4HC..SA;YH50,53,60,61,63,7#..ARL,SA;YH51..(4FC,4H,5F,5H)..(ARL,SA)198406-198807

main51409-95J02iLH51,61..LHD..GEN198501-198708

W/POWER STEERING

main51444-95J00iLH5#,6#,7#..ARL,GEN198212-198501

RH

main51444-95J01iYH51..MTM;YH51..4HC..SA;YH50,6#,71..ARL,GEN,SA198212-198501

RH

main51446-95J00iLH5#,6#,7#..ARL,GEN198212-198501

LH

main51446-95J01iYH51..MTM;YH51..4HC..SA;YH50,61,71..ARL,SA198212-198501

LH

main51446-95J02iLH71198401-198501

LH,W/POWER STEERING

51961HOOK, NO.1

main51961-26080iLH51,61,YH5#,6#..GEN,SA198212-198602

main51961-26081iLH51,61,YH50,51,53,60,61,63..GEN,SA198602-198807

main51961-26090iYH51..GL198508-198602

sub51961-26091

main51961-26091iYH51,53..GL198602-198807

main51961-26110iYH51..4HC..03S..N1;YH51..MTM..STD..(ARL,EUR);LH51,61,YH50,53,61,63,73..STD..(ARL,EUR)198601-198708

main51961-26110iLH56,66,YH56,66198608-198708

LH

main51970-95J00iLH56,66,YH56,66198608-198708

RH

51962HOOK, NO.2

main51965-26010iYH51..VSG..5H..EUR;YH51..LHD..(03S,06S,09S,12S)..EUR;LH5#,60,61,YH50,56,60,61..LHD..EUR198212-198708

*FRG

5851

9010514018

main90105-14018

9010514019

main90105-14019

9162140816

main91621-40816

9165140814

main91651-40814

9165561025

main91655-61025

9165961230

main91659-61230

12 parts on this diagram · 2 diagrams in section
