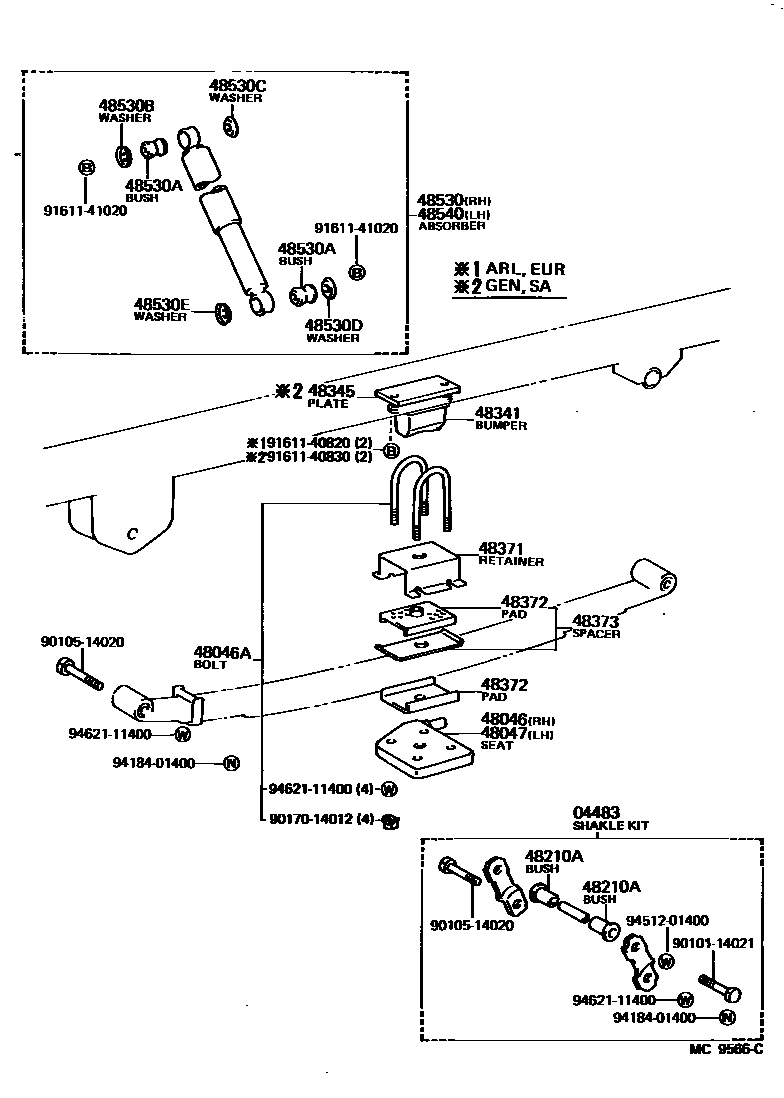

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0005 1 0006 1 0008 1 0009 1 0011 1

04483SHACKLE KIT, REAR SPRING

main04483-26021iLH56,66,YH56,66198608-198708

main04483-26060iLH5#,6#,7#,YH5#,6#,71198212-198508

sub04483-26061

main04483-26061iLH51,61,71,YH50,51,53,60,61,63,7#198508-198807

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-26050iLH50,60,70,YH5#,6#,71198212-198401

main48046-26051iLH51,61,71,YH5#,6#,71198401-198608

sub48046-26090

sub90170-14006

main48046-26090iLH5#,6#,71,YH5#,6#,73198608-198708

48046ABOLT, U(FOR REAR SPRING)

main90117-14050iLH56,66,YH56,66198608-198807

L=172

sub90117-14029

main90118-14201iLH6#,YH50,6#..M1198212-198807

sub90117-14026

sub94115-51400

sub94611-11400

main90118-14202iYH51..(4FC,4H,5F)..ARL;LH51,61,71,YH53,61,63,7#..ARL198212-198708

sub90117-14027

main90118-14204iLH5#,6#,YH5#,6#..GEN,SA198212-198608

sub90117-14050

sub94115-51400

sub94611-11400

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-26050iLH50,60,70,YH5#,6#,71198212-198401

main48047-26051iLH51,61,71,YH5#,6#,71198401-198608

sub48047-26080

sub90170-14006

main48047-26080iLH51,61,71,YH5#,6#,73198608-198708

48210SPRING ASSY, REAR RH

main48210-26250iYH5#..N1;YH50..ARL;YH51..4H..ARL;LH5#..V..(ARL,EUR)198212-198708

main48210-26260iYH60..N1;YH61..5H..N1;YH61..5H..ARL;YH61..(4H,4HC)..(ARL,EUR);LH6#..(03S,06S)..(ARL,EUR)198212-198708

main48210-26270iLH7#,YH7#198212-198708

main48210-26320iLH6#,YH50,6#..M1198212-198807

main48210-26330iLH50,51,YH50,51..GEN,SA198212-198708

main48210-26340iLH60,61,YH60,61,63..GEN,SA198212-198807

main48210-26460iLH56,YH56;LH66,YH66..N1198608-198708

main48210-26470iLH66,YH66..M1198608-198708

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18008iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

main90385-18046iLH56,66,YH56,66198608-198708

48341BUMPER, REAR SPRING

main48341-26010iLH5#,6#,7#,YH5#,6#,71198212-198708

main48341-26020iLH56,66,YH56,66198608-198708

main48341-26030iLH51,61,YH50,51,53,60,61,63..GEN,SA198508-198807

48345PLATE, BUMPER SUB

main48345-26010iLH50,60,YH50,6#..GEN,SA198212-198303

sub48345-26011

main48345-26011iLH5#,6#,YH5#,6#..GEN,SA198303-198508

48371RETAINER, REAR SPRING PAD

main48371-26050iLH5#,YH50..12S..EUR198212-198708

main48371-26060iYH51,53..SA198212-198807

main48371-26080iLH50,51,60,61,YH50,51,60,61,63..GEN,SA198212-198807

main48371-26110iLH56,66,YH56,66198608-198708

48372PAD, REAR SPRING

main48372-26030iYH51..N1;YH51..4H..ARL198212-198807

main48372-26040iLH61,YH51,61..J..M1198212-198807

48373SPACER, REAR SPRING

main48037-26030iLH51,61,YH50,51,60,61,63..GEN,SA198212-198807

main48037-26050iYH51,53..SA198212-198807

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-26220iLH56,66,YH56,66198608-198708

sub48531-80135

main48531-80020iLH50,60,70,YH50,6#,71..ARL,GEN,SA198212-198401

sub48531-80470

main48531-80023iYH51198306-198401

sub48531-80472

main48531-80024iLH60,YH50,60..M1198212-198401

sub48531-80473

main48531-80025iLH50,60,YH50,60..N1198212-198401

sub48531-80474

main48531-80041iYH51..(4FC,4H,5F)..ARL198401-198807

sub48531-80477

main48531-80042iYH51,53..SA198401-198807

sub48531-80478

main48531-80043iLH61,YH50,61..M1198401-198708

sub48531-80479

main48531-80044iLH51,YH50..12S..EUR198401-198708

sub48531-80480

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16004iLH51,61,71,YH5#,6#,71198401-198608

UPR

main90385-16004iLH50,60,70,YH50,6#,71198212-198401

main90385-16007iLH5#,6#,71,YH5#,6#,73198608-198703

UPR

main90385-16009iLH5#,6#,71,YH5#,6#,73198703-198807

UPR

main90385-19001iLH51,61,71,YH5#,6#,71198401-198608

LWR

main90385-19002iLH5#,6#,71,YH5#,6#,73198608-198703

LWR

main90385-19006iLH5#,6#,71,YH5#,6#,73198703-198807

LWR

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03012iLH5#,6#,7#,YH5#,6#,7#198212-198807

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004iLH5#,6#,7#,YH5#,6#,7#198212-198807

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03012iLH50,60,70,YH5#,6#,71198212-198401

main90948-03015iLH5#,6#,71,YH5#,6#,7#198401-198807

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iLH50,60,70,YH5#,6#,71198212-198401

main90948-03011iLH5#,6#,71,YH5#,6#,7#198401-198807

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-26220iLH56,66,YH56,66198608-198708

sub48531-80135

main48531-80020iLH50,60,70,YH50,6#,71..ARL,GEN,SA198212-198401

sub48531-80470

main48531-80023iYH51198306-198401

sub48531-80472

main48531-80024iLH60,YH50,60..M1198212-198401

sub48531-80473

main48531-80025iLH50,60,YH50,60..N1198212-198401

sub48531-80474

main48531-80041iYH60,63..SA198401-198807

sub48531-80477

main48531-80042iYH51,53..SA198401-198807

sub48531-80478

main48531-80043iLH61,YH51,61..J..M1198401-198708

sub48531-80479

main48531-80044iLH51,61,YH5#,61..N1198401-198708

sub48531-80480

9010114021

main90101-14021

9010514020

main90105-14020

9017014012

main90170-14012

9161140820

main91611-40820

9161140830

main91611-40830

9161141020

main91611-41020

9418401400

main94184-01400

9451201400

main94512-01400

9462111400

main94621-11400

27 parts on this diagram · 7 diagrams in section
