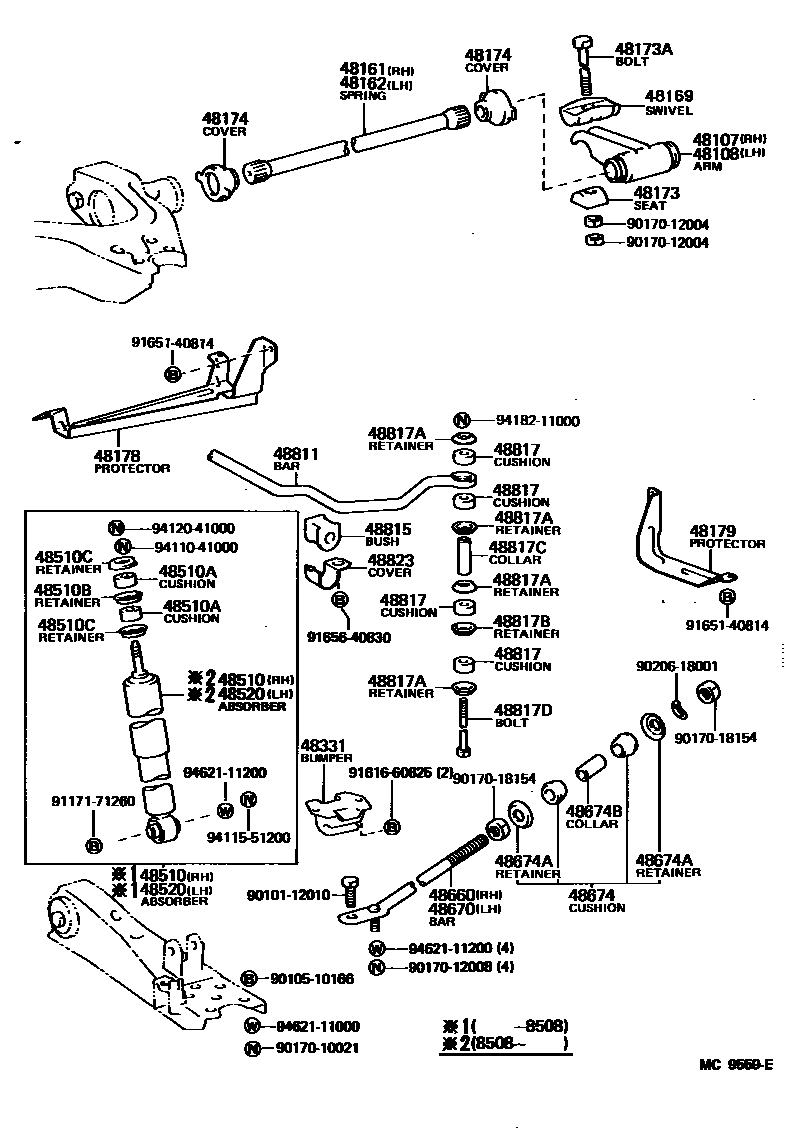

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-26010iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

main48107-26030iLH56,66,YH56,66198608-198708

48108ARM SUB-ASSY, ANCHOR, LH

main48108-26010iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

main48108-26030iLH56,66,YH56,66198608-198708

48161SPRING, TORSION BAR, RH

main48161-26020iYH5#,6#,71..ARL,EUR,SA198212-198807

main48161-26040iYH51..GEN198212-198807

main48161-26090iLH66..M1198608-198708

main48161-26100iLH66..N1198608-198708

48162SPRING, TORSION BAR, LH

main48162-26020iYH5#,6#,71..ARL,EUR,SA198212-198807

main48162-26040iLH5#,6#,7#198212-198807

main48162-26090iYH56,66198608-198708

main48162-26100iLH66..N1198608-198708

48169SWIVEL, ANCHOR ARM

main48169-26010iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

main48169-26030iLH56,66,YH56,66198608-198708

48173SEAT, ANCHOR ARM ADJUSTER

main48173-27010iLH5#,6#,7#,YH5#,6#,7#198212-198807

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12091iLH5#,6#,7#,YH5#,6#,7#198212-198807

48174COVER, TORSION BAR DUST

main48174-26010iLH5#,6#,7#,YH5#,6#,7#198212-198807

48178PROTECTOR, TORSION BAR DUST COVER, RH

main48178-26010iLH50,51,61..4HC198212-198708

48179PROTECTOR, TORSION BAR DUST COVER, LH

main48179-26010iYH50,51,53,60,61,63,7#198212-198807

main48179-26030iYH56,66198612-198708

48331BUMPER, FRONT SPRING, NO.1

main48331-26010iYH51..4HC..(03S,06S,09S)..N1;YH51..(4FC,4H,5F,5H)..(ARL,EUR);LH50,51,60,61,7#,YH50,53,60,61,63,7#..ARL,EUR198212-198708

main48331-26020iLH50,51,60,61,YH50,51,53,60,61,63..GEN,SA198212-198807

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-26041iYH51..4HC..SA;YH51..(4FC,4H,5F,5H)..(ARL,GEN,SA);LH51,61,71,YH50,53,60,61,63,7#..ARL,GEN,SA198506-198708

MARK 48511-26041

sub48511-29415

main48511-26051iYH51..VSG..5H..EUR;LH51,61,YH50,61..EUR;YH51..(03S,06S,09S,12S)..EUR198506-198708

sub48511-29425

main48511-26120iLH56,66,YH56,66198608-198708

MARK 48511-26120

sub48511-29445

main48511-29165iYH51..MTM;YH51..4HC..SA;LH5#,6#,7#,YH50,6#,71..ARL,GEN,SA198212-198506

MARK 48511-26040

sub48511-29166

main48511-29175iLH5#,6#,YH5#,6#..EUR198212-198506

sub48511-29165

main48511-29415iYH53,6#198708-198807

sub48511-29416

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01003iLH5#,6#,7#,YH5#,6#,7#198212-198807

main90948-01035iLH5#,6#,71,YH5#,6#,73198707-198807

sub90948-01031

sub90948-02017

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02017iLH5#,6#,7#,YH5#,6#,7#198212-198707

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02002iLH5#,6#,7#,YH5#,6#,7#198212-198807

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-26041iYH51..4HC..SA;YH51..(4FC,4H,5F,5H)..(ARL,GEN,SA);LH51,61,71,YH50,53,60,61,63,7#..ARL,GEN,SA198506-198708

MARK 48511-26041

sub48511-29415

main48511-26051iYH51..VSG..5H..EUR;LH51,61,YH50,61..EUR;YH51..(03S,06S,09S,12S)..EUR198506-198708

sub48511-29425

main48511-26120iLH56,66,YH56,66198608-198708

MARK 48511-26120

sub48511-29445

main48511-29165iYH51..MTM;YH51..4HC..SA;LH5#,6#,7#,YH50,6#,71..ARL,GEN,SA198212-198506

MARK 48511-26040

sub48511-29166

main48511-29175iLH5#,6#,YH5#,6#..EUR198212-198506

sub48511-29165

main48511-29415iYH53,6#198708-198807

sub48511-29416

48660BAR ASSY, STRUT, RH

main48660-26010iLH5#,6#,7#,YH5#,6#,71198212-198508

sub48660-26011

main48660-26011iLH51,61,71,YH50,51,53,60,61,63,7#198508-198807

48670BAR ASSY, STRUT, LH

main48670-26010iLH5#,6#,7#,YH5#,6#,71198212-198508

sub48670-26011

main48670-26011iLH51,61,71,YH50,51,53,60,61,63,7#198508-198807

48674CUSHION, STRUT BAR

main48674-29065iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

sub48674-26010

sub90948-02062

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02062iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18005iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

48811BAR, STABILIZER, FRONT

main48811-26040iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

main48811-26070iLH56,66,YH56,66198608-198708

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-26020iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

main48815-26050iLH56,66,YH56,66198608-198708

48817CUSHION, FRONT STABILIZER

main90948-01002iLH5#,6#,7#,YH5#,6#,7#198212-198807

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02004iLH5#,6#,7#,YH5#,6#,7#198212-198807

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02005iLH5#,6#,7#,YH5#,6#,7#198212-198807

48817CCOLLAR(FOR STABILIZER BAR)

main90440-14004iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

48817DBOLT(FOR FRONT STABILIZER)

main90101-10090iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

main91121-51080iLH56,66,YH56,66198608-198708

48823COVER, STABILIZER LINK(FOR FRONT)

main48823-26020iLH5#,6#,7#,YH5#,6#,71198212-198807

main48823-26060iYH51..4HC..03S..N1;YH51..(4FC,4H,5F,5H)..(ARL,EUR);LH51,61,71,YH50,53,61,63,7#..ARL,EUR198601-198708

9010112010

main90101-12010

9010510166

main90105-10166

9017010021

main90170-10021

9017012004

main90170-12004

9017012008

main90170-12008

9017018154

main90170-18154

9020618001

main90206-18001

9117171260

main91171-71260

9161660825

main91616-60825

9165140814

main91651-40814

9165640830

main91656-40830

9411041000

main94110-41000

9411551200

main94115-51200

9412041000

main94120-41000

9418211000

main94182-11000

9462111000

main94621-11000

9462111200

main94621-11200

46 parts on this diagram · 2 diagrams in section
