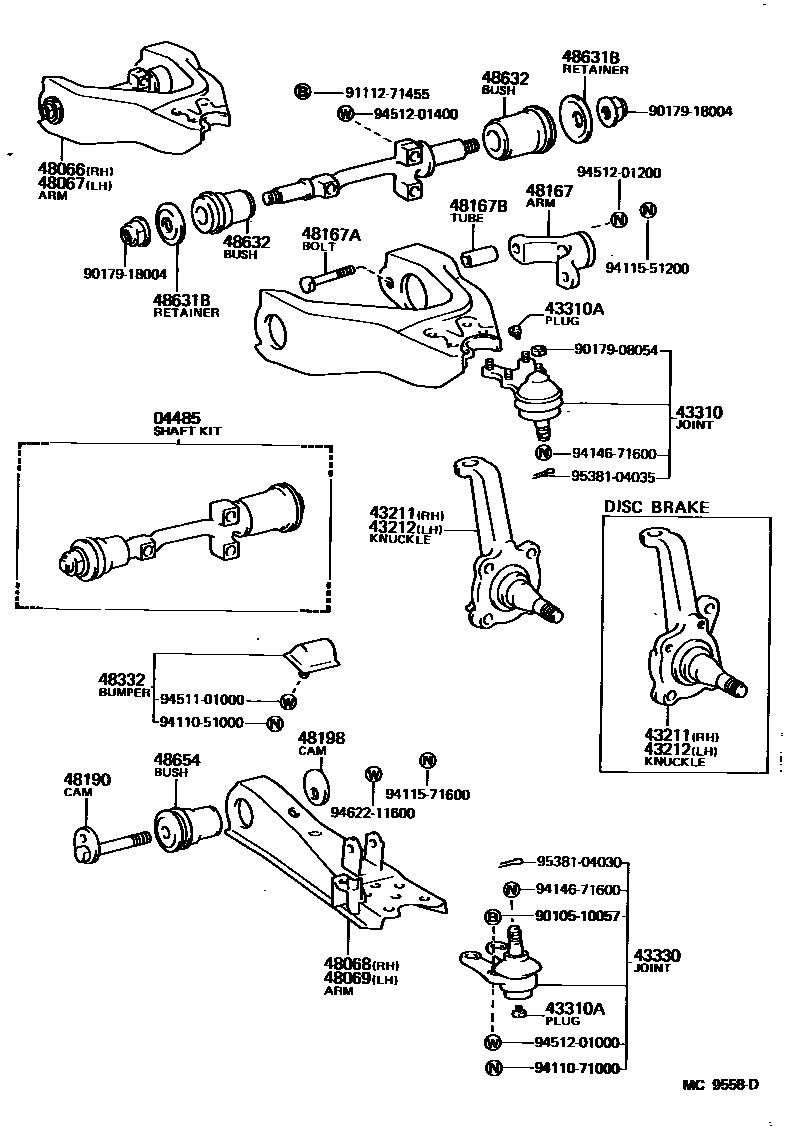

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1

04485SHAFT KIT, UPPER SUSPENSION ARM

main04485-26030iLH5#,6#,7#,YH5#,6#,71198212-198508

main04485-26040iLH51,61,71,YH50,51,53,60,61,63,7#198508-198807

sub04485-26050

43211KNUCKLE, STEERING, RH

main43201-26010iLH56,66,YH56,66198608-198708

sub43201-26030

main43211-26040iLH5#,6#,YH50,6#..GEN198212-198508

FR DRUM BRAKE

main43211-26041iLH51,61,YH50,51,60,61..GEN198508-198708

FR DRUM BRAKE

main43211-26050iLH5#,6#,7#,YH5#,6#,71198212-198508

FR DISC BRAKE

main43211-26051iLH51,61,71,YH50,51,53,60,61,63,7#198508-198807

FR DISC BRAKE

43212KNUCKLE, STEERING, LH

main43202-26010iLH56,66,YH56,66198608-198708

sub43202-26030

main43211-26040iLH5#,6#,YH50,6#..GEN198212-198508

FR DRUM BRAKE

main43211-26041iLH51,61,YH50,51,60,61..GEN198508-198708

FR DRUM BRAKE

main43212-26020iLH5#,6#,7#,YH5#,6#,71198212-198508

FR DISC BRAKE

main43212-26021iLH51,61,71,YH50,51,53,60,61,63,7#198508-198807

FR DISC BRAKE

43310JOINT ASSY, UPPER BALL

main43350-29045iLH5#,6#,7#,YH5#,6#,71198212-198608

RH

sub43350-29055

main43350-29055iLH51,61,71,YH51,53,60,61,63,73198608-198703

RH

sub43350-29056

main43350-29056iLH51,61,71,YH51,53,60,61,63,73198703-198807

RH

main43360-29065iLH5#,6#,7#,YH5#,6#,71198212-198608

LH

sub43360-29075

main43360-29075iLH51,61,71,YH51,53,60,61,63,73198608-198703

LH

sub43360-29076

main43360-29076iLH51,61,71,YH51,53,60,61,63,73198703-198807

LH

sub43350-29056

43310APLUG (FOR BALL JOINT)

main90345-06014iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29125iLH51,61,YH50,60..GEN198508-198608

RH,FR DRUM BRAKE

sub43330-29155

main43330-29125iLH5#,6#,7#,YH5#,6#,71198212-198508

RH

sub43330-29155

main43330-29155iLH51,61,71,YH51,60,61,73198608-198807

RH & LH

sub43330-29535

main43330-29155iLH51,61,71,YH5#,6#,71198508-198608

RH & LH,FR DISC BRAKE

sub43330-29535

main43330-39195iLH56,66,YH56,66198608-198708

RH

main43340-29105iLH51,61,YH50,60..GEN198508-198608

LH,FR DRUM BRAKE

sub43330-29155

main43340-29105iLH5#,6#,7#,YH5#,6#,71198212-198508

LH

sub43330-29155

main43340-39175iLH56,66,YH56,66198608-198708

LH

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-26020iLH50,60,70,YH50,6#,71198212-198305

sub48066-26021

main48066-26021iLH5#,6#,7#,YH5#,6#,71198305-198508

main48066-26050iLH56,66,YH56,66198608-198708

sub48066-29025

main48610-26020iLH51,61,71,YH5#,6#,71198508-198608

sub48610-26030

main48610-26030iLH51,61,71,YH51,53,60,61,63,73198608-198703

sub48610-26031

main48610-26031iLH51,61,71,YH51,53,60,61,63,73198703-198807

main48610-26041iLH61,YH61..RHD..15S198703-198807

CKD

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48067-26020iLH50,60,70,YH50,6#,71198212-198305

sub48067-26021

main48067-26021iLH5#,6#,7#,YH5#,6#,71198305-198508

main48067-26050iLH56,66,YH56,66198608-198708

sub48067-29025

main48630-26020iLH51,61,71,YH5#,6#,71198508-198608

sub48630-26030

main48630-26030iLH51,61,71,YH51,53,60,61,63,73198608-198703

sub48630-26031

main48630-26031iLH51,61,71,YH51,53,60,61,63,73198703-198807

main48630-26041iLH61,YH61..RHD..15S198703-198807

CKD

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-26020iLH5#,6#,7#,YH5#,6#,71198212-198506

sub48068-26H00

sub48068-26H01

sub48068-26H02

main48068-26021iLH51,61,71,YH50,51,53,60,61,63,7#198506-198703

sub48068-26022

main48068-26022iLH51,61,71,YH51,53,60,61,63,73198703-198807

main48068-26030iLH56,66,YH56,66198608-198708

sub48068-26060

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-26020iLH5#,6#,7#,YH5#,6#,71198212-198506

sub48069-26H00

sub48069-26H01

sub48069-26H02

main48069-26021iLH51,61,71,YH50,51,53,60,61,63,7#198506-198703

sub48069-26022

main48069-26022iLH51,61,71,YH51,53,60,61,63,73198703-198807

main48069-26030iLH56,66,YH56,66198608-198708

sub48069-26060

48167ARM, TORQUE

main48106-26010iLH5#,6#,7#,YH5#,6#,71198212-198508

main48106-26011iLH51,61,71,YH50,51,53,60,61,63,7#198508-198807

main48106-26020iLH56,66,YH56,66198608-198708

sub48106-25020

48167ABOLT(FOR TORQUE ARM SETTING)

main90101-12131iLH51,61,71,YH50,51,53,60,61,63,7#198505-198807

main91171-71285iLH5#,6#,7#,YH5#,6#,71198212-198505

48167BTUBE(FOR TORQUE ARM SETTING BOLT)

main90440-20010iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

48190CAM ASSY, CAMBER ADJUST

main48190-26010iLH5#,6#,7#,YH5#,6#,7#198212-198807

sub48190-26020

48198CAM, CAMBER ADJUST, NO.2

main48198-26010iLH5#,6#,7#,YH5#,6#,7#198212-198807

48332BUMPER, FRONT SPRING, NO.2

main48332-29035iLH5#,6#,7#,YH5#,6#,71198212-198508

main48332-35020iLH5#,6#,71,YH5#,6#,7#198508-198807

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02065iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

RR

main90948-02066iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

FR

sub90948-02142

48632BUSH, UPPER ARM

main48632-26010iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

FR

main48635-26010iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

RR

48654BUSH, LOWER ARM

main48061-26010iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

main48061-35011iLH56,66,YH56,66198608-198708

9010510057

main90105-10057

9017908054

main90179-08054

9017918004

main90179-18004

9111271455

main91112-71455

9411051000

main94110-51000

9411071000

main94110-71000

9411551200

main94115-51200

9411571600

main94115-71600

9414671600

main94146-71600

9451101000

main94511-01000

9451201000

main94512-01000

9451201200

main94512-01200

9451201400

main94512-01400

9462211600

main94622-11600

9538104030

main95381-04030

9538104035

main95381-04035

35 parts on this diagram · 3 diagrams in section
