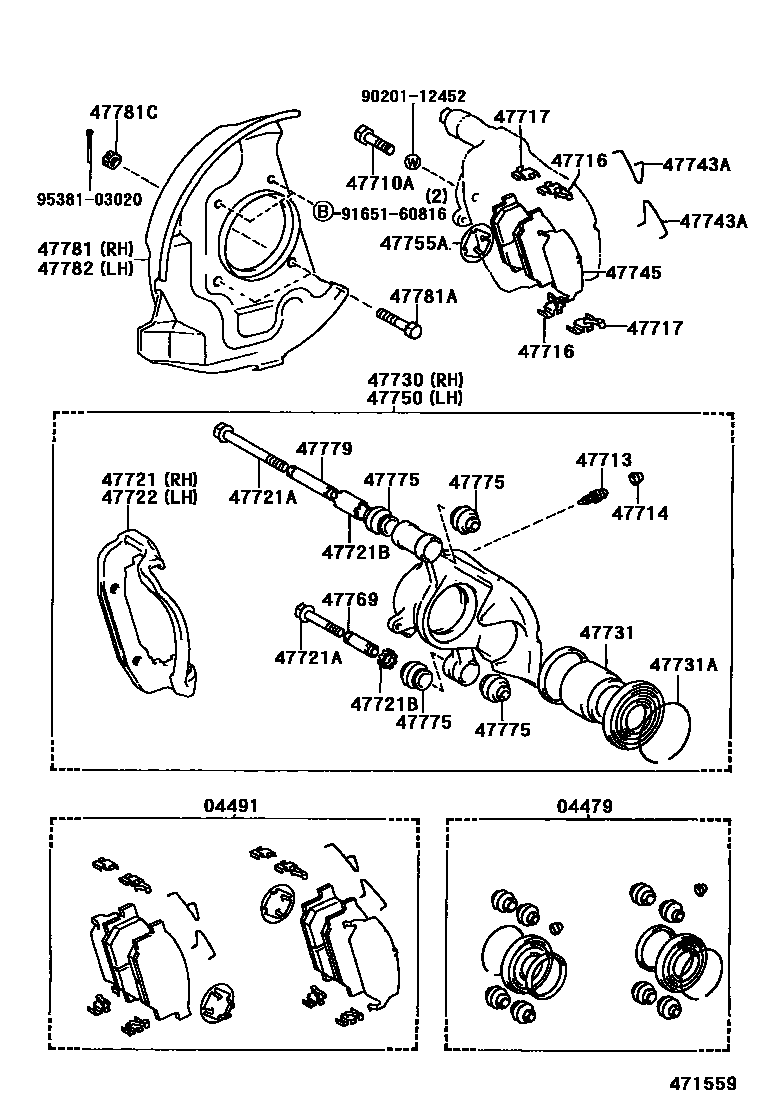

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-26030iLH56,66,YH56,66198608-198708

main04479-40010iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

sub04479-35050

04491PAD KIT, DISC BRAKE, FRONT

main04491-26030iYH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,7#,YH50,53,60,61,63,7#..ARL,GEN198212-198708

sub04491-26200

main04491-26040iLH5#,6#,YH5#,6#..EUR,SA198212-198508

sub04465-26230

main04491-26070iYH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR198508-198708

sub04491-26071

main04491-26110iLH56,66,YH56,66198608-198708

sub04465-26250

main04491-26130iYH53,60,63..SA198702-198807

sub04491-26131

main04491-35061iYH51,53,61,63..SA198508-198702

sub04491-35063

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12030iLH5#,6#,7#,YH5#,6#,71198212-198508

*12-1.25PX31-20

main90101-12132iLH51,61,71,YH50,51,53,60,61,63,7#198508-198807

*12-1.25P-31X20

main90101-12149iLH56,66,YH56,66198608-198708

*12-1.25P-41X20

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iLH5#,6#,7#,YH5#,6#,7#198212-198807

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iLH5#,6#,7#,YH5#,6#,7#198212-198807

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-26030iLH56,66,YH56,66198608-198708

sub47716-26050

main47716-40010iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

sub47716-26040

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-26030iLH56,66,YH56,66198608-198708

main47717-40010iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

sub47717-26010

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-26040iLH5#,6#,7#,YH5#,6#,71198212-198508

main47721-26050iLH51,61,71,YH50,51,53,60,61,63,7#198508-198807

main47721-26070iLH56,66,YH56,66198608-198708

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10014iLH5#,6#,7#,YH5#,6#,7#198212-198807

*10-1.25PX65.5-30,*10-1.25PX63-25

main90119-10249iLH5#,6#,7#,YH5#,6#,7#198212-198807

*10-1.25PX95.5-30,*10-1.25PX93-25

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-16004iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

L=6

main90387-16005iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

L=36

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-26040iLH5#,6#,7#,YH5#,6#,71198212-198508

main47721-26050iLH51,61,71,YH50,51,53,60,61,63,7#198508-198807

main47721-26070iLH56,66,YH56,66198608-198708

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-26040iLH5#,6#,7#,YH5#,6#,71198212-198508

main47730-26080iLH51,61,71,YH50,51,53,60,61,63,7#198508-198807

main47730-26100iLH56,66,YH56,66198608-198708

47731PISTON, FRONT DISC BRAKE

main47731-25010iLH56,66,YH56,66198608-198708

main47731-40010iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-70001iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

main90522-76001iLH56,66,YH56,66198608-198708

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-26030iLH56,66,YH56,66198608-198708

main47743-40010iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198709

sub47743-40020

main47743-40020iYH53,63198709-198807

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-26030iLH56,66,YH56,66198608-198708

main47745-40020iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-26040iLH5#,6#,7#,YH5#,6#,71198212-198508

main47750-26080iLH51,61,71,YH50,51,53,60,61,63,7#198508-198807

main47750-26100iLH56,66,YH56,66198608-198708

47755AINSULATOR, DISC BRAKE HEAT

main47755-25010iLH56,66,YH56,66198608-198708

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-40010iLH5#,6#,7#,YH5#,6#,7#198212-198708

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-26010iLH56,66,YH56,66198608-198708

main47775-40010iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-40010iLH5#,6#,7#,YH5#,6#,7#198212-198807

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-26030iLH5#,6#,7#,YH5#,6#,71198212-198508

main47781-26040iLH51,61,71,YH50,51,53,60,61,63,7#198508-198807

main47781-26050iLH56,66,YH56,66198608-198708

sub47781-26051

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12005iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

main91611-60814iLH56,66,YH56,66198608-198708

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90171-12004iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-26030iLH5#,6#,7#,YH5#,6#,71198212-198508

main47782-26040iLH51,61,71,YH50,51,53,60,61,63,7#198508-198807

main47782-26050iLH56,66,YH56,66198608-198708

sub47782-26051

9020112452

main90201-12452

9165160816

main91651-60816

9538103020

main95381-03020

28 parts on this diagram · 3 diagrams in section
