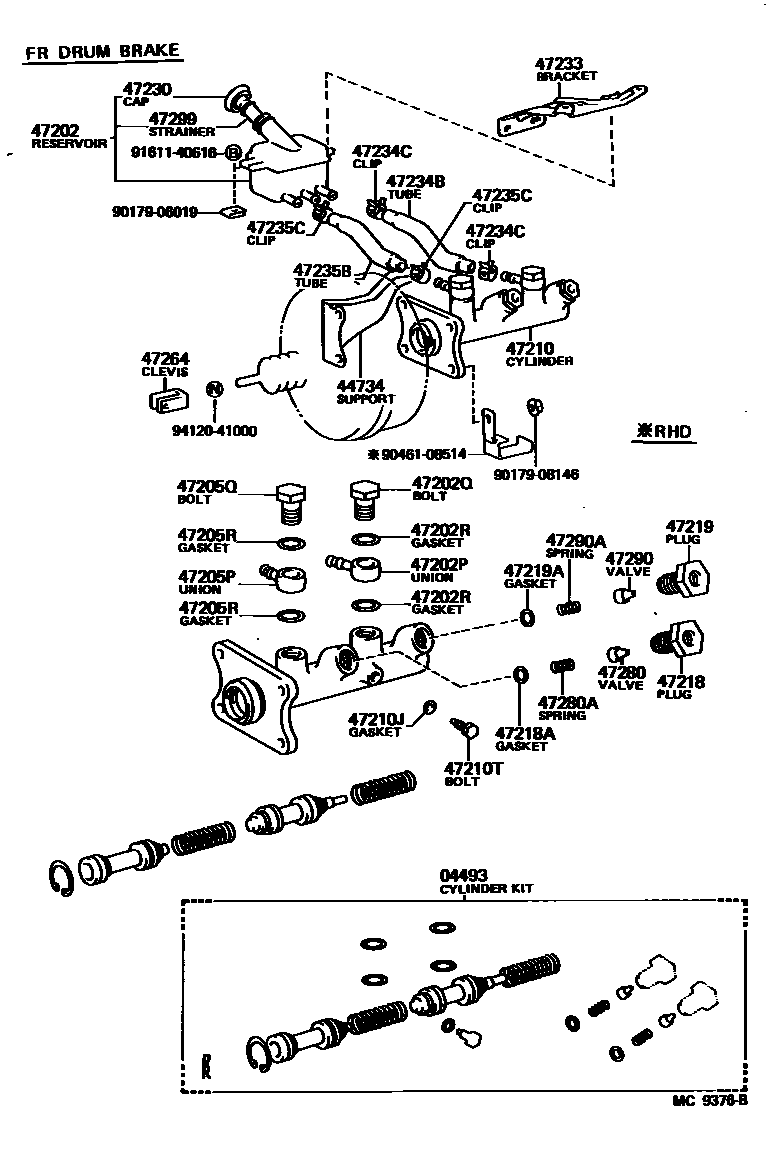

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

04493CYLINDER KIT, BRAKE MASTER

main04493-26080iLH5#,YH50..12S..EUR198212-198508

FR DISC BRAKE

main04493-26090iLH5#,6#,YH50,6#..GEN198212-198708

FR DRUM BRAKE

main04493-26110iLH6#,YH50,6#..M1198212-198508

main04493-26120iYH51..4HC..SA;YH51..(4FC,4H,5F,5H)..(ARL,GEN,SA);LH51,61,71,YH50,53,60,61,63,7#..ARL,GEN,SA198508-198807

FR DISC BRAKE

main04493-26130iYH51..5H..M1;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR198508-198601

sub04493-26131

main04493-26131iYH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR198601-198708

main04493-26140iLH56,66,YH56,66198608-198708

44734BRACKET, BOOSTER SUPPORT OR ROD SUPPORT

main55109-95J00iLH51,61,YH51,61..LHD..GEN198608-198708

main55109-95J02iLH51,61,YH51,61..LHD..EUR198608-198708

main55109-95J03iLH56,66,YH56,66198608-198708

main55175-95J00iLH51,61,YH51,53,60,61,63..RHD..(GEN,SA)198212-198807

main55175-95J01iYH51..5H..M1;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR198212-198601

main55175-95J02iYH51..(4FC,4H,5F)..ARL;LH51,61,71,YH53,61,63,7#..ARL198601-198708

main55175-95J03iYH51..5H..M1;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR198601-198708

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-26090iYH51,61..LHD..4H..GEN198608-198708

GULF SPEC

main47220-26090iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM..(ARL,EUR,SA)198212-198807

main47220-26090iYH50,60..LHD..V5D..VSP..GEN;YH50,60..LHD..(06S,12S,15S)..GEN198212-198608

SAUDI ARABIA SPEC

main47220-26090iYH50,60..LHD..V5D..VSP..GEN;YH50,60..LHD..(06S,12S,15S)..GEN;YH50,60..LHD..V4D..VSG..03S..GEN198308-198508

SAUDI ARABIA OR OMAN SPEC

main47220-26100iYH51..ATM..GL;YH51..4HC..03S..N1;LH51,61,YH53,61,63..ATM..(ARL,EUR,SA)198212-198708

main47220-26110iLH61..R;YH61..U;YH61..V5D..5H..N1198212-198708

SWEDEN SPEC

main47220-26110iLH51,61,YH50,51,60,61,63..MTM..GEN198212-198708

main47220-26130iYH61..V5D..4HC198401-198708

SWEDEN SPEC

main47220-26150iLH56,66,YH56,66198608-198708

main47220-26170iYH66..R198608-198708

SWEDEN SPEC

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90405-13137iLH5#,6#,7#,YH5#,6#,7#198212-198807

47202QBOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90401-16002iLH5#,6#,7#,YH5#,6#,7#198212-198807

47202RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90430-16242iLH5#,6#,7#,YH5#,6#,7#198212-198807

47205PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER REAR SIDE)

main90405-13137iLH5#,6#,7#,YH5#,6#,7#198212-198807

47205QBOLT, RSVR UNION, NO.2(FOR BRAKE MASTER CYLINDER RR SIDE)

main90401-16002iLH5#,6#,7#,YH5#,6#,7#198212-198807

47205RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR SIDE)

main90430-16242iLH5#,6#,7#,YH5#,6#,7#198212-198807

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-26170iLH5#,6#,7#,YH5#,6#,71..RHD198212-198508

FR DISC BRAKE

sub47201-26240

main47201-26180iYH50..5H..12S198212-198508

FR DISC BRAKE

sub47201-26290

main47201-26190iLH61..V5D..5H..N1;YH61..V5D..VSG..N1;YH61..V5D..VSP..4H198212-198508

SWEDEN SPEC

main47201-26200iLH6#,YH50,6#..M1198212-198508

main47201-26210iLH5#,6#,YH50,6#..RHD..GEN198212-198601

FR DRUM BRAKE

main47201-26211iLH51,61,YH50,60..RHD..GEN198601-198708

FR DRUM BRAKE

main47201-26220iLH51,61,YH51,61..LHD..GEN198212-198708

FR DRUM BRAKE

main47201-26240iYH51..4HC..SA;YH51..RHD..V4D..(4FC,4H,5F,5H);LH51,61,71,YH50,6#,71..RHD..(ARL,GEN,SA)198508-198601

FR DISC BRAKE

main47201-26241iYH51..4HC..SA;YH51..RHD..(4FC,4H,5F,5H)..(ARL,GEN,SA);LH51,61,71,YH50,53,60,61,63,7#..RHD..(ARL,GEN,SA)198601-198807

FR DISC BRAKE

main47201-26260iLH51,61,YH5#,61..RHD..EUR198508-198601

sub47201-26261

main47201-26262iLH51,61,YH50,51,61..RHD..EUR198601-198708

main47201-26270iYH51..5H..M1;YH51..LHD..(03S,12S);LH51,61,YH50,61..LHD..EUR198508-198601

sub47201-26271

main47201-26271iYH51..VSG..5H..EUR;YH51..LHD..(03S,12S)..EUR;LH51,61,YH50,61..LHD..EUR198601-198708

main47201-26280iLH61..R;YH61..U;YH61..V5D..(4HC,5H)..N1198508-198601

SWEDEN SPEC

sub47201-26281

main47201-26281iLH61..R;YH61..U;YH61..V5D..(4HC,5H)..N1198601-198708

SWEDEN SPEC

main47201-26290iLH51,61,YH50,51,60,61..LHD..GEN198508-198708

FR DISC BRAKE

main47201-26370iLH56,66,YH56,66198608-198708

main47201-26380iYH66..R198612-198708

SWEDEN SPEC

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iLH5#,6#,7#,YH5#,6#,7#198212-198807

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iLH5#,6#,7#,YH5#,6#,7#198212-198807

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-26020iLH5#,YH50..12S..EUR198212-198508

main47218-26020iLH51,61,YH50,60..GEN198508-198708

FR DRUM BRAKE

main47218-26040iLH51,61,71,YH51,53,60,61,63,73..ARL,GEN,SA198608-198807

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iLH6#,YH50,6#..M1198212-198508

main90430-09253iYH51..4HC..SA;YH51..(4FC,4H,5F,5H)..(ARL,GEN,SA);LH51,61,71,YH50,53,60,61,63,7#..ARL,GEN,SA198508-198807

FR DISC BRAKE

main90430-11001iLH51,61,YH50,60..GEN198508-198708

FR DRUM BRAKE

main90430-11001iLH5#,YH50..12S..EUR198212-198508

47219PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE)

main47218-26020iLH5#,6#,YH50,6#..GEN198212-198708

FR DRUM BRAKE

main47218-26040iLH51,61,71,YH51,53,60,61,63,73..ARL,GEN,SA198608-198807

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iYH51..4HC..SA;YH51..(4FC,4H,5F,5H)..(ARL,GEN,SA);LH51,61,71,YH50,53,60,61,63,7#..ARL,GEN,SA198212-198807

FR DISC BRAKE

main90430-11001iLH51,61,YH50,60..GEN198212-198708

FR DRUM BRAKE

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28010iLH5#,6#,7#,YH5#,6#,7#198212-198807

47233BRACKET, RESERVOIR

main47233-95J00iLH50,51,60,61,7#,YH50,51,60,61,71..RHD198212-198807

main47233-95J01iLH50,51,60,61,YH50,51,60,61..LHD198212-198708

47234BTUBE, RESERVOIR, NO.1

main47234-26080iYH51..4HC..SA;YH51..RHD..V4D..(4FC,4H,5F,5H);LH51,61,71,YH50,6#,71..RHD..(ARL,GEN,SA)198212-198601

main47234-26081iYH51..4HC..SA;YH51..RHD..(4FC,4H,5F,5H)..(ARL,GEN,SA);LH51,61,71,YH50,53,60,61,63,7#..RHD..(ARL,GEN,SA)198601-198807

main47234-26090iLH51,61,YH5#,61..RHD..EUR198508-198601

main47234-26091iLH51,61,YH50,51,61..RHD..EUR198601-198708

main47234-26130iYH51..VSG..5H..EUR;YH51..LHD..(03S,12S)..EUR;LH51,61,YH50,61..LHD..EUR198601-198708

main47234-26150iLH56,66,YH56,66198608-198708

sub47234-26170

main90445-17051iLH6#,YH50,6#..M1198212-198601

main90445-17052iLH5#,YH51..LHD;YH50,6#..LHD..N1;YH50,60..LHD..GEN;LH6#..LHD..(03S,06S,15S)198212-198708

sub90445-17051

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main90467-16002iLH5#,6#,71,YH5#,6#,7#198508-198807

sub96134-51500

main90467-16141iLH5#,6#,7#,YH5#,6#,71198212-198508

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-26080iLH51,61,YH50,51,61..RHD..EUR198508-198708

main47235-26140iLH56,66,YH56,66198608-198708

sub47235-26160

main90445-17050iLH5#,6#,7#,YH5#,6#,71..RHD198212-198807

main90445-17051iLH6#,YH50,6#..M1198212-198708

main90445-17052iLH5#,YH51..LHD;YH50,6#..LHD..N1;YH50,60..LHD..GEN;LH6#..LHD..(03S,06S,15S)198212-198708

sub90445-17051

47235CCLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2)

main90467-16002iLH5#,6#,71,YH5#,6#,7#198508-198807

sub96134-51500

main90467-16141iLH5#,6#,7#,YH5#,6#,71198212-198508

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iLH5#,6#,7#,YH5#,6#,7#198212-198807

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-26030iLH6#,YH50,6#..M1198212-198508

main47281-30020iLH5#,YH50..12S..EUR198212-198508

main47281-30020iLH51,61,YH50,60..GEN198508-198708

FR DRUM BRAKE

47280ASPRING, COMPRESSION

main90504-05001iLH5#,YH50..12S..EUR198212-198508

main90504-05001iLH51,61,YH50,60..GEN198508-198708

FR DRUM BRAKE

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47280-26030iLH5#,6#,7#,YH5#,6#,71198212-198508

FR DISC BRAKE

main47281-30020iLH5#,6#,YH50,6#..GEN198212-198708

FR DRUM BRAKE

47290ASPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE)

main90504-05001iLH5#,6#,YH50,6#..GEN198212-198708

FR DRUM BRAKE

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-26020iLH5#,6#,7#,YH5#,6#,7#198212-198807

9017906019

main90179-06019

9017908146

main90179-08146

9046108514

main90461-08514

9161140616

main91611-40616

9412041000

main94120-41000

33 parts on this diagram · 3 diagrams in section
