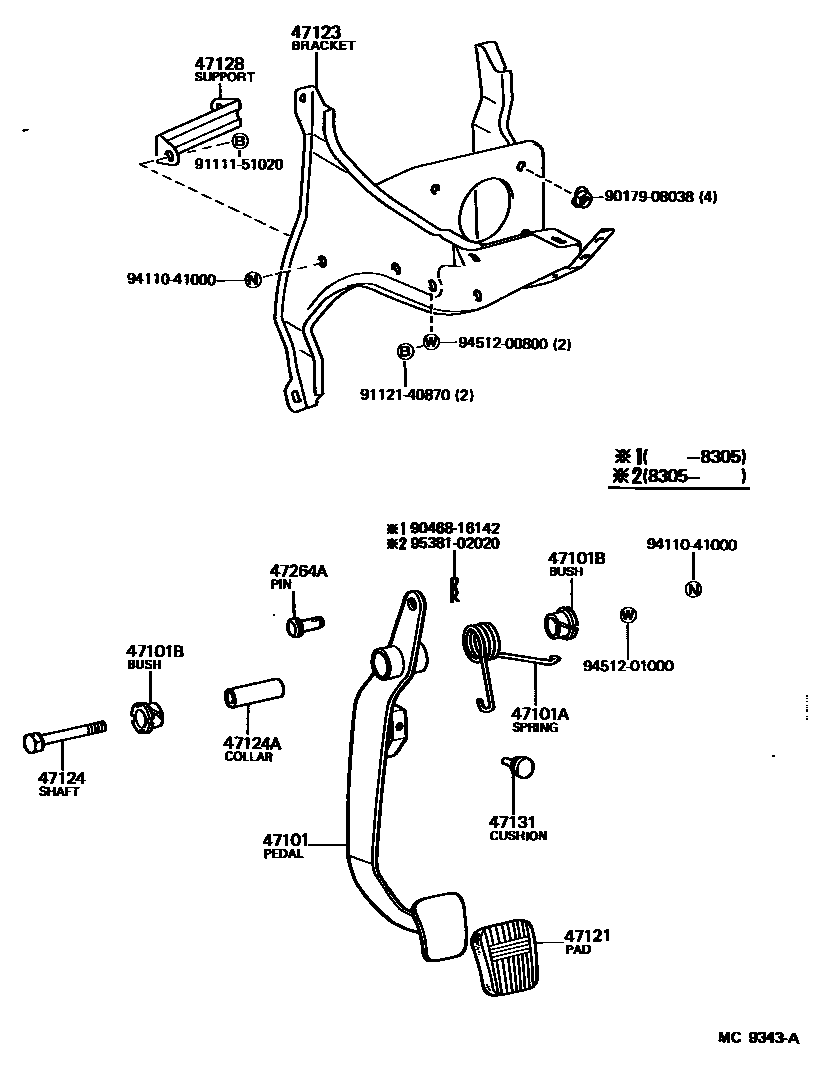

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-26040iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD198212-198807

main47101-26050iLH5#,6#,YH50,51,56,60,61,66..LHD198212-198708

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-32002iLH5#,6#,7#,YH5#,6#,7#198212-198807

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iLH5#,6#,7#,YH5#,6#,7#198212-198807

47121PAD, BRAKE PEDAL

main31321-14010iLH5#,6#,7#,YH5#,6#,71198212-198508

main31321-14020iLH5#,6#,71,YH5#,6#,7#198508-198807

47123BRACKET, BRAKE PEDAL

main55150-95J00iLH5#,6#,7#,YH5#,6#,71..RHD198212-198807

main55150-95J01iLH5#,6#,YH5#,6#..LHD198212-198708

main55150-95J02iYH51..RHD..(4FC,4H,5F,5H)..(ARL,EUR);LH51,61,71,YH50,53,61,63,7#..RHD..(ARL,EUR)198601-198708

main55150-95J03iLH56,66,YH56,66198601-198708

47124SHAFT, BRAKE PEDAL

main91121-51070iLH5#,6#,7#,YH5#,6#,7#198212-198807

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iLH5#,6#,7#,YH5#,6#,7#198212-198807

47128SUPPORT SUB-ASSY, PEDAL BRACKET

main55172-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iLH5#,6#,7#,YH5#,6#,7#198212-198807

47264APIN(FOR PUSH ROD)

main90240-10015iLH5#,6#,7#,YH5#,6#,7#198212-198807

9017908038

main90179-08038

9046816142

main90468-16142

9111151020

main91111-51020

9112140870

main91121-40870

9411041000

main94110-41000

9451200800

main94512-00800

9451201000

main94512-01000

9538102020

main95381-02020

18 parts on this diagram · 1 diagram in section
