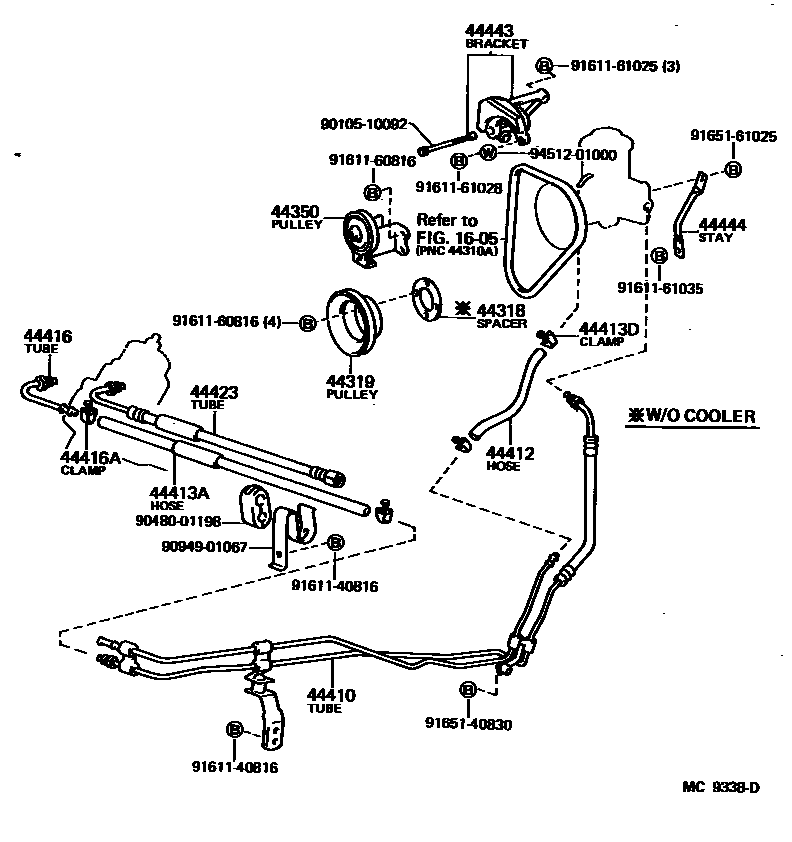

POWER STEERING TUBE

0001 1 0002 1 0004 1 0006 1 0007 1 0008 1 0009 1

1605

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-28012iYH51,71..05S,15S198401-198807

44319PULLEY, VANE PUMP DRIVE

main44319-28013iYH51..GL..SA198401-198807

main44319-30020iLH71198401-198508

main44319-30030iYH51,56,61,66..EUR198508-198708

44350PULLEY ASSY, POWER STEERING IDLE

main44350-28011iYH50,51,60,61..LHD..GEN198401-198807

44410TUBE ASSY, PRESSURE FEED

main44410-26011iYH51,71..05S,15S198401-198608

main44410-26021iLH71198401-198508

sub44410-26022

main44410-26022iLH71198508-198608

main44410-26030iYH50,60..LHD..GEN198508-198608

main44410-26070iLH51,61..LHD..GEN198508-198608

main44410-26090iYH56,66198612-198708

main44410-26100iLH56,66198608-198708

main44410-26110iLH51,61..LHD198608-198708

main44410-26120iYH53..GL198608-198807

sub44410-26150

main44410-26130iYH51,61..LHD198608-198708

main44410-26140iLH71198608-198708

main44410-26150iYH51,61..RHD..N1198608-198708

main44410-26160iLH51,61..RHD..N1198608-198708

44412HOSE, RETURN

main44412-26010iYH51,71..05S,15S198401-198807

main90445-18079iLH71198401-198708

sub90445-18137

44413TUBE, PRESSURE FEED, NO.1

main44413-26040iLH56,66198608-198708

main44413-26050iYH56,66198612-198708

44413AHOSE(FOR RETURN TUBE OUTLET)

main90447-18010iLH51,61..RHD..N1198401-198807

main90447-18011iLH51,61..RHD..N1198401-198708

44413DCLAMP(FOR RESERVOIR TANK INLET HOSE)

main90460-01001iLH51,61,YH51,61..RHD..N1198401-198807

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-26011iLH71,YH73198401-198807

main44416-26020iLH51,61,YH50,60..LHD..GEN198508-198708

main44416-26060iLH56,66,YH56,66198608-198708

44416ACLAMP(FOR RETURN HOSE)

main90460-01001iYH51..GL..SA198401-198807

44423TUBE, OIL PUMP TO GEAR BOX

main44423-26010iYH53..GL198401-198807

main44423-26020iLH71198401-198708

main44423-26030iLH51,61,YH51,61..LHD198508-198708

44443BRACKET, PUMP

main44443-22020iLH71198401-198508

main44443-26010iLH71;LH51,61..LHD..GEN198508-198708

main44443-26020iLH56,66198608-198708

main44443-28011iYH50,60..LHD..GEN198508-198608

main44443-28021iYH73198401-198807

44444STAY, PUMP, REAR

main44444-27010iYH71;YH51..4HC..SA198401-198807

9010510092

main90105-10092

9048001198

main90480-01198

9094901067

main90949-01067

9161140816

main91611-40816

9161160816

main91611-60816

9161161025

main91611-61025

9161161028

main91611-61028

9161161035

main91611-61035

9165140830

main91651-40830

9165161025

main91651-61025

9451201000

main94512-01000

25 parts on this diagram · 7 diagrams in section
