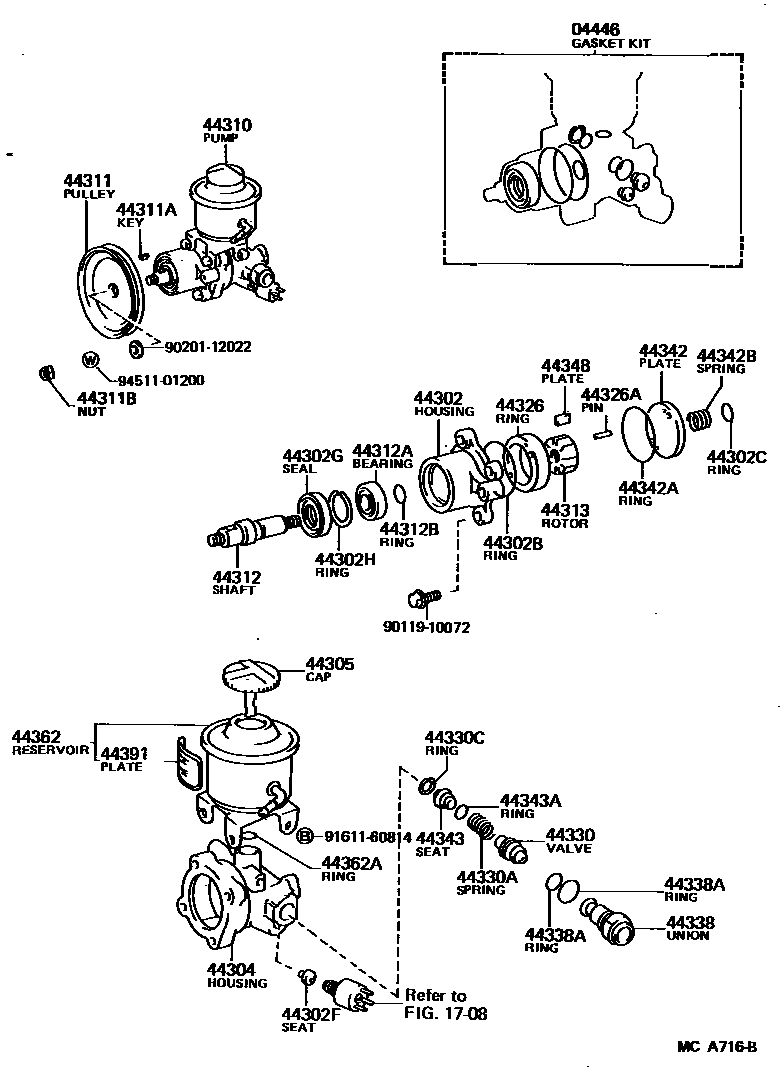

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1

04446GASKET KIT, POWER STEERING PUMP

main04446-14010iYH51,56,61,66..EUR¥4,160198401-198807

sub04446-14040¥4,190

main04446-26010iLH71¥3,100198401-198508

main04446-30030iLH5#,6#,71..ARL,EUR¥3,580198508-198708

1708

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-14010iYH53..GL¥15,500198401-198807

main44302-22020iLH5#,6#,71..ARL,EUR¥15,500198508-198708

main44302-30020iLH71¥15,600198401-198508

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-60001iYH53..GL¥350198401-198807

main90301-69170iLH71¥300198401-198508

44302CRING, O, NO.2(FOR VANE PUMP HOUSING)

main96711-19016iLH51,61,YH50,51,60,61..LHD..GEN¥300198401-198807

44302FSEAT, UNION(FOR VANE PUMP HOUSING)

main90410-05035iYH71;YH51..4HC..SA¥230198401-198807

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-24001iYH51..GL..SA¥220198401-198807

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-44002iYH51..GL..SA¥580198401-198807

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-26020iLH71198401-198508

main44304-28011iYH51,56,61,66..EUR¥37,000198401-198807

sub44304-28012¥35,200

sub44343-12040¥670

sub90501-12103¥160

main44304-30050iLH5#,6#,71..ARL,EUR¥33,400198508-198708

sub44304-30051¥35,200

sub44343-12040¥670

sub90501-12103¥160

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-30020iLH71,YH51,71..05S,15S¥1,950198401-198807

sub44305-22040¥1,940

44310PUMP ASSY, VANE

main44320-26011iYH73¥82,300198401-198807

main44320-26020iLH71¥82,100198401-198508

main44320-26040iLH51,61..LHD..GEN¥82,700198508-198708

main44320-26050iLH56,66¥82,400198608-198708

44311PULLEY, VANE PUMP

main44311-12010iYH51..GL..SA¥7,600198401-198807

main44311-30040iLH51,61..LHD..GEN¥6,100198401-198708

44311AKEY, VANE PUMP PULLEY

main90280-05008iLH71,YH71;YH51..4HC..SA¥220198401-198807

44311BNUT(FOR VANE PUMP PULLEY)

main90170-12011iYH71;YH51..4HC..SA¥200198401-198807

44312SHAFT, VANE PUMP

main44312-12010iYH71;YH51..4HC..SA¥3,340198401-198807

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17004iYH71;YH51..4HC..SA¥1,240198401-198807

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-15001iYH71;YH51..4HC..SA¥240198401-198807

sub90520-15005¥80

44313ROTOR, VANE PUMP

main44313-12010iLH71,YH51,71..05S,15S¥7,900198401-198807

NO MARK

sub44313-22040¥7,700

main44313-12020iLH71,YH51,71..05S,15S¥7,900198401-198807

MARK 1,MARK 1

sub44313-22050¥7,700

main44313-12030iLH71,YH73¥7,900198401-198807

MARK 2,MARK 2

sub44313-22060¥7,700

main44313-12040iYH51..GL..SA¥7,900198401-198807

MARK 3,MARK 3

sub44313-22070¥7,700

main44313-12050iLH51,61,YH50,51,60,61..LHD..GEN¥7,900198401-198807

MARK 4,MARK 4

sub44313-22080¥7,700

44326RING, CAM(FOR VANE PUMP)

main44325-12010iLH5#,6#,YH51,56,61,66..EUR¥8,700198401-198807

NO MARK

main44325-12020iLH71,YH73¥8,700198401-198807

MARK 1,MARK 1

main44325-12030iYH51..GL..SA¥8,700198401-198807

MARK 2,MARK 2

main44325-12040iLH5#,6#,YH51,56,61,66..EUR¥8,700198401-198807

MARK 3,MARK 3

main44325-12050iLH5#,6#,YH51,56,61,66..EUR¥8,700198401-198807

MARK 4,MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-05008iLH71,YH73¥240198401-198807

L=25,OD=5.0

44330VALVE ASSY, FLOW CONTROL

main44330-12130iLH5#,6#,71..ARL,EUR¥8,100198401-198708

MARK A,MARK A

sub44330-12131¥8,600

main44330-12140iLH51,61..LHD..GEN¥8,100198401-198708

MARK B,MARK B

sub44330-12141¥8,600

main44330-12150iLH5#,6#,71..ARL,EUR¥8,100198401-198708

MARK C,MARK C

sub44330-12151¥8,600

main44330-12160iLH5#,6#,71..ARL,EUR¥8,100198401-198708

MARK D,MARK D

sub44330-12161¥8,600

main44330-12170iLH51,61..LHD..GEN¥8,100198401-198708

MARK E,MARK E

sub44330-12171¥8,600

main44330-12180iLH51,61..LHD..GEN¥8,100198401-198708

MARK F,MARK F

sub44330-12181¥8,600

main44330-14010iYH53..GL¥7,900198401-198807

MARK A,MARK A

sub44330-20010¥8,600

main44330-14020iYH51,56,61,66..EUR¥7,900198401-198807

MARK B,MARK B

sub44330-20020¥8,600

main44330-14030iYH51,71..05S,15S¥7,900198401-198807

MARK C,MARK C

sub44330-20030¥8,600

main44330-14040iYH51..GL..SA¥7,900198401-198807

MARK D,MARK D

sub44330-20040¥8,600

main44330-14050iYH51,56,61,66..EUR¥7,900198401-198807

MARK E,MARK E

sub44330-20050¥8,600

main44330-14060iYH51..GL..SA¥7,900198401-198807

MARK F,MARK F

sub44330-20060¥8,600

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12447iYH51..GL..SA¥660198401-198807

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iLH71,YH51,71..05S,15S¥260198401-198807

44338UNION, PRESSURE PORT

main44308-26010iYH71;YH51..4HC..SA¥9,100198401-198408

sub44308-26011¥9,200

main44308-26011iYH50,60..LHD..GEN¥9,200198408-198807

main44308-26020iLH71¥9,100198401-198508

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-22001iLH71,YH73¥590198401-198807

OD=25.5,ID=22.5,ID=22.5,OD=25.5

main90301-23002iLH71¥300198401-198508

main96711-19014iLH71,YH51,71..05S,15S¥210198508-198807

OD=17.0,ID=13.0

main96711-19014iLH71,YH71;YH51..4HC..SA¥210198401-198508

OD=17.0,ID=13.0,ID=13.8,OD=17.6

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iYH53..GL¥6,800198401-198807

main44341-30020iLH71¥1,820198401-198508

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-53002iYH51..GL..SA¥300198401-198807

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90501-23014iLH5#,6#,YH51,56,61,66..EUR¥350198401-198807

44343SEAT, FLOW CONTROL SPRING

main44343-12010iLH71,YH71;YH51..4HC..SA¥1,240198401-198807

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iYH53..GL¥210198401-198807

44348PLATE, VANE PUMP

main44345-12010iYH53..GL¥660198401-198807

L=14.997,L=14.996-14.998,ROTOR NO MARK

main44345-12020iYH51..GL..SA¥660198401-198807

L=14.995,L=14.994-14.996,ROTOR MARK 1

main44345-12030iLH5#,6#,YH51,56,61,66..EUR¥660198401-198807

L=14.993,L=14.992-14.994,ROTOR MARK 2

main44345-12040iLH71,YH73¥660198401-198807

L=14.991,L=14.990-14.992,ROTOR MARK 3

main44345-12050iLH71,YH51,71..05S,15S¥660198401-198807

L=14.989,L=14.988-14.990,ROTOR MARK 4

44362RESERVOIR, OIL(FOR VANE PUMP)

main44306-26010iYH53..GL¥10,100198401-198807

main44360-26010iLH71¥10,000198401-198508

main44360-26011iLH51,61,71..ARL,EUR¥10,500198508-198708

main44360-26040iLH56,66¥10,100198608-198708

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main96711-19013iLH5#,6#,YH51,56,61,66..EUR¥240198401-198807

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-12010iLH71¥200198401-198708

main44391-30020iYH51..GL..SA¥240198401-198708

9011910072

main90119-10072¥160

9020112022

main90201-12022¥110

9161160814

main91611-60814¥100

9451101200

main94511-01200¥200
