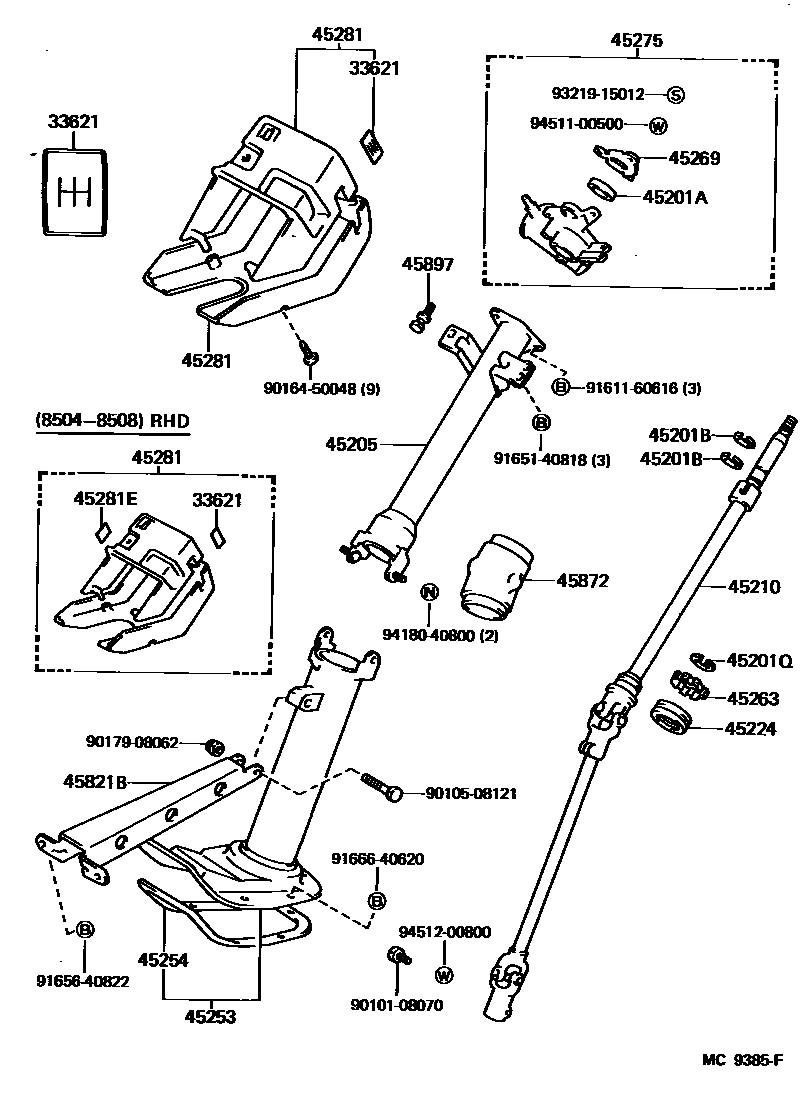

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1

33621PLATE, CONTROL LEVER CAUTION

main33621-36010iYH50,60,61..LHD..4H198212-198708

main33621-36020iLH50,51,60,61,7#,YH51,61,71..RHD..5H198212-198708

main33621-36030iLH50,51,60,61,YH50,51,60,61..LHD..5H198212-198708

main33621-36040iYH50,51,60,61..RHD..4H198212-198807

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iLH5#,6#,7#,YH5#,6#,7#198212-198807

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iLH5#,6#,7#,YH5#,6#,7#198212-198807

T=1.20,LWR

main90520-17269iLH5#,6#,7#,YH5#,6#,7#198212-198807

T=1.20,UPR

45201QRING(FOR STEERING COLUMN RING)

main96152-00300iLH5#,6#,7#,YH5#,6#,7#198212-198807

LWR

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-26080iLH5#,6#,7#,YH5#,6#,71..RHD..(4H,4HC,5H)198212-198601

main45205-26081iLH51,61,71,YH50,51,53,61,63,7#..RHD..(4H,4HC,5H)198601-198807

main45205-26090iLH5#,6#,YH5#,6#..LHD198212-198601

main45205-26091iLH5#,6#,YH50,51,56,61,66..LHD198601-198708

main45205-26100iYH51..05S198508-198708

45210SHAFT ASSY, STEERING MAIN

main45210-26010iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

main45210-26020iLH71,YH73198401-198807

W/POWER STEERING

main45210-26040iLH56,66,YH56,66198608-198708

45224BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)

main45225-26010iLH5#,6#,7#,YH5#,6#,7#198212-198807

L=16

45253COVER, STEERING COLUMN HOLE

main45204-26020iLH51,61,YH50,51,53,60,61,63..RHD..(GEN,SA)198212-198807

main45204-26030iLH5#,6#,YH5#,6#..LHD198212-198708

main45204-26040iYH51..05S198508-198601

main45204-26041iYH51..05S198601-198708

main45204-26050iLH51,61,71,YH50,51,53,61,63,7#..RHD..(4FC,4H,5H)..(ARL,EUR)198601-198708

main45204-26060iYH51..VSG..5H..EUR;YH51..LHD..(03S,12S)..EUR;LH51,61,YH50,61..LHD..EUR198601-198708

main45204-26070iLH56,66,YH56,66198608-198708

45254SHIELD, STEERING COLUMN HOLE

main45254-26050iLH5#,6#,7#,YH5#,6#,7#198212-198807

45263RING, STEERING COLUMN, NO.1

main45263-26010iLH5#,6#,7#,YH5#,6#,71198212-198508

sub45263-32010

main45263-32010iLH51,61,71,YH5#,6#,7#198508-198807

45269RETAINER, MAIN SHAFT BEARING

main45269-35010iLH5#,6#,7#,YH5#,6#,7#198212-198807

45275BRACKET, STEERING COLUMN, UPPER

main45307-26080iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD198212-198704

main45307-26081iLH51,61,71,YH51,53,60,61,63,73..RHD198704-198807

main45307-26090iLH5#,6#,YH50,51,56,60,61,66..LHD198212-198704

main45307-26091iLH5#,6#,YH51,56,61,66..LHD198704-198807

45281HOUSING, STEERING COLUMN

main45023-26160iYH50,6#..LHD..4H198212-198708

UPR

main45023-26170-05iLH5#,6#,YH5#,6#..LHD..5H198212-198608

UPR,BEIGE,BEIGE

sub45023-26170

main45023-26170-06iLH51,61,YH51,61..LHD..5H..EUR198608-198708

UPR,BROWN,BROWN

sub45023-26170

main45023-26190-14iYH51,53..05S198508-198708

UPR,BLUE,BLUE

sub45023-26H00

main45023-26200iYH5#,6#..RHD..4H198212-198504

UPR

sub45023-29035

main45023-26201-06iYH50,51,53,60,61,63..RHD..4H198508-198807

UPR,BROWN,BROWN

sub45023-26201

main45023-26210iLH5#,6#,7#,YH51,61,71..RHD..5H198212-198504

UPR

sub45023-29045

main45023-26211-06iLH51,61,71,YH51,53,61,63,7#..RHD..5H198508-198807

UPR,BROWN,BROWN

sub45023-26211

main45023-29035-05iYH5#,6#..RHD..4H198504-198508

BEIGE,BEIGE

main45023-29045-05iLH51,61,71,YH51,61,71..RHD..5H198504-198508

BEIGE,BEIGE

sub45023-29045

main45286-26150-04iLH5#,61,YH5#..RHD..4HC198212-198504

BLUE,BLUE

sub45286-29015

main45286-26150-05iLH5#,61,YH5#..RHD..4HC198212-198504

BEIGE,BEIGE

sub45286-29015

main45286-26151-06iLH51,61,YH51,53,61,63..RHD..4HC198508-198807

UPR,BROWN,BROWN

sub45286-26151

main45286-26170-06iLH51,61,YH51,61..4HC..N1198212-198708

UPR,BROWN,BROWN

sub45286-26170

main45286-26200-06iLH56,66,YH56,66198608-198708

UPR,BROWN,BROWN

main45286-29015-04iLH51,61,YH51,61..RHD..4HC198504-198508

BLUE,BLUE

main45286-29015-05iLH51,61,YH51,61..RHD..4HC198504-198508

BEIGE,BEIGE

main45287-26090-05iLH5#,6#,7#,YH5#,6#,71..RHD198212-198504

LWR,BEIGE

sub45023-29015

sub45023-29025

sub45023-29055

sub45286-29015

sub45023-29035

sub45023-29045

main45287-26091-16iLH51,61,71,YH50,51,53,60,61,63..RHD..(4H,4HC,5H)198508-198807

LWR,BROWN,BROWN

sub45287-26091

main45287-26100-05iLH50,6#,YH5#,6#..LHD198212-198508

LWR,BEIGE,BEIGE

sub45287-26100

main45287-26100-06iLH5#,6#,YH50,51,56,60,61,66..LHD198508-198708

LWR,BROWN,BR0WN

sub45287-26100

main45287-26110-14iYH51,53..05S198508-198708

LWR,BLUE,BLUE

sub45024-26010

sub45023-26H00

45281EPLATE, SAFETY CAUTION

main45283-22010iYH51..05S198508-198708

45821BREINFORCE, TILT STEERING SUPPORT, NO.1

main45821-26010iYH51..05S198508-198601

main45821-26011iYH51..RHD..(4FC,4H,5F,5H)..(ARL,EUR);LH51,61,71,YH50,53,61,63,7#..RHD..(ARL,EUR)198601-198708

main45821-26020iYH51..VSG..5H..EUR;YH51..LHD..(03S,12S)..EUR;LH51,61,YH50,61..LHD..EUR198601-198708

45872COVER, STEERING COLUMN TUBE

main45872-26010iLH5#,6#,7#,YH5#,6#,7#198212-198807

45897BOLT, STEERING LOCK SET

main45897-12030iLH51,61,71,YH51,53,61,63,73..RHD..MTM..STD..(ARL,EUR)198212-198708

9010108070

main90101-08070

9010508121

main90105-08121

9016450048

main90164-50048

9017908062

main90179-08062

9161160616

main91611-60616

9165140818

main91651-40818

9165640822

main91656-40822

9166640620

main91666-40620

9321915012

main93219-15012

9418040800

main94180-40800

9451100500

main94511-00500

9451200800

main94512-00800

29 parts on this diagram · 4 diagrams in section
