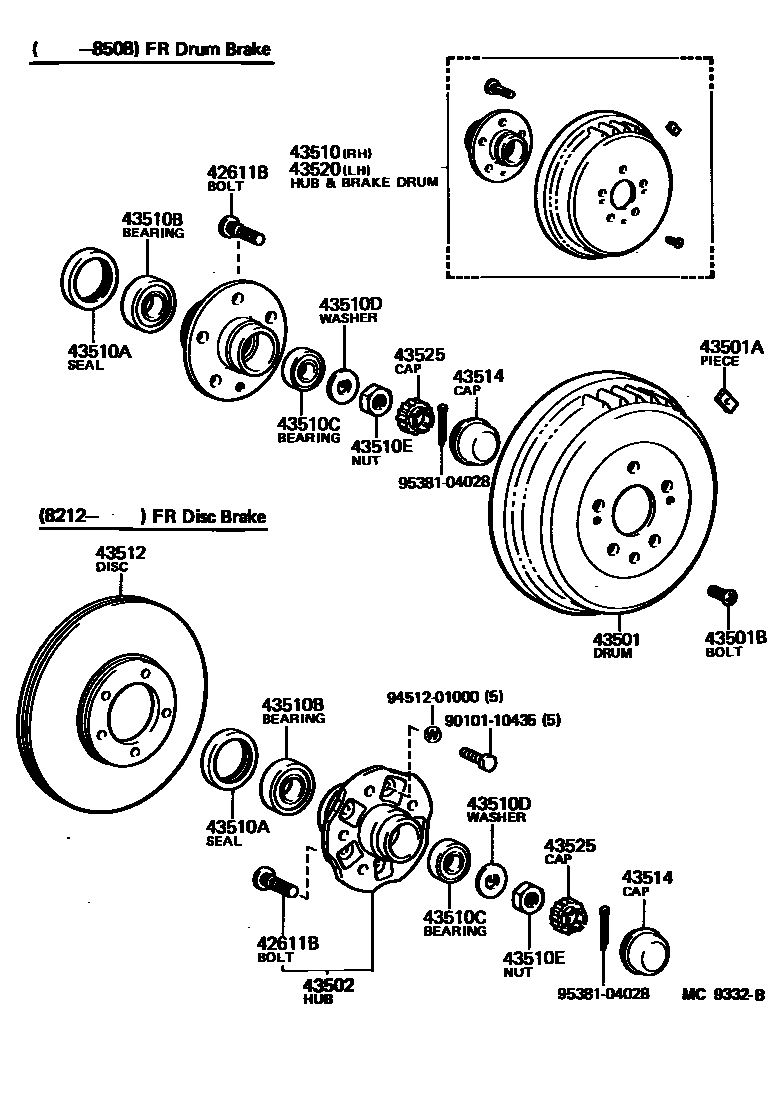

FRONT AXLE HUB

0001 1 0002 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02034iLH5#,6#,YH50,6#..GEN198212-198412

FR DRUM BRAKE

sub90942-02052

main90942-02035iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198708

FR DISC BRAKE

sub90942-02047

main90942-02047iYH53,6#198708-198807

FR DISC BRAKE

main90942-02049iLH56,66,YH56,66198608-198708

main90942-02052iLH51,61,YH50,51,60,61..GEN198412-198708

FR DRUM BRAKE

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-26050iLH5#,6#,YH50,6#..GEN198212-198708

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01100iLH5#,6#,YH50,6#..GEN198212-198708

40.5G,40.5G

main90937-01117iLH5#,6#,YH50,6#..GEN198212-198708

10G,10G

main90937-01118iLH51,61,YH51,61..GEN198212-198708

20G,20G

main90937-01119iLH5#,6#,YH50,6#..GEN198212-198708

30G,30G

main90937-01146iLH51,61,YH51,61..GEN198212-198708

25G,50G

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10035iLH51,61,YH50,60..GEN198212-198708

43502HUB SUB-ASSY, FRONT AXLE

main43502-26050iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

main43511-35904iLH56,66,YH56,66198608-198708

sub43511-35905

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-26060iLH51,61,YH51,61..GEN198212-198708

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50005iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

main90311-66001iLH56,66,YH56,66198608-198708

sub90311-66003

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-34001iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

main90368-49084iLH56,66,YH56,66198608-198708

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-21001iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

main90368-45087iLH56,66,YH56,66198608-198708

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20007iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

main90214-42030iLH56,66,YH56,66198608-198708

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

43512DISC, FRONT

main43512-26040iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198803

sub43512-26070

main43512-26070iYH53,6#198803-198807

sub43512-35180

main43512-26081iLH56,66,YH56,66198608-198708

43514CAP, FRONT HUB GREASE

main43514-35010iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-26060iLH51,61,YH50,60..GEN198212-198708

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

9010110435

main90101-10435

9451201000

main94512-01000

9538104028

main95381-04028

18 parts on this diagram · 2 diagrams in section
