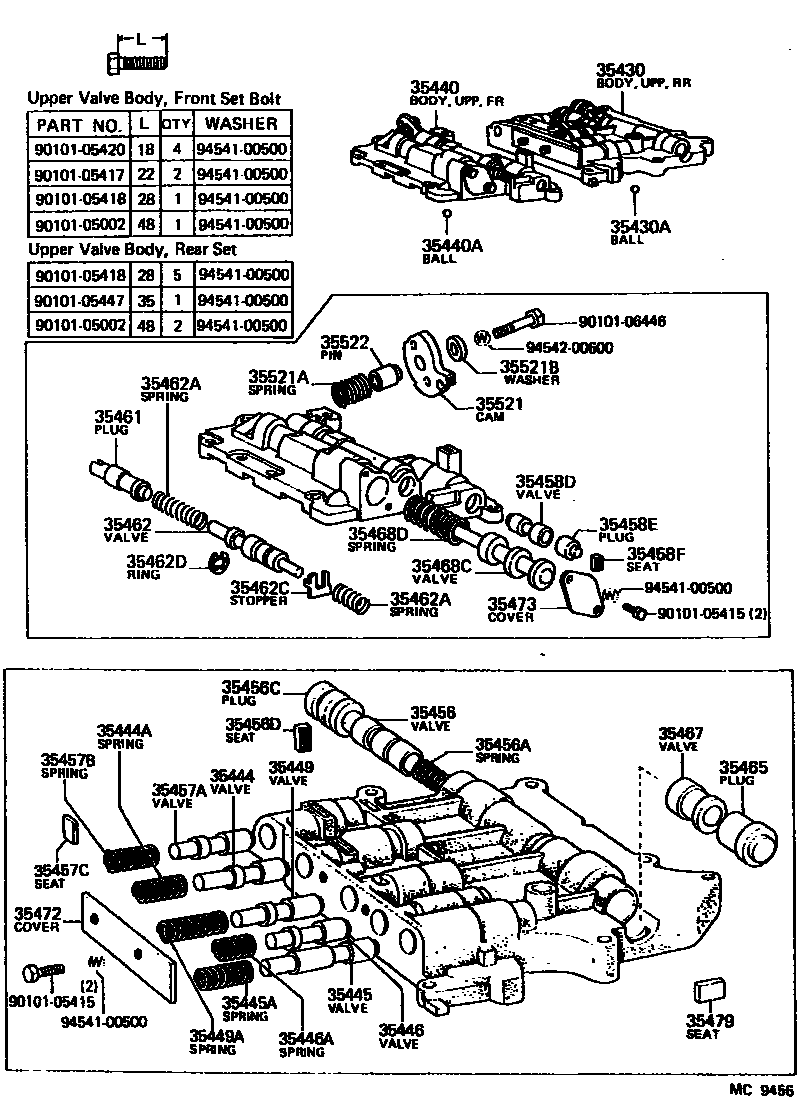

VALVE BODY & OIL STRAINER (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

35430BODY ASSY, REAR UPPER VALVE

main35430-26020iLH50..4HC198212-198401

main35430-26030iYH50..4HC198212-198401

main35430-26050iYH51,53,61,63..ATM198401-198807

main35430-26060iLH51,61..4HC198401-198708

35430ABALL (FOR REAR UPPER VALVE BODY)

main35495-22010iLH50,51,61,YH50,51,53,61,63..ATM198212-198804

OD=5.535,RUBBER,OD=5.56,GUM

sub35495-22020

main35495-22020iYH53..4HC198804-198807

OD=5.535,RUBBER,OD=5.56,GUM

main90360-06023iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

0D=5.56,OD=5.56,STEEL

35440BODY ASSY, FRONT UPPER VALVE

main35440-26010iLH51,61..4HC198401-198605

main35440-26011iLH51,61..4HC198605-198708

main35440-28030iYH51,61..ATM198401-198607

main35440-28031iYH51,53,61,63..ATM198607-198807

main35440-30060iYH50..4HC198212-198401

sub35440-30061

main35440-30080iLH50..4HC198212-198401

sub35440-30081

35440ABALL (FOR FRONT UPPER VALVE BODY)

main35495-22010iLH50,YH50..4HC198212-198401

OD=5.535,RUBBER,OD=5.56,GUM

sub35495-22020

35444VALVE, INTERMEDIATE MODULATOR

main35444-22010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35444ASPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)

main90501-09686iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35445VALVE, LOW MODULATOR

main35445-22010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35445ASPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

main90501-08725iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35446VALVE, GOVERNOR MODULATOR

main35446-20010iLH50,51,61,YH51,53,61,63..ATM198212-198807

main35446-22010iYH50..4HC198212-198401

35446ASPRING, COMPRESSION (FOR GOVERNOR MODULATOR VALVE)

main90501-07688iLH50,YH50..4HC198212-198401

35449VALVE, SEQUENCE

main35447-22010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35449ASPRING, COMPRESSION (FOR SEQUENCE VALVE)

main90501-12055iLH51,61..4HC198401-198708

main90501-12726iLH50,YH50..4HC198212-198807

35456VALVE, 2-3 SHIFT

main35456-22010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35456ASPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

main90501-08724iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35456CPLUG (FOR 2-3 SHIFT VALVE)

main35452-22010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35456DSEAT (FOR 2-3 SHIFT VALVE)

main35493-22020iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35457AVALVE, DETENT REGULATOR

main35457-22010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35457BSPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)

main90501-09022iYH50,51,53,61,63..ATM198212-198807

main90501-09025iLH50,51,61..4HC198212-198708

35457CSEAT (FOR DETENT REGULATOR VALVE)

main35438-22020iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35458DVALVE, CUT BACK

main35458-22010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35458EPLUG (FOR CUT BACK VALVE)

main35459-22010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35458FSEAT (FOR CUT BACK VALVE)

main35493-22010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35461PLUG, DOWN SHIFT

main35408-30010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35462VALVE, THROTTLE

main35462-22011iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35462ASPRING, COMPRESSION (FOR THROTTLE VALVE)

main90501-07680iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

L=19.24,SECONDARY

main90501-12011iYH50..4HC198212-198401

L=39.71,PRIMARY

main90501-12045iLH50,51,61..4HC198212-198708

L=40.46,PRIMARY

main90501-12077iYH51,53,61,63..ATM198401-198807

L=39.76,PRIMARY

35462CSTOPPER, VALVE VIBRATING

main35422-22010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35462DRING, E (FOR THROTTLE VALVE)

main90523-06023iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35465PLUG, INTERMEDIATE SHIFT VALVE

main35465-22010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35467VALVE, INTERMEDIATE SHIFT

main35467-22010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35468CVALVE, SECONDARY REGULATOR

main35204-30010iLH51,61,YH51,53,61,63..ATM198605-198807

main35468-14010iLH51,61,YH51,61..ATM198401-198605

main35468-22010iLH50,YH50..4HC198212-198401

35468DSPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

main90501-19001iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35472COVER, VALVE BODY, NO.2

main35472-22010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35473COVER, TRANSMISSION VALVE BODY

main35473-22010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35479SEAT, INTERMEDIATE SHIFT VALVE

main35479-22010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35521CAM, THROTTLE VALVE

main35521-20010iLH50,51,61..4HC198212-198708

main35521-22030iYH50..4HC198212-198401

main35521-30010iYH51,53,61,63..ATM198401-198807

35521ASPRING (FOR THROTTLE VALVE CAM RETURN)

main90508-12331iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35521BWASHER (FOR THROTTLE VALVE CAM SET)

main90201-06472iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35522PIN, THROTTLE VALVE CAM

main35522-22010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

9010105002

main90101-05002

9010105415

main90101-05415

9010105417

main90101-05417

9010105418

main90101-05418

9010105420

main90101-05420

9010105447

main90101-05447

9010106446

main90101-06446

9454100500

main94541-00500

9454200600

main94542-00600

47 parts on this diagram · 6 diagrams in section
