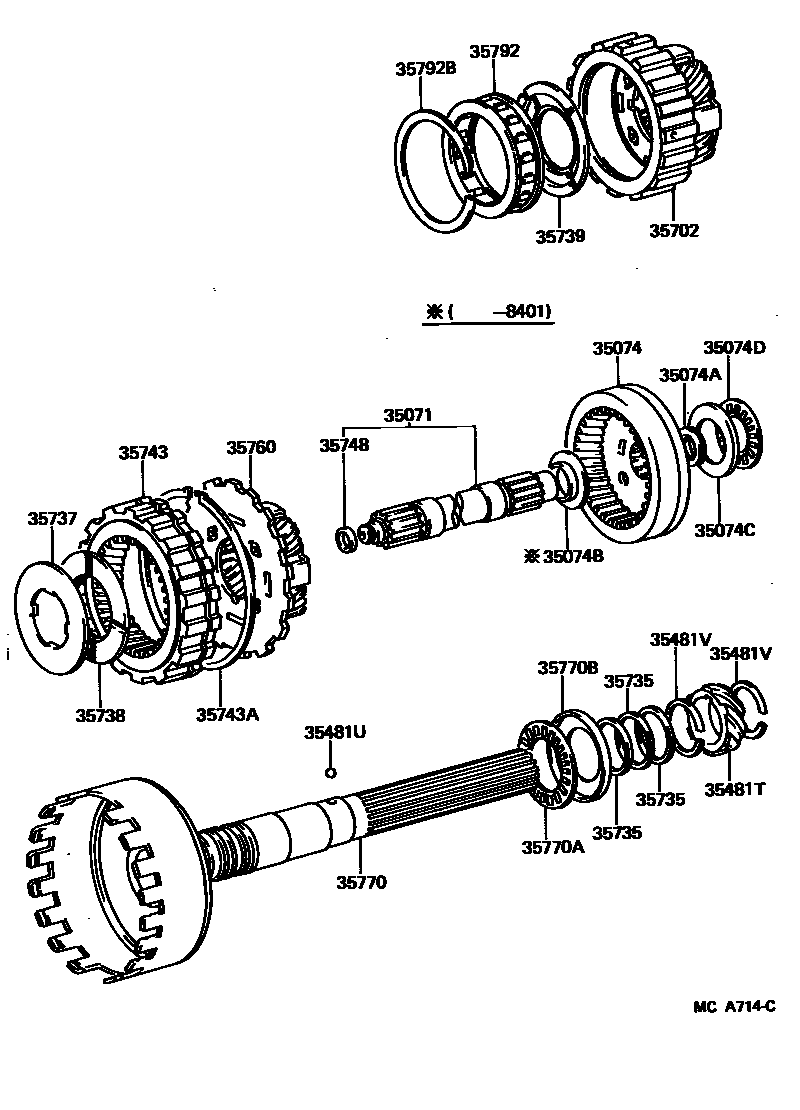

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35071SHAFT SUB-ASSY, PLANETARY INTERMEDIATE

main35708-30041iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35074GEAR SUB-ASSY, REAR PLANETARY RING

main35074-30020iLH50,YH50..4HC198212-198401

main35074-30030iLH51,61,YH51,53,61,63..ATM198401-198807

35074ARING, SET (FOR REAR PLANETARY RING GEAR)

main90522-20037iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35074BRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRONT)

main35789-22050iLH50,YH50..4HC198212-198401

35074CRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR)

main35789-22020iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35074DBEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)

main90374-28014iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35481TGEAR, SPEEDMETER DRIVE (ATM)

main33481-25010iLH50,51,61,YH50..4HC198212-198708

N=4

main33481-25020iYH51,53,61,63..ATM198401-198807

N=5,MARK 5X17-19

35481UKEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)

main90360-06004iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)

main90520-28009×2iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

T=1.50,OD=33.8

35702CARRIER SUB-ASSY, PLANETARY W/LOCK GEAR

main35704-30030iLH50,YH50..4HC198212-198401

main35704-30040iLH51,61,YH51,53,61,63..ATM198401-198807

35735RING, PLANETARY OUTPUT SNAP

main35735-22010×3iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35737WASHER, PLANETARY CARRIER THRUST

main35737-22010iLH51,61,YH51,53,61,63..ATM198401-198807

main35737-30020iLH50,YH50..4HC198212-198401

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-30010iLH50,YH50..4HC198212-198401

main35738-30030iLH51,61,YH51,53,61,63..ATM198401-198807

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-30010iLH50,YH50..4HC198212-198401

main35739-30020iLH51,61,YH51,53,61,63..ATM198401-198807

35743GEAR, FRONT PLANETARY RING

main35743-30010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)

main90520-99121iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35748RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL

main35748-30010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35760GEAR ASSY, REAR PLANETARY

main35760-30030iLH50,YH50..4HC198212-198401

main35760-30040iLH51,61,YH51,53,61,63..ATM198401-198807

35770SHAFT ASSY, OUTPUT

main35770-30010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35770ABEARING, THRUST (FOR OUTPUT SHAFT)

main90374-38013iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35770BRACE, THRUST BEARING (FOR OUTPUT SHAFT)

main35789-22040iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35792CLUTCH, 1 WAY, NO.2

main35792-30011iLH50,YH50..4HC198212-198401

main35792-30030iLH51,61,YH51,53,61,63..ATM198401-198807

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-79148iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

23 parts on this diagram · 1 diagram in section
