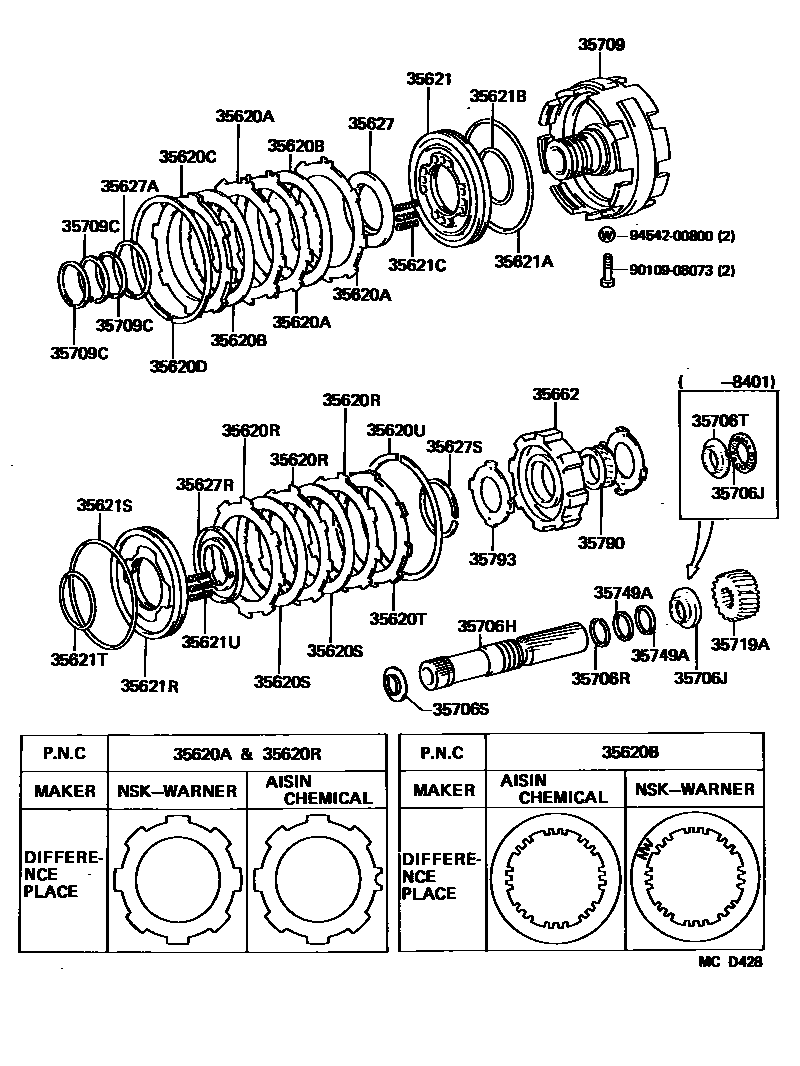

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35620APLATE, CLUTCH (FOR BRAKE)

main35634-22060iLH51,61,YH51,53,61,63..ATM198508-198807

main35634-22090iLH5#,61,YH5#,61..4HC198212-198508

AISIN CHEMICAL

sub35634-22060

35620BDISC, CLUTCH (FOR BRAKE)

main35677-22020iLH50,YH50..4HC198212-198307

NSK-WARNER

sub35677-30030

main35677-22030iLH50,YH50..4HC198212-198307

AISIN CHEMICAL

sub35677-22020

main35677-22050iLH5#,61,YH5#,61..4HC198307-198506

sub35677-30030

main35677-30030iLH51,61,YH51,61..ATM198506-198601

sub35677-30160

main35677-30100iLH51,61,YH51,53,61,63..ATM198601-198807

35620CFLANGE, CLUTCH (FOR BRAKE)

main35675-22010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

sub35675-22140

35620DRING (FOR BRAKE)

main90521-99139iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35620RPLATE, CLUTCH (FOR REAR BRAKE)

main35634-22060iLH50,51,61,YH50..4HC198212-198708

NSK-WARNER

main35634-22090iLH50,YH50..4HC198212-198307

AISIN CHEMICAL

sub35634-22060

main35648-30020iYH51,53,61,63..ATM198401-198807

35620SDISC, CLUTCH (FOR REAR BRAKE)

main35677-22040iLH50,YH50..4HC198212-198307

sub35677-30020

main35677-30020iLH50,51,61,YH50,51,53,61,63..ATM198307-198807

35620TFLANGE, CLUTCH (FOR REAR BRAKE)

main34625-22010iYH51,53,61,63..ATM198401-198807

sub35676-22030

main35675-22010iLH50,51,61,YH50..4HC198212-198708

sub35675-22140

35620URING (FOR REAR BRAKE)

main90521-99139iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35621PISTON, BRAKE, NO.1

main35624-22010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35621ARING, O (FOR BRAKE PISTON OUTER)

main90301-99192iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35621BRING, O (FOR BRAKE PISTON INNER)

main90301-57188iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35621CSPRING (FOR BRAKE PISTON RETURN)

main90501-10671iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35621RPISTON, BRAKE (FOR REAR BRAKE)

main35621-30010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35621SRING (FOR REAR BRAKE PISTON OUTER)

main90301-99007iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

sub90301-99107

35621TRING (FOR REAR BRAKE PISTON INNER)

main90301-57188iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35621USPRING (FOR REAR BRAKE PISTON RETURN)

main90501-10671iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35627SEAT, BRAKE RETURN SPRING

main35627-22010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35627ARING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)

main90520-52262iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35627RSEAT, BRAKE RETURN SPPING (FOR REAR BRAKE)

main35627-22010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35627SRING, SHAFT SNAP (FOR REAR BRAKE RETURN SPRING SEAT)

main90520-52262iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35662HUB, BRAKE

main35662-30010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-30040iLH50,YH50..4HC198212-198401

main35706-30050iLH51,61,YH51,53,61,63..ATM198401-198807

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-21001iLH51,61,YH51,53,61,63..ATM198401-198807

main90374-23012iLH50,YH50..4HC198212-198401

35706RRING, SHAFT SNAP (FOR PLANETARY SUN GEAR)

main90520-34001iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35706SRACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)

main35789-22030iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35706TRACE, THRUST BEARING (FOR PLANETARY SUN GEAR REAR)

main35789-22010iLH50,YH50..4HC198212-198401

35709SUPPORT SUB-ASSY, CENTER

main35709-26011iLH50,51,61,YH50..4HC198212-198708

main35709-30051iYH51,53,61,63..ATM198401-198807

35709CRING, OIL SEAL (FOR CENTER SUPPORT)

main35617-16010iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35719AGEAR, REAR PLANETARY SUN

main35719-30050iLH51,61,YH51,53,61,63..ATM198401-198807

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-22010iLH51,61,YH51,53,61,63..ATM198401-198807

main35749-30010iLH50,YH50..4HC198212-198401

35790CLUTCH ASSY, 1 WAY

main35791-30020iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35793RETAINER, 1 WAY CLUTCH

main35793-22011iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

9010908073

main90109-08073

9454200800

main94542-00800

34 parts on this diagram · 1 diagram in section
