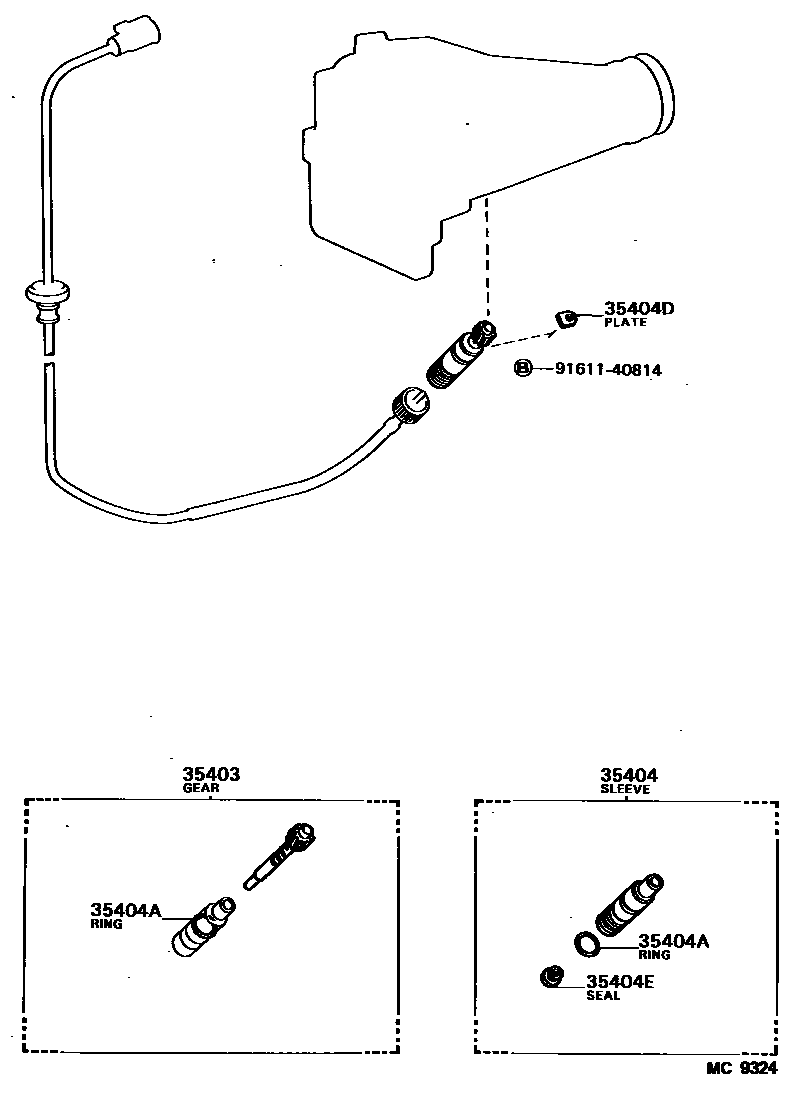

SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29016iYH51,53,61,63..ATM198401-198807

N=19 MARK 5:19

main33403-39045iLH5#,61,YH50..4HC..ARL198212-198508

main33403-39045iLH51,61..4HC198508-198708

N=17 MARK 4:17

main33403-39055iLH5#,61,YH50..4HC..EUR198212-198608

N=16 MARK 4:16

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

9161140814

main91611-40814

6 parts on this diagram · 1 diagram in section
