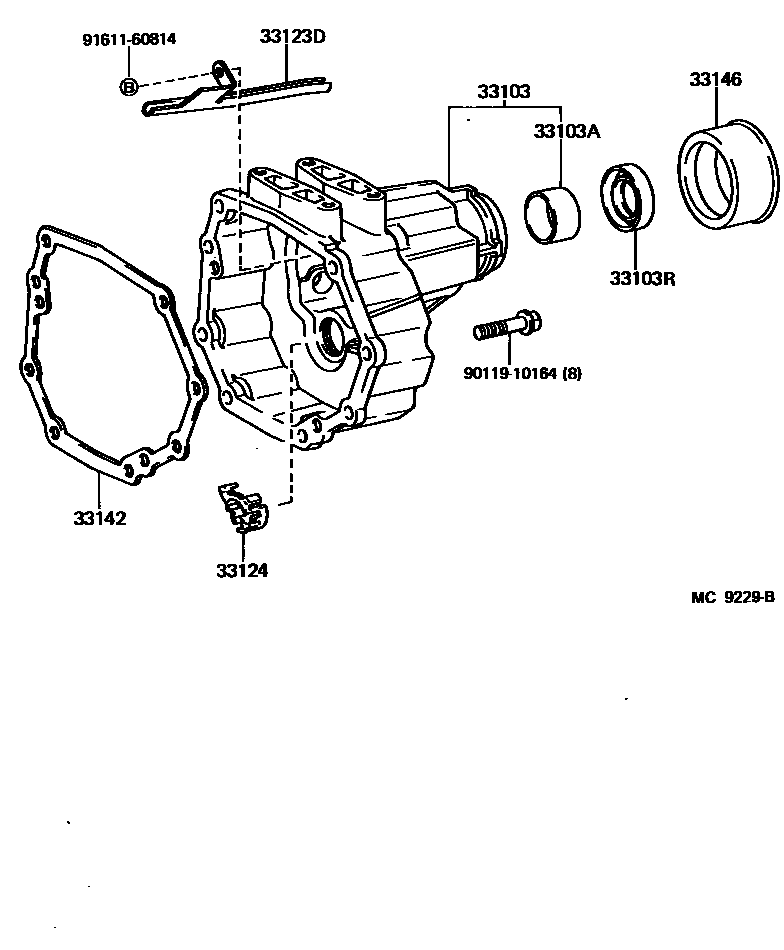

EXTENSION HOUSING (MTM)

0001 1 0002 1 0003 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-26030iLH50,60,70,YH5#,6#,71..MTM198212-198401

sub33103-26902

main33103-26040iLH51,61,71,YH5#,6#,71..MTM198401-198509

sub33103-26900

main33103-26900iLH51,61,71,YH50,51,53,60,61,63,7#..MTM198509-198807

sub33103-26042

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72023iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM198212-198807

sub90999-73139

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38040iLH51,61,71,YH51,53,60,61,63,73..MTM198609-198807

sub90311-38030

main90311-38043iLH50,51,60,61,7#,YH5#,6#,7#..MTM198212-198609

sub90311-38040

33123DRECEIVER, CASE COVER OIL(MTM)

main33123-26011iLH50,60,70,YH5#,6#,71..MTM198212-198401

main33124-28010iLH51,61,71,YH50,51,53,60,61,63,7#..MTM198401-198807

sub33124-28011

33124PIPE, OIL RECEIVER(MTM)

main33124-26010iLH50,60,70,YH5#,6#,71..5H198308-198401

sub33124-26011

main33124-36010iLH5#,6#,71,YH5#,61,63,66,7#..5F,5H198401-198807

33142GASKET, EXTENSION HOUSING(MTM)

main33138-28020iLH51,61,71,YH50,51,53,60,61,63,7#..MTM198401-198807

main33142-35030iLH50,60,70,YH5#,6#,71..MTM198212-198401

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM198212-198807

sub33146-30020

9011910164

main90119-10164

9161160814

main91611-60814

9 parts on this diagram · 3 diagrams in section
