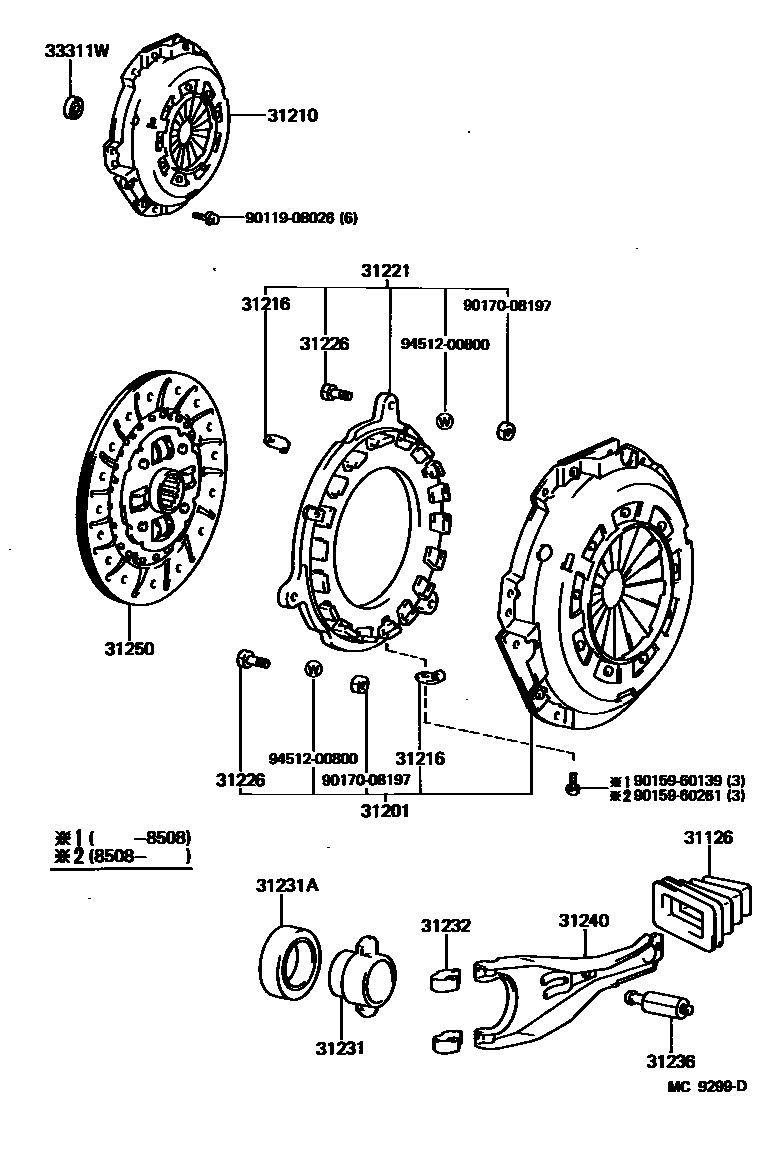

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iLH56,66,YH5#,6#,7#..MTM198401-198807

main31126-20070iLH51,61,71..5H198212-198708

main31126-25021iLH50,60,70..5H198212-198401

31201COVER SUB-ASSY, CLUTCH

main31201-19095iLH5#,6#,71..MTM198401-198708

sub31201-14110

main31201-29085iLH50,60,70,YH50,60..MTM198212-198807

sub31201-26010

main31201-39145iYH51,61,71198212-198308

sub31201-39146

main31201-39146iYH51,61,71..MTM198308-198708

sub31201-30121

31210COVER ASSY, CLUTCH

main31210-14130iLH5#,6#,71..MTM198401-198708

sub31210-35090

main31210-26050iYH51,61..MTM198610-198708

sub31210-30231

main31210-26060iYH53,56,63,66,73..MTM198610-198807

sub31210-26100

main31210-26070iYH60198702-198807

sub31210-22121

main31210-30190iYH51,61,71198212-198308

sub31210-30191

main31210-30191iYH51,61,71..MTM198308-198610

sub31210-26050

main31210-35060iYH53,63,73..MTM198608-198610

sub31210-26100

main31210-36029iLH50,60,70,YH50,60..MTM198212-198702

sub31210-36200

31216SPRING, CLUTCH RETRACTING

main31216-14010iYH51,61,71..MTM198212-198708

main31216-30010iLH50,51,60,61,7#,YH50,60..MTM198212-198807

31221PLATE, CLUTCH PRESSURE

main31221-39056iLH50,51,60,61,7#,YH50,60..MTM198212-198807

sub31221-36025

main31221-39135iYH51,61,71..MTM198212-198610

sub31221-30120

31226BOLT, CLUTCH PRESSURE PLATE

main90101-08022iYH51,61,71198212-198608

main90101-08350iLH50,60,70,YH50,60..MTM198212-198308

sub90101-08022

main91611-60816iLH5#,6#,71,YH5#,6#,73..MTM198608-198807

sub91611-B0816

31231HUB, CLUTCH RELEASE BEARING

main31231-20090iLH51,61,71..5H198401-198708

main31231-26010iYH5#,6#,71..MTM198212-198401

main31231-30080iLH50,60,70..5H198212-198401

main31231-35030iLH56,66,YH56,66198608-198708

main31231-36070iYH50,51,53,60,61,63,7#..MTM198401-198807

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iLH5#,6#,7#,YH5#,6#,7#..MTM198212-198807

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010iLH51,61,71,YH50,51,53,60,61,63,7#..MTM198212-198807

main31232-30020iLH50,60,70..5H198212-198401

main31232-35010iLH56,66,YH56,66198608-198708

31236BALL, RELEASE FORK

main31236-25010iLH50,60,70..5H198212-198401

main31236-30060iLH51,61,71,YH50,51,53,60,61,63,7#..MTM198401-198807

main31236-35020iYH5#,6#,71..MTM198212-198401

main31236-35030iLH56,66,YH56,66198608-198708

31240FORK ASSY, CLUTCH RELEASE

main31204-20070iYH5#,6#,71..MTM198401-198508

sub31204-20072

main31204-20071iYH50,51,53,60,61,63,7#..MTM198508-198807

main31204-20090iYH5#,6#,71..MTM198212-198708

main31204-26010iLH50,60,70..5H198212-198401

main31204-35030iLH56,66,YH56,66198608-198708

sub31204-35031

31250DISC ASSY, CLUTCH

main31250-20130iYH50,60..MTM198212-198406

sub31250-20131

main31250-26050iLH5#,6#,7#..5H198212-198408

sub31250-26051

main31250-26051iLH51,61,71..5H198408-198708

sub31250-26052

main31250-26060iYH51,53,61,63,7#..MTM198212-198708

sub31250-26061

main31250-26062iYH53,63..MTM198708-198807

sub31250-30381

main31250-26090iYH50,60198406-198702

sub31250-26091

main31250-26091iYH60198702-198807

sub31250-25122

main31250-26130iLH56,66198608-198708

sub31250-26131

main31250-30380iYH56,66198612-198708

sub31250-30381

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLH5#,6#,7#,YH5#,6#,7#..MTM198212-198807

sub90363-12024

9011908026

main90119-08026

9015960139

main90159-60139

9015960261

main90159-60261

9017008197

main90170-08197

9451200800

main94512-00800

18 parts on this diagram · 2 diagrams in section
