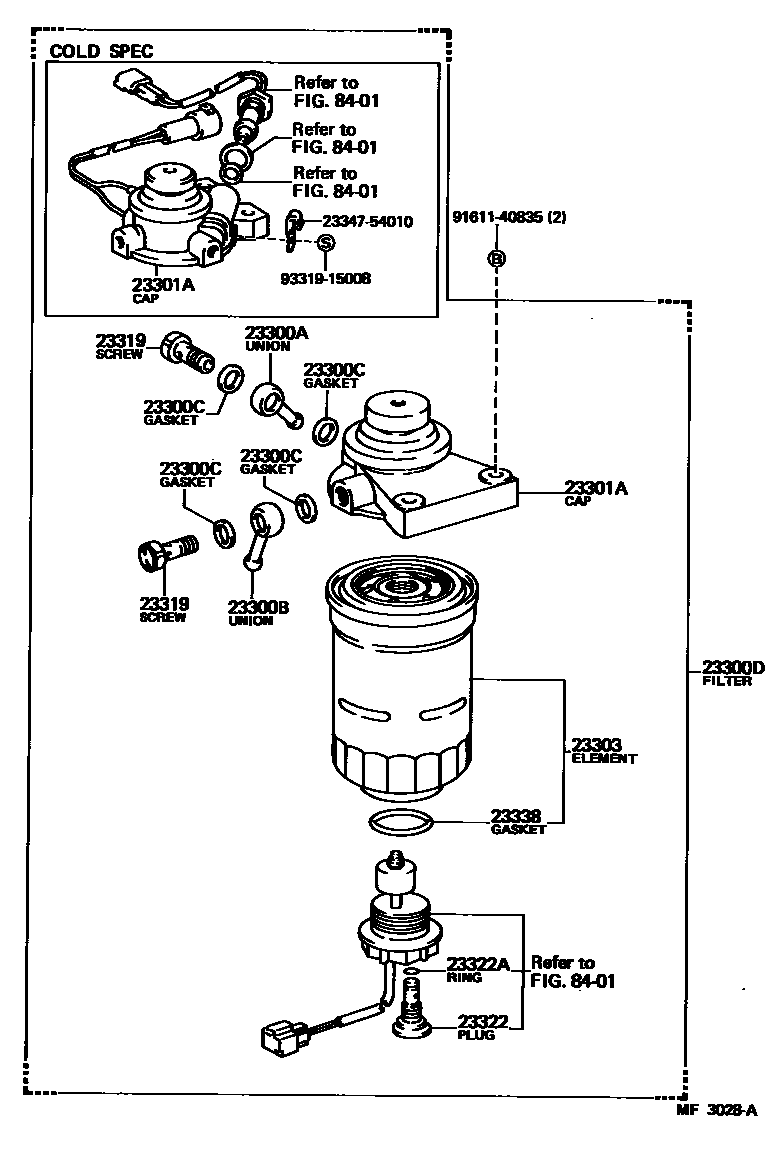

FUEL FILTER

0001 1 0002 1 0003 1

23300FILTER ASSY, FUEL

main23300-26060i2Y#,3Y,4Y..YH5#,6#,71198212-198807

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main90405-08016iL,2L..LH5#,6#,7#198212-198608

23300BUNION, NIPPLE(FOR FUEL FILTER OUTLET)

main90405-08016iL,2L..LH5#,6#,7#198212-198608

23300CGASKET, NIPPLE UNION(FOR FUEL)

main22447-47030iL,2L..LH5#,6#,7#198212-198608

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-54130iL,2L..LH5#,6#,7#198212-198608

sub23303-64010

sub23301-54190

sub84461-26020

23301ACAP ASSY, FUEL FILTER

main23301-54130i2L..LH51,61..EUR198508-198608

COLD SPEC

main23301-54190i2L..LH5#,6#,71198608-198708

main23301-54250i2L..LH5#,6#..EUR198608-198708

COLD SPEC

main23301-64010iL,2L..LH5#,6#,7#198212-198608

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010iL,2L..LH5#,6#,7#198212-198708

23319SCREW, FUEL PIPE FOLLOW

main90099-18011iL,2L..LH5#,6#,7#198212-198608

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64020iL,2L..LH5#,6#,7#198212-198708

23322ARING, O(FOR DRAIN PLUG)

main23344-54010iL,2L..LH5#,6#,7#198212-198708

23338GASKET(FOR WARNING SWITCH)

main23344-64010iL,2L..LH5#,6#,7#198212-198708

8401

2334754010CLIP, CORD

main23347-54010

9161140835

main91611-40835

9331915008

main93319-15008

15 parts on this diagram · 3 diagrams in section
