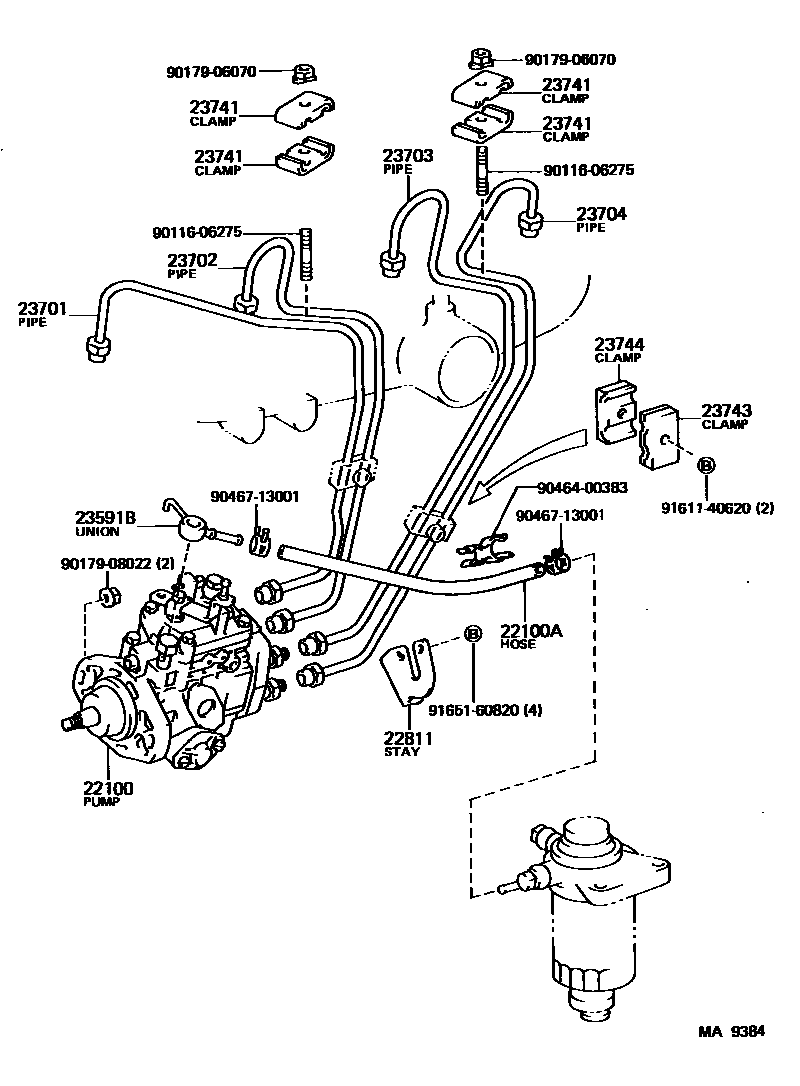

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54111iL..LH50..4HC198212-198401

sub22100-54112

sub90099-05166

main22100-54131iL..LH50,60,70..5H198212-198401

sub22100-54132

sub90099-05166

main22100-54141iL..LH50,60..LHD..GEN198212-198310

HIGH ALTITUDE SPEC

sub22100-54142

main22100-54142iL..LH50,60..LHD..GEN198310-198401

HIGH ALTITUDE SPEC

sub22100-54143

sub90099-05166

main22100-54310i2L..LH51,61..5H..(EUR,GEN)198401-198607

sub22100-54340

main22100-54311i2L..LH5#,6#..MTM..(EUR,GEN)198607-198708

sub22100-54341

main22100-54340i2L..LH51,61,71..5H..ARL198508-198607

main22100-54341i2L..LH51,61,71..5H..ARL198607-198708

main22100-54350i2L..LH51,61..GEN198401-198501

HIGH ALTITUDE SPEC

sub22100-54360

main22100-54351i2L..LH51,61..GEN198607-198708

HIGH ALTITUDE SPEC

sub22100-54361

main22100-54360i2L..LH51,61..GEN198501-198607

HIGH ALTITUDE SPEC

main22100-54370i2L..LH51,61..4HC198401-198607

sub22100-54380

main22100-54371i2L..LH51,61..4HC..N1198607-198708

sub22100-54381

main22100-54380i2L..LH51,61..4HC..ARL198508-198607

main22100-54381i2L..LH51,61..4HC..ARL198607-198708

main22100-54441i2L..LH61..RHD..(06S,15S)198707-198708

MALAYSIA SPEC

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main90447-14005iL,2L..LH50,51,60,61,7#198212-198708

main95332-08040i2L..LH56,66198608-198702

L=400(*H,L=320)

sub95333-08040

main95333-08040i2L..LH56,66198702-198708

L=400(*H,L=320)

sub95337-08040

22811STAY, INJECTION PUMP, NO.1

main22811-54040iL,2L..LH5#,6#,7#198212-198708

sub22811-54041

23591BUNION(FOR INJECTION PUNP INLET)

main23591-54010iL,2L..LH5#,6#,7#198212-198708

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54051iL..LH50,60,70198212-198311

main23701-54082iL,2L..LH5#,6#,7#198311-198708

sub23701-54072

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54050iL..LH50,60,70198212-198311

main23702-54081iL,2L..LH5#,6#,7#198311-198708

sub23702-54071

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54050iL,2L..LH5#,6#,7#198212-198708

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54050iL,2L..LH5#,6#,7#198212-198708

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010iL,2L..LH5#,6#,7#198212-198708

23743CLAMP, INJECTION PIPE, NO.3

main23741-54010iL,2L..LH5#,6#,7#198212-198708

23744CLAMP, INJECTION PIPE, NO.4

main23742-54010iL,2L..LH5#,6#,7#198212-198708

9011606275

main90116-06275

9017906070

main90179-06070

9017908022

main90179-08022

9046400383

main90464-00383

9046713001

main90467-13001

9161140620

main91611-40620

9165160820

main91651-60820

18 parts on this diagram · 1 diagram in section
