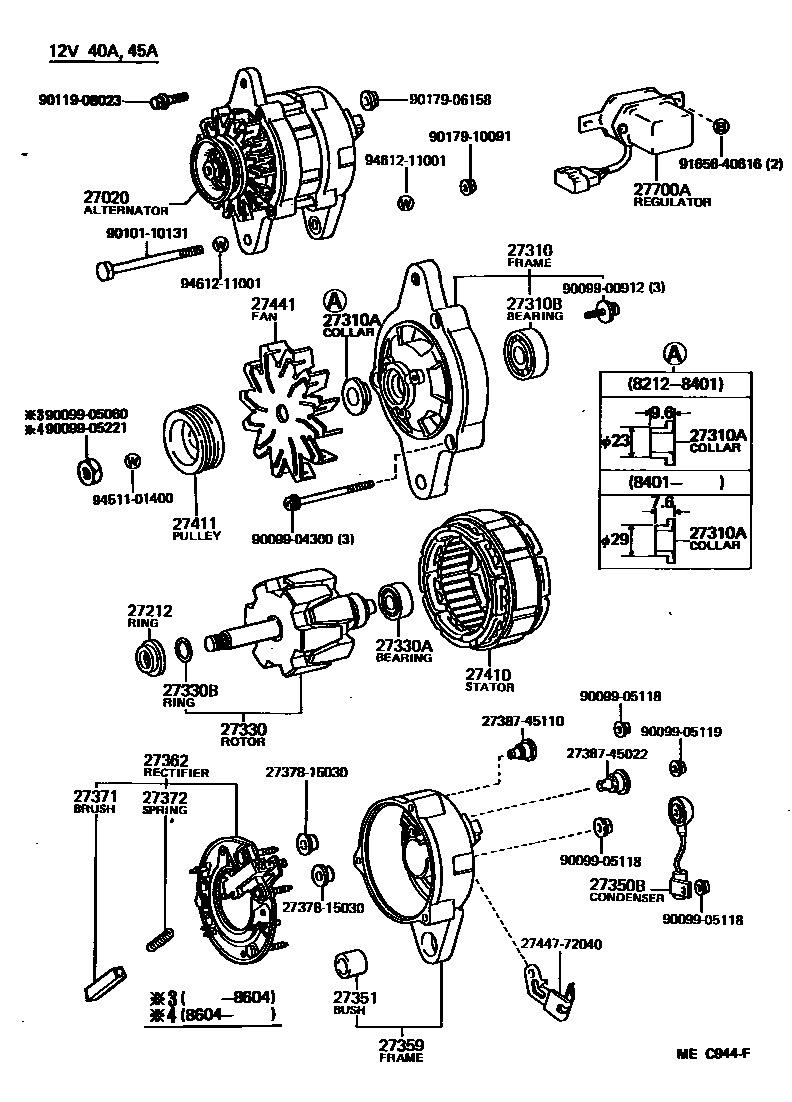

ALTERNATOR

0001 1 0002 1 0003 1 0004 1

27020ALTERNATOR ASSY

main27020-54160iL,2L..LH50,51,60,61..COM..GEN198212-198708

12V 55A,12V 55A

main27020-54200i2L..LH51,61..GEN198212-198708

12V 45A,12V 45A

main27020-54210iL..LH50,60..EUR198212-198708

12V 50A,12V 50A

sub27020-54160

main27020-72010i2Y..YH50,60..RHD..V4D..VSP..GEN198212-198807

12V 55A,12V 55A

main27020-72030i2Y,3Y..YH50,61..MTM..EUR198212-198807

12V 40A,12V 40A

main27020-72050i2YC,3Y..YH5#,61,71198212-198807

12V 45A,12V 45A

main27020-72060i2Y..YH50,60..RHD..COM;2Y..YH50..RHD..VSP..GEN198212-198708

12V 50A,12V 50A

sub27020-72010

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i3Y..YH51..STD..SA198401-198807

12V 45A

main27212-39050i2Y,3Y..YH50,61..MTM..EUR198401-198807

12V 40A

main27212-39050i2Y#,3Y..YH5#,6#,71198212-198401

12V 40A,45A

main27333-57060iL,2L..LH5#,6#,7#198212-198708

12V 45A,50A,55A

main27412-15150i3Y..YH61..RHD..15S;3Y..YH51..RHD..(03S,12S)..GEN198604-198708

12V 50A

main27412-15150i2Y,3Y..YH50,51,60,61..COM..GEN198604-198708

12V 55A

main27412-45070i3Y..YH51..5H..M1;2Y,3Y..YH50,6#..EUR;3Y..YH51..(03S,06S,09S,12S)..EUR198212-198608

12V 50A

main27412-45070i3Y..YH51..5H..M1;2Y,3Y..YH50,6#..EUR;3Y..YH51..(03S,06S,09S,12S)..EUR198212-198807

12V 55A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-15030i2Y#,3Y..YH5#,6#,71198212-198401

12V 40A,45A

main27310-45110i2Y..YH50,60..EUR198212-198311

12V 50A

main27310-45110i2Y..YH50,60..COM..GEN198212-198311

12V 55A

main27310-54110i2L..LH51,61..GEN198212-198708

12V 45A

sub27310-54111

main27310-54130i2L..LH51,61..R,U;L..LH50..12S..GEN;L,2L..LH50,56,66..EUR;L,2L..LH51,60,61..09S,12S,15S;L,2L..LH51,60,61..(03S,06S)..N1198212-198708

12V 50A,55A

sub27310-54131

main27310-54130i2L..LH51,61..4HC;2L..LH51,61,71..5H..ARL198310-198708

12V 55A

sub27310-54131

main27310-72030i2Y,3Y..YH50,61..MTM..EUR198401-198807

12V 40A

main27310-72030i3Y..YH51..STD..SA198401-198807

12V 45A

main27310-72040i2Y..YH50,60..EUR198311-198401

12V 50A

sub27310-72041

sub27412-16030

main27310-72040i2Y..YH50,60..COM..GEN198311-198401

12V 55A

sub27310-72041

sub27412-16030

main27310-72041i3Y..YH51,61..RHD..V4D..VSP198401-198807

12V 55A

main27310-72041i2Y,3Y..YH50,51,60,61..COM..GEN198401-198708

12V 50A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-16030i2Y,3Y..YH5#,6#,71198401-198604

12V 40A,45A,50A,55A

main27412-16040i2Y,3Y,4Y..YH5#,6#,71198604-198807

12V 40A,45A,50A,55A

main27412-31040i2Y#,3Y..YH5#,6#,71198212-198311

12V 40A,45A,50A,55A

main27412-31040i2Y#,3Y..YH5#,6#,71198311-198401

12V 40A,45A

main27412-57060iL,2L..LH5#,6#,7#198212-198708

12V 45A,50A,55A

main27412-63030i2Y..YH50,60..RHD..V4D..VSP..GEN198311-198401

12V 55A

main27412-63030i2Y..YH50,60..RHD..V4D..VSP..GEN198311-198401

12V 50A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10125i2Y..YH50,60..COM..GEN198212-198311

12V 55A

main90099-10125i2Y..YH50,60..COM..GEN198212-198311

12V 50A

main90099-10125i2YC,3Y..YH5#,61,71198212-198401

12V 45A

main90099-10125i2YC,3Y..YH5#,61,71198212-198401

12V 40A

main90099-10137iL,2L..LH5#,6#,7#198212-198708

12V 45A,50A,55A

main90099-10142i2Y..YH50,60..COM..GEN198311-198401

12V 55A

sub90099-10223

main90099-10142i2Y..YH50,60..COM..GEN198311-198401

12V 50A

sub90099-10223

main90099-10142i2Y,3Y,4Y..YH5#,6#,71198401-198807

12V 40A,45A,50A,55A

sub90099-10223

27330ROTOR ASSY, ALTERNATOR

main27330-16030i3Y..YH61..RHD..15S;3Y..YH51..RHD..(03S,12S)..GEN198608-198708

12V 50A

main27330-26050i2Y..YH50,60198212-198807

12V 40A

main27330-45020i2YC,3Y..YH5#,61,71198212-198807

12V 45A

main27330-45070i3Y..YH51..VSG..5H..EUR;2Y,3Y,4Y..YH50,56,60,61,66..EUR;3Y..YH51..(03S,06S,09S,12S)..EUR198212-198708

12V 50A

sub27330-16030

main27330-54200iL..LH50,60,70..ARL,GEN198212-198708

12V 45A

main27330-63010i2Y..YH60..HRF198212-198807

12V 55A

main27330-64010i2L..LH51,61..R,U;L..LH50..12S..GEN;L,2L..LH50,56,66..EUR;L,2L..LH51,60,61..09S,12S,15S;L,2L..LH51,60,61..(03S,06S)..N1198212-198708

12V 50A,55A

main27330-64010iL,2L..LH50,51,60,61..RHD..V4D..VSP..GEN198310-198708

12V 55A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i2Y#,3Y,4Y..YH5#,6#,71198212-198708

12V 40A,45A,50A,55A

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048i3Y..YH51..STD..SA198401-198807

12V 45A

main90099-07048i2Y,3Y..YH50,61..MTM..EUR198401-198807

12V 40A

main90099-07048i2Y#,3Y..YH5#,6#,71198212-198401

12V 40A,45A

main90099-07103iL,2L..LH5#,6#,7#198212-198708

12V 45A,50A,55A

27350FRAME ASSY, RECTIFIER END

main27350-54130i2L..LH51,61..R,U;L..LH50..12S..GEN;L,2L..LH50,56,66..EUR;L,2L..LH51,60,61..09S,12S,15S;L,2L..LH51,60,61..(03S,06S)..N1198212-198708

12V 50A,55A

main27350-54130i2L..LH51,61..4HC;2L..LH51,61,71..5H..ARL198310-198708

12V 55A

main27350-54190iL..LH50,60,70..ARL,GEN198304-198708

12V 45A

main27350-56140iL..LH50,60,70..ARL,GEN198212-198304

12V 45A

27350BCONDENSER, ALTERNATOR

main90099-52065i2Y#,3Y,4Y..YH5#,6#,71198212-198807

12V 40A,45A,50A,55A

sub90099-52034

main90099-52066iL..LH50,60,70..ARL,GEN198212-198304

12V 45A

sub90099-52035

main90099-52082iL,2L..LH51,60,61..RHD..V198310-198611

12V 55A

main90099-52082i2L..LH51,61..4HC198304-198611

12V 45A

main90099-52082iL,2L..LH50,51,60,61..COM198212-198611

12V 50A,55A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i2Y#,3Y,4Y..YH5#,6#,71198212-198807

12V 40A,45A,50A,55A

main27351-56013iL,2L..LH5#,6#,7#198212-198708

12V 45A,50A,55A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-72010i3Y..YH51,61..RHD..V4D..VSP198212-198807

12V 55A

main27359-72010i2Y..YH60..HRF198212-198708

12V 50A

main27359-72030i2Y#,3Y..YH5#,6#,71198212-198401

12V 40A,45A

main27359-72030i2Y,3Y..YH50,61..MTM..EUR198401-198807

12V 40A

main27359-72030i3Y..YH51..STD..SA198401-198807

12V 45A

27362RECTIFIER ASSY, W/BRUSH

main27362-15022i3Y..YH61..RHD..15S;3Y..YH51..RHD..(03S,12S)..GEN198212-198708

12V 50A

main27362-18011i4Y..YH53..STD..SA198401-198807

12V 45A

main27362-18011i2Y#,3Y..YH5#,6#,71198212-198401

12V 40A,45A

main27362-18011i2Y,3Y..YH50,61..MTM..EUR198401-198807

12V 40A

main27362-63011i2Y,3Y..YH50,51,60,61..COM..GEN198212-198807

12V 55A

main27362-63011i2Y..YH60..HRF198508-198608

27371BRUSH, ALTERNATOR

main27371-31011i2Y#,3Y,4Y..YH5#,6#,71198212-198807

12V 40A,45A,50A,55A

main27371-56070iL,2L..LH5#,6#,7#198212-198708

12V 45A,50A,55A

sub27371-54412

27372SPRING, ALTERNATOR BRUSH

main27372-31011i2Y#,3Y,4Y..YH5#,6#,71198212-198807

12V 40A,45A,50A,55A

main27372-56070iL,2L..LH5#,6#,7#198212-198708

12V 45A,50A,55A

27410STATOR ASSY, ALTERNATOR

main27410-15030i2Y..YH50,60198212-198807

12V 40A

sub27410-38120

main27410-38120i3Y..YH51..STD..SA198212-198807

12V 45A

main27410-41080i2L..LH5#,6#..MTM..EUR198212-198708

12V 50A

main27410-43040i2L..LH51,61..COM..GEN198212-198807

12V 55A

main27410-54200iL..LH50,60,70..ARL,GEN198212-198408

12V 45A

main27410-64010i2L..LH51,61..4HC;2L..LH51,61,71..5H..ARL198212-198408

12V 55A

main27410-64020iL..LH50,60..EUR198212-198408

12V 50A

main27410-64090i2L..LH51,61..GEN198408-198708

12V 45A

sub27410-54380

27411PULLEY, ALTERNATOR

main27411-54170iL,2L..LH5#,6#,7#198212-198708

12V 45A,50A,55A

sub27411-54171

main27411-72040i2Y#,3Y,4Y..YH5#,6#,71198212-198807

12V 40A,45A,50A,55A

27441FAN, ALTERNATOR

main27441-34030i2Y,3Y..YH50,51,60,61..GEN,SA198401-198807

12V 40A

main27441-34030i2Y#,3Y..YH5#,6#,71198212-198401

12V 40A,45A

main27441-34030i4Y..YH53..STD..SA198401-198807

12V 45A

main27441-56090iL,2L..LH5#,6#,7#198212-198708

12V 45A,50A,55A

main27441-63030i4Y..YH63,73;4Y..YH53..5H..GL;4Y..YH53..4FC,4H,4HC,5F198212-198807

12V 55A

main27441-63030i2Y..YH50,60..RHD..COM;2Y..YH50..RHD..VSP..GEN198212-198708

12V 50A

main27741-63030i2Y..YH60..HRF198508-198608

12V 55A

27700AREGULATOR ASSY, GENERATOR

main27700-13040iL,2L,2Y#,3Y,4Y..LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD198212-198807

main27700-35030iL,2L,2Y,3Y..LH5#,6#,YH5#,6#..LHD198212-198411

sub27700-13080

main27700-72020i3Y..YH51..VSG..5H..EUR;3Y..YH51..LHD..(03S,06S,09S,12S)..EUR;2L,2Y,3Y,4Y..LH5#,6#,YH50,56,61,66..LHD..EUR198411-198708

W/HALOGEN HEADLAMP

sub27700-72021

main27700-72060i2L,2Y,3Y,4Y..LH5#,6#,YH50,51,56,60,61,66..LHD198411-198708

sub27700-13080

2737815030INSULATOR, ALTERNATOR, NO.1

main27378-15030

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

2744772040CLIP, ALTERNATOR CORD

main27447-72040

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9009905221

main90099-05221

9010110131

main90101-10131

9011908023

main90119-08023

9017906158

main90179-06158

9017910091

main90179-10091

9165640616

main91656-40616

9451101400

main94511-01400

9461211001

main94612-11001

36 parts on this diagram · 4 diagrams in section
