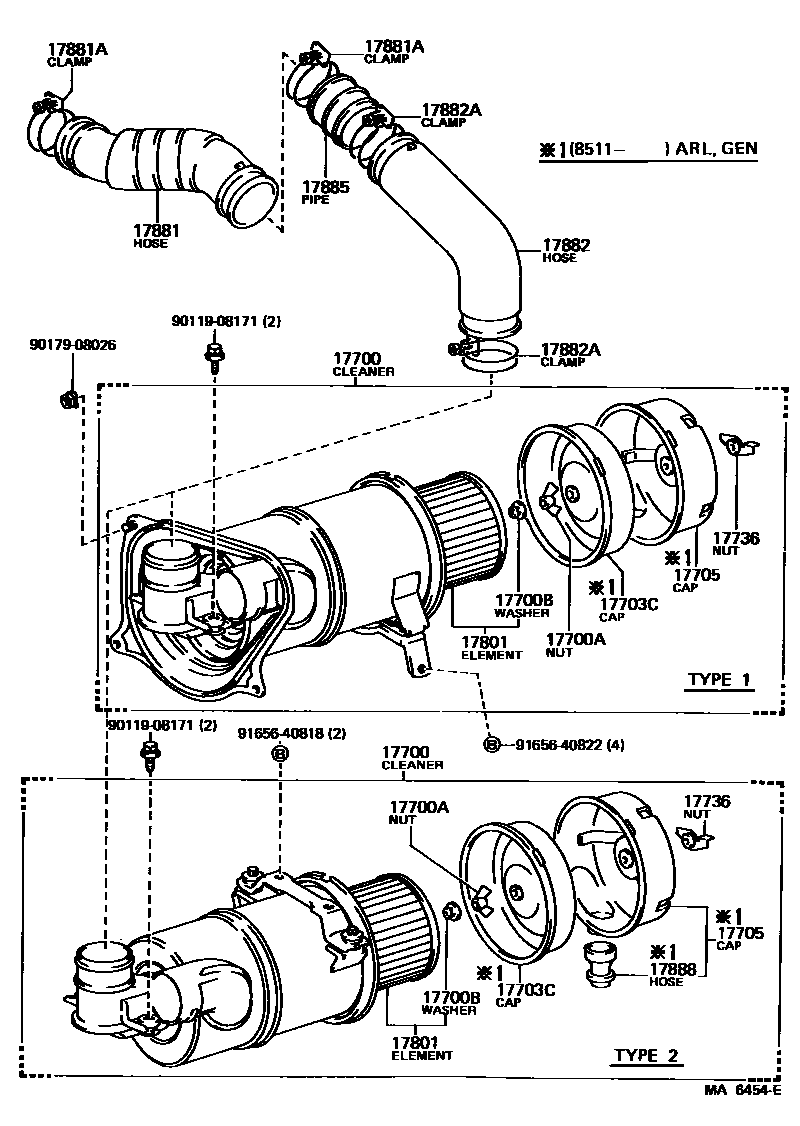

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

17700CLEANER ASSY, AIR

main17700-54220i3Y..YH61..V4D..VSG..03S..N1198405-198410

*SA

sub17700-73120

main17700-54220iL,2L..LH5#,6#,7#..RHD;L,2L..LH5#,6#..LHD..V5D198212-198708

TYPE 2

sub17700-73120

main17700-54220i3Y..YH61,71..ARL;3Y..YH51..(4FC,4H,5F)..ARL198212-198512

sub17700-73120

main17700-54230i2Y..YH50,60..LHD..V4D..GEN;2Y..YH50,60..LHD..COM..GEN198212-198708

TYPE 1

sub17700-72120

main17700-72030i3Y..YH51,61..RHD..N1198408-198708

SINGAPORE SPEC,TYPE 2

main17700-72030i2Y,3Y..YH5#,6#..V5D..EUR;2Y,3Y..YH5#,6#..RHD..EUR198212-198708

TYPE 2

main17700-72040i3Y..YH61..LHD..V4D..EUR;3Y..YH51,61..LHD..COM..EUR;3Y,4Y..YH51,56,66..VSG..MTM..EUR;3Y..YH51..LHD..V4D..(03S,06S,09S)..N1198212-198708

TYPE 1

main17700-72120i2Y,3Y..YH50,51,60,61..LHD..V4D..GEN;2Y,3Y..YH50,51,60,61..LHD..COM..GEN198511-198708

TYPE 1

main17700-73120i3Y..YH51,61..LHD..V5D..GEN198511-198807

TYPE 2

17700ANUT, WING(FOR AIR CLEANER)

main94271-00800i2Y#,3Y,4Y..YH5#,6#,71198212-198807

17700BWASHER, SEAL(FOR AIR CLEANER)

main90210-08024i2L..LH51,56,61,66,71198212-198807

17703CCAP SUB-ASSY, DUST

main17703-64010i3Y..YH51..4HC..SA;3Y..YH61,71..ARL,SA;3Y..YH51..RHD..V4D..(4FC,4H,5F,5H)198511-198807

17705CAP SUB-ASSY, AIR CLEANER

main17705-54290i2L..LH51,61..RHD..EUR198212-198708

main17705-72020i3Y..YH61..GEN198212-198708

main17705-72020i4Y..YH63..GEN198408-198708

SINGAPORE SPEC

main17705-72060i2L..LH51..LHD..12S;2L..LH51..LHD..V4D..GEN;2L..LH61..LHD..(03S,15S)..GEN198511-198708

main17705-73050i2Y,4Y..YH53,60,63,73..ARL,SA198511-198807

17736NUT, AIR CLEANER CASE

main90175-06003i2L..LH51,56,61,66,71198212-198807

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-64030i3Y..YH51..MTM;3Y..YH51..4HC..SA;2Y#,3Y..YH50,6#,71..ARL,GEN,SA198212-198807

main17801-72010i2Y..YH60..RHD..15S198408-198708

SINGAPORE SPEC

main17801-72010i3Y..YH61..GEN198401-198608

W/HOT AIR INTAKE

main17801-72010i2Y,3Y,4Y..YH50,51,56,60,61,66..EUR198212-198708

17881HOSE, AIR CLEANER, NO.1

main17881-72010i2Y#,3Y,4Y..YH5#,6#,71198212-198807

main17882-54120iL,2L..LH50,51,60,61,7#198212-198708

main17882-54190i2L..LH56,66198608-198708

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690iL,2L..LH5#,6#,7#198212-198708

INTAKE MANIFOLD SIDE

main96111-10780iL,2L..LH5#,6#,7#198212-198708

PIPE SIDE

main96111-10780i2Y#,3Y,4Y..YH5#,6#,71198212-198807

17882HOSE, AIR CLEANER, NO.2

main17881-54170iL,2L..LH5#,6#,7#198212-198708

main17881-74040i2Y..YH60..RHD..15S198502-198708

SINGAPORE SPEC

main17881-74040i2Y..YH50..RHD..GEN198502-198708

main17882-31060i2Y..YH60..RHD..15S198408-198502

SINGAPORE SPEC

sub17882-72040

main17882-31060i2Y,3Y..YH5#,61..EUR198401-198502

sub17882-72040

main17882-72010i2Y..YH50,60..EUR198212-198508

sub17882-31060

main17882-73010i4Y..YH56,66198612-198708

sub17882-73011

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-47036i4Y..YH63..GEN198408-198708

SINGAPORE SPEC

main90460-47036i3Y..YH61..GEN198212-198708

main96111-10780iL,2L..LH5#,6#,7#198212-198708

17885PIPE, AIR CLEANER

main17885-54080iL,2L..LH5#,6#,7#198212-198708

17888HOSE, AIR CLEANER DUST DRAIN

main17882-73010i3Y..YH51,61..LHD..V5D..GEN198512-198807

sub17882-73011

main17888-73010i3Y..YH51..4HC..SA;2Y..YH50,60..LHD..V5D..GEN;2Y,3Y..YH5#,60,71..RHD..(4FC,4H,5F,5H)..(ARL,GEN,SA)198511-198708

9011908171

main90119-08171

9017908026

main90179-08026

9165640818

main91656-40818

9165640822

main91656-40822

17 parts on this diagram · 4 diagrams in section
